| Main Chamber Dimension (L×B×H) | 1200 × 800 × 700mm |
| Material Thickness | 6 mm |
| H₂O and O₂ Content | 200 to 300 PPM |
| Side Door Dimension (L×B) | 400 × 400mm |
| Ball Valve | 304 Stainless Steel balloon valve with integrated water nozzles for air or water entry |
| Power Socket | Multi hole power sockets |
| Reserved Interface | KF reserved interface |
| Packing Dimension (L×B×H) | 1580 × 920 × 920mm |
| Net Weight | 56kg |

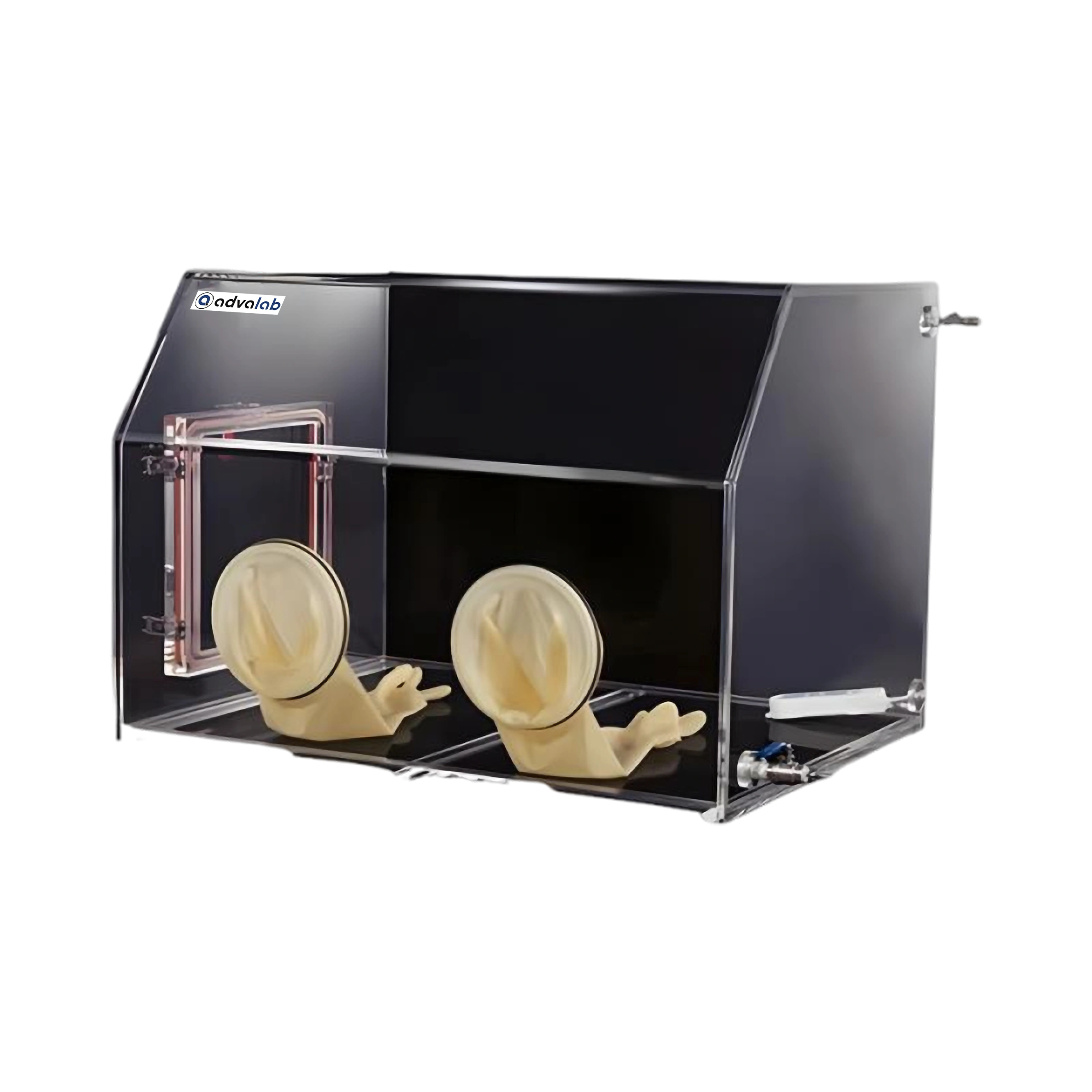

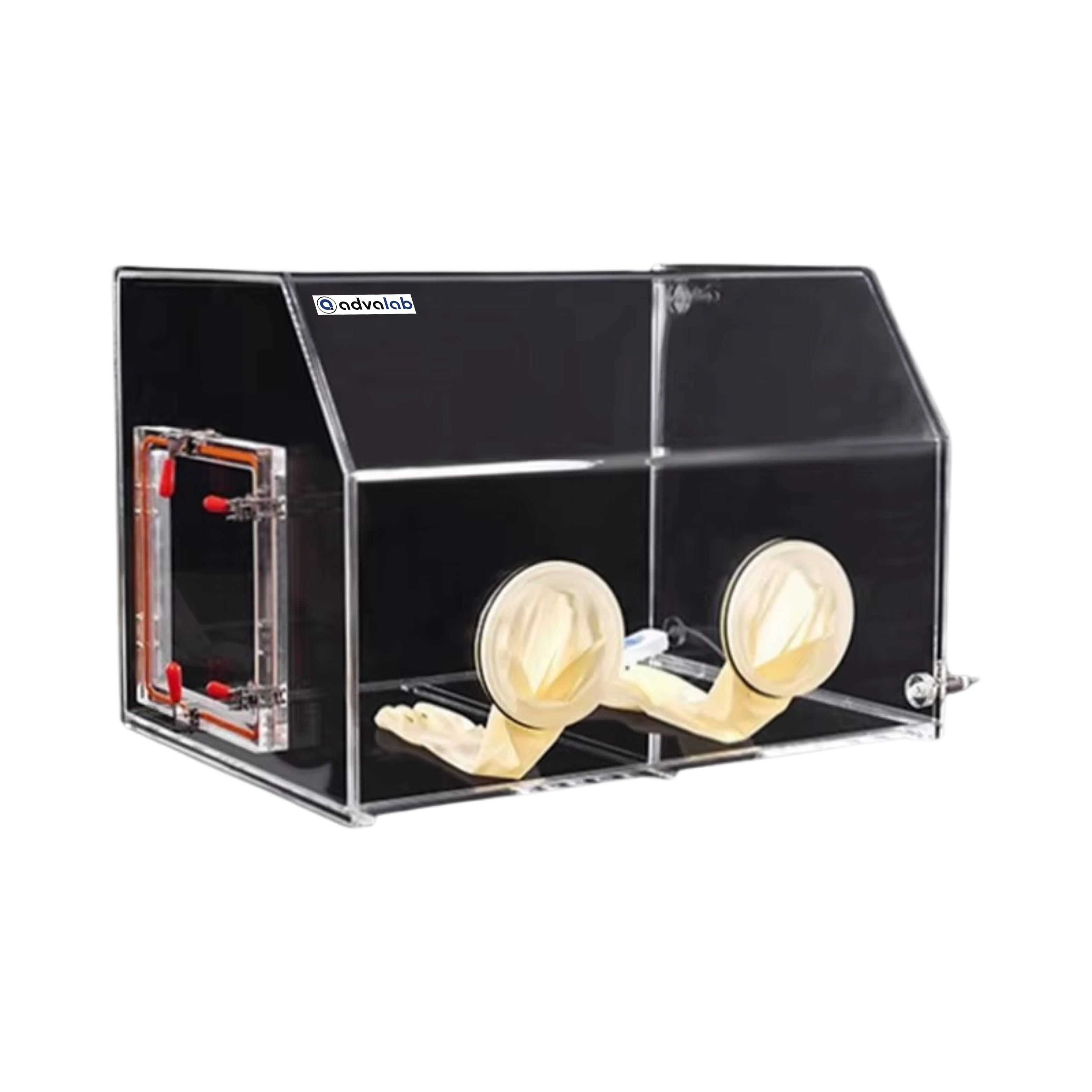

Acrylic Glove Box ADAGB-507 is used in pharmaceutical labs, biotechnology facilities, and quality control departments to protect samples during testing and development.
1. How does the valve in Acrylic Glove Box ADAGB-507 maintain the controlled environment?
The ball valves provide a tight seal for air and water entry, preventing leaks and contamination. This ensures the main chamber retains its low H?O and O? environment, allowing sensitive experiments to be conducted safely and reliably without environmental disruption.
2. Are the power sockets in Acrylic Glove Box ADAGB-507 safe to use inside the chamber?
Yes, the sockets in Acrylic Glove Box ADAGB-507 are installed with proper insulation and safety measures, enabling secure operation of instruments inside the glove box. They prevent electrical hazards while maintaining the sealed, low-moisture, low-oxygen environment.
3. Are the gloves of the Acrylic Glove Box ADAGB-507 resistant to chemicals?
Yes, the industrial-grade latex gloves of Acrylic Glove Box ADAGB-507 are corrosion-resistant, allowing safe handling of a wide range of chemicals and reactive materials without compromising user safety or the integrity of the glove box environment.
4. Can additional equipment be added to the Acrylic Glove Box ADAGB-507 in the future?
Yes, the KF interface in Acrylic Glove Box ADAGB-507 supports future expansion. Users can integrate new devices or experimental setups safely, allowing the glove box to adapt to evolving research needs without replacing the entire system.
5. Why is the side door of Acrylic Glove Box ADAGB-507 important?
The side door of Acrylic Glove Box ADAGB-507 allows secure loading and unloading of materials while maintaining the chamber’s low-H?O and low-O? conditions, preventing contamination and preserving experimental accuracy.
6. Why choose acrylic material for a glove box?
Acrylic is an ideal choice because it is lightweight yet highly durable, offering long-lasting performance. Its excellent transparency ensures clear visibility during experiments, while the smooth, non-porous surface provides strong chemical resistance and makes cleaning simple and efficient.
7. Can an Acrylic Glove Box maintain a controlled atmosphere?
Yes, Acrylic Glove Boxes can be equipped with gas inlet/outlet ports and purging systems that allow operation under inert gas or low-humidity conditions. This ensures safe handling of moisture-sensitive, air-sensitive, or hazardous materials in research and industrial processes.
8. Is the Acrylic Glove Box easy to clean and maintain?
Yes, the non-porous acrylic surface makes the glove box simple to clean and maintain. Regular wiping with suitable cleaning agents keeps it clear and contamination-free, ensuring durability and hygiene for long-term laboratory or industrial use without compromising performance.
| Main Chamber Dimension (L×B×H) | 700 × 450 × 550 mm |
| Antechamber Dimension(L×B×H) | 260 × 260 × 260mm |
| H₂O and O₂ Content | 200 to 300 PPM |
| Main Chamber Dimension (L×B×H) | 1000 × 750 × 700mm |
| Material Thickness | 6 mm |
| H₂O and O₂ Content | 200 to 300 PPM |
| Main Chamber Dimension (L×B×H) | 800 × 550 × 600 mm |
| Antechamber Dimension (L×B×H) | 260 × 260 × 260mm |
| H₂O and O₂ Content | 200 to 300 PPM |
| Main Chamber Dimension (L×B×H) | 1200 × 800 × 700 mm |
| Antechamber Dimension(L×B×H) | 260 × 260 × 260mm |
| H₂O and O₂ Content | 200 to 300 PPM |
| Main Chamber Dimension (L×B×H): | 1120 × 750 × 900mm |
| Thickness : | 3mm |
| Vacuum Degree: | -0.1mpa |
| Main Chamber Dimension (L×B×H): | 1120 × 750 × 900mm |
| Thickness : | 3mm |
| Vacuum Degree: | -0.1mpa |
| Main Chamber Dimension (L×B×H): | 600 × 450 × 450mm |
| Thickness : | 3mm |
| Vacuum Degree: | -0.1mpa |
| Material: | Stainless steel |
| Air Lock Size: | 200 mm dia. x 260 mm length |
| Main Chamber Size: | 550 mm (W) x 440 mm (D) x 410 mm (H) |
| Main Chamber Dimension (L×B×H): | 600 × 450 × 450mm |
| Thickness : | 3mm |
| Vacuum Degree: | -0.1mpa |
| Main Chamber Dimension (L×B×H): | 800 × 650 × 680mm |
| Thickness : | 3mm |
| Vacuum Degree: | -0.1mpa |
| Main Chamber Dimension (L×B×H): | 800 × 650 × 680mm |
| Thickness : | 3mm |
| Vacuum Degree: | -0.1mpa |
| Working Gas: | Nitrogen, argon (gas purity 99.999%) |
| H₂O and O₂ Index: | Less than 1PPM |
| Circulating Capacity: | Integrated fan flow rate of 90m³/h |
| Working Gas: | Nitrogen, argon (gas purity 99.999%) |
| H₂O and O₂ Index: | Less than 1PPM |
| Material: | Stainless steel, 3mm thickness |
| Glove Box Type: | Stainless Steel Glove Box with H₂O & O₂ Purification System |
| Water Concentration: | <1 ppm at 20°C, 1 atm |
| Oxygen Concentration: | <1 ppm at 20°C, 1 atm |
| Working Gas: | Nitrogen, argon (gas purity 99.999%) |
| H₂O and O₂ Index: | Less than 1PPM |
| Circulating Capacity: | Integrated fan flow rate of 90m³/h |
| Working Gas: | Nitrogen, argon (gas purity 99.999%) |
| H₂O and O₂ Index: | Less than 1PPM |
| Circulating Capacity: | Integrated fan flow rate of 90m³/h |
| Working Gas: | Nitrogen, argon (gas purity 99.999%) |
| H₂O and O₂ Index: | Less than 1PPM |
| Circulating Capacity: | Integrated fan flow rate of 90m³/h |
