Acrylic Glove Box ADAGB-505
Acrylic Glove Box ADAGB-505
Acrylic Glove Box ADAGB-505
Acrylic Glove Box ADAGB-505

Acrylic Glove Box ADAGB-505

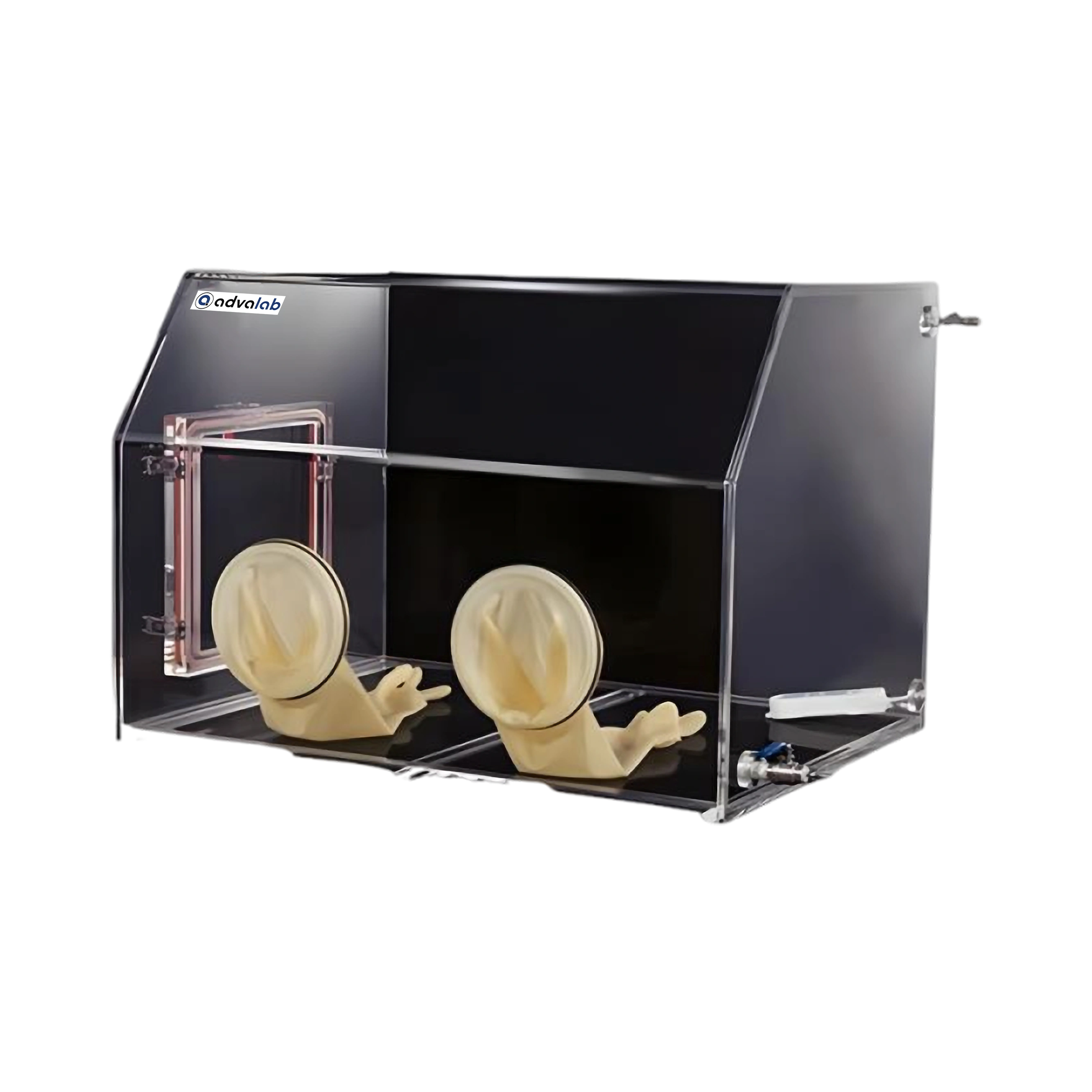

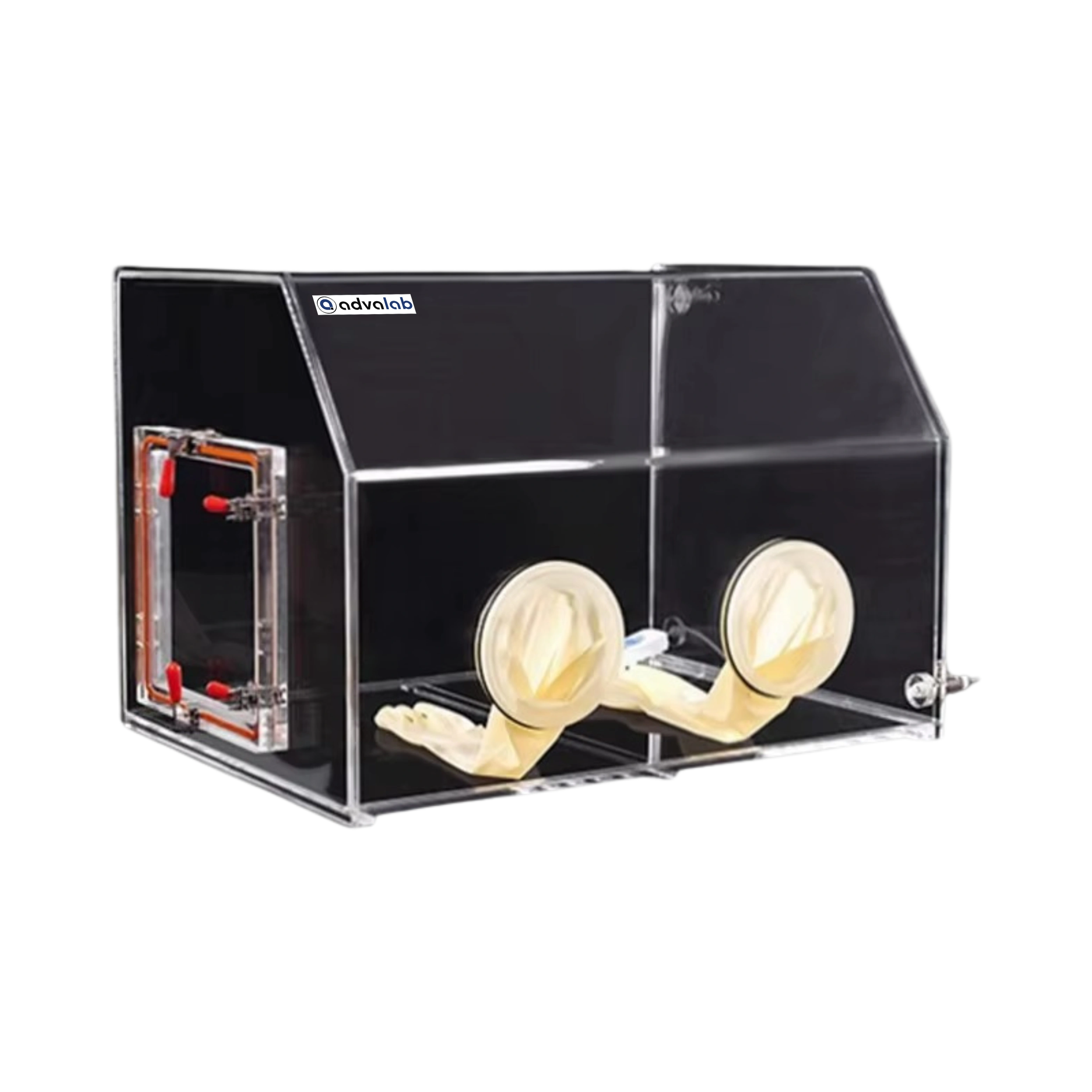

Acrylic Glove Box ADAGB-505 offers a spacious 900 × 600 × 700 mm chamber, providing ample room for sensitive laboratory procedures. It features a durable acrylic construction, providing both robust strength and crystal-clear visibility. Ball valves with internal and external water nozzles enable easy introduction of water or air during processes. A side door ensures convenient access while preserving the controlled atmosphere. Our Acrylic Glove Box is ideal for applications requiring a controlled, low-moisture environment.


Main Chamber Dimension (L×B×H) 900 × 600 × 700mm
Material Thickness 6 mm
H₂O and O₂ Content 200 to 300 PPM
Side Door Dimension (L×B) 400 × 400mm
Ball Valve 304 Stainless Steel balloon valve with integrated water nozzles for air or water entry
Power Socket Multi hole power sockets
Reserved Interface KF reserved interface
Power Supply 220V, 50Hz / 60Hz
Packing Dimension (L×B×H) 1280 × 720 × 920 mm
Net Weight 39kg
  • Sealed glove port
  • Industrial-grade latex
  • Durable box structure
  • Pressure-controlled chamber
  • Chemical-resistant surface

Acrylic Glove Box ADAGB-505 is used in microbiology and analytical laboratories for handling samples that must remain uncontaminated. It ensures accuracy in testing by maintaining a clean and controlled atmosphere.

Frequently Asked Questions of Acrylic Glove Box ADAGB-505

1. What levels of H?O and O? does Acrylic Glove Box ADAGB-505 maintain?

The Acrylic Glove Box ADAGB-505 maintains H?O and O? levels of 200–300 PPM, creating a controlled atmosphere ideal for moisture-sensitive and oxygen-sensitive experiments.

2. What is the purpose of the water nozzles on the valves of the Acrylic Glove Box ADAGB-505?

The inlet and outlet valves of Acrylic Glove Box ADAGB-505 feature internal and external water nozzles, allowing controlled entry of water and air. This ensures effective purging, precise instrument operation, and maintains low H?O and O? levels.

3. What are the multi-hole power sockets in Acrylic Glove Box ADAGB-505 used for?

The multi-hole power sockets inside Acrylic Glove Box ADAGB-505 provide convenient power connections for internal instruments. They allow users to operate devices like analyzers or rotary coating machines safely without compromising the controlled atmosphere inside the chamber.

4. How do the gloves in Acrylic Glove Box ADAGB-505 ensure operator safety?

The gloves in Acrylic Glove Box ADAGB-505 provide a physical barrier between the user and the chamber, preventing direct contact with chemicals. Combined with the airtight sealed ports, they ensure safe, leak-proof handling while preserving the glove box’s low-moisture, low-oxygen environment.

5. Is installation of new devices complicated in the Acrylic Glove Box ADAGB-505?

Installation in Acrylic Glove Box ADAGB-505 is simple. The reserved KF interface allows easy connection of compatible instruments or accessories, minimizing downtime while maintaining continuous operation within the controlled chamber.

6. Why choose acrylic material for a glove box?

Acrylic is an ideal choice because it is lightweight yet highly durable, offering long-lasting performance. Its excellent transparency ensures clear visibility during experiments, while the smooth, non-porous surface provides strong chemical resistance and makes cleaning simple and efficient.

7. Can an Acrylic Glove Box maintain a controlled atmosphere?

Yes, Acrylic Glove Boxes can be equipped with gas inlet/outlet ports and purging systems that allow operation under inert gas or low-humidity conditions. This ensures safe handling of moisture-sensitive, air-sensitive, or hazardous materials in research and industrial processes.

8. Is the Acrylic Glove Box easy to clean and maintain?

Yes, the non-porous acrylic surface makes the glove box simple to clean and maintain. Regular wiping with suitable cleaning agents keeps it clear and contamination-free, ensuring durability and hygiene for long-term laboratory or industrial use without compromising performance.
