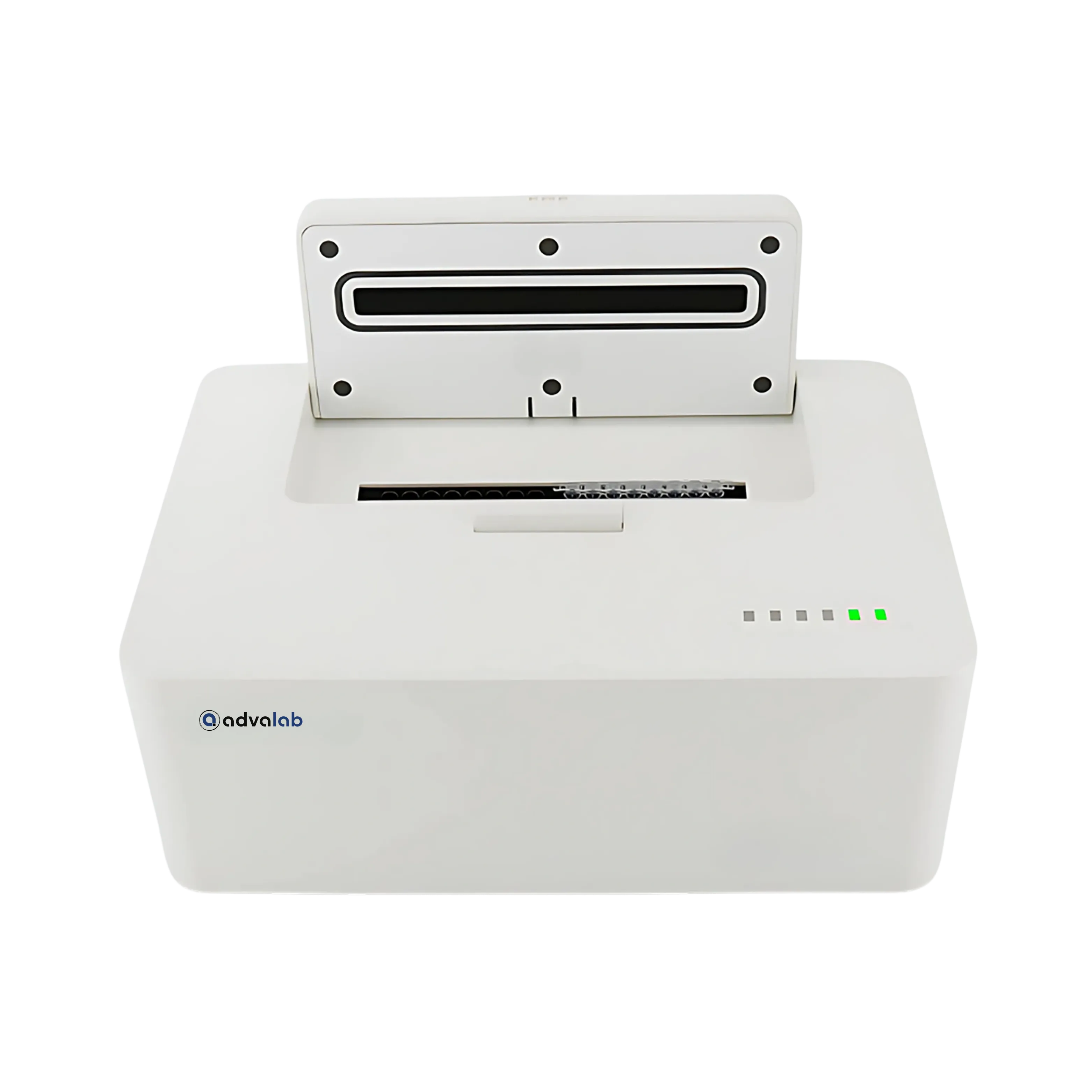

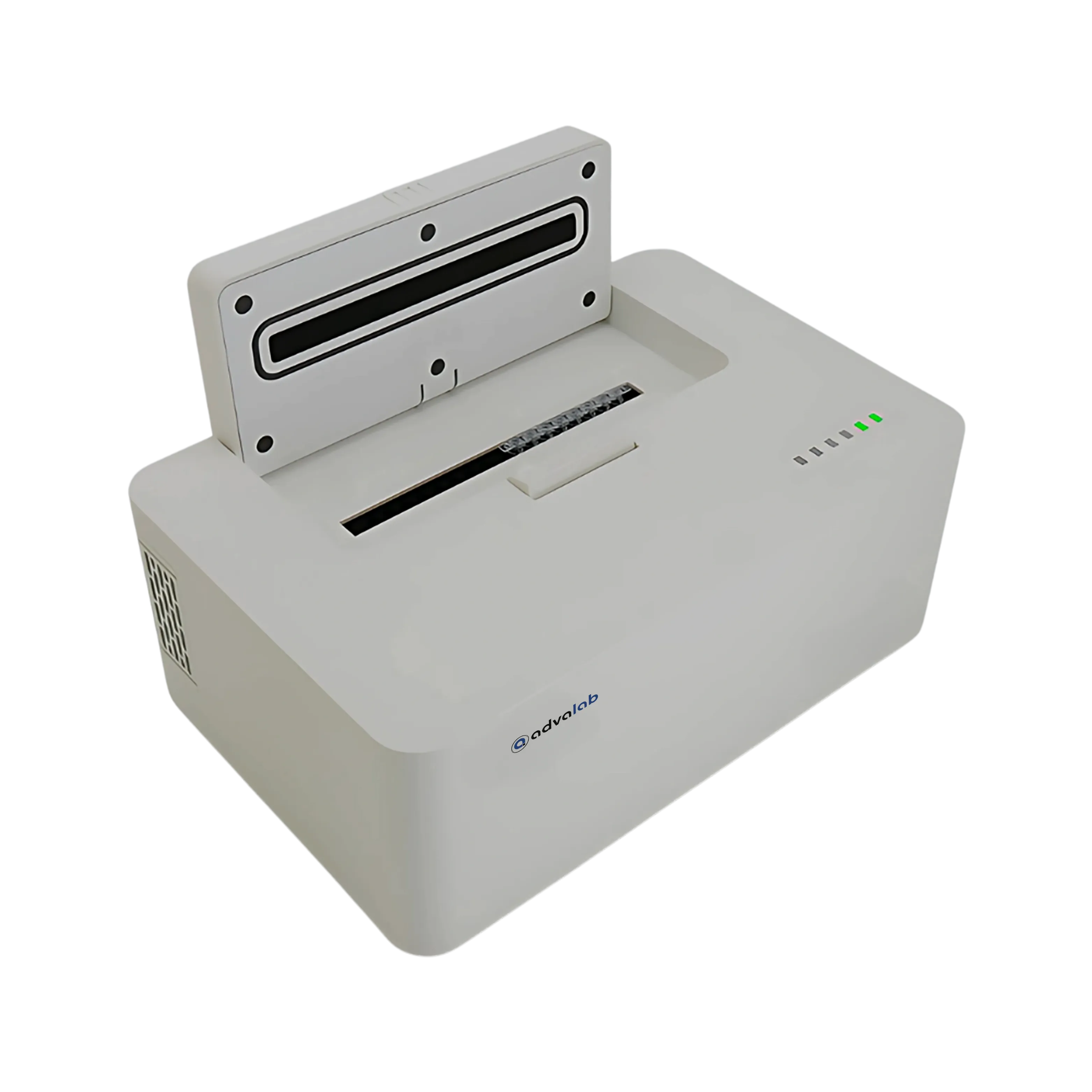

Real-Time PCR Machine ADPCR-501
Real-Time PCR Machine ADPCR-501
Real-Time PCR Machine ADPCR-501
Real-Time PCR Machine ADPCR-501
Real-Time PCR Machine ADPCR-501
Real-Time PCR Machine ADPCR-501

Real-Time PCR Machine ADPCR-501

Real-Time PCR Machine ADPCR-501 features two fluorescence channels for detecting dyes like FAM and HEX. It provides high sensitivity, capable of identifying low-copy nucleic acids. The system ensures precise thermal control for consistent amplification. A built-in UV disinfection function prevents contamination. Our Real-Time PCR Machine is widely used in diagnostics, food safety, forensic analysis, and genetic research.


Fluorescent Channels 2 CH1: FAM/SYBR Green I
CH2: HEX/JOE/VIC
Sensitivity 1 Copy
Temperature Accuracy < 0.2°C
Dynamic Range 1 to 10¹⁰ copies
Block Setting Range 10 to 99.9°C
Reaction Volume 5 to 100 µl
Color Wavelength 400 to 700nm
Uniformity ±0.2°C
Max Ramp Rate >4°C/s
Average Ramp Rate >2.5°C/s (50 to 90°C)
Detection System Dual PD, practical grade for standard PCR workflows
Block Technology ETSC for fast, uniform heating
Control System PC-based, USB/RS232 interface
Contamination Control Built-in UV lamp for aerosol degradation
Sample Compatibility 16 × 0.2 ml tubes or 8-strip
Power Supply 100 to 240V, 300 VA
Product Dimensions (L×W×H) 324 × 212 × 122 mm
Packaging Dimensions (L × W × H) 387 × 302 × 273 mm
Net Weight 5.6 kg
Gross Weight 6.7 kg
  • Fast amplification speed
  • Real-time monitoring
  • Easy software interface
  • Automatic result export
  • Stable thermal block

Real-Time PCR Machine ADPCR-501 are used in clinical diagnostics to detect and quantify pathogens because they provide rapid, accurate, and sensitive analysis of genetic material.

Real-Time PCR Machine ADPCR-501 | Fluorescent Channels	2 CH1: FAM/SYBR Green I CH2: HEX/JOE/VIC | Sensitivity 1 Copy
Real-Time PCR Machine ADPCR-501 | Fast amplification speed | Real-time monitoring

Frequently Asked Questions of Real-Time PCR Machine ADPCR-501

1. How many fluorescent channels are available in Real-Time PCR Machine ADPCR-501?

Real-Time PCR Machine ADPCR-501 features two dedicated fluorescence detection channels CH1 and CH2 engineered to accommodate dyes including FAM, SYBR Green I, HEX, JOE, and VIC. This dual-channel design allows multiplex assays, enabling simultaneous amplification and detection of multiple targets in a single run, improving throughput and data efficiency for complex diagnostic workflows.

2. How sensitive is the Real-Time PCR Machine ADPCR-501?

The Real-Time PCR Machine ADPCR-501 offers ultra-high sensitivity capable of detecting even a single copy of DNA or RNA. This makes it highly reliable for early disease detection, low abundance gene expression analysis, and trace-level pathogen identification in critical research or clinical samples.

3. What temperature accuracy does the Real-Time PCR Machine ADPCR-501 offer?

Real-Time PCR Machine ADPCR-501 delivers precise temperature regulation with a deviation of less than 0.2°C, ensuring uniform conditions across all sample wells. Its advanced thermal block with Edge Temperature Self Compensation maintains stable and consistent heat distribution, minimizing edge effects and improving amplification reproducibility for all reaction types.

4. Does Real-Time PCR Machine ADPCR-501 include contamination control features?

Yes, the Real-Time PCR Machine ADPCR-501 includes a built-in UV disinfection lamp emitting at 70 ?W/cm², designed to eliminate aerosol contaminants and reduce the risk of false positives. This feature is especially beneficial when running high-sensitivity assays, when working in shared laboratory environments where cleanliness is critical.

5. Can the Real-Time PCR Machine ADPCR-501 be used for rapid field testing?

Yes, it is optimized for compactness, speed, and portability, making it ideal for point-of-care diagnostics, veterinary surveillance, environmental screening, and outbreak response scenarios such as avian influenza. Its fast ramp rate and user-friendly software reduce turnaround time, supporting high throughput testing outside traditional labs.

6. What are Real-Time PCR Machines?

Real-Time PCR Machines are high-precision instruments that perform polymerase chain reactions while monitoring the amplification process in real time using fluorescent dyes. These systems provide quantitative data on nucleic acid levels and allow users to track amplification as it happens, making them essential for applications requiring accuracy and speed.

7. Where are Real-Time PCR Machines used?

Real-Time PCR Machines are widely used across various fields, including clinical diagnostics for detecting viruses and bacteria, gene expression studies in research labs, agricultural biotechnology for GMO detection, and environmental testing for microbial contamination. Their ability to deliver rapid and reliable results makes them invaluable in both routine and specialized testing workflows.
