| Specimen Slide Throughput | 400 slides per hour |
| Sample Capacity | 30 slides per rack |
| Rack Capacity | 11 slide racks |
| Reagent Vessels | 36 |
| Number of Reagent Stations | 26 |
| Wash Stations | 5 |
| Incubation Time Setting | 0 sec to 99 min 59 sec |
| Program Memory Capacity | 10 programs |
| Oven Chamber Temperature | 5°C–35 °C |
| Reagent Container Capacity | 500 mL |
| Dimension (W × D × H) | 105 × 61.5 × 59 cm |
| Net Weight | 80 Kg |
| Gross Weight | 150 Kg |

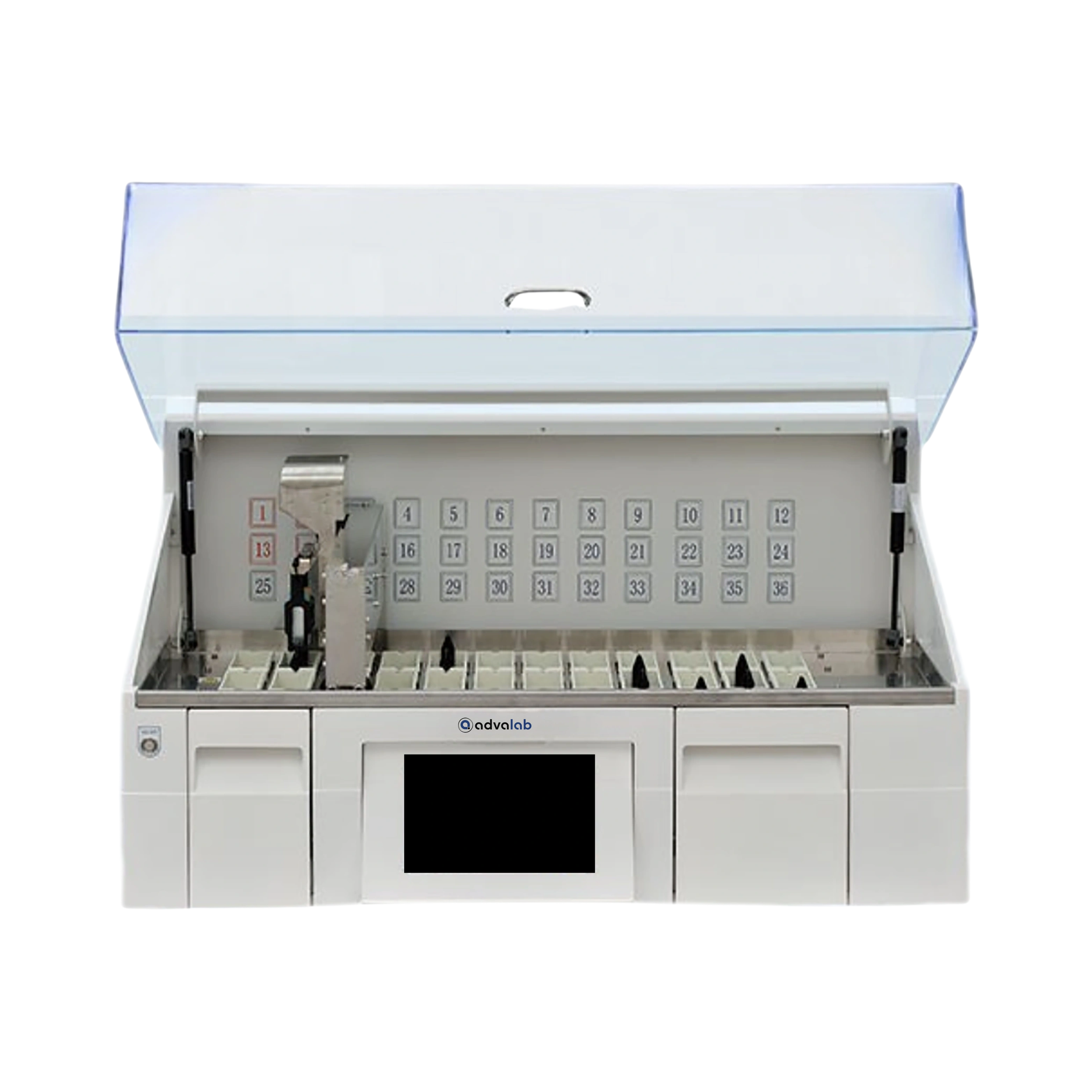

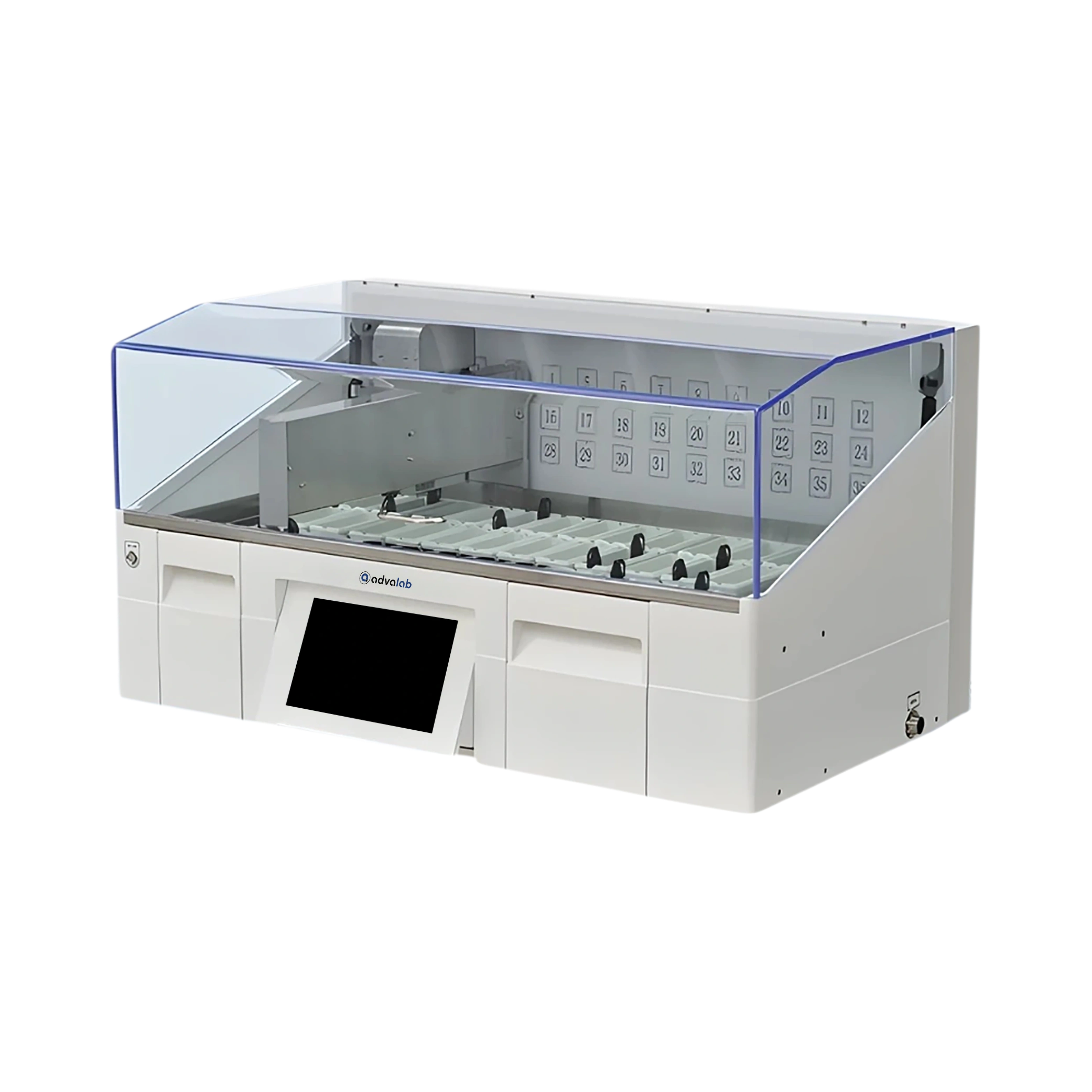

Automatic Slide Stainer ADAS-506 is applied in clinical diagnostics and research laboratories for tissue staining. It is ideal for histology and cytology with reproducible staining performance.
1. What are Automatic Slide Stainers?
Automatic Slide Stainers are lab equipment designed to process multiple glass slides simultaneously, applying reagents and stains in a controlled and consistent manner. They streamline the staining process, reduce manual handling, and improve efficiency in high-volume laboratories. These units help maintain uniform staining quality across all slides in a batch.
2. What are the applications of Automatic Slide Stainers?
Automatic Slide Stainers are widely used in pathology, histopathology, and clinical laboratories for the preparation of tissue and cell slides. They support a variety of staining techniques to ensure accurate microscopic analysis. These systems are ideal for laboratories that require high throughput slide processing with reliable and reproducible results.
| Loading Capacity | 62 samples per run |
| Single Cylinder Capacity | 1000 mL |
| Cylinder Positions | 14 in total, 1 washing cylinder (first) and 1 drying cylinder (last) |
| Slide Rack Capacity | 30 specimen slides |
| Loading Capacity | 3 slide racks |
| Specimen Slide Throughput | Up to 200 slides per hour |
| Dyeing Frame Capacity | 30 glass slides |
| Reagent Sites | 26 |
| Washing Sites | 5 |
| Capacity | 12 slides, up to 180/hour |
| Sample Tray Capacity | 1 to 12 / 16 / 24 slides depending on configuration |
| Solution Efficiency | 600 to 1000 slides |
| Number of Cylinders: | 15 |
| Cylinder Details : | 1 starting protection <br> 5 cleaning <br> 1 hematoxylin <br> 1 differentiation <br> 1 eosin <br> 1 Blue Back <br> 4 gradient alcohol <br> 1 ending |
| Cylinder Arrangement : | 2nd, 4th, 6th, 8th, 10th: cleaning <br> 3rd: hematoxylin <br> 5th: differentiation <br> 7th: Blue Back <br> 9th: eosin <br> 11th to 14th: gradient alcohol <br> 15th: ending |
