| Frequency Range | 30 Hz to 70 Hz |
| Sample Capacity |
32×2ml 24×2ml 48×2ml 64×2ml 96×2ml 24×5ml 8×15ml 4×25ml 2×50ml |
| Feed Size | According to tube size |
| Final Fineness | 5 µm |
| Grinding Beads Diameter | 0.1 to 30 mm |
| Grinding Method | Wet grinding, dry grinding, cold grinding (no refrigerated function) |
| Grinding Beads Material | Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand |
| Noise Level | <55 db |
| Acceleration Time | Within 2 sec |
| Deceleration Time | Within 2 sec |
| Tube Holder Materials | PTFE / Alloy steel / Aluminium alloy |
| Safety Guard | Emergency stop button |
| Power Consumption | 450 W |
| Dimensions (W×D×H) | 460×410×520 mm |
| Net Weight | 52 kg |

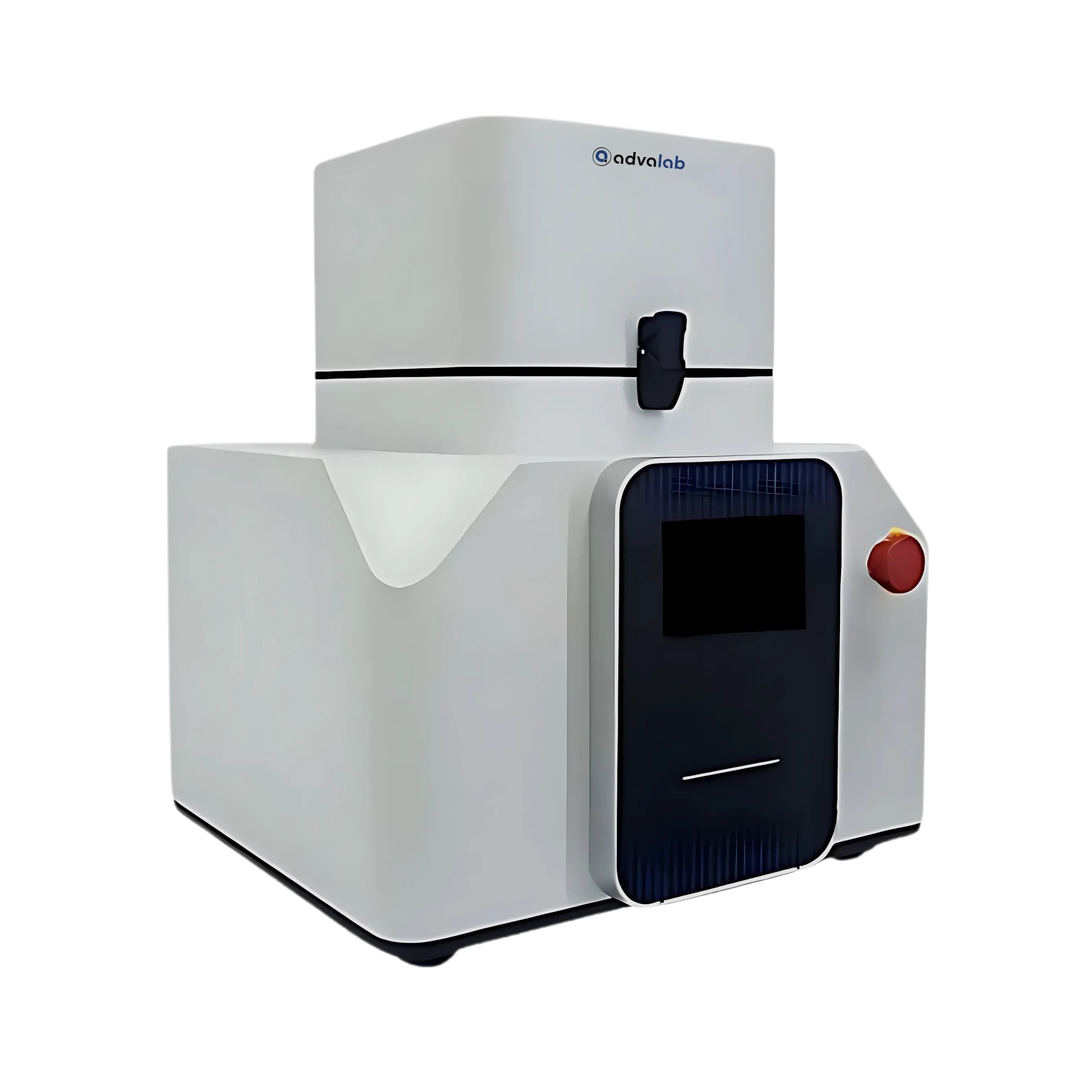

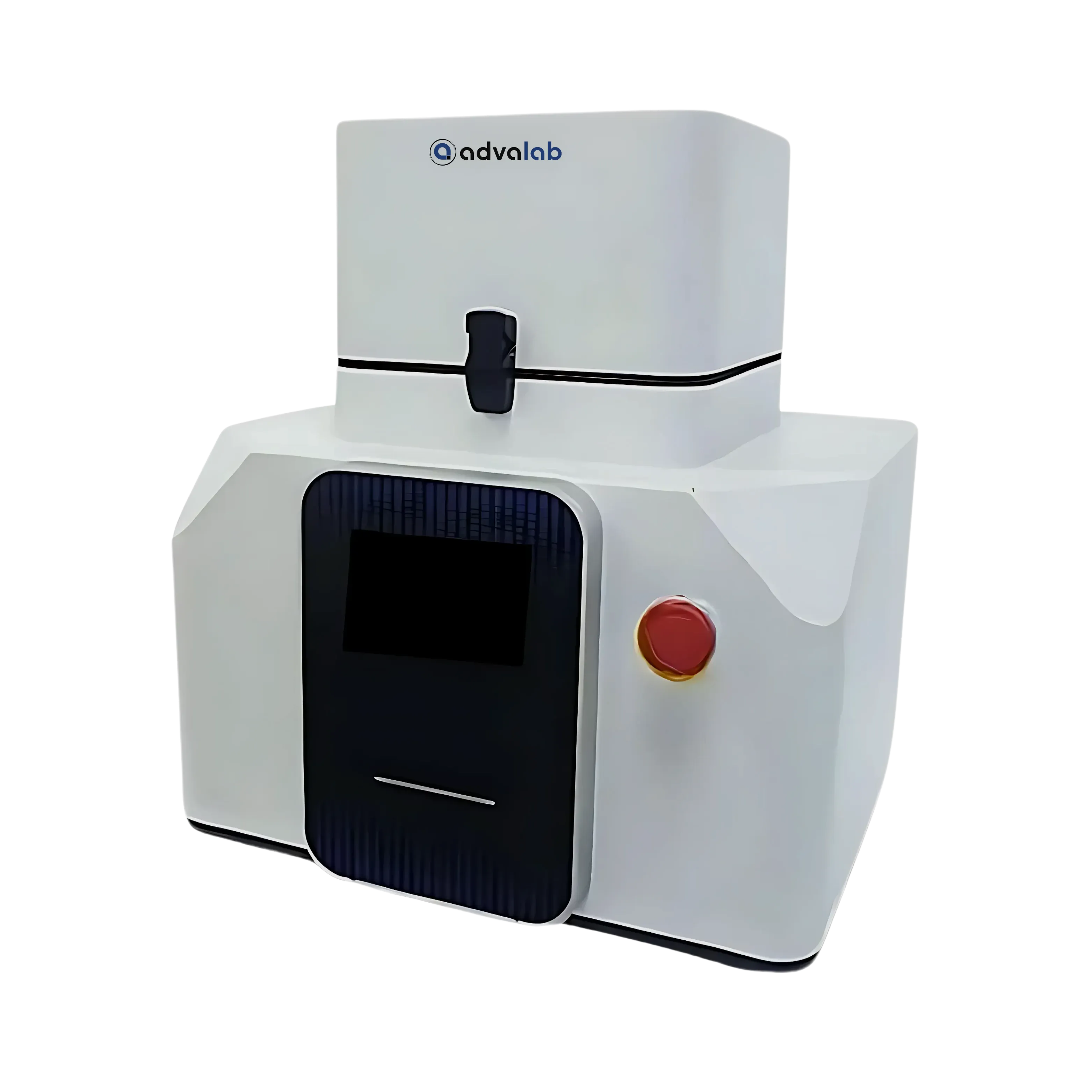

Our Ball Mill Homogenizer ADBAM-502 is efficient for processing large volumes and producing consistent results in clinical diagnostics and pharmaceutical production.
Accessory | Quantity |
2 ml Plastic grinding tubes 01 | 1 Pc |
5 ml Plastic grinding tubes 02 | 1 Pc |
15 ml Stainless steel grinding tubes 01 | 1 Pc |
25 ml Stainless steel grinding tubes 02 | 1 Pc |
50 ml Stainless steel grinding tubes 03 | 1 Pc |
3 mm Stainless steel grinding beads 01 | 1 Pc |
5 mm Stainless steel grinding beads 02 | 1 Pc |
10 mm Stainless steel grinding beads 03 | 1 Pc |
15 mm Stainless steel grinding beads 04 | 1 Pc |
20 mm Stainless steel grinding beads 05 | 1 Pc |
Accessory | Maximum tubes quantity | Sample feed size | Sample volume per tube | Beads size | Beads quantity per tube | Quantity |
Plastic tube adapter (24×2 ml) for plastic grinding tubes 01 | 24 | 1 mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Plastic Tube adapter (32×2 ml) for plastic grinding tubes 02 | 32 | 1 mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Plastic tube adapter (48×2 ml) for plastic grinding tubes 03 | 48 | 1mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Plastic tube adapter (64×2 ml) for plastic grinding tubes 04 | 64 | 1 mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Plastic tube adapter (96×2 ml) for plastic grinding tubes 05 | 96 | 1 mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Plastic tube adapter (24×5 ml) for plastic grinding tubes 06 | 24 | 2 mm | 0.5-2.0 ml | 5 mm | 2-3 | 1 Pc |
Plastic tube adapter (8×15 ml) for stainless steel grinding tubes 01 | 8 | 5 mm | 2.0-4.0 ml | 10 mm | 1 | 1 Pc |
Plastic tube adapter (4×25 ml) for stainless steel grinding tubes 02 | 4 | 6 mm | 4.0-10.0 ml | 15 mm | 1 | 1 Pc |
Plastic tube adapter (2×50 ml) for stainless steel grinding tubes 03 | 2 | 8 mm | 8.0-20.0 ml | 20 mm | 1 | 1 Pc |
Aluminum Alloy tube adapter (24×2 ml) for plastic grinding tubes 01 | 24 | 1mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Aluminum Alloy tube adapter (32×2 ml) for plastic grinding tubes 02 | 32 | 1mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
Aluminum Alloy tube adapter (48×2 ml) for plastic grinding tubes 03 | 48 | 1mm | 0.2-0.5 ml | 3 mm | 2-3 | 1 Pc |
1. What is a Ball Mill Homogenizer?
A Ball Mill Homogenizer is a laboratory device used to mix, blend, or homogenize materials by grinding them with small, hard balls inside a rotating cylindrical container. It is typically used for particle size reduction, mixing, or cell disruption in a wide range of applications, including pharmaceuticals, food, cosmetics, and research.
2. What are the benefits of using a Ball Mill Homogenizer?
A Ball Mill Homogenizer is efficient for reducing particle size and ensures uniform mixtures by evenly breaking down materials. It is versatile, handling solids, liquids, and semi-solids, and is scalable for both lab and industrial use. It offers reliable performance for repeated and consistent processing.
3. How does a Ball Mill Homogenizer work?
The Ball Mill Homogenizer works by using a rotating drum that holds a number of small balls. When the drum rotates, the balls collide with the material inside, causing mechanical disruption and homogenization. The material is subjected to high shear forces, breaking it down into smaller particles or evenly mixing the components.
4. Is a Ball Mill Homogenizer easy to clean and maintain?
Yes, Ball Mill Homogenizer are designed for easy cleaning. The grinding chamber, balls, and any associated components are typically made of materials that can be easily cleaned or sanitized. Regular maintenance, such as checking for wear on the balls and ensuring the motor is functioning properly, will extend the lifespan of the homogenizer.
5. What is the difference between a Ball Mill Homogenizer and a regular ball mill?
A Ball Mill Homogenizer specifically refers to a ball mill that is optimized for homogenizing or mixing materials. While a traditional ball mill is primarily designed for grinding or reducing the size of materials, a homogenizer is used to achieve uniform dispersion, emulsification, or consistent blending.
