| Throughput | 200 tests/hour |
| Sample Volume | 2 to 70µl |
| Reagent Volume | 20 to 350 µl |
| Sample Positions | 37 sample positions |
| Reagent Positions | 28 reagent positions |
| Wavelength | 340, 405, 450, 510, 546, 578, 630, 700nm |
| Absorbance | 0 ~ 3.0Abs |
| Humidity | 40% to 85% |
| Washing | Automatic cuvettes washing |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Cuvettes | 48 reusable cuvettes, optical length 6mm |
| Mixer Probe | Independent stirring |
| Stat Function | Yes |
| Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5P |
| Quality Control |
Real-time QC Westgard multi rule Cumulative sum check Twin Plot(2D) Daily QC Monthly QC |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting mode available |
| Temperature | 15℃ to 30℃ |
| Temperature Control | 37±0.2℃ |
| Water Consumption | Deionized water: <5L/H |
| External Dimension (W×D×H) | 625×425×460 mm |
| Package Dimension (W×D×H) | 750×560×900 mm |
| Net Weight | 36 kg |
| Gross Weight | 55 kg |

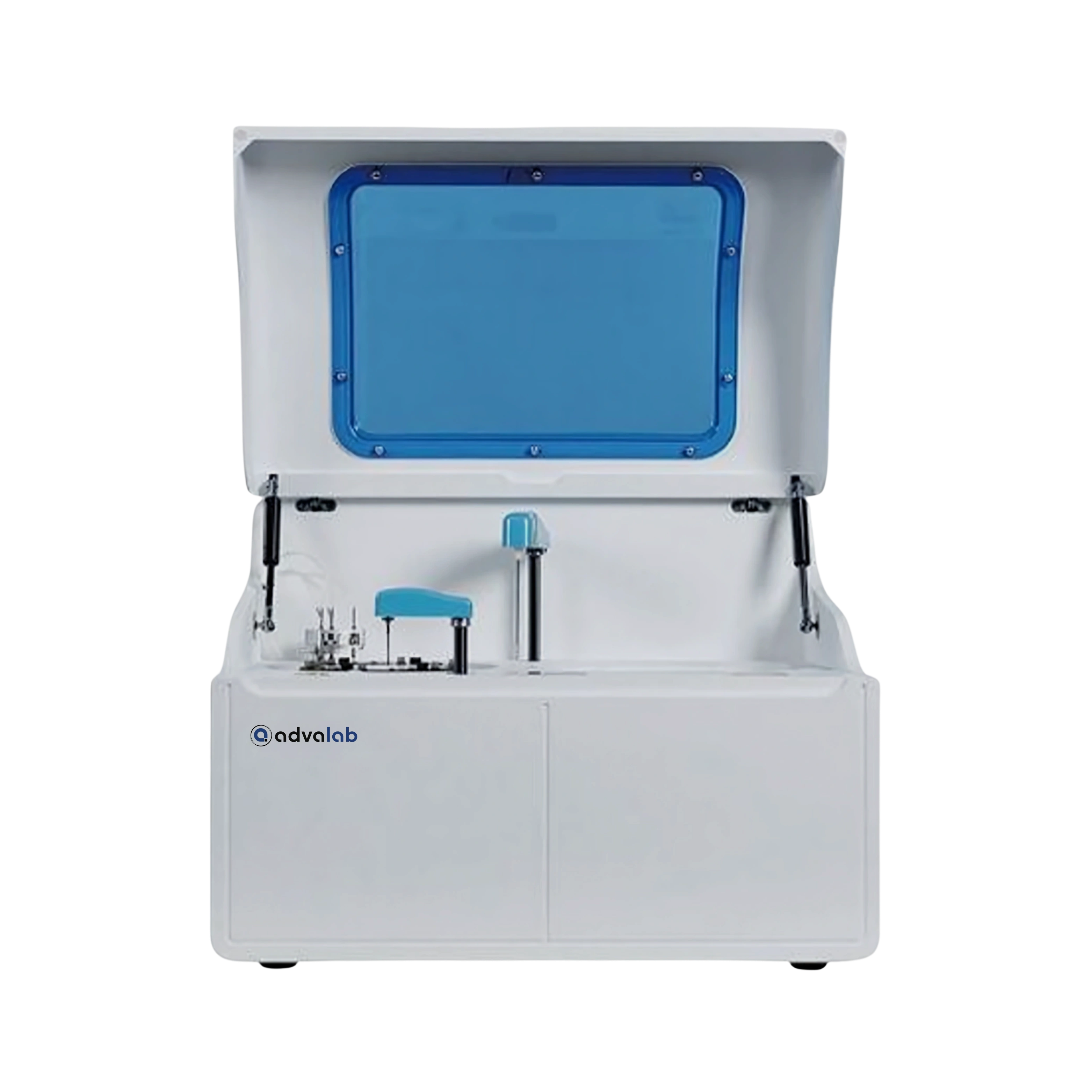

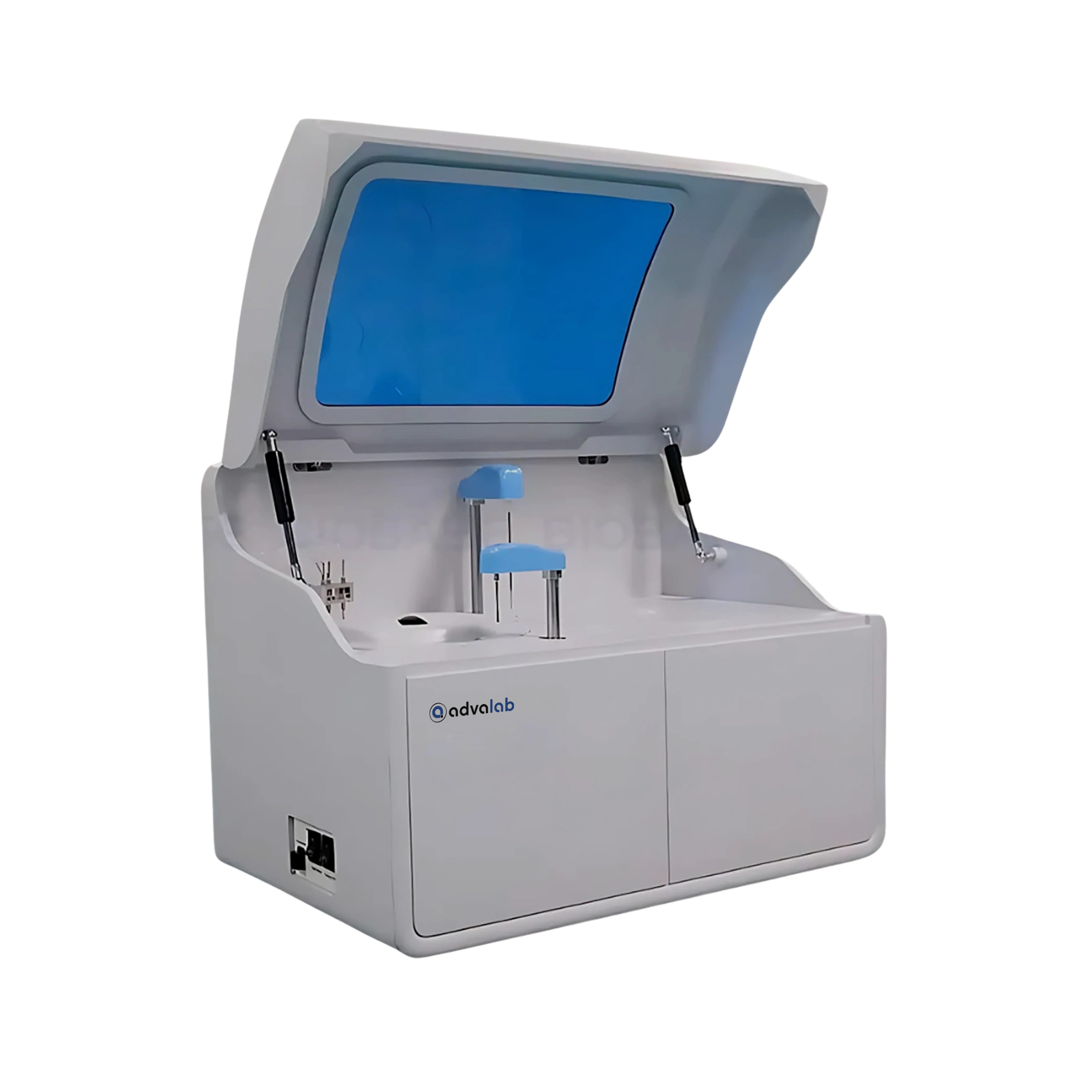

Automatic Chemistry Analyzer ADCA-501 is used to measure chemical components in body fluids like blood and urine for disease diagnosis and monitoring. It supports accurate, efficient testing in clinical laboratories and hospitals.
Reaction Tray
| 1 tray |
Reagent Tray
| 1 unit |
Sample Probe
| 1 unit |
Reagent Probe
| 1 unit |
Mixer Probe
| 1 unit |
Washing Probe
| 1 unit |
| Sample volume: | 0 to 3000µl (500µl recommended) |
| Light Source: | 6V, 10W halogen lamp |
| Wavelength filters: | 340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 630 nm and 1 free position |
| Measuring System: | Measuring Range: 0 to 3.000 OD <br/> Method: End Point, Fixed Time, Multistandard, Bichromatic and Immunoturbidimetry <br/> Photometric linearity: ±2% (0 to 3.000 OD) <br/> Photometric Accuracy: ±2% (0 to 3.000 OD) <br/> |
| Photometric System: | Light source: 6V/10W halogen lamp; Standby function <br/> Filters: 340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 620 nm and 2 more open filters available <br/> Wavelength Accuracy: ±2nm <br/> |
| Thermostatic Control: | Temperature: 25℃, 30℃, 37℃ <br/> Precision: ±0.1℃ |
