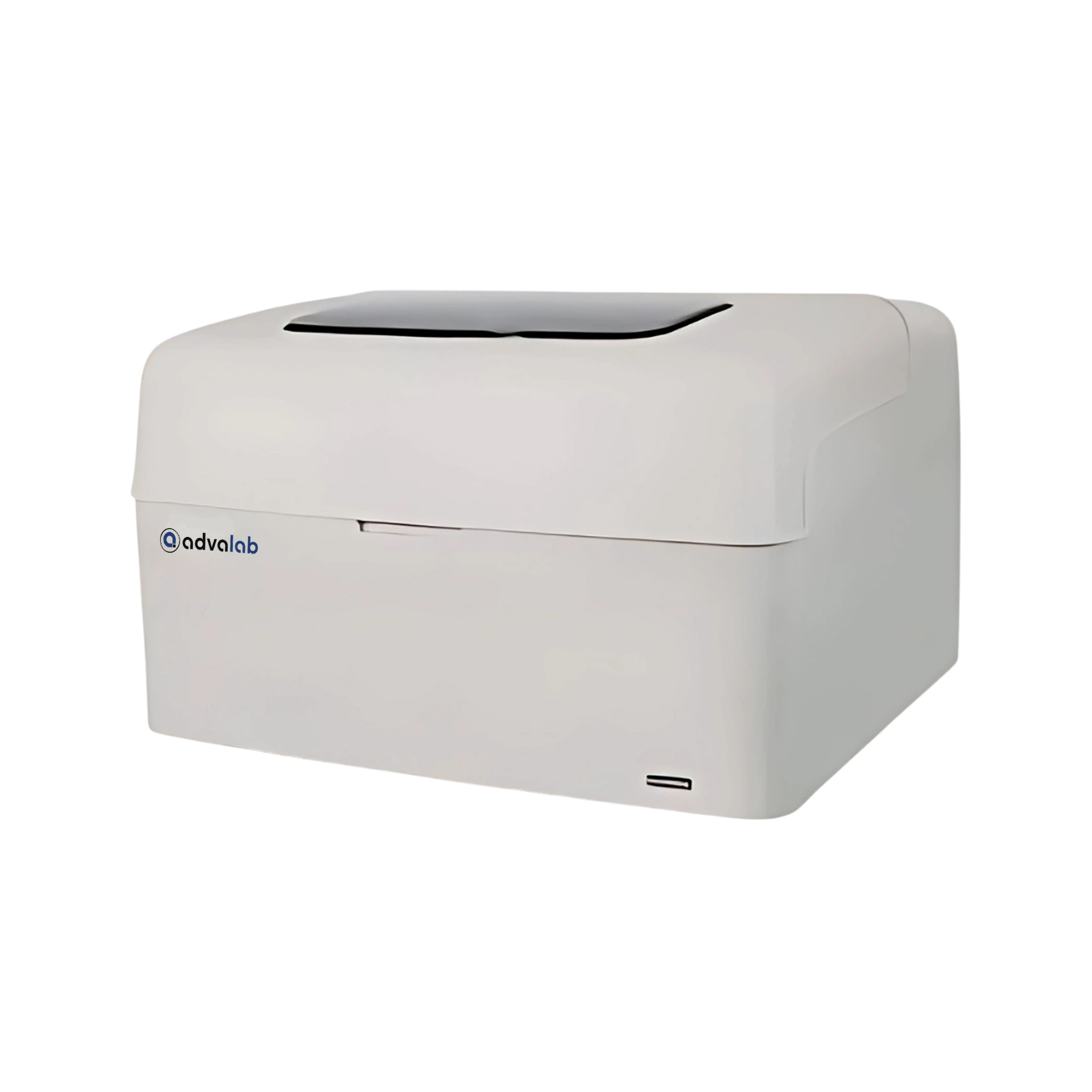

Automatic Chemistry Analyzer ADCA-501 is designed to perform 200 tests per hour. This unit uses post-spectral spectrophotometric analysis for precise measurement of analytes. It includes a refrigerated tray with an independent switch to maintain reagent stability. This system is equipped with mixer probes that mix samples and reagents evenly. Our Analyzer is utilized for fast blood chemistry testing to support precise diagnosis and treatment in healthcare settings.
| Throughput | 200 tests/hour |
|---|---|
| Sample Volume | 2 to 70µl |
| Reagent Volume | 20 to 350 µl |
| Sample Positions | 37 sample positions |
| Reagent Positions | 28 reagent positions |
| Wavelength | 340, 405, 450, 510, 546, 578, 630, 700nm |
| Absorbance | 0 ~ 3.0Abs |
| Humidity | 40% to 85% |
| Washing | Automatic cuvettes washing |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Cuvettes | 48 reusable cuvettes, optical length 6mm |
| Mixer Probe | Independent stirring |
| Stat Function | Yes |
| Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5P |
| Quality Control |
Real-time QC Westgard multi rule Cumulative sum check Twin Plot(2D) Daily QC Monthly QC |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting mode available |
| Temperature | 15℃ to 30℃ |
| Temperature Control | 37±0.2℃ |
| Water Consumption | Deionized water: <5L/H |
| Power Supply | AC220V±10%, 50/60Hz, 110±10%, 60Hz, 300W |
| External Dimension (W×D×H) | 625×425×460 mm |
| Package Dimension (W×D×H) | 750×560×900 mm |
| Net Weight | 36 kg |
| Gross Weight | 55 kg |
Automatic Chemistry Analyzer ADCA-501 is used to measure chemical components in body fluids like blood and urine for disease diagnosis and monitoring. It supports accurate, efficient testing in clinical laboratories and hospitals.
