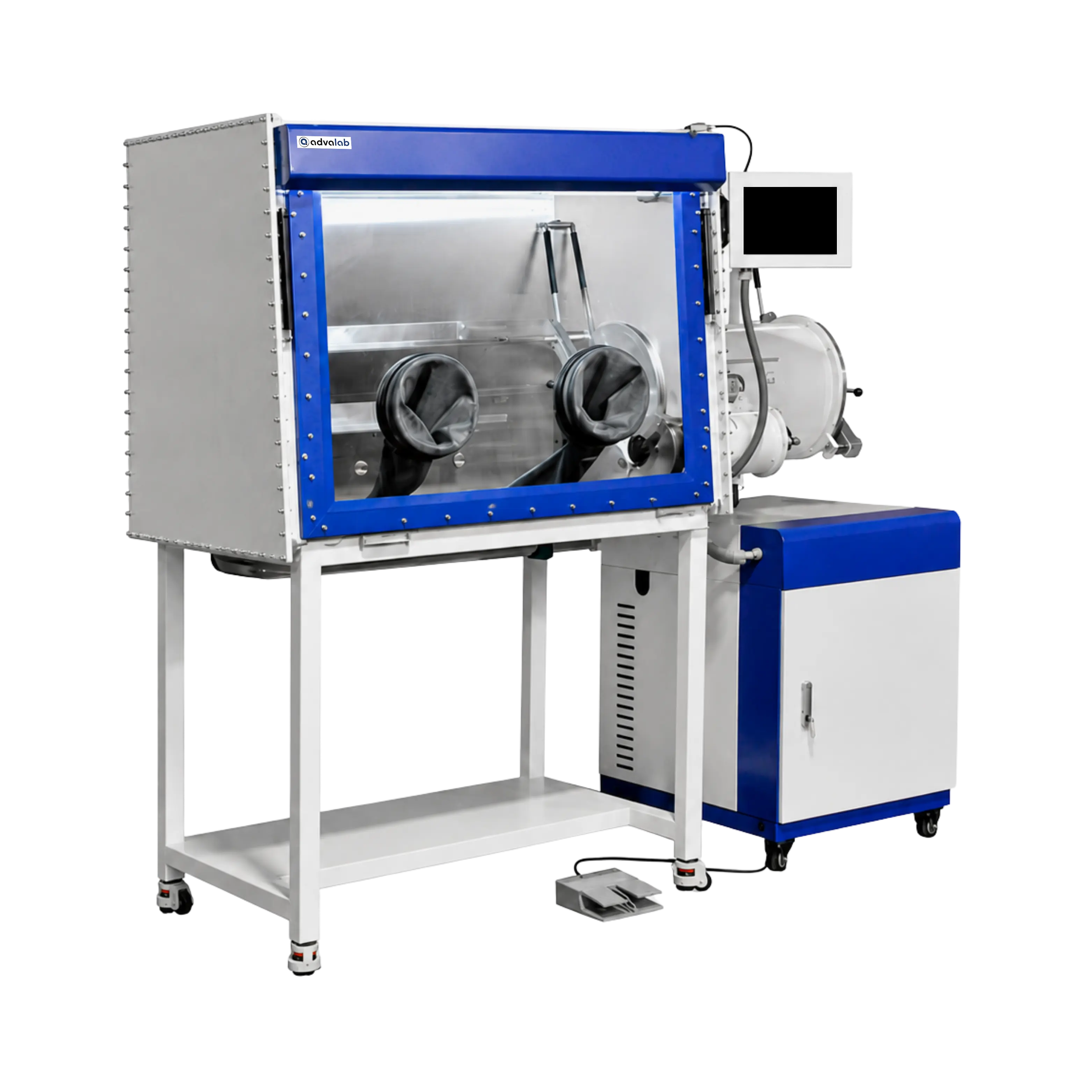

Advalab Gas Purification Glove Box ADPGB-506 features a stainless steel 304 chamber with H₂O and O₂ concentrations below 1 ppm, automatic purification and regeneration, and a 1200 × 740 × 900 mm working chamber. It supports N₂, Ar, He, and other inert gases, providing a controlled low-moisture, low-oxygen atmosphere for sensitive material handling.
| Glove Box Type | Stainless Steel Glove Box with H₂O & O₂ Purification System |
|---|---|
| Water Concentration | <1 ppm at 20°C, 1 atm |
| Oxygen Concentration | <1 ppm at 20°C, 1 atm |
| Chamber Material | Stainless Steel 304, 3 mm thickness |
| Chamber Dimensions(L × W × H) | 1200 × 740 × 900 mm |
| Leak Rate | <0.05 vol%/hr |
| Operating Gas | N₂, Ar, He or other inert gases |
| Pressure Range | ±12 mbar |
| Purification System | BASF R3-11 Copper Catalyst + Lindy Molecular Sieve |
| Purification Process | Automatic H₂O and O₂ removal with automated regeneration |
| Antechamber Dimensions | 360 mm ID × 600 mm L |
| Small Chamber Dimensions | 150 mm ID × 220 mm L |
| Front Window | Openable hinged front window, 8 mm tempered glass |
| Purging System | Automatic purging; reduces O₂ to <200 ppm and H₂O to <50 ppm before recycling |
| Pressure Control | Automatic PLC pressure control; manual control via foot pedal |
| Control System | Siemens PLC with 7-inch touchscreen |
| Water Monitor Range | 0–1000 ppm; resolution/accuracy 0.1 ppm |
| Oxygen Monitor Range | 0–1000 ppm; resolution/accuracy 0.1 ppm |
| Pressure Monitoring | -12 to +12 mbar; accuracy 0.01 mbar |
| Vacuum Pump | Heavy-duty double-stage rotary vane pump |
| Vacuum Rate | 240 L/min (8.5 CFM) |
| Gloves | Pair of 9¾-inch butyl gloves |
| Filters | Inlet and outlet filters for particles >0.3 μm |
| Ports & Fittings | Five blank KF40 ports at rear |
| Pipeline | Stainless Steel 304; KF40 and KF25 ports |
| Lighting | Built-in fluorescent lamp |
| Working Voltage | 110/220 VAC switchable, 50/60 Hz, single-phase |
| Maximum Power | 1.5 kW |
| Regeneration Gas | 5–10% H₂ mixed with operating gas |
| Product Dimensions (L × W × H) | 2000 × 1000 × 1880 mm |
| packaging dimensions | 214 x 99 x 205cm |
| Net weight | 510 kg |
| Gross weight | 588KG |
Gas Purification Glove Box ADPGB-506 is used for handling oxygen- and moisture-sensitive materials, inert-atmosphere sample preparation, chemical and material processing, battery material research, semiconductor material handling, pharmaceutical material preparation, powder and catalyst handling, controlled-atmosphere sample transfer, and laboratory experiments involving air-sensitive compounds.
