Flammable Storage Cabinet ADFSC-503
Flammable Storage Cabinet ADFSC-503 (Front view)

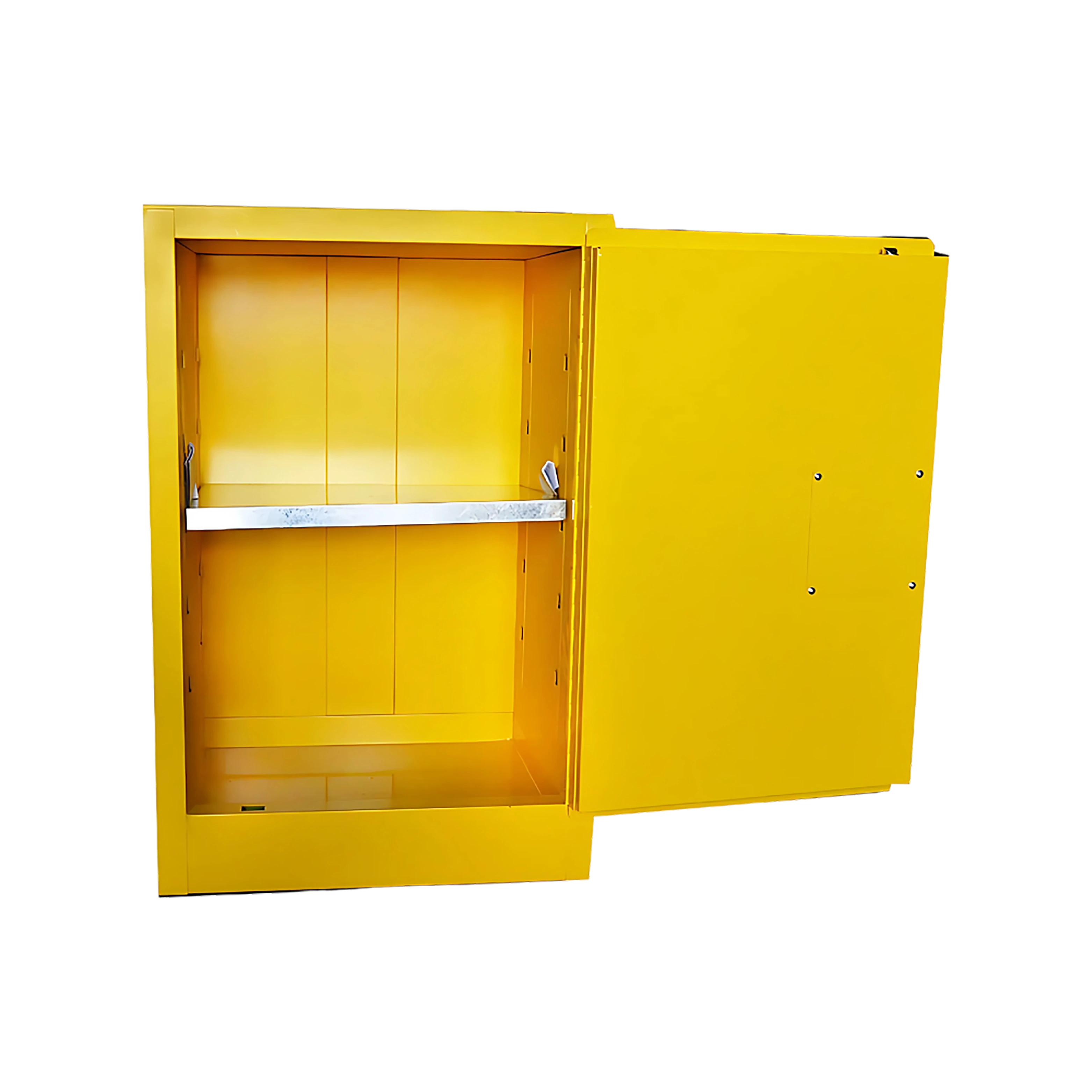

Flammable Storage Cabinet ADFSC-503 (Internal view)

Flammable Storage Cabinet ADFSC-503

Flammable Storage Cabinet ADFSC-503 offers a 45L (12-gallon) capacity for the safe storage of hazardous chemicals. It includes anti-overflow shelves that can be adjusted in height to suit different container sizes. A single fire-resistant door provides enhanced protection in case of fire. Built-in ventilation on both sides reduces the accumulation of flammable vapours, enhancing overall safety. They are ideal for use in laboratories, industrial facilities, and chemical storage areas.


Capacity 45L/12 Gallons
Construction Made of double-layer 18 Ga (1.2 mm) steel with spot welding.
Surface Coating Resin powder coating
Fire Resistance 38 mm gap between steel layers forms effective fireproof insulation layer
Leakage Protection 2-inch (53 mm) deep built-in tray at the base
Locking System Three-point linkage lock system
Ventilation Built-in vents on both left and right sides
Shelf Single shelf (Adjustable in 80 mm centres)
Shelf Bearing 50Kg shelf bearing
Shelf Design Anti-overflow laminate
Hinge Type Full-length continuous piano hinge
Door Type Single door
Labelling High-visibility label for safety identification under low-light condition
External Dimensions (L×W×H) 890×590×460mm
  • Durable construction
  • Insulated air gap
  • Leak containment design
  • Rust-resistant coating
  • Three-point linkage lock system

Flammable Storage Cabinet ADFSC-503 is used in laboratories, industrial facilities, and chemical storage areas. It ensures safe containment of flammable liquids in environments where fire protection and regulatory compliance are essential.

  • Automatic Door
  • Secure Padlock Configuration

Flammable Storage Cabinet ADFSC-503 | Triple lock | 50 kg shelf bearing
Flammable Storage Cabinet ADFSC-503 | Durable construction | Insulated air gap

Frequently Asked Questions of Flammable Storage Cabinet ADFSC-503

1. What safety features does Flammable storage cabinet ADFSC-503 have?

Flammable storage cabinet ADFSC-503 includes a three-point linkage lock system to prevent unauthorized access and reduce static buildup. A 2" deep leak-proof sump helps contain accidental spills. Dual-side ventilation reduces vapor buildup, and a full-length piano hinge enhances durability. Additionally, a high-visibility label ensures easy identification in low-light conditions.

2. Where can Flammable storage cabinet ADFSC-503 be used?

Flammable storage cabinet ADFSC-503 is suitable for a wide range of environments including laboratories, research institutions, industrial facilities, medical labs, and chemical storage areas. It is designed for safe and compliant storage of flammable substances where fire safety and chemical management are critical.

3. What is the storage capacity of Flammable storage cabinet ADFSC-503?

Flammable storage cabinet ADFSC-503 offers a 45-liter (12-gallon) capacity, making it ideal for safely storing small quantities of flammable liquids and hazardous chemicals. This compact size is suitable for use in space-limited areas while still complying with safety regulations.

4. Is Flammable storage cabinet ADFSC-503 fire-resistant?

Yes, Flammable storage cabinet ADFSC-503 is constructed from double-layer 18-gauge (1.2 mm) steel with a 38 mm insulation gap between the layers. This design forms an effective fire-resistant barrier, helping to contain internal fires and delay external fire exposure for enhanced safety.

5. Can the shelves of Flammable storage cabinet ADFSC-503 be adjusted?

Flammable storage cabinet ADFSC-503 is equipped with anti-overflow laminate shelves that can be adjusted in 8 mm increments. This allows users to customize shelf spacing based on the size of containers being stored, improving organization and safety by preventing spills and overflows.

6. What is the purpose of Flammable Storage Cabinets?

Flammable Storage Cabinets are designed to safely store flammable and combustible liquids by containing potential fire hazards. They help prevent accidental ignition, protect personnel and property, and support compliance with safety regulations in industrial and laboratory settings.

7. Where are Flammable Storage Cabinets commonly used?

Flammable Storage Cabinets are commonly used in laboratories, research centres, factories, educational institutions, workshops, and industrial facilities. They are essential in any environment where flammable or combustible liquids are handled, stored, or dispensed for operational safety.

8. What is the most important safety feature in Flammable Storage Cabinets?

Flammable Storage Cabinets feature double-wall steel construction with an insulating air gap, which acts as a fire barrier. This core design helps delay heat transfer during a fire, protecting the contents and giving personnel critical time to respond safely.
