| Rotating bottle | 5 L |
| Recovery bottle | 3 L |
| Main engine speed | 10 to 140 rpm |
| Rotary Electric machine | 40 W |
| Condenser Tube | Vertical double coil |
| Water bath pot material | Stainless steel |
| Water bath pot size | 300×170 mm |
| Lifting function | Electric Lift |
| Lift stick | 0 to 150 mm |
| Whole power | 2 KW |
| Working power supply | Single phase 220/60 |
| Outline dimension | 7650×400×1070 |

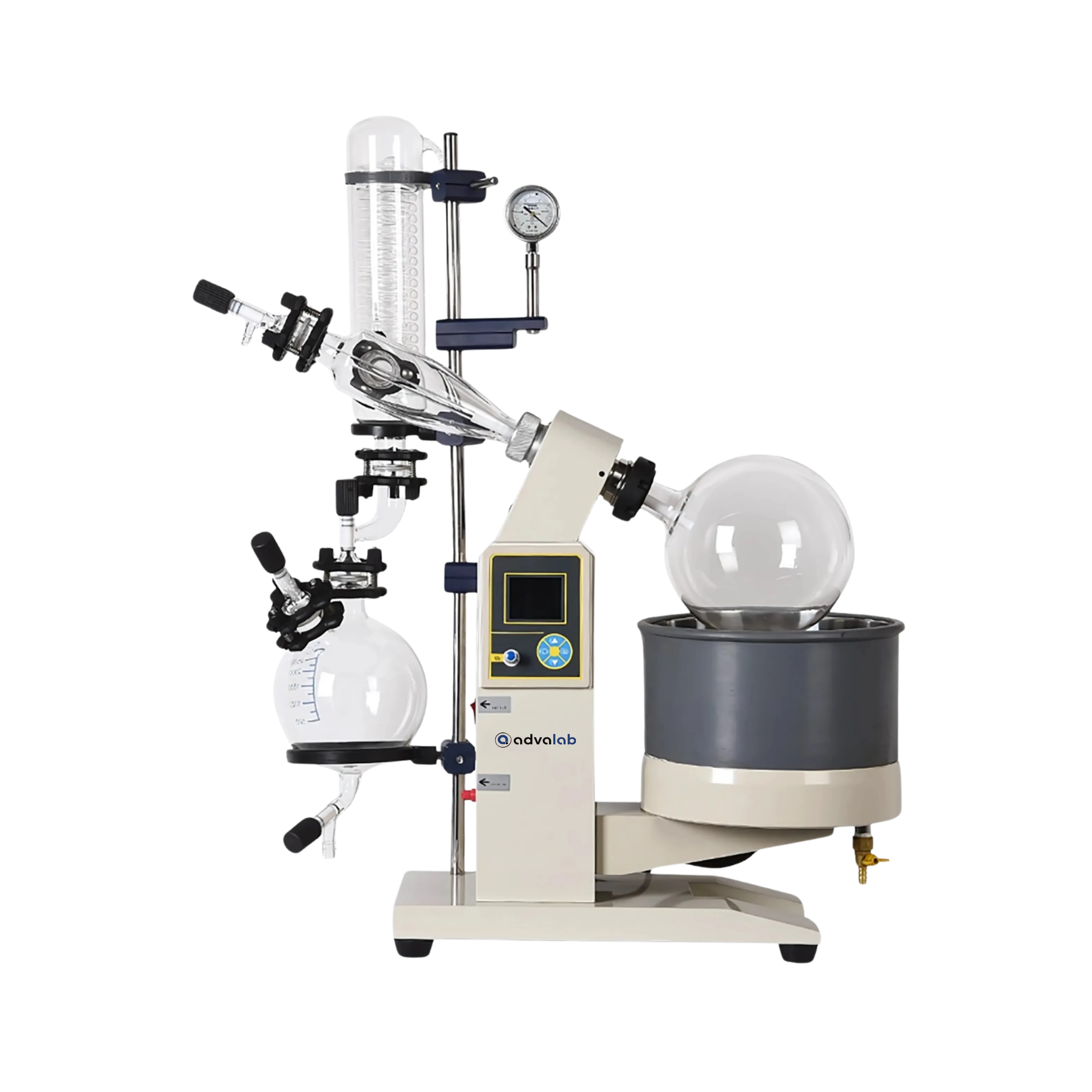

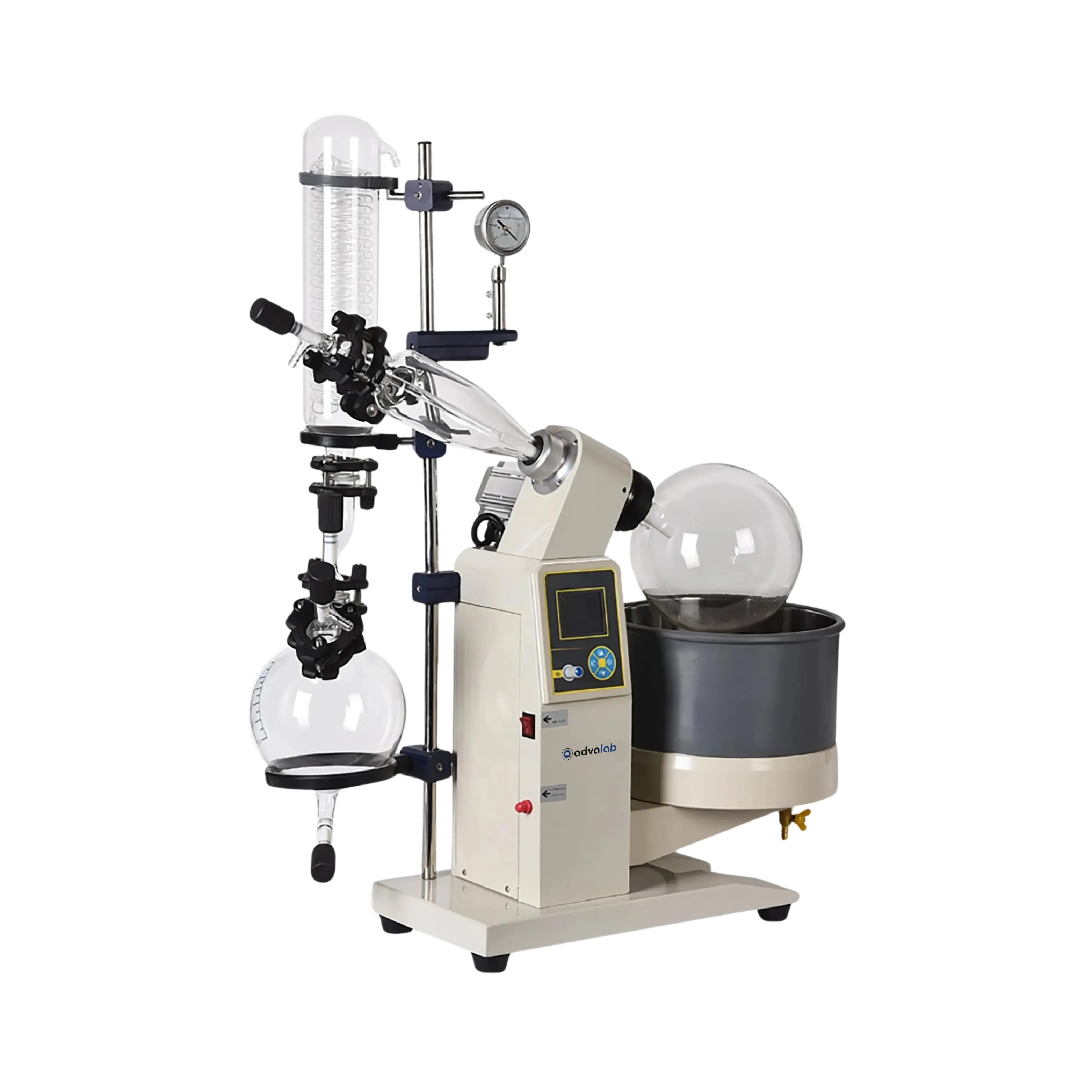

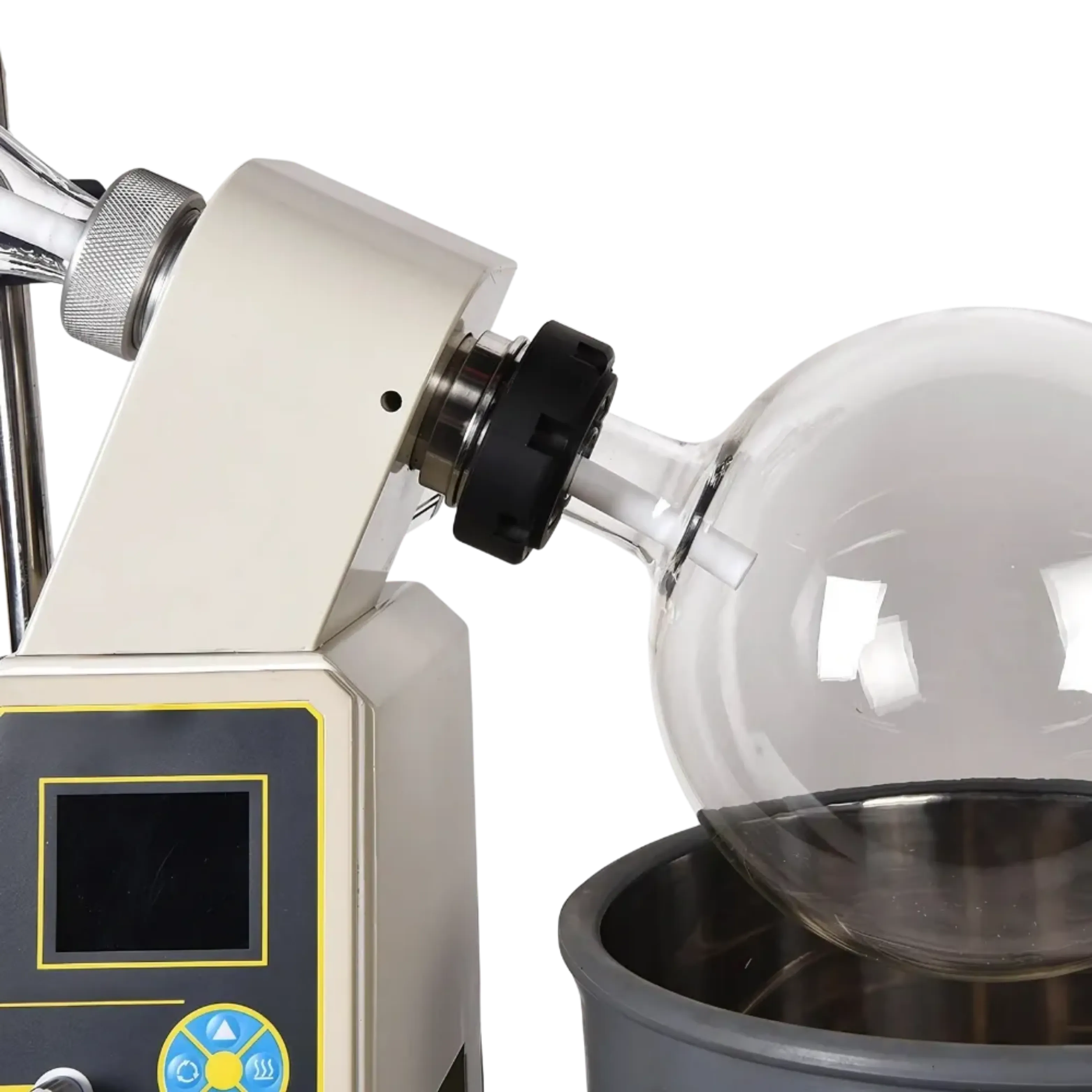

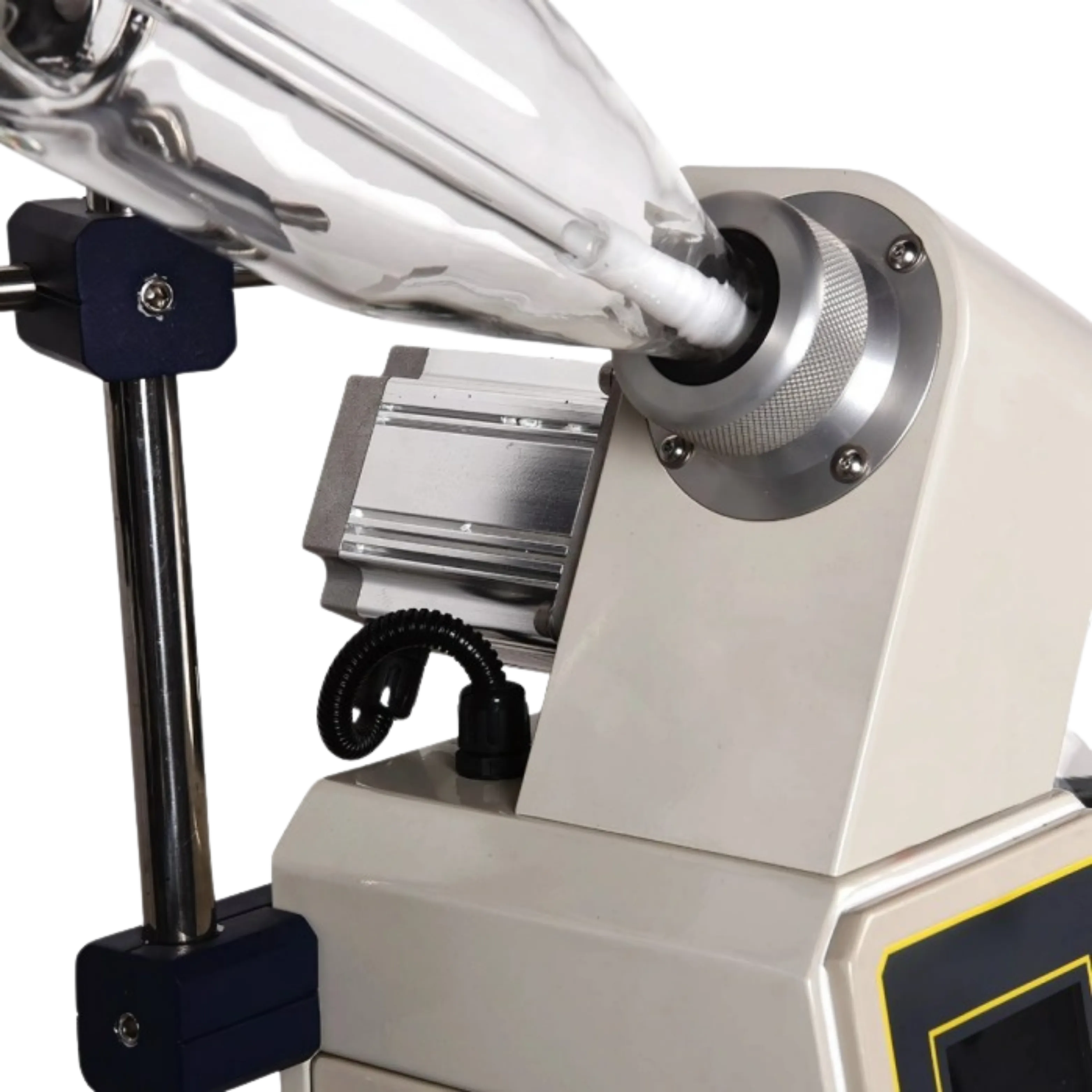

The Rotary Evaporator ADRE-504 is designed for high-precision evaporation in chemical synthesis and pharmaceutical formulation. It is ideal for temperature-sensitive compound recovery, plant extract concentration, and solvent distillation under vacuum.
1. What types of solvents can be removed using a rotary evaporator?
Rotary evaporators can remove a wide range of volatile solvents such as ethanol, methanol, acetone, and chloroform. These are commonly used in chemical and biological extractions. The equipment is suitable for both aqueous and organic solvents. Proper settings and compatible materials ensure efficient and safe operation.
2. How does a rotary evaporator work?
A rotary evaporator works by rotating a flask containing a solution while applying heat and vacuum. This setup reduces the boiling point of solvents, allowing them to evaporate quickly at lower temperatures. The vapors are then condensed and collected in a separate flask. The rotating motion improves surface area, speeding up the process.
3. What are the key components of a rotary evaporator?
A rotary evaporator typically includes a rotating flask, heating bath, condenser, receiving flask, and vacuum system. Each part plays a role in evaporating and condensing the solvent effectively. Digital controls are often included for temperature and rotation speed. Some models also feature automated lift and safety protection.
| Receiving Flask Capacity | 1 Liter |
| Rotating Motor Power | 40W (Stepless Speed Regulation) |
| Rotating Speed | 0 to 120 rpm |
| Evaporating Flask volume | 10 L |
| Receiving Flask volume | 5 L |
| Rotating motor | 180 W |
| Receiving flask | 2 L |
| Evaporating flask | 1L |
| Rotating Motor | 40 W |
