| Geometry | D/8，SCI |
| Repeatability | ΔE*ab≤ 0.03 |
| Display Resolution | 0.01 |
| Measuring Aperture | Φ6mm Φ3mm |
| Measurement Index | Reflectance, CIE-Lab, CIE-LCh, hunter lab, CIE-Luv, XYZ, Yxy, RGB, ΔE (ab, cmc, 94, 00), WI (ASTM E313, CIE, ISO2470, AATCC, hunter, TBS), YI (ASTM D1925, E313), blackness (My, dM), color fastness, tint, color density (CMYK – A, T, E, M), milm, munsell, opacity, color strength. |
| Illuminants | A, B, C, D50, D55, D65, D75, F1–F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED (B1–B5, BH1, RGB1, V1, V2). |
| Light Source | Full-band balanced LED light source + UV |
| Measurement and Observation Mode | Camera |
| Calibration | Manual calibration Intelligent automatic calibration |
| Software Support | Andriod, iOS, windows, we chat applet |
| Accuracy | Qualified measurement metrology level 1 |
| Observer Angles | 2°，10° |
| Sphere Size | 40mm |
| Standards | CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN 5033 Teil 7 |
| Spectroscopic Method | Nanometre integrated spectral device |
| Sensor | Silicon photodiode array double 16 groups |
| Wavelength Interval | 10 nm |
| Wavelength Range | 400 to 700 nm |
| Reflectance Range | 0 to 200% |
| Reflectivity Resolution | 0.01% |
| Measurement Method | Single measurement, average measurement (2 to 99 times) |
| Measurement Time | About 1 second |
| Interface | USB，Bluetooth |
| Screen | Full-colour display, 2.4 inches |
| Battery Capacity | Rechargeable, 8000 times continuous tests， 3.7V/3000mAh |
| Light Source Lifetime | years, 1 million tests |
| Language | Chinese and English |
| Storage | Instrument: 10000 pieces of data; APP: mass storage |

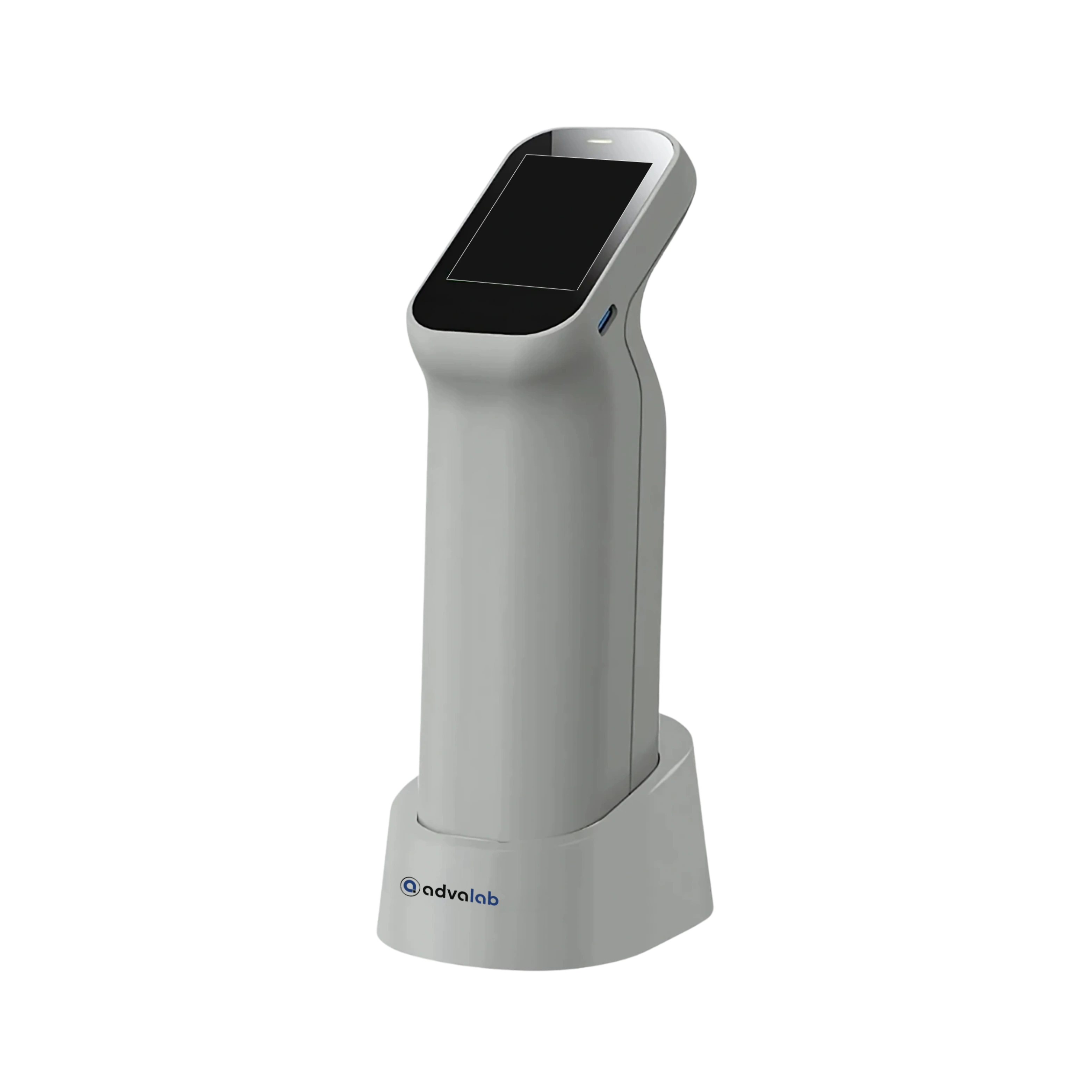

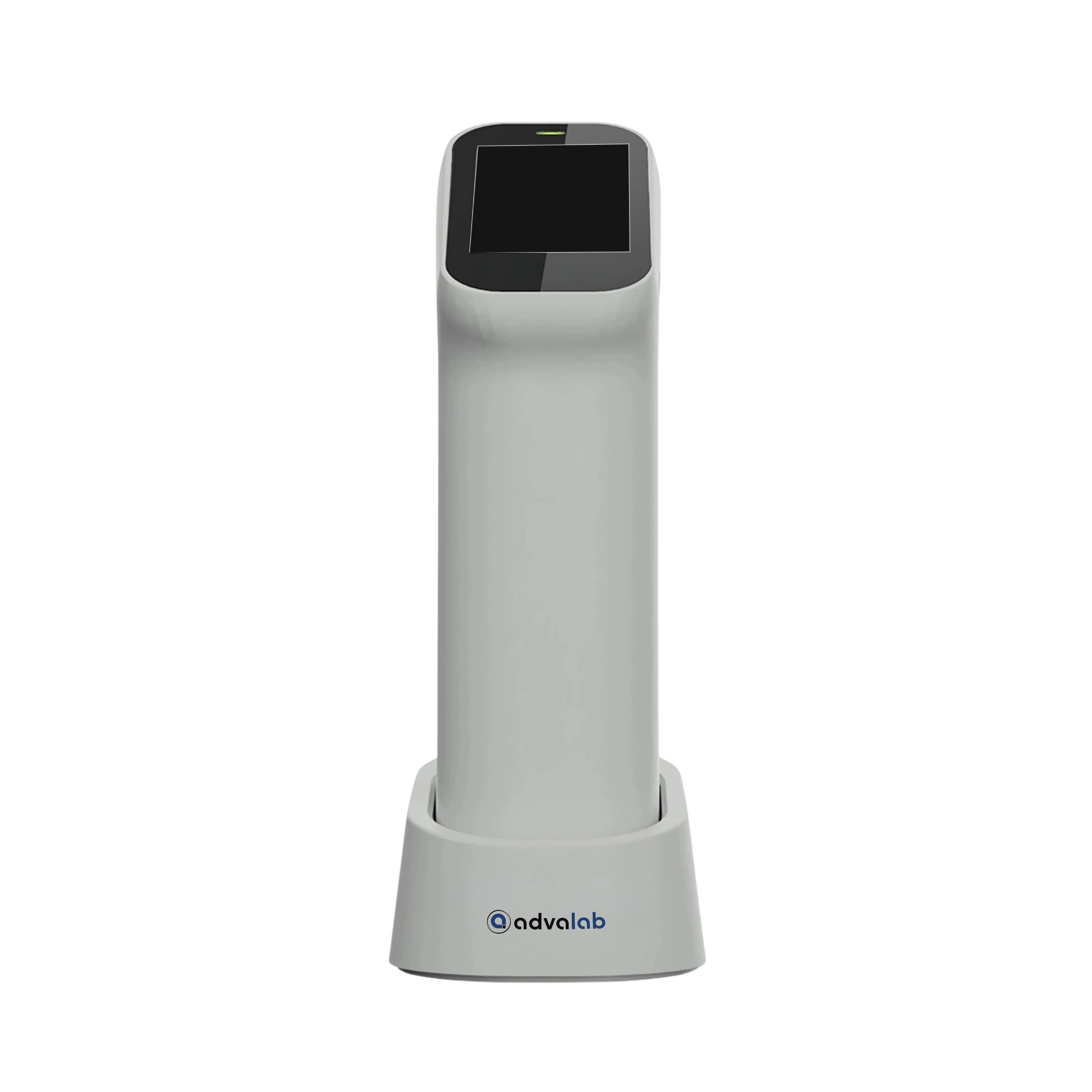

Our Spectral Colorimeter ADSCM-503 is used in pharmaceuticals, cosmetics, and educational research for accurate colour evaluation, consistency monitoring, and material analysis.
Accessory | Quantity |
Calibration Box | 1 Pc |
Aperture | 1 Pc |
USB Cables | 1 Pc |
Accessory | Quantity | Supplier Price | Labtron Price |
Liquid fixture | 1 Pc | $428 | $640 |
Powder fixture | 1 Pc | $120 | $360 |
1. What output formats and interfaces does the Spectral Colorimeter ADSCM-503 support?
The Spectral Colorimeter ADSCM-503 supports USB and Bluetooth connectivity, allowing seamless data transfer to PCs or mobile devices. It can export data in various color space formats, such as LAB, LCH, XYZ, RGB, and ?E for comparison purposes. The user-friendly software included with the device allows for report generation, batch comparison, and trend analysis. Real-time results can be stored, analyzed, or shared for quality control documentation.
2. How is the Spectral Colorimeter ADSCM-503 calibrated and maintained?
The Spectral Colorimeter ADSCM-503 typically comes with a white calibration tile and is calibrated using its built-in calibration mode. Regular calibration ensures accuracy and compensates for any drift in sensor response. Maintenance involves keeping the sensor lens clean, protecting the device from dust and humidity, and storing it in its protective case.
3. What is the measuring aperture size of Spectral Colorimeter ADSCM-503 and what does it affect?
The Spectral Colorimeter ADSCM-503 has a measuring aperture of ?6mm, which determines the area of the sample being evaluated during measurement. This aperture size is ideal for general-purpose applications where medium-sized color samples are being tested. A consistent aperture ensures repeatable results and minimizes variation caused by sample surface irregularities.
4. What makes the Spectral Colorimeter ADSCM-503 different from traditional colorimeters?
The Spectral Colorimeter ADSCM-503 uses a spectrophotometric method rather than simple tristimulus color detection, enabling more detailed and accurate color analysis. It features a silicon photodiode array with double 16 groups of sensors for high-speed and high-precision spectral data acquisition. This allows for better reproducibility and sensitivity, even with subtle color differences. Its spectral-based approach makes it suitable for professional-grade color matching tasks.
5. What is the Spectral Colorimeter ADSCM-503 used for?
The Spectral Colorimeter ADSCM-503 is primarily used for measuring and analyzing the color characteristics of various materials with high accuracy. It is widely used in industries such as textiles, plastics, printing, paints, food, and cosmetics to ensure consistent color quality. By capturing spectral data, it provides precise color values in different color spaces like CIE LAB, XYZ, and RGB. The device helps identify color differences, metamerism, and color matching issues.
