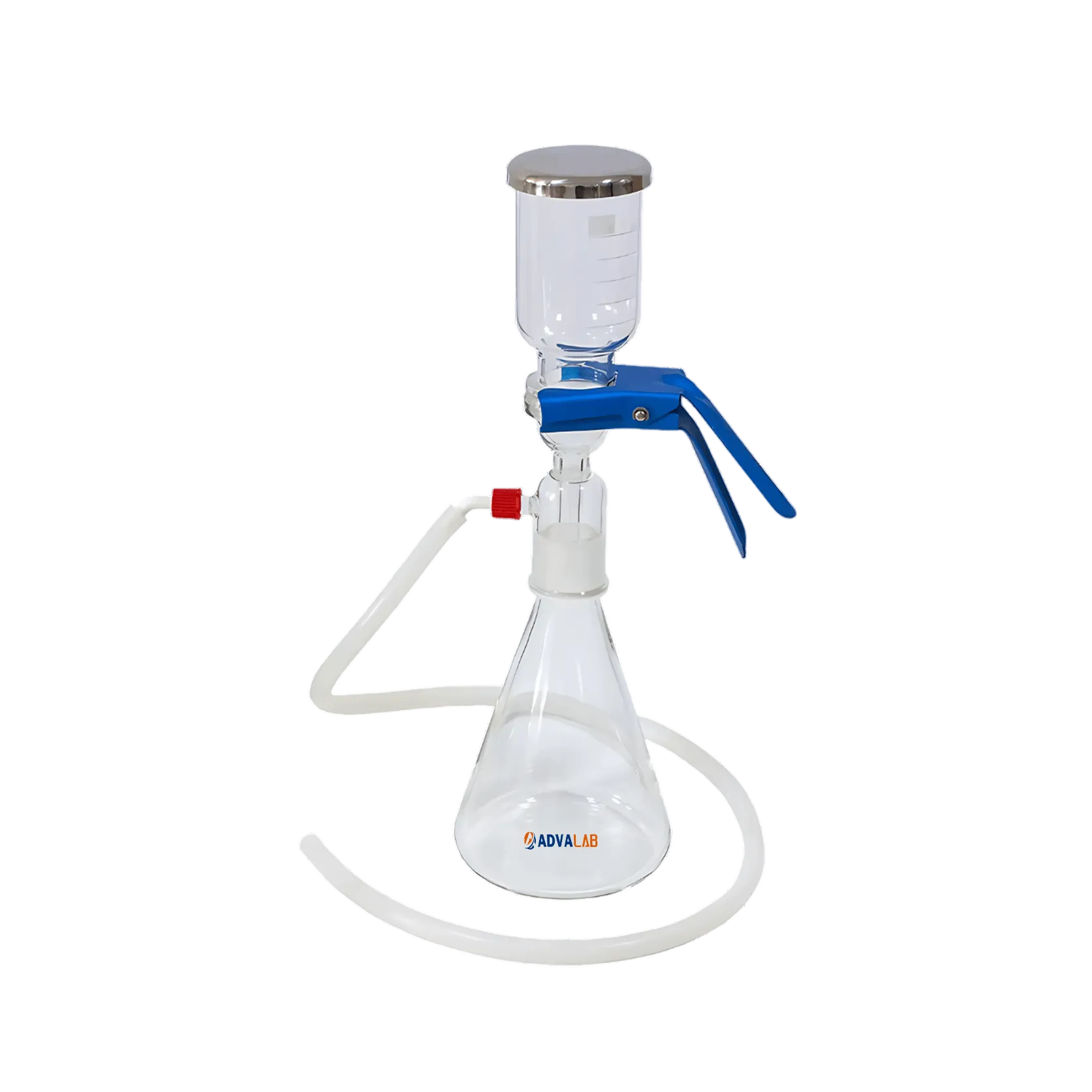

Vacuum Filtration Unit ADFA-502

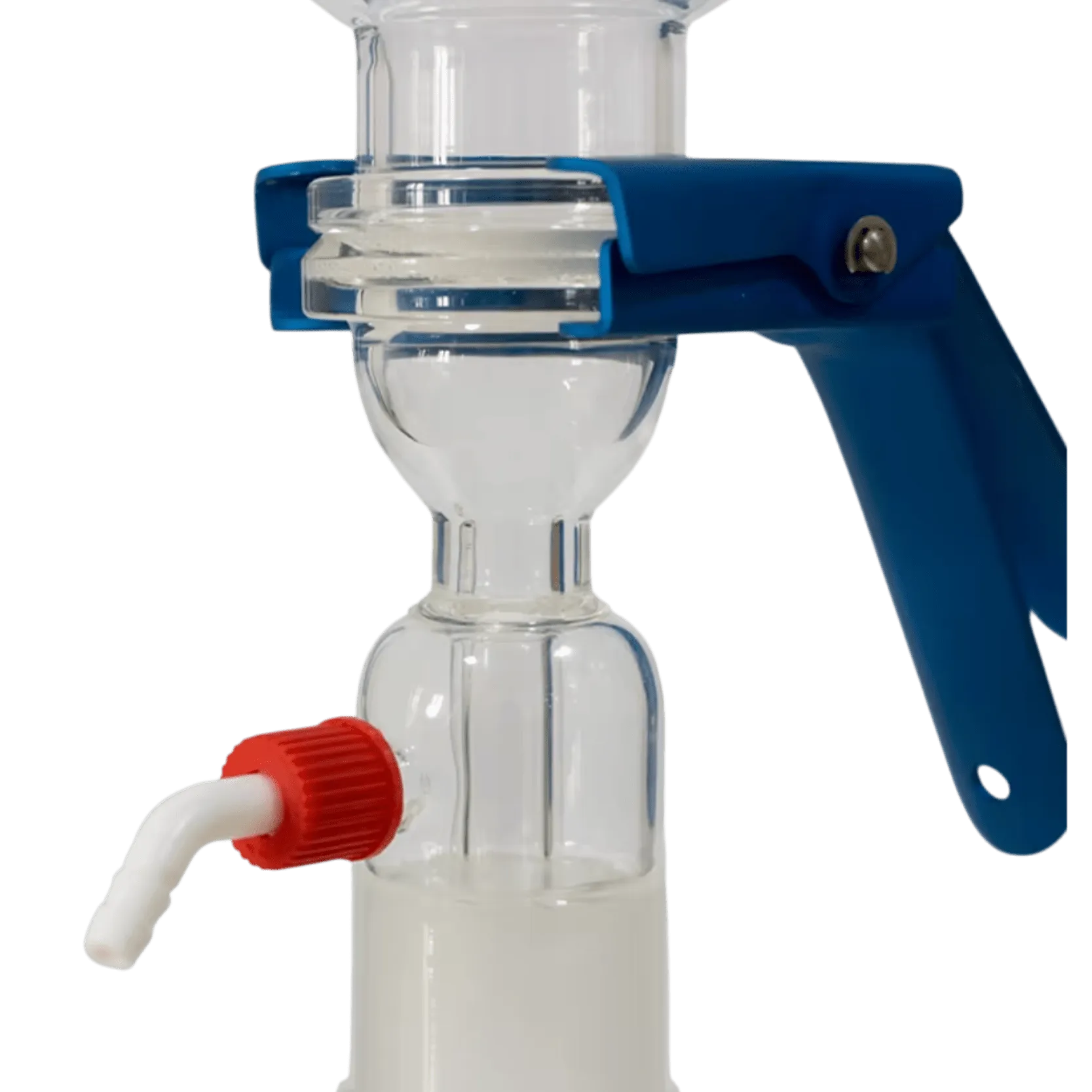

1. What is the purpose of the anodized aluminum spring clamp in a Vacuum Filtration Unit?

The anodized aluminum spring clamp in a Vacuum Filtration Unit is used to securely hold the funnel or membrane holder in place during filtration. Its durable, corrosion-resistant design ensures a tight seal between components, maintaining vacuum integrity and preventing leaks or spills during operation.

2. What should I do if liquid enters the Vacuum Filtration Unit?

If liquid enters the Vacuum Filtration Unit, stop the filtration process immediately. Reduced suction or unusual noises may indicate a clogged filter, blocked tubing, or a malfunctioning pump. Continuing to operate under these conditions can damage the equipment or affect filtration results. Regular cleaning and maintenance of the vacuum pump, are essential to prevent such issues and ensure long-term performance.

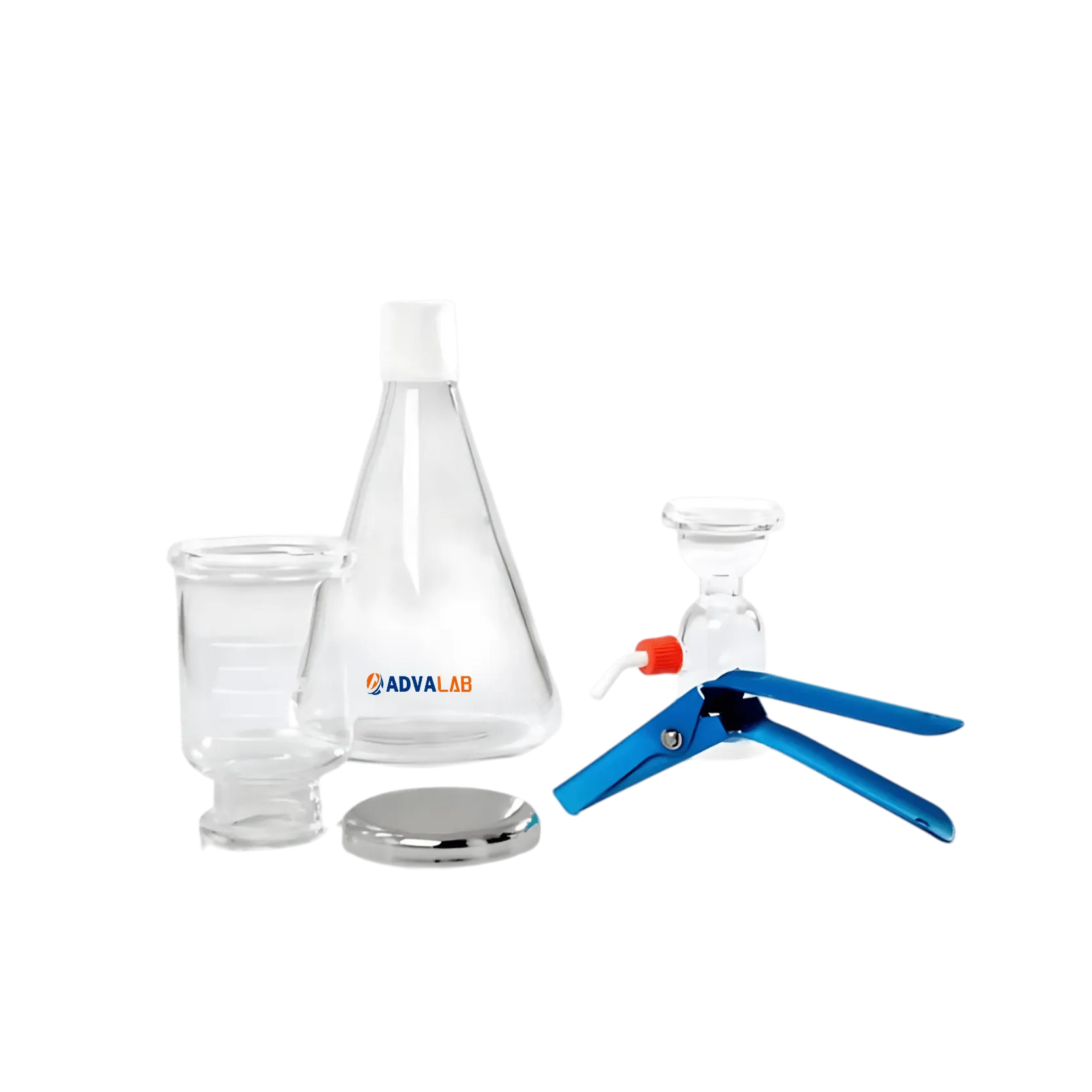

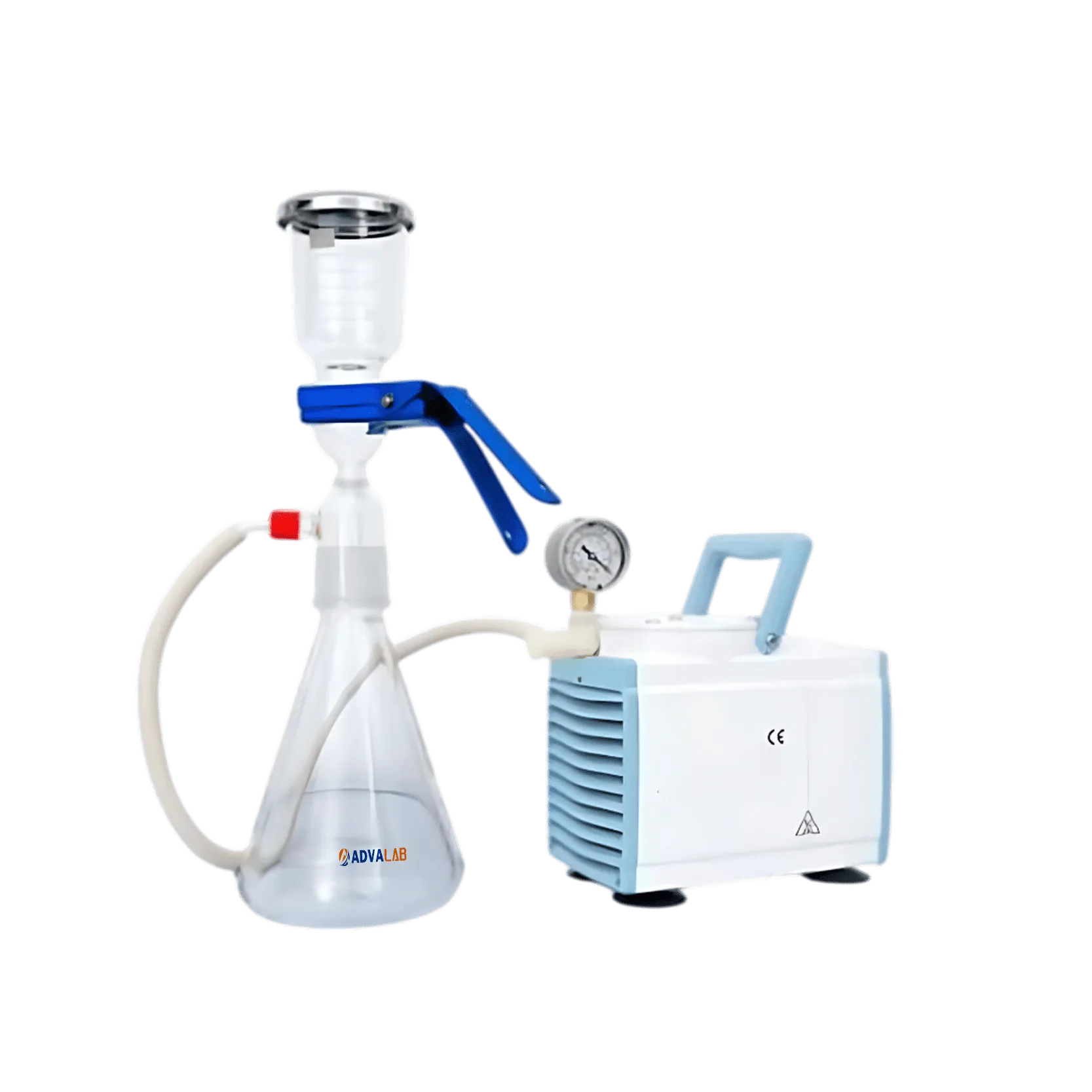

3. What are the main components of a Vacuum Filtration Unit setup?

The main components of a Vacuum Filtration Unit setup include the Büchner funnel, which holds the filter paper or membrane filter where the separation occurs. The filtration flask collects the filtrate, while the vacuum pump or aspirator creates the necessary suction to pull the liquid through the filter. The tubing and sealing adapters are used to connect the system, ensuring an airtight seal and efficient flow of the liquid through the apparatus.

4. Can Vacuum Filtration Unit be used for both liquid-solid and liquid-liquid separations?

Vacuum Filtration Unit is primarily designed for liquid-solid separations where the goal is to separate a solid from a liquid (e.g., isolating precipitates). For liquid-liquid separations, other methods like liquid-liquid extraction or distillation are generally more appropriate.

5. How do I safely operate and maintain a Vacuum Filtration Unit?

To operate the Vacuum Filtration Unit safely, keep the liquid level below the top measure and only refill after it drops below the bottom measure. Avoid overfilling the receiving flask, as liquid near the side arm may be drawn into the pump. If the pump stops, release vacuum pressure before restarting. Replace the membrane filter if filtration slows. Do not use the unit with flammable liquids.

6. What is a Vacuum Filtration Unit?

A Vacuum Filtration Unit is a laboratory device used to separate solids from liquids using vacuum to pull the liquid through a filter, leaving the solid residue behind. It typically consists of a Büchner funnel, filter paper, a vacuum flask, and a vacuum pump. This method is commonly used in chemical, biological, and environmental labs for faster and more efficient filtration compared to gravity-based methods.

7. How does Vacuum Filtration Unit work?

A Vacuum Filtration Unit operates by creating a pressure differential using a vacuum source, such as a pump or aspirator, connected to a filtration flask. This reduced pressure beneath the filter draws the liquid sample through the filter paper or membrane much faster than gravity alone. As the liquid is pulled through, solid particles are trapped on the filter’s surface, allowing for clear separation of solids from liquids.

8. What is the advantage of using Vacuum Filtration Unit over gravity filtration?

Vacuum Filtration Unit provides a faster and more efficient alternative to gravity filtration by using vacuum pressure to quickly draw liquid through the filter. This method is especially useful for filtering fine particles or dense solutions. It also enhances the clarity and purity of the final filtrate, making it ideal for precise laboratory work.
