| Capacity | 590 L |
| Temperature Range | -40 to -86°C |
| Cooling Performance | -80 °C |
| Cabinet Type | Upright |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | R290/R170 |
| Display | 7 |
| Interior Material | Galvanized steel powder coating |
| Exterior Material | Galvanized steel powder coating |
| Insulation Material | PUF+VIP |
| High and Low Temperature Alarm | Yes |
| Condenser High Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Sensor Failure Alarm | Yes |
| Hight Room Temperature Alarm | Yes |
| Alarm Mode | Sound and light alarm, remote alarm terminal |
| Thickness of Cabinet Foamed Layer | 90 mm |
| Inner Door Number | 2 |
| Capacity for 2-inch boxes | 400 |
| Thickness of Door | 70 mm |
| Door Locking Device | Yes |
| Handle | Yes |
| Pressure Balance Hole | Yes |
| Caster | Yes |
| Test Hole | Yes |
| Climate Class | No |
| Temperature Recorder | Optional |
| Racks & Boxes | Optional |
| Stainless Steel Shelves | 3 |
| Energy consumption | 14.2 KW.H/24H |
| Power Supply | 220/50 V/Hz |
| Power Consumption | 950 W |
| Interior Dimensions (W×D×H) | 740 x 600 x 1310 mm |
| Exterior Dimensions (W×D×H) | 995 x 855 x 1980 mm |
| Packing Dimensions (W×D×H) | 1015 x 890 x 2190 mm |
| Net Weight | 272 kg |
| Gross Weight | 311 kg |

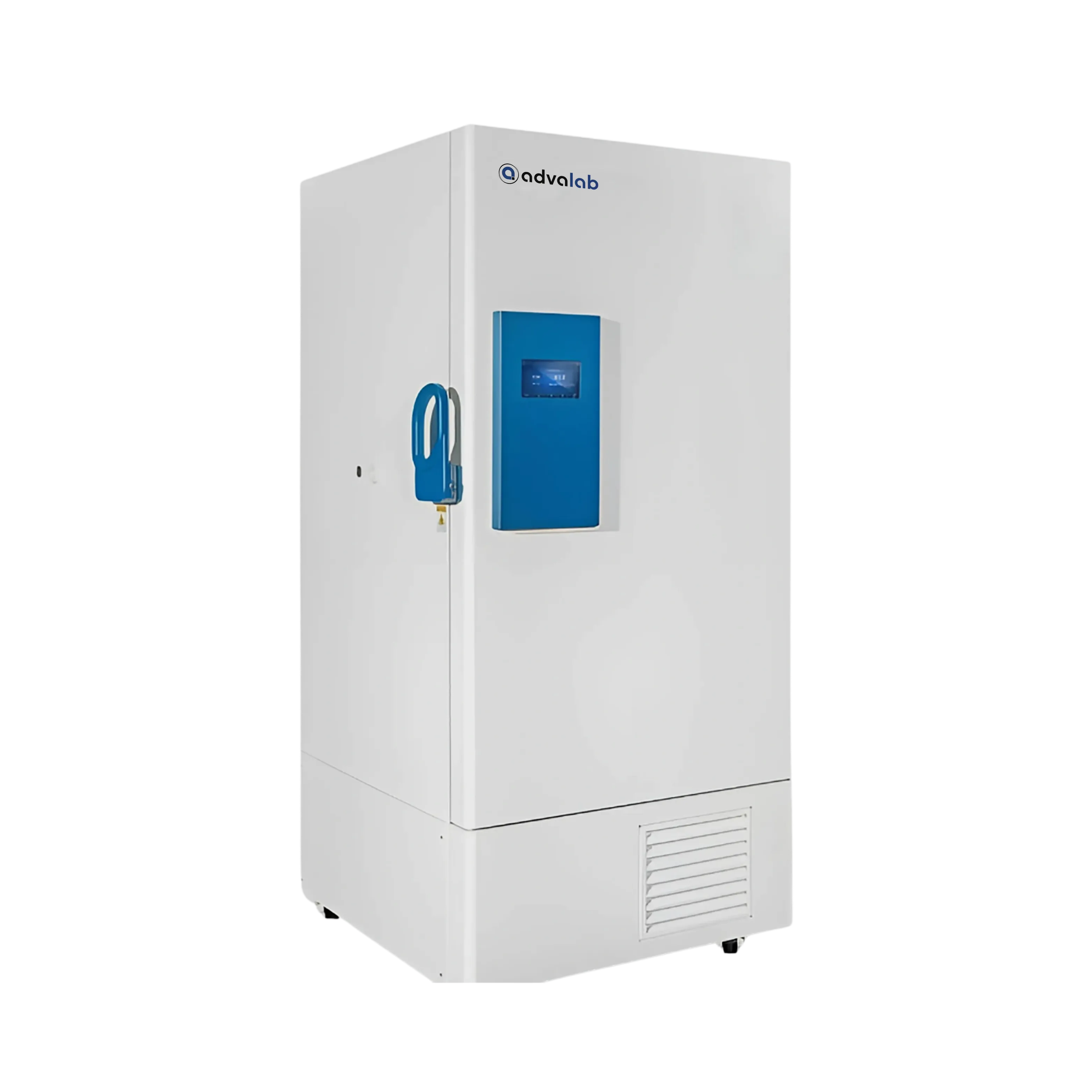

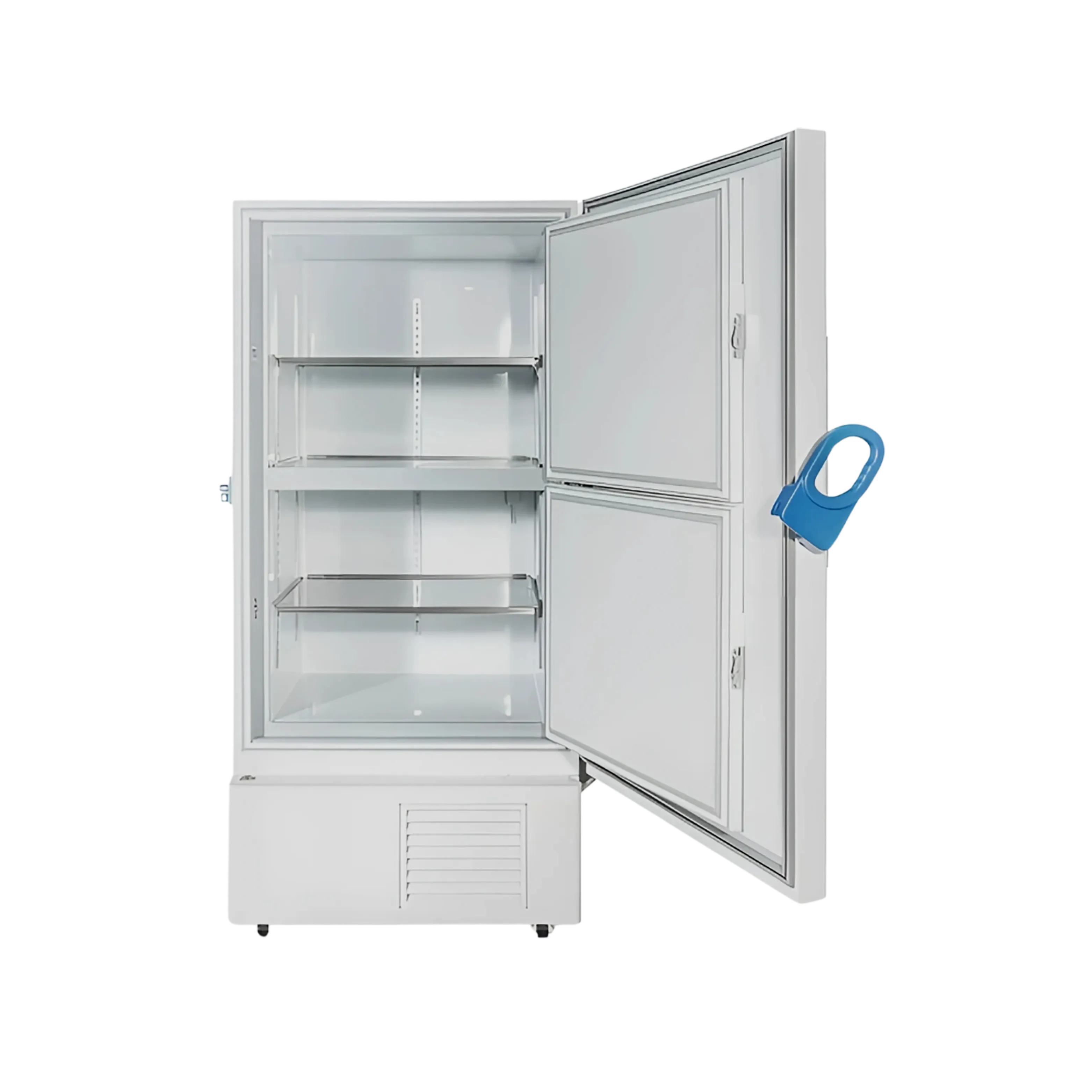

Our -86°C ULT Freezer ADFE-505 is utilized in medical centers, biobanks, laboratories, and industrial environments for extended storage of fragile biological samples such as viruses, cells, and tissue specimens.
1. What is the internal capacity of the -86°C ULT Freezer ADFE-505?
The -86°C ULT Freezer ADFE-505 offers a compact 590-liter chamber, ideal for small laboratories or tight storage spaces. Its space optimization allows efficient organization of sensitive samples. Despite its size, it supports critical preservation needs. This unit suits environments with space constraints.
2. How does the -86°C ULT Freezer ADFE-505 ensure temperature consistency?
-86°C ULT Freezer ADFE-505 uses a cascade refrigeration system and SECOP compressor for stable ultra-low cooling. It delivers precise temperature regulation with minimal variation. VIP insulation boosts efficiency by minimizing heat intrusion. These features maintain a uniform internal environment.
3. What protective features are included in the -86°C ULT Freezer ADFE-505?
-86°C ULT Freezer ADFE-505 is equipped with multiple security measures like over/under temperature warnings, sensor malfunction alerts, and battery backup notifications. Physical safety is reinforced through door locks and access codes. This multilayered protection prevents sample compromise. It ensures dependable safeguarding in critical operations.
4. How easy is it to operate the -86°C ULT Freezer ADFE-505 daily?
A user-oriented touchscreen provides clear temperature data and simple configuration access. The control panel allows swift interaction and monitoring. Built-in wheels help with effortless positioning. Additionally, a washable condenser filter streamlines regular upkeep.
5. Can the -86°C ULT Freezer ADFE-505 handle voltage fluctuations?
Yes, -86°C ULT Freezer ADFE-505 supports a broad input voltage of 192V to 242V, making it reliable in areas with inconsistent electrical supply. The design tolerates unstable conditions without performance drops. It's engineered for versatility across locations. This ensures long-term dependability regardless of region.
6. What are -86°C Ultra Low Temperature Freezers?
-86°C Ultra Low Temperature Freezers are specialized storage units designed to maintain extremely low temperatures. They are used for preserving biological samples, vaccines, enzymes, and other temperature-sensitive materials. These units incorporate advanced insulation, dual refrigeration systems, and accurate control panels to ensure dependable operation.
7. Which industries use -86°C Ultra Low Temperature Freezers?
-86°C Ultra Low Temperature Freezers are widely used in biotechnology, clinical research, pharmaceutical manufacturing, and academic labs. These units support long-term storage needs where ultra-low stability is critical. They play a vital role in medical research, pharmaceutical production, biotechnology, and biobanking facilities.
