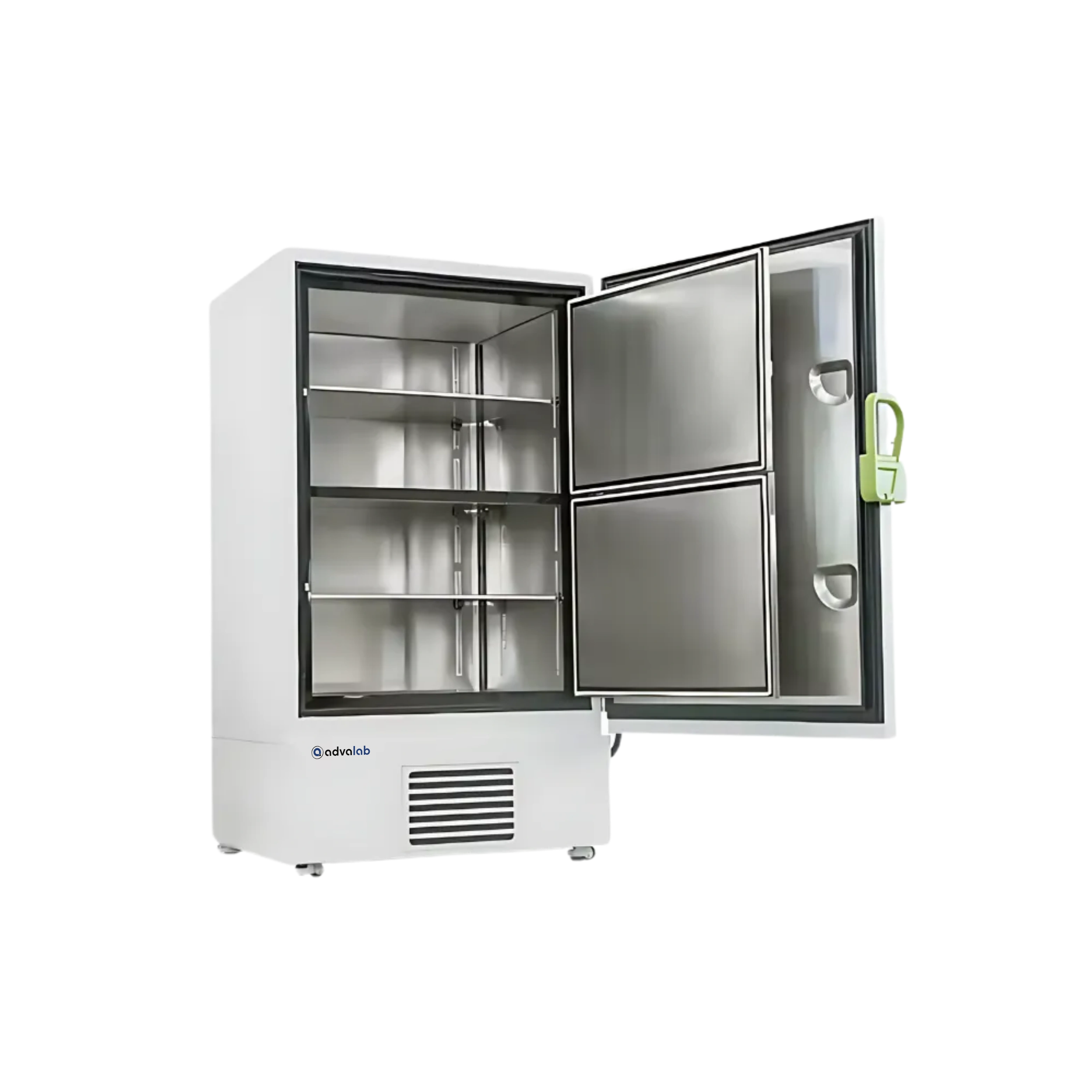

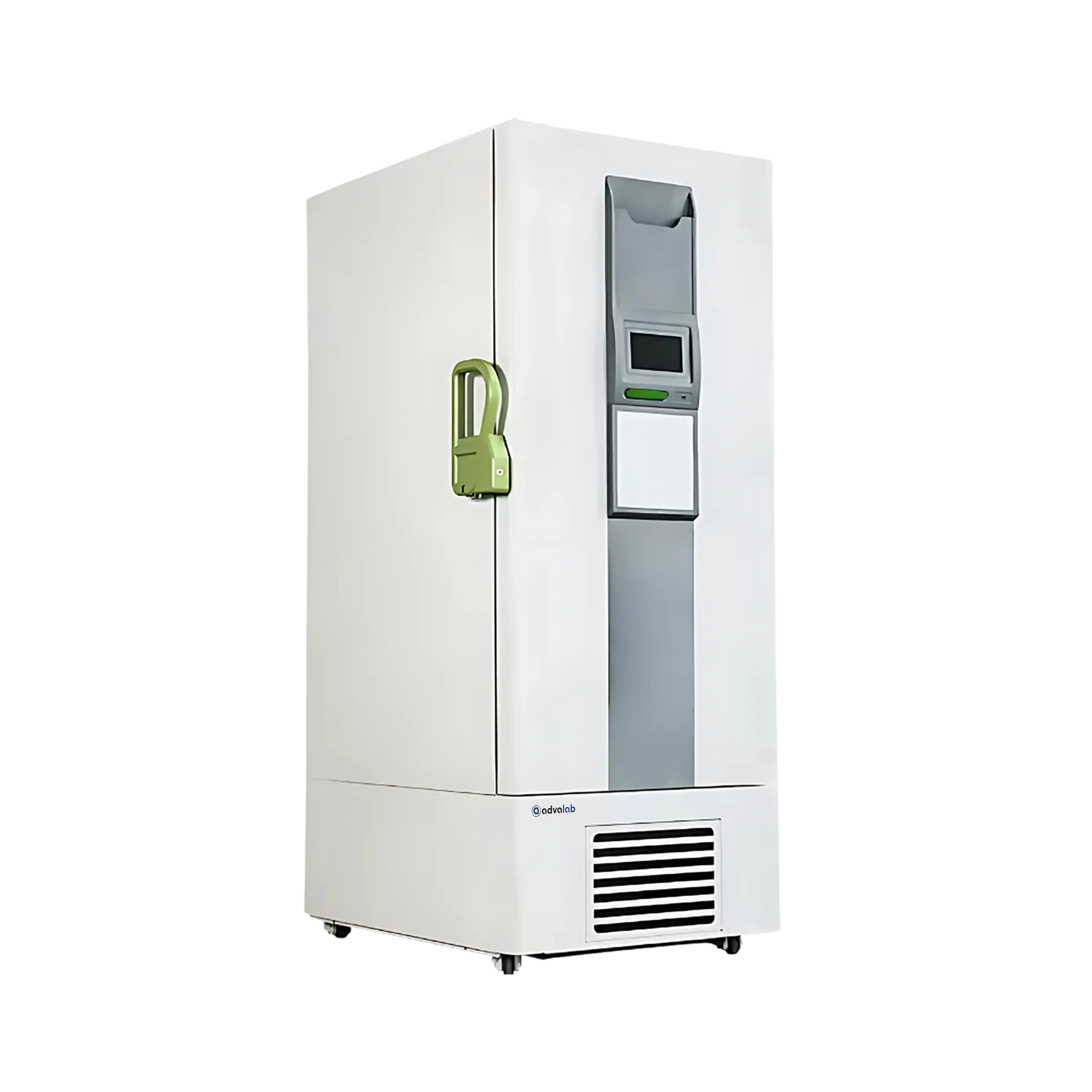

86 °C Ultra Low Vertical Freezer ADFU-505 is designed for laboratory storage of samples with a combination of temperature control systems for quick recovery. Designed with powder-coated electrolytically galvanized steel for maximum durability. Built-in over-temperature safety alarm with audible &visible alerts of temperature deviation. Safe and reliable storage capacity of 588 L at temperatures up to 40 °C to 86 °C.
| Capacity | 588 L |
| Temperature | 40 °C to 86 °C |
| Compressor | 2 |
| Ambient Temperature | 10 °C to 32 °C |
| Refrigerant | R4001 |
| Voltage | AC110/220 ± 10% 50/60 Hz |
| Sensor | PTC |
| Controller | Microprocessor |
| Power | 1500 W |
| Internal Dimension | 606 × 738 × 1310 mm |
| External Dimension (W× D × H) | 872 × 1192 × 1994.5 mm |
| Packaging Size | 970 × 1138 × 2185 mm |
| Sound | 53 dB |
| Shelves | 3 |
| Net Weight | 303 Kg |
| Gross Weight | 332 Kg |
86 °C Ultra Low Vertical Freezer is ideal for the storage of drugs, enzymes, chemical bacteria, cell preparation, and tissue sample. It is widely used in research facilities, laboratories, educational environments, pharmaceuticals hospitals, and medical fields.
1. What are -86°C Ultra Low Vertical Freezers used for?
They are designed for preserving sensitive biological samples, pharmaceuticals, and research specimens under extreme cold environments in labs and clinics. These units are essential for storing biological samples that require consistent ultra-low temperatures. Their vertical design maximizes floor space while allowing organized compartmentalized storage. With stable temperature performance, they ensure sample integrity over extended durations.
2. How do -86°C Ultra Low Vertical Freezers differ from -86°C Ultra Low Temperature Freezers? -
-86°C Ultra Low Vertical Freezers are distinguished by their upright, space-saving design, allowing easier access and organized shelving for high-volume storage. While both types maintain the same temperature range, vertical units offer ergonomic advantages of stored samples compared to horizontal. Ultra Low Temperature Freezers, which are often preferred for higher thermal stability.
| Capacity | 128 L |
| Temperature Range | -40 to -86°C |
| Cooling Performance | -80 °C |
| Capacity | 728 L |
| Temperature | 40 °C to 86 °C |
| Compressor | 2 |
| Capacity | 838 L |
| Temperature | 40 °C to 86 °C |
| Compressor | 2 |
| Capacity | 730 L |
| Temperature Range | -40 to -86°C |
| Cooling Performance | -80 °C |
| Capacity: | 730 L |
| Temperature Range: | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 96 L |
| Temperature Range: | -40°C to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 480 L |
| Temperature Range : | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 280 L |
| Temperature Range: | -40°C to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 1018 L |
| Temperature Range: | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 360 L |
| Temperature Range : | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 590 L |
| Temperature Range: | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 100 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 580 L |
| Temperature Range: | -15°C to -25°C |
| Cooling Method: | Direct Cooling |
| Capacity: | 285 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 380 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 190 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance: | -25°C |
| Capacity: | 470 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 60 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance: | -25°C |
| Capacity: | 520 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 110 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 390 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 260 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 370 L |
| Temperature Range: | -30 to -60°C |
| Cooling Performance : | -60 °C |
| Capacity: | 270 L |
| Temperature Range : | -30 to -60°C |
| Cooling: | -60°C |
| Capacity: | 100 L |
| Temperature Range : | -30 to -60°C |
| Cooling: | -60°C |
| Capacity: | 500 L |
| Temperature Range: | -30 to -60°C |
| Cooling Performance: | -60 °C |
| Capacity: | 170 L |
| Temperature Range : | -30 to -60°C |
| Cooling: | -60°C |
| Capacity: | 190 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 380 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 285 L |
| Temperature Range: | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 470 L |
| Temperature Range: | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 100 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 138 L |
| Temperature Range: | -125 to -150°C |
| Cooling Performance : | -150 °C |
| Capacity: | 226 L |
| Temperature Range : | -125 to -150°C |
| Cooling Performance : | -150 °C |
| Capacity: | 599 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 290 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance -: | -40°C |
| Capacity: | 370 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 580 L |
| Temperature Range: | -10 to -30°C |
| Cooling Performance : | -25°C |
| Capacity: | 1050 L |
| Temperature Range : | -10 to -30°C |
| Cooling Performance : | -25°C |
