| Capacity | 96 L |
| Temperature Range | -40°C to -86°C |
| Cooling Performance | -80 °C |
| Cabinet Type | Undercounter |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HC mixed |
| Display | 7" Touch screen with USB port |
| Interior Material | Galvanized steel powder coating |
| Exterior Material | Galvanized steel powder coating |
| Insulation Material | PUF+VIP |
| High and Low Temperature Alarm | Yes |
| Condenser High Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Sensor Failure Alarm | Yes |
| Hight Room Temperature Alarm | Yes |
| Alarm Mode | Sound and light alarm, remote alarm terminal |
| Thickness of Cabinet Foamed Layer | 90mm |
| Inner Door Number | 2 |
| Capacity for 2-inch boxes | 60 |
| Thickness of Door | 70mm |
| Door Locking Device | Yes |
| Handle | Yes |
| Pressure Balance Hole | Yes |
| Caster | Optional |
| Test Hole | Yes |
| Climate Class | No |
| Temperature Recorder | Optional |
| Racks & Boxes | Optional |
| Stainless Steel Shelves | 1 |
| Energy consumption | 5.5 KW.H/24H |
| Power Supply | 220/50 V/Hz |
| Power Consumption | 460 W |
| Interior Dimensions (W ×D × H) | 320 x 450 x 610 mm |
| Exterior Dimensions (W × D × H) | 795 x 680 x 815 mm |
| Packing Dimensions (W × D× H) | 850 x 740 x 953 mm |
| Net Weight | 92 kg |
| Gross Weight | 107 kg |

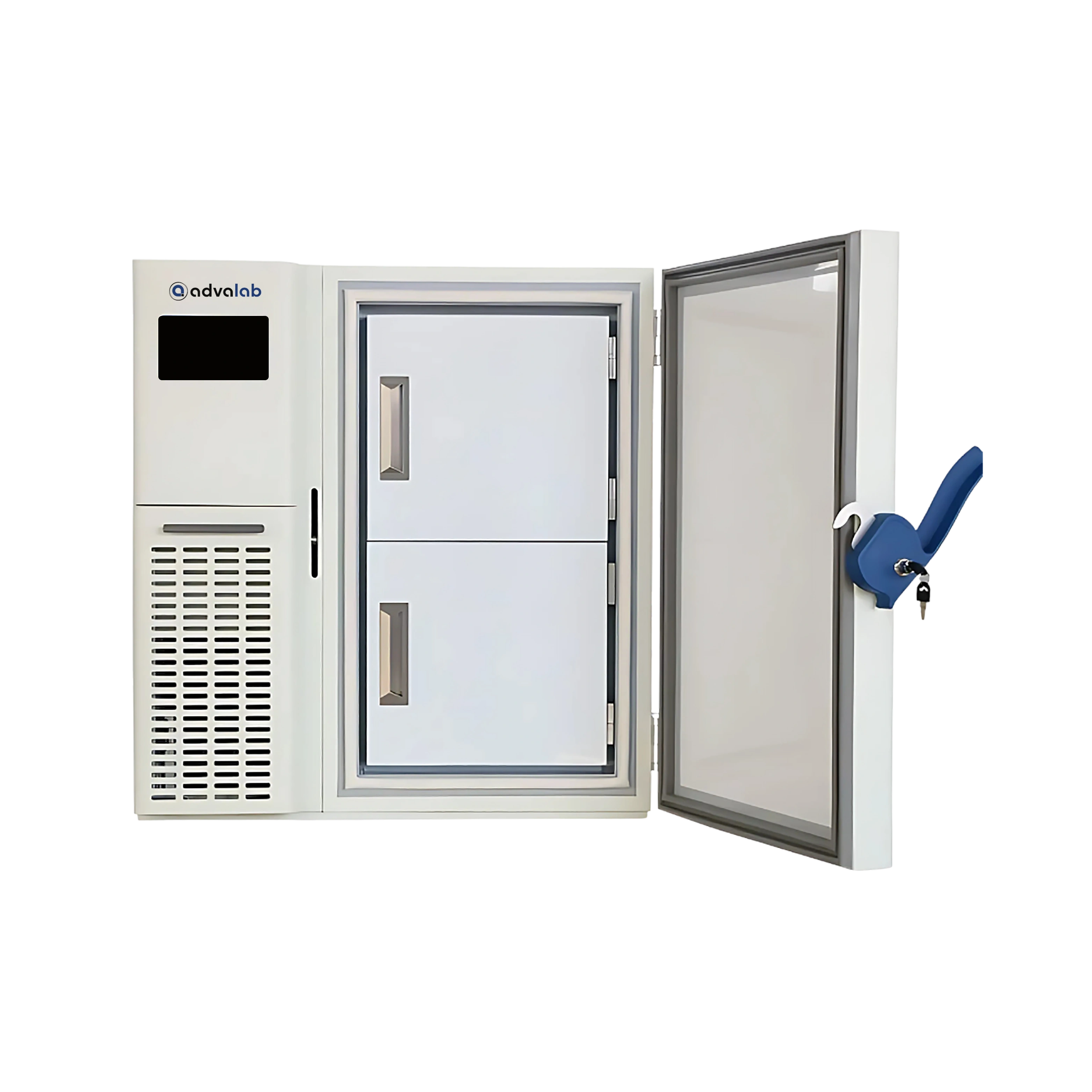

The -86°C ULT Freezer ADFE-501 is used in hospitals, blood banks, research labs, and industrial facilities for long-term preservation of sensitive biological materials like viruses, cells, and tissues.
1. What is the storage capacity of the -86°C ULT Freezer ADFE-501?
The -86°C ULT Freezer ADFE-501 includes a 96-liter internal volume, ideal for limited-space environments. It accommodates various biological materials without sacrificing efficiency. The compact design supports organized arrangement. This makes it suitable for high-precision storage needs.
2. How does the -86°C ULT Freezer ADFE-501 maintain temperature stability?
Equipped with advanced cascade refrigeration and a SECOP compressor, -86°C ULT Freezer ADFE-501 ensures uniform cold distribution. The system minimizes fluctuations and preserves internal climate. Thermal reliability is supported by VIP insulation panels. It guarantees sample protection over extended periods.
3. What safety features are integrated in the -86°C ULT Freezer ADFE-501?
This -86°C ULT Freezer ADFE-501 features multiple alarms, including high/low temperature, sensor error, power loss, and battery warnings. Lockable access and password protection enhance security. These alerts help prevent unexpected risks. It ensures complete control and peace of mind.
4. Is the -86°C ULT Freezer ADFE-501 user-friendly in daily operation?
-86°C ULT Freezer ADFE-501 has a large touchscreen interface which offers real-time data visibility and simple adjustments. The layout allows intuitive parameter control. Heavy-duty casters enable smooth relocation. Maintenance is made easier with a removable condenser filter.
5. Does the -86°C ULT Freezer ADFE-501 support different power conditions?
Yes, -86°C ULT Freezer ADFE-501 features a wide voltage design ranging from 192V to 242V, making it adaptable to unstable power environments. This flexibility enhances operational reliability. The system is well-suited for diverse geographic locations. It minimizes the risk of power-related interruptions.
6. What are -86°C Ultra Low Temperature Freezers?
-86°C Ultra Low Temperature Freezers are specialized storage units designed to maintain extremely low temperatures. They are used for preserving biological samples, vaccines, enzymes, and other temperature-sensitive materials. These units incorporate advanced insulation, dual refrigeration systems, and accurate control panels to ensure dependable operation.
7. Which industries use -86°C Ultra Low Temperature Freezers?
-86°C Ultra Low Temperature Freezers are widely used in biotechnology, clinical research, pharmaceutical manufacturing, and academic labs. These units support long-term storage needs where ultra-low stability is critical. They play a vital role in medical research, pharmaceutical production, biotechnology, and biobanking facilities.
| Capacity | 590 L |
| Temperature Range | -40 to -86°C |
| Cooling Performance | -80 °C |
| Capacity | 730 L |
| Temperature Range | -40 to -86°C |
| Cooling Performance | -80 °C |
| Capacity | 1018 L |
| Temperature Range | -40 to -86°C |
| Cooling Performance | -80 °C |
| Capacity | 838 L |
| Temperature | 40 °C to 86 °C |
| Compressor | 2 |
| Capacity: | 728 L |
| Temperature: | 40 °C to 86 °C |
| Compressor: | 2 |
| Capacity: | 838 L |
| Temperature: | 40 °C to 86 °C |
| Compressor: | 2 |
| Capacity: | 588 L |
| Temperature: | 40 °C to 86 °C |
| Compressor: | 2 |
| Capacity: | 480 L |
| Temperature Range : | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 730 L |
| Temperature Range: | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 128 L |
| Temperature Range: | -40 to -86°C |
| Cooling Performance : | -80 °C |
| Capacity: | 408 L |
| Temperature: | 40 °C to 86 °C |
| Compressor: | 1 |
| Capacity: | 190 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance: | -25°C |
| Capacity: | 470 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 100 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 285 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 380 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 580 L |
| Temperature Range: | -15°C to -25°C |
| Cooling Method: | Direct Cooling |
| Capacity: | 110 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 260 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 390 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 60 L |
| Temperature Range: | -10 to -25°C |
| Cooling Performance: | -25°C |
| Capacity: | 520 L |
| Temperature Range : | -10 to -25°C |
| Cooling Performance : | -25°C |
| Capacity: | 170 L |
| Temperature Range : | -30 to -60°C |
| Cooling: | -60°C |
| Capacity: | 270 L |
| Temperature Range : | -30 to -60°C |
| Cooling: | -60°C |
| Capacity: | 100 L |
| Temperature Range : | -30 to -60°C |
| Cooling: | -60°C |
| Capacity: | 370 L |
| Temperature Range: | -30 to -60°C |
| Cooling Performance : | -60 °C |
| Capacity: | 500 L |
| Temperature Range: | -30 to -60°C |
| Cooling Performance: | -60 °C |
| Capacity: | 100 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 470 L |
| Temperature Range: | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 285 L |
| Temperature Range: | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 380 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 190 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 138 L |
| Temperature Range: | -125 to -150°C |
| Cooling Performance : | -150 °C |
| Capacity: | 226 L |
| Temperature Range : | -125 to -150°C |
| Cooling Performance : | -150 °C |
| Capacity: | 599 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 370 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance : | -40°C |
| Capacity: | 608 L |
| Temperature Range: | 0 to -40°C |
| Cooling Performance: | -40°C |
| Capacity: | 290 L |
| Temperature Range : | -10 to -40°C |
| Cooling Performance -: | -40°C |
| Capacity: | 1050 L |
| Temperature Range : | -10 to -30°C |
| Cooling Performance : | -25°C |
| Capacity: | 580 L |
| Temperature Range: | -10 to -30°C |
| Cooling Performance : | -25°C |
| Capacity: | 300 L |
| Temperature Range: | −10°C to −20°C (Adjustable) |
| Temperature Control: | Microprocessor-Based Digital Control |
