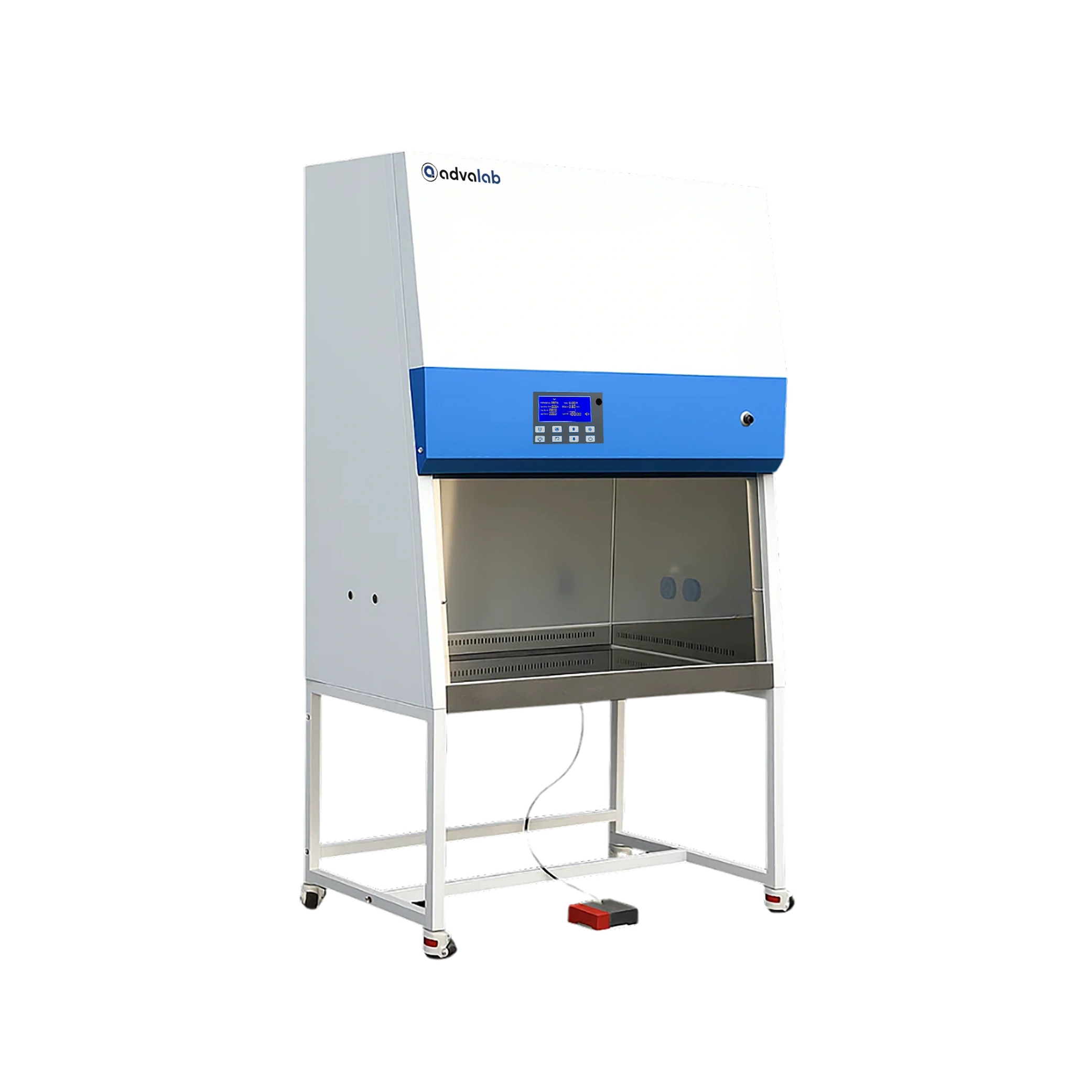

Class II A2 Biological Safety Cabinet ADBC-502

Class II A2 Biological Safety Cabinet ADBC-502

Our Class II A2 Biological Safety Cabinet ADBC-502 comes with a space-efficient exterior dimensions of 1500 × 750 × 2250 mm, suited for modern lab configurations. The wide internal workspace supports precise handling of sensitive processes. An extended front opening improves accessibility and workflow efficiency. Integrated remote control simplifies operation while enhancing user convenience. Class II A2 Biological Safety Cabinet used in healthcare and research facilities for managing infectious agents and environmental safety.


External Dimension (W×D×H) 1500 × 750 × 2250 mm
Internal Dimension (W×D×H) 1350 × 600 × 660 mm
Max Opening Height 500 mm (20 inches)
Safety Sash Height 200 mm (8inches)
Airflow System 70% recirculated air, 30% exhaust for contamination control
ULPA Filter Efficiency 99.9995% at 0.12 µm
Inflow Air Velocity 0.53 ± 0.025 m/s
Downflow Air Velocity 0.34 ± 0.025 m/s
Control System Advanced microprocessor system
LCD Display Shows filter pressure, lamp/filter life, inflow/downflow speed, work time
Front Window Motorized, laminated tempered glass with UV protection
UV Lamp 40W × 1
Illuminating Lamp LED 16W × 2
Illumination ≥1000 Lux
Waterproof Sockets 500 W
Work Surface Height 750 mm
Noise Level ≤ 67 dB
Work Surface Material Cold-rolled steel with anti-bacterial powder coating
Caster Footmaster caster
Package Size (W×D×H) 1630 × 1000 × 1820 mm
Power Consumption 850W
Power Supply AC 220V ±10%, 50/60 Hz
Gross Weight 316 kg
  • Foot switch
  • Motorized front window
  • Time reserve function
  • Interlock function
  • Audio and visual alarm

Class II A2 Biological Safety Cabinet ADBC-502 is exclusively used in microbiology labs, hospitals, and research centers to ensure operator, product, and environmental protection while handling biohazardous materials.

LED Lamp

1 unit

UV Lamp

2 unit

Base Stand

1 unit

Remote Control

1 unit

Foot Switch

1 unit

Drain Valve

1 unit

Waterproof Sockets

2 unit

Water and Gas Tap

1 unit

Electric Height Adjustable Stand

1 unit

Armrest

1 unit

Chair

1 unit

Class II A2 Biological Safety Cabinet ADBC-502 | External Dimension (W×D×H)	1500 × 750 × 2250 mm | Internal Dimension (W×D×H)	1350 × 600 × 660 mm
Class II A2 Biological Safety Cabinet ADBC-502 | Foot switch | Motorized front window

Frequently Asked Questions of Class II A2 Biological Safety Cabinet ADBC-502

1. How does the airflow system work in the Class II A2 Biological Safety Cabinet ADBC-502?

The Class II A2 Biological Safety Cabinet ADBC-502 features a 70% recirculation and 30% exhaust airflow system. This configuration maintains a clean internal environment by continuously filtering air through ULPA filters with 99.9995% efficiency at 0.12 µm. The advanced mechanism in the unit helps to minimize contamination risks to harmful agents. It is particularly effective for applications involving aerosols substances.

2. What safety features are included in the Class II A2 Biological Safety Cabinet ADBC-502?

The Class II A2 Biological Safety Cabinet ADBC-502 is equipped with comprehensive safety features, including a safety sash height and an LCD display for monitoring real-time parameters. The system includes visual and audible alarms for unsafe conditions, ensuring maximum protection and user awareness. These features provide critical alerts to prevent operational errors or safety breaches.

3. What accessories come with the Class II A2 Biological Safety Cabinet ADBC-502?

The Class II A2 Biological Safety Cabinet ADBC-502 includes essential accessories such as an LED lamp, UV lamp, base stand, remote control, foot switch, and drain valve. Optional features include a water & gas tap, adjustable armrest, and electric height-adjustable base. This accessory enhances the functionality and user-friendliness of the unit in demanding lab environments. It is designed for convenience and ergonomic support during long operational hours.

4. In what types of laboratories is the Class II A2 Biological Safety Cabinet ADBC-502 used?

Class II A2 Biological Safety Cabinet ADBC-502 is used in research laboratories, hospitals, and microbiology facilities. It is preferred for its compact dimensions, advanced filtration, low-noise operation, and high safety standards. The system is particularly valued in spaces where contamination control and personnel protection are critical. Its adaptability to multiple biosafety applications makes it a reliable solution for modern lab environments.

5. What is the purpose of the Class II A2 Biological Safety Cabinet ADBC-502?

The Class II A2 Biological Safety Cabinet ADBC-502 is designed to protect the operator, environment, and the product while handling moderate-risk biological materials. It provides a sterile and secure workspace by using laminar downflow air and ULPA filtration, ensuring a contamination-free environment. This makes the unit essential in microbiology, biotechnology, and pharmaceutical labs where biohazard safety is a priority.

6. What are Class II A2 Biological Safety Cabinets and where are they commonly used?

Class II A2 Biological Safety Cabinets are designed to provide protection to users, laboratory samples, and the surrounding environment from harmful contaminants. These cabinets operate by maintaining a constant inflow of air to prevent exposure to hazardous substances. While simultaneously using high-efficiency ULPA filters to purify the air being recirculated and exhausted. They are used in microbiology labs, clinical research settings and diagnostic centers.

7. Is regular maintenance required for Class II A2 Biological Safety Cabinets?

Yes, regular maintenance is crucial for Class II A2 Biological Safety Cabinets to maintain optimal performance safety. These units need regular cleaning to remove residues and prevent contamination. HEPA filters must be tested regularly to ensure they effectively trap airborne particles. Airflow patterns need to be validated periodically to ensure proper laminar flow and containment.
