| Temperature | R.T. +5°C to 340°C |
| Temperature Calibration Range | 0°C to 340°C |
| Speed Range | 100 to 1500 rpm |
| Maximum Sample Volume | 20L |
| Maximum Stirring Bar Length | 80mm |
| Temperature Safety Limit | 390°C |
| Temperature Sensor | PT1000 |
| Stirring Position | 1 |
| Material | Stainless Steel Coated Ceramic |
| Display | LCD |
| Power Supply | AC 100-120V / AC 200-240V, 50-60Hz |
| Power consumption | 550W |
| Heating Plate Dimension | φ137mm |
| Display Dimension (W×D×H) | 160×270×75 mm |
| Net Weight | 2.5 kg |

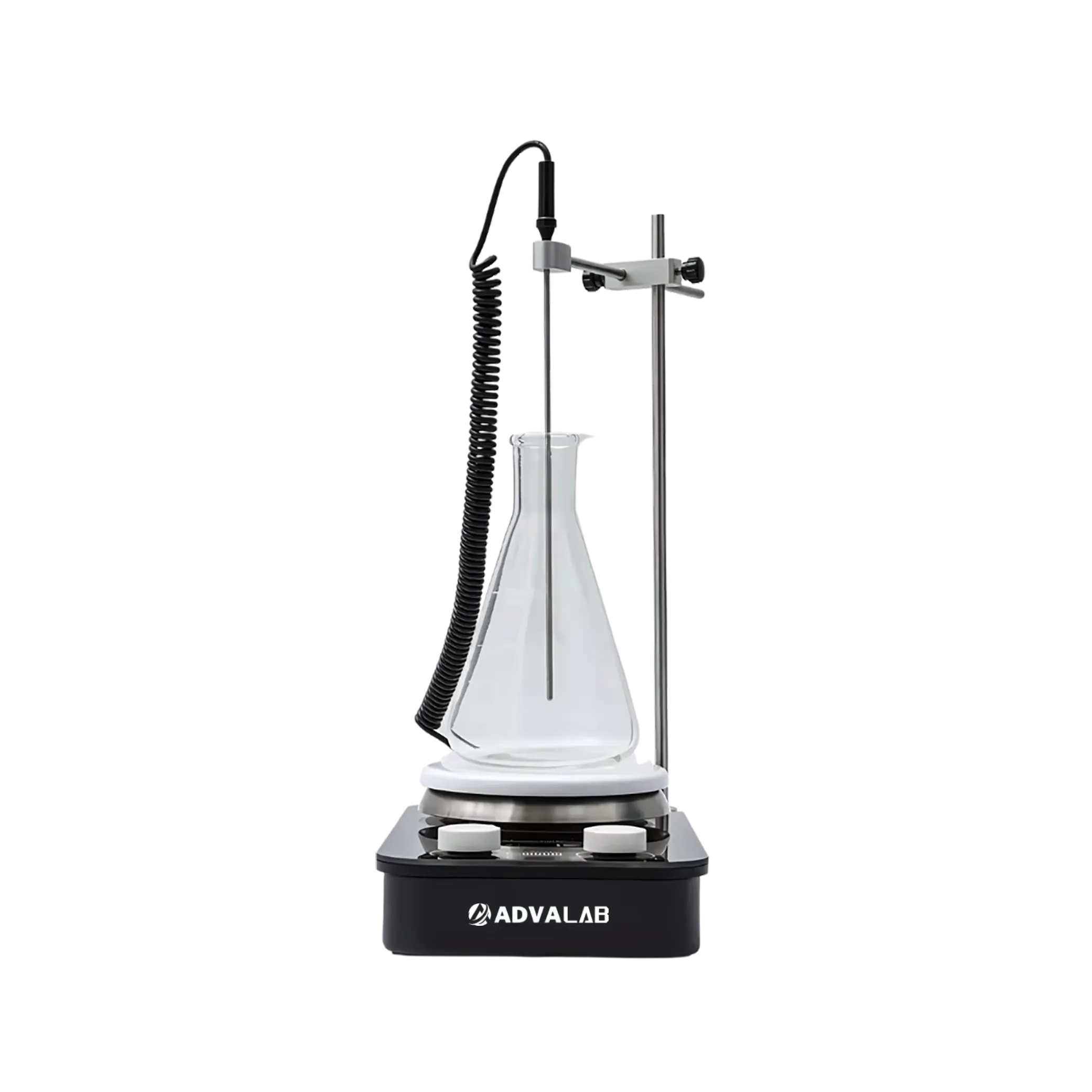

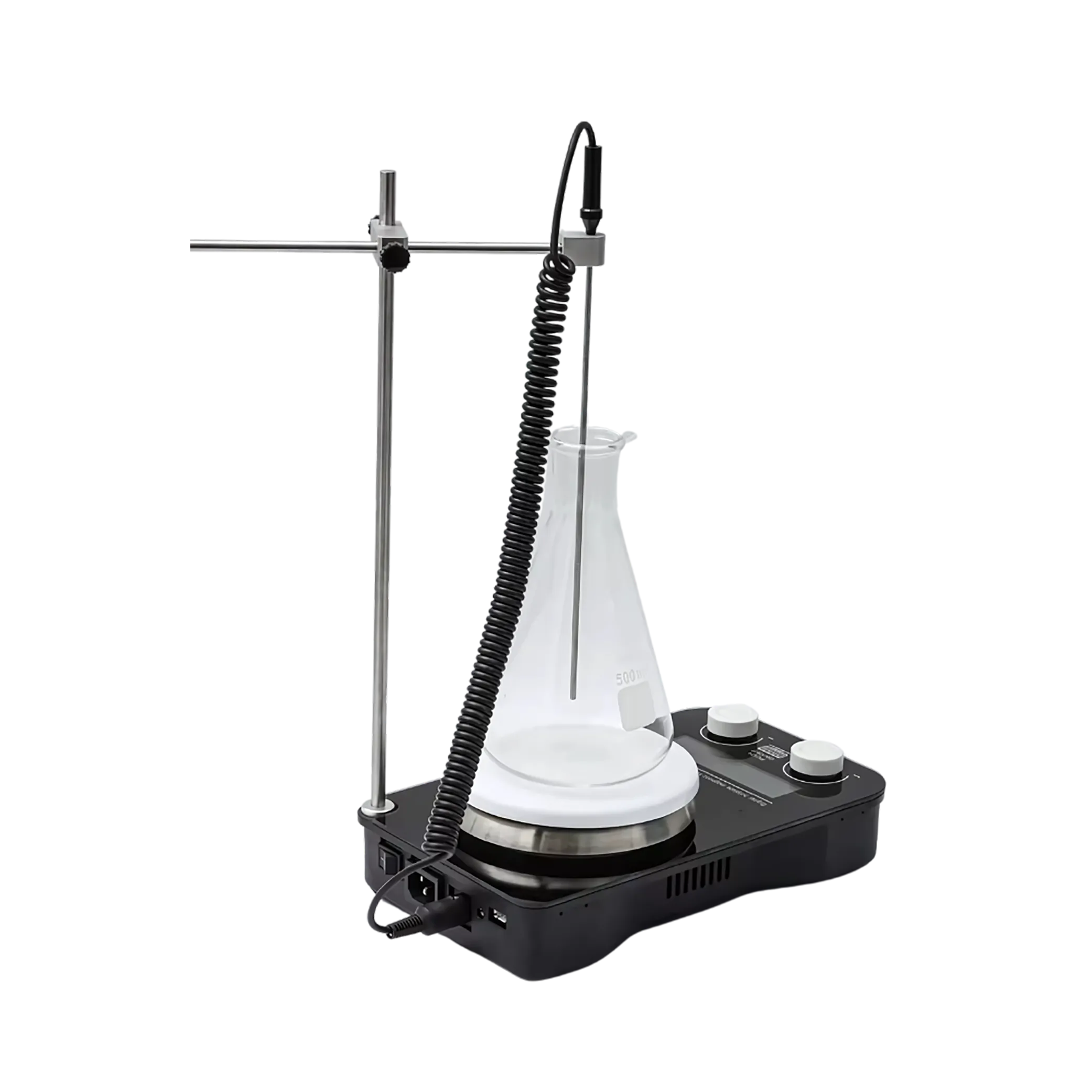

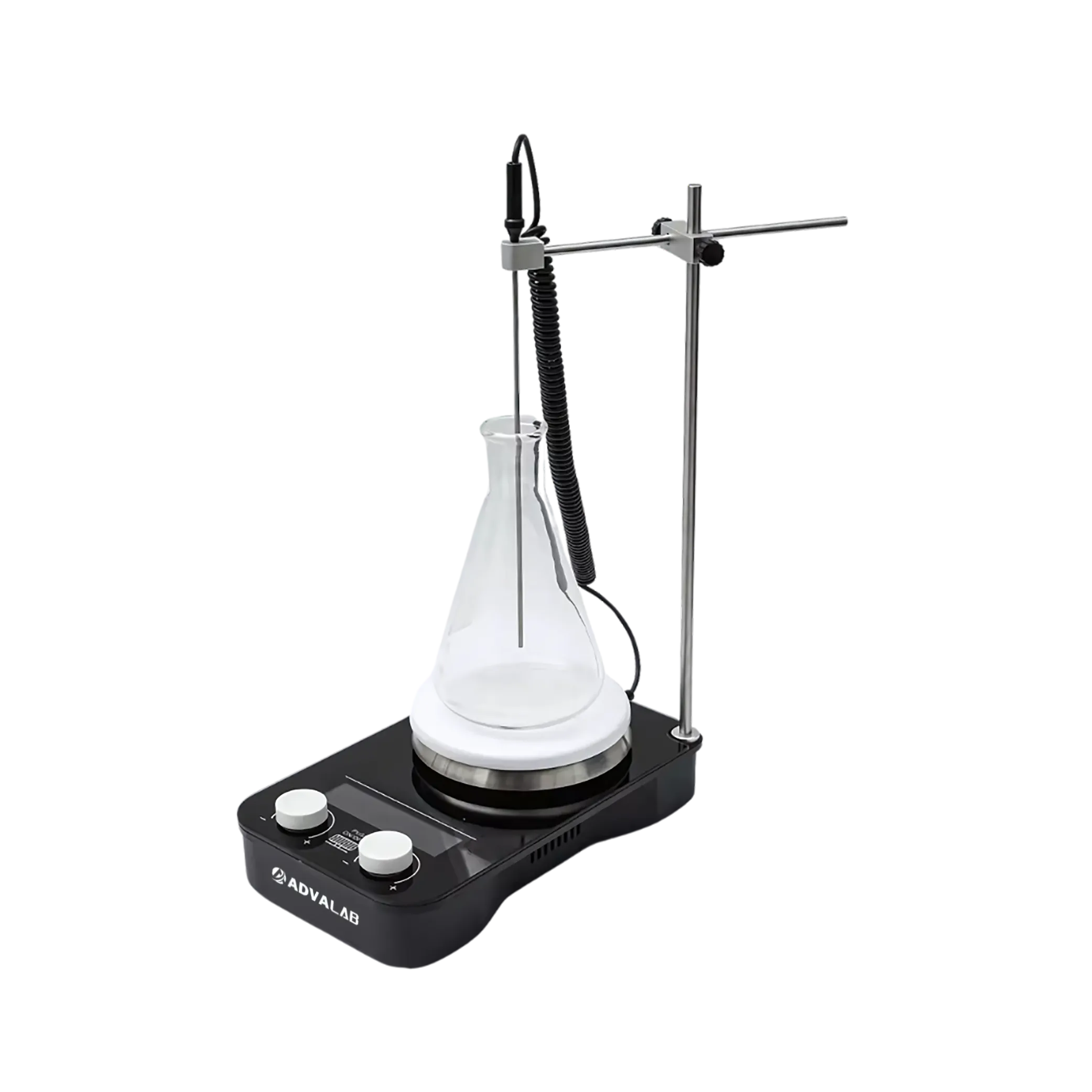

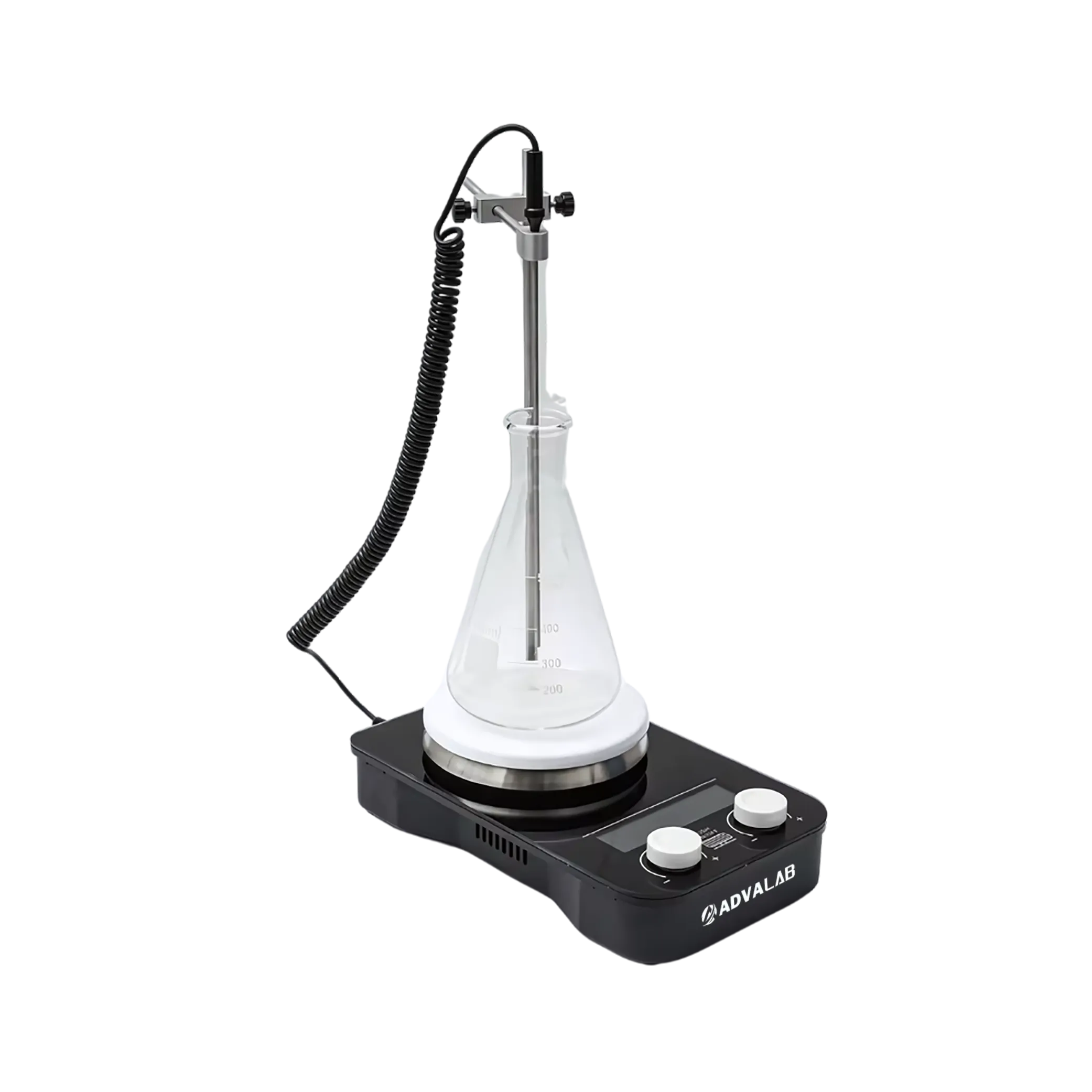

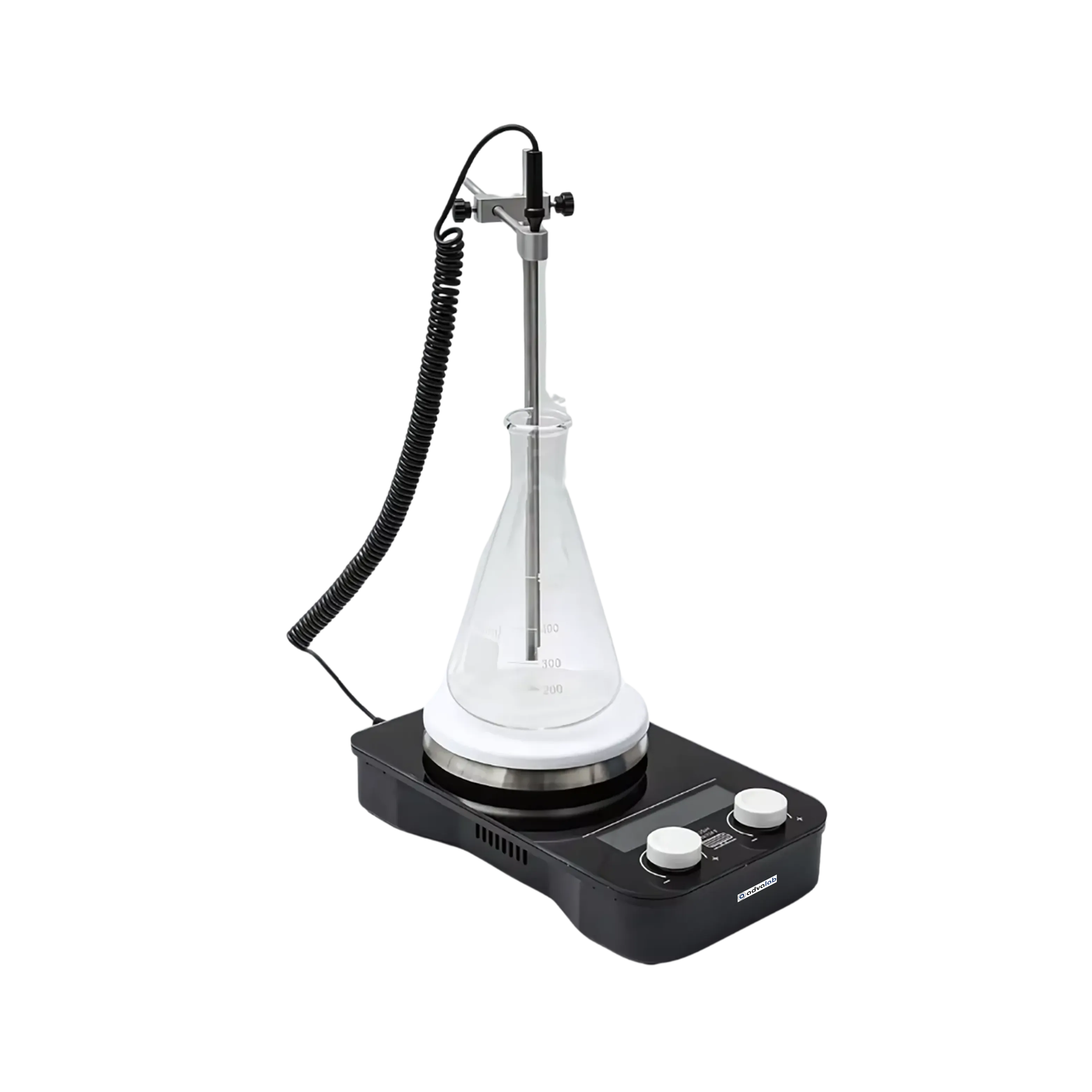

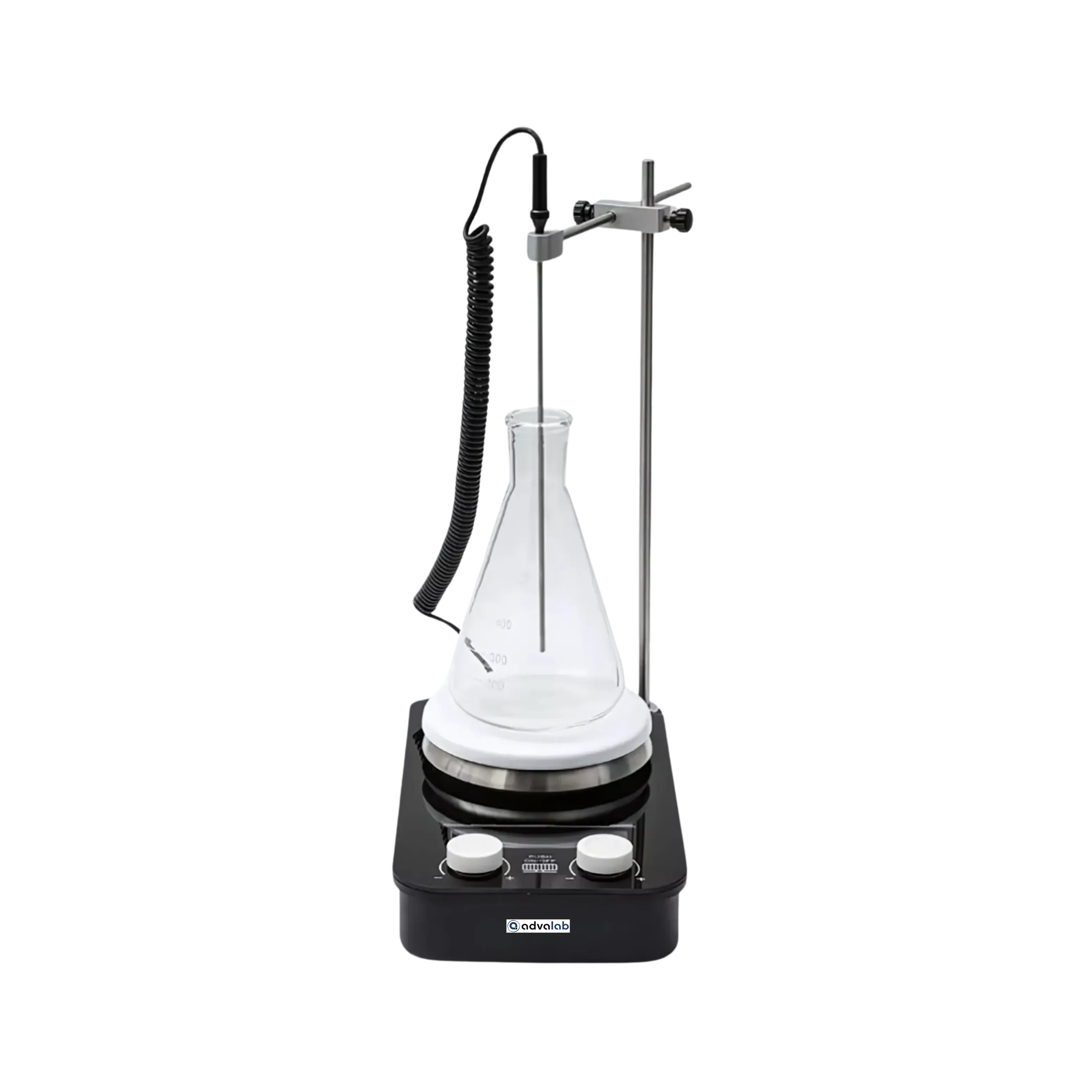

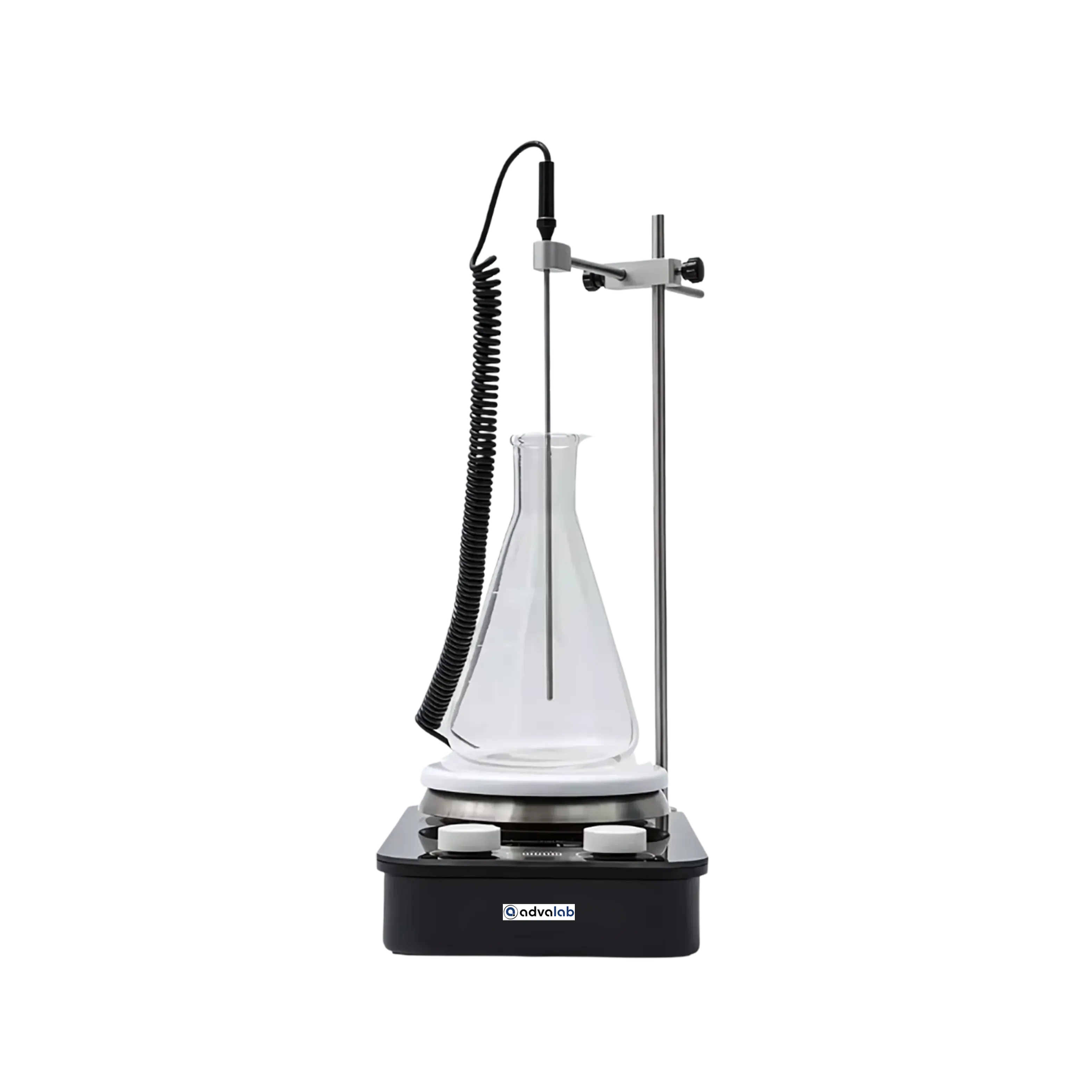

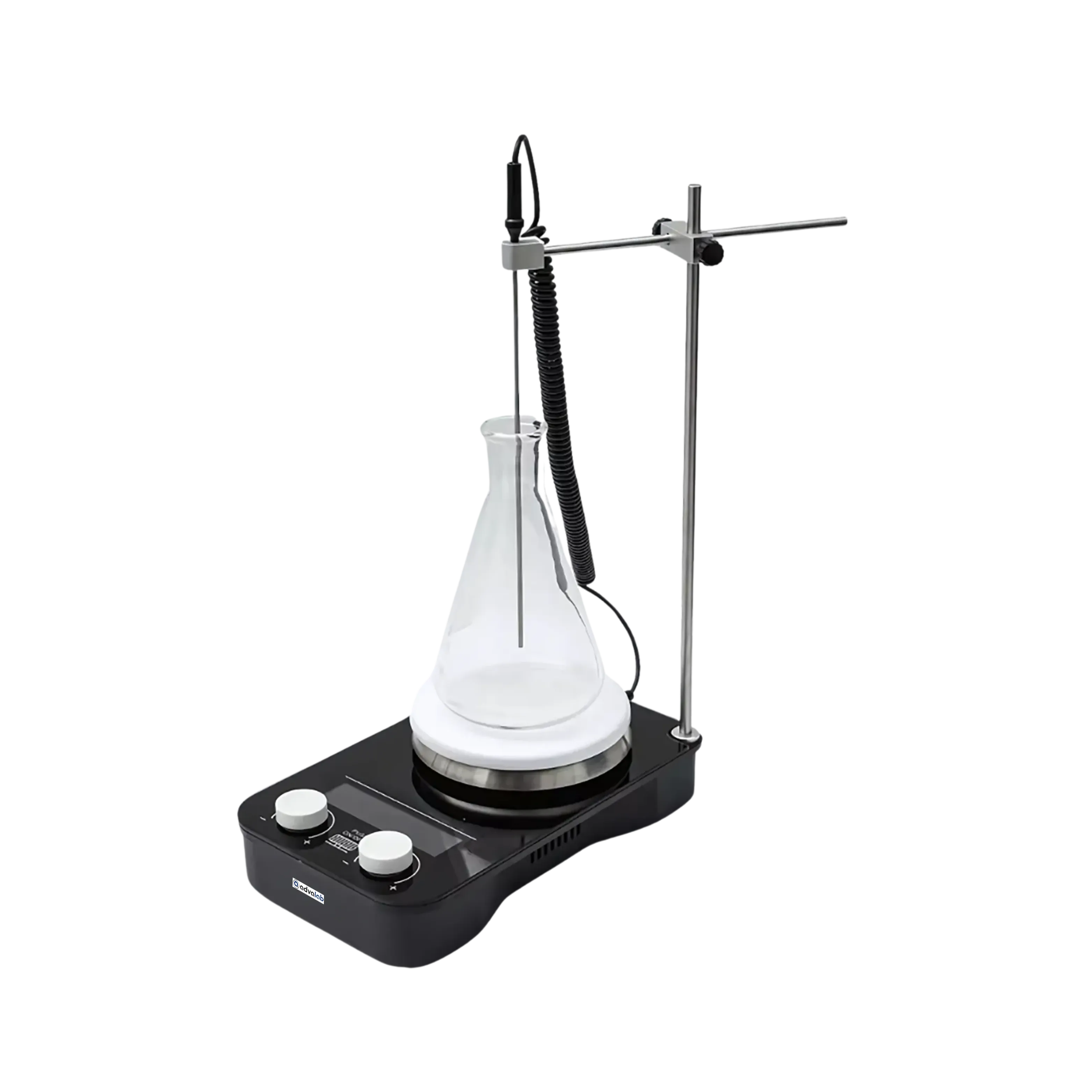

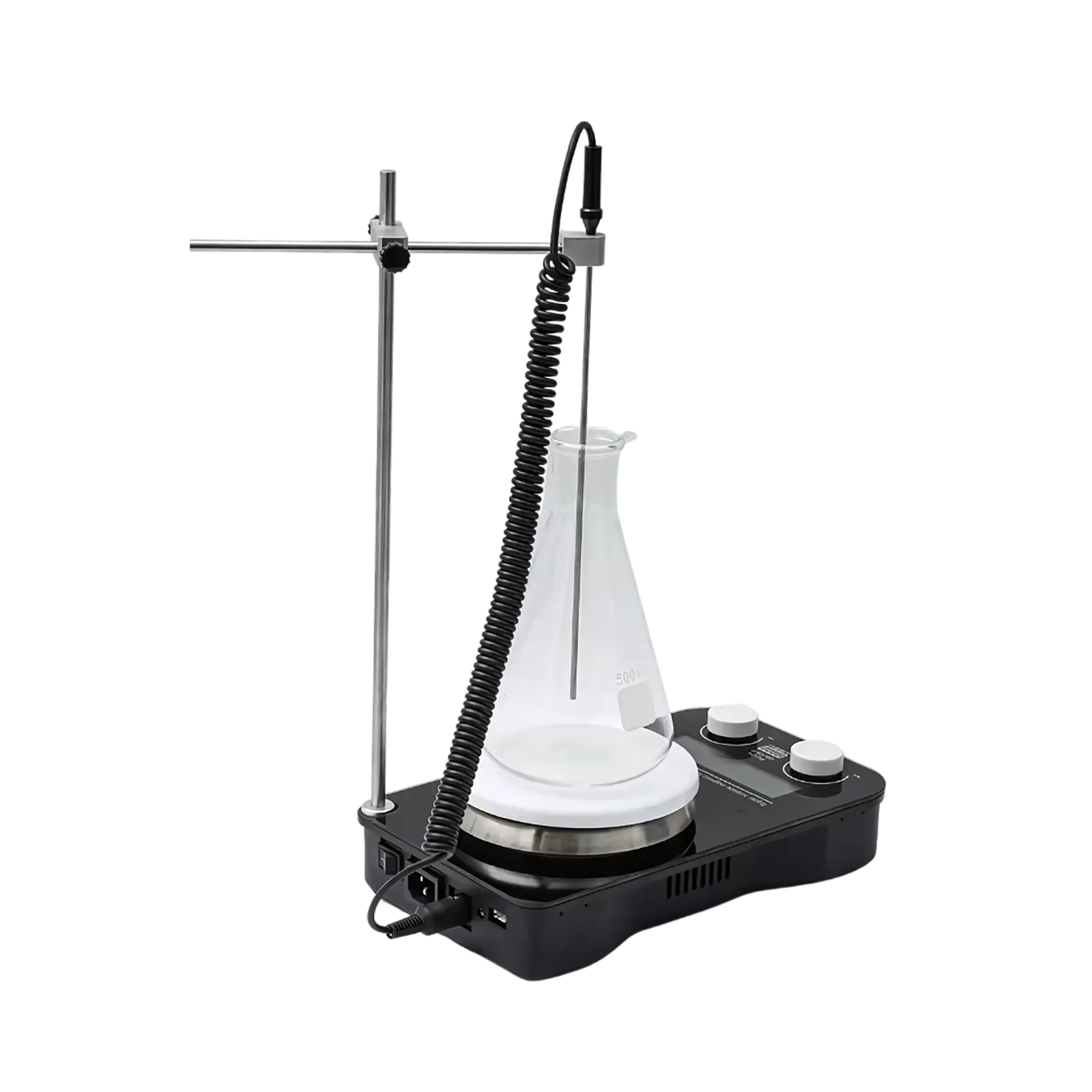

Our Hot Plate Magnetic Stirrer ADHMS-501 is widely used in laboratories, chemical research and biotechnology, where consistent heating and effective liquid mixing are essential.
1. What safety features are included with the Hotplate Magnetic Stirrer?
Safety features of Hotplate Magnetic Stirrer typically include overheat protection, temperature limit controls, non-slip feet to prevent the unit from shifting, and a thermal shut-off to protect against overheating. Always ensure to operate the unit according to the instructions and use appropriate safety gear, such as heat-resistant gloves and eye protection.
2. What are the advantages of using a Hotplate Magnetic Stirrer?
The advantages of using a Hotplate Magnetic Stirrer include its ability to heat and stir liquids simultaneously, offering precise temperature control and uniform mixing. It reduces the risk of contamination due to its non-contact stirring mechanism, making it ideal for sensitive applications. The device is compact, energy-efficient, and low-maintenance, with easy-to-use controls and built-in safety features such as overheat protection.
3. Can a Hotplate Magnetic Stirrer be used for precise temperature control?
Yes, our Hotplate Magnetic Stirrers come with built-in temperature control features, including temperature probes for accurate measurement and control of the heating element. This allows for precise temperature regulation, making the device suitable for experiments that require specific thermal conditions, such as enzyme reactions or solvent evaporation. Our Advanced models also feature digital displays and programmable settings for enhanced accuracy and repeatability.
