Multi Tube Vortex Mixer ADMTV-502

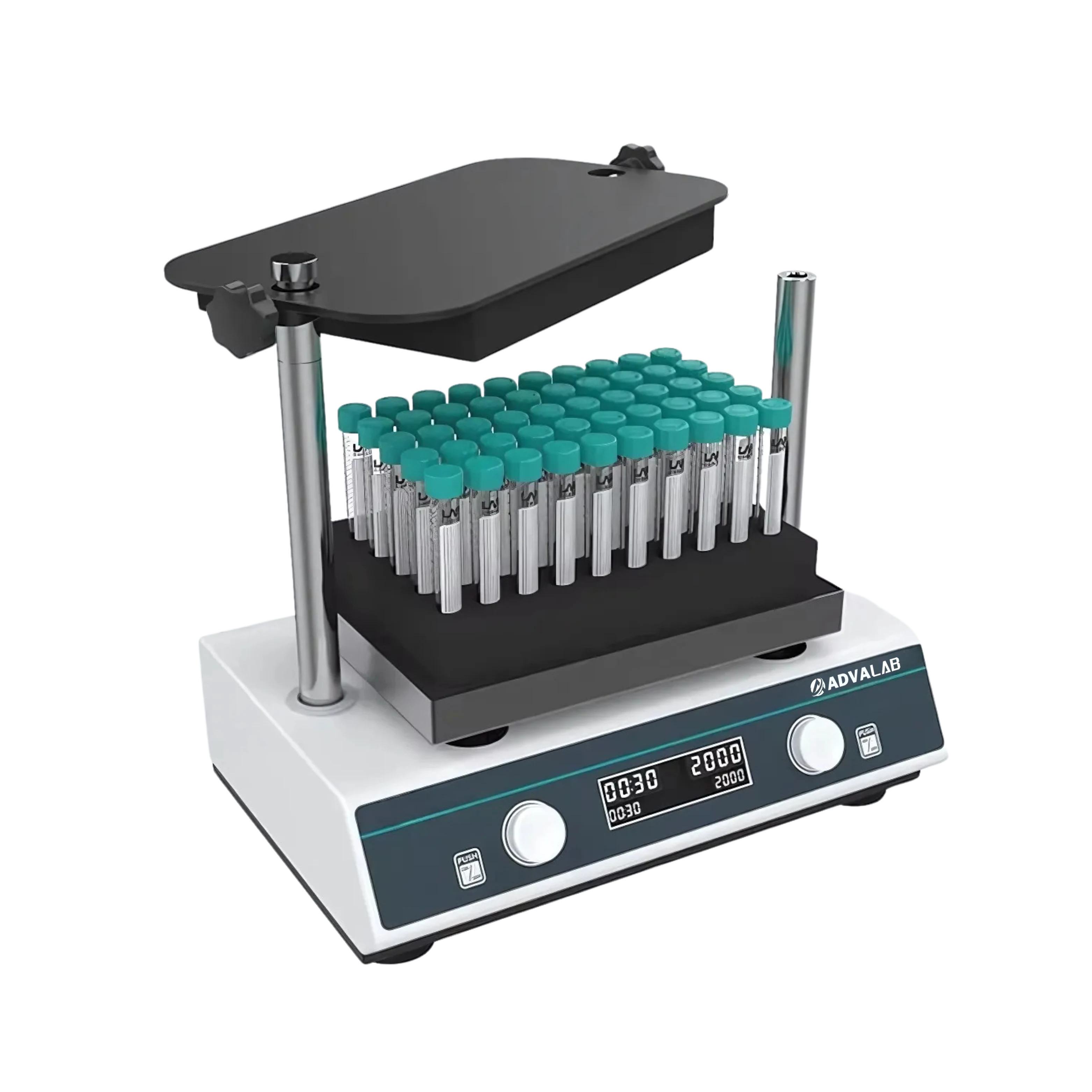

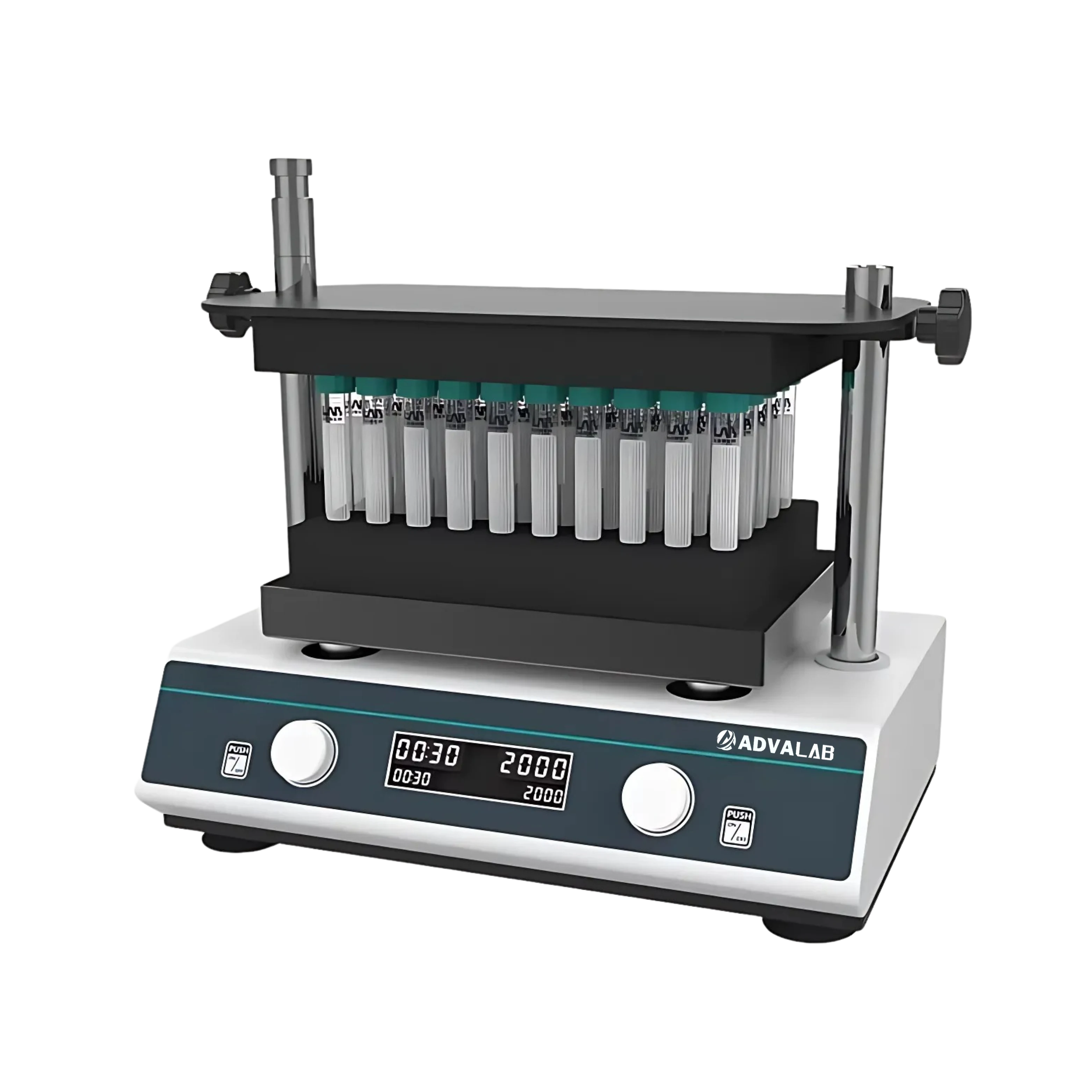

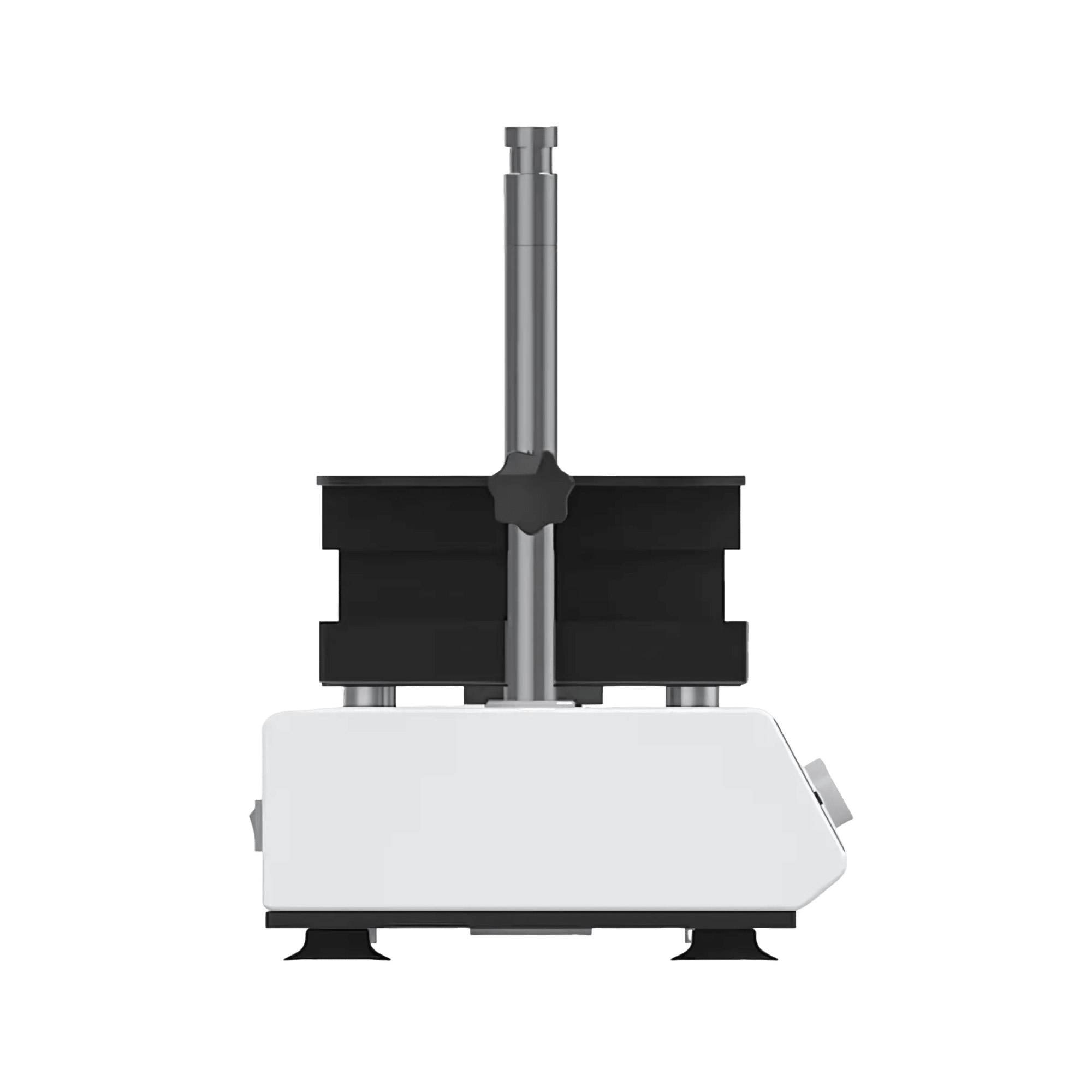

multi tube vortex mixer admtv-502 (side view)
multi tube vortex mixer admtv-502
multi tube vortex mixer admtv-502
multi tube vortex mixer admtv-502

Multi Tube Vortex Mixer ADMTV-502

The Multi Tube Vortex Mixer ADMTV-502 operates at 500 to 3000 rpm, allowing precise control for different mixing needs. It is equipped with a digital timer and continuous mode for convenience. This unit is compatible with different tube sizes, including microtubes and centrifuge tubes. This system has anti-slip rubber feet to ensure vibration-free operation. Our Multi Tube Vortex Mixer is widely used in biotechnology, pharmaceuticals, and labs for protein studies, and sample mixing.


Speed Range 500 to 3000rpm
Amplitude 4mm horizontal swing
Maximum Load 4.5kg
Time Range 1min to 24h
Operating Mode Run
Power Consumption 100 W
Dimensions (L×B×H) 55.5 × 43.5 × 51 mm
Weight 19 kg
  • Compact design
  • Efficient mixing mechanism
  • User-friendly
  • Adjustable speed and time settings
  • High capacity

Our Multi Tube Vortex Mixer ADMTV-502 is widely used in labs for high-throughput sample mixing, cell suspension, reagent homogenization, and genetic material extraction.

Accessory

Description

Dimensions (L×B×H)

Aperture

Model 01

Centrifuge tube: 50ml×15

260×180×50 mm

27 to 31

Model 02

Centrifuge tube: 15ml×50


Blood tube: 10ml×50

260×180×50 mm

14 to 17

Model 03

Centrifuge tube: 1.5/2ml×72


Blood tube: 2/5ml×72

260×180×50 mm

9 to 11

Frequently Asked Questions of Multi Tube Vortex Mixer ADMTV-502

1. Can the Multi Tube Vortex Mixer be used for cell suspensions or microbial cultures?

Yes, Multi Tube Vortex Mixer is commonly used for resuspending cell pellets, bacterial cultures, and yeast suspensions. The consistent vortexing ensures thorough mixing without shearing the cells too aggressively, especially when using lower speeds. It's important to select the appropriate speed and duration to avoid damaging sensitive cells while ensuring the pellet or culture is fully suspended.

2. What is a Multi Tube Vortex Mixer and how does it work?

A Multi Tube Vortex Mixer is a laboratory device used to mix multiple test tubes simultaneously using rapid orbital motion. It can accommodate a tube rack that holds several tubes at once. The base of the mixer contains a motor that generates circular vibrations, transferring this motion to the attached rack or platform where the tubes are secured. This uniform motion ensures that all samples are mixed consistently, making it ideal for high-throughput applications such as sample preparation, resuspension of pellets, or mixing reagents in microbiology, clinical, or biochemical labs.

3. What are the advantages of using a Multi Tube Vortex Mixer over a Single Tube Vortex?

The main advantage is efficiency and throughput. A Multi Tube Vortex Mixer can process many samples at once, significantly reducing the time and manual effort required for mixing large batches of samples. This is especially useful in high-volume labs or testing environments. Additionally, the consistent and uniform mixing reduces variability between samples, improving overall reproducibility in experiments. It also minimizes user fatigue and repetitive strain injuries associated with manually vortexing individual tubes.

4. What types of tubes can be used with a Multi Tube Vortex Mixer?

Multi Tube Vortex Mixer is designed to be versatile and typically comes with interchangeable tube racks or foam inserts to accommodate various tube sizes, including 10 mm to 30 mm diameters (e.g., 15 mL conical tubes, 50 mL centrifuge tubes, or standard test tubes). It supports custom racks or adjustable clamps to fit specific lab requirements.

5. Can I adjust the speed and time on a Multi Tube Vortex Mixer?

Yes, The Multi-Tube Vortex Mixer features adjustable speed and timer controls. The speed is usually adjustable within a specific range, allowing users to tailor the intensity of mixing to the sample type and volume. Timers can typically be set from a few seconds to several hours.
