| Speed Range | 500 to 3000 rpm |
| Orbit | 3 mm |
| Maximum Load | 4.5 kg |
| Time Setting Range | 1min to 99h59min / infinite |
| Interval Timing Between Pulse | 1s to 9min59s |
| Pulse Function | Yes |
| Timing Set for Pulse | 2s to 9 min59s |
| Times for Pulse | 1 to 99times |
| Pulse Mode Setting During Running | Yes |
| Short Mix | Yes |
| Fuse | 250V 3A Ф5x20 |
| Power Supply | 150 W |
| Voltage | AC100 to 240V / 50 to 60Hz |
| Dimension (W × D × H) | 380 x 250 x 210 mm |
| Net Weight | 14.3 kg |
| Gross weight | 17 kg |

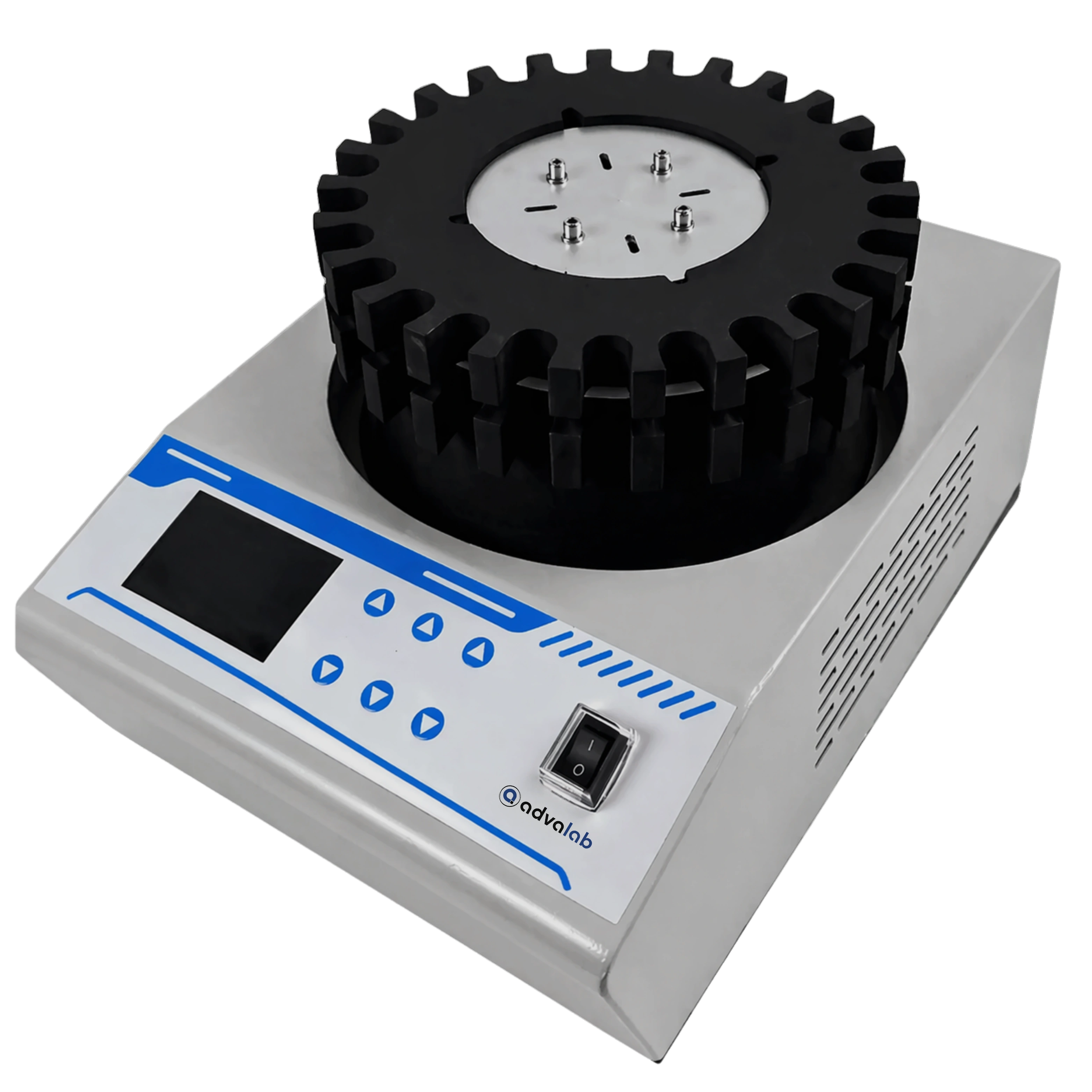

Multi Tube Vortex Mixer ADMTV-505 is widely used in laboratories to simultaneously circulate multiple samples efficiently, ensuring uniformity. It is used in applications like DNA extraction, cell suspension preparation, and reagent mixing in molecular biology and clinical diagnostics.
Accessory
| Description | Tube Maximum Length | Quantity |
| Tube-01 | Ф 10 to Ф 16 mm
| 160 mm | 26 Tubes |
| Tube-02 | Ф 16 to Ф 32 mm
| 120 mm | 12 Tube |
1. How does the pulsing program improve mixing efficiency in Multi Tube Vortex Mixer ADMTV-505?
Pulsing program in Multi Tube Vortex Mixer ADMTV-505 alternates between agitation and rest intervals, preventing overheating and sample degradation. This controlled mixing approach ensures thorough sample homogenization without excessive mechanical stress. It also allows customization of pulse duration and frequency. Overall, it enhances the reproducibility and quality of experimental results.
2. What maintenance is required for the brushless DC motor in Multi Tube Vortex Mixer ADMTV-505?
Brushless motor in Multi Tube Vortex Mixer ADMTV-505 requires minimal maintenance compared to traditional brushed motors. There are no brushes to replace, reducing wear and tear. Regular cleaning of the exterior and checking for loose connections are generally sufficient. This leads to longer motor life and reliable operation over time.
3. Can the Multi Tube Vortex Mixer ADMTV-505 be used for viscous samples?
Multi Tube Vortex Mixer ADMTV-505 is used for variable speed and robust motor allowing it to handle a range of sample viscosities. Adjustable speed settings enable users to optimize mixing conditions for thicker solutions. The secure tube holders help to maintain stability during agitation. This makes it effective for many biological and chemical sample types.
4. How does the microprocessor-controlled technique enhance Multi Tube Vortex Mixer ADMTV-505 performance?
The microprocessor control system in Multi Tube Vortex Mixer ADMTV-505 enables precise management of speed, timing, and mixing modes, ensuring accurate and repeatable operation. It allows real-time adjustments and error detection, improving reliability during experiments. This technology also supports programmable functions like pulsing and short mix cycles. Overall, it enhances user control and optimizes mixing efficiency.
5. What information does the LCD display provide in Multi Tube Vortex Mixer ADMTV-505?
The LCD display in Multi Tube Vortex Mixer ADMTV-505 clearly shows real-time shaking speed and remaining operation time for easy monitoring. Its intuitive interface allows users to quickly adjust settings and track progress. The bright display improves visibility in various lighting conditions. This feature enhances user convenience and operational accuracy during experiments.
