Multi Tube Vortex Mixer ADMTV-504
Multi Tube Vortex Mixer ADMTV-504 (Front view)

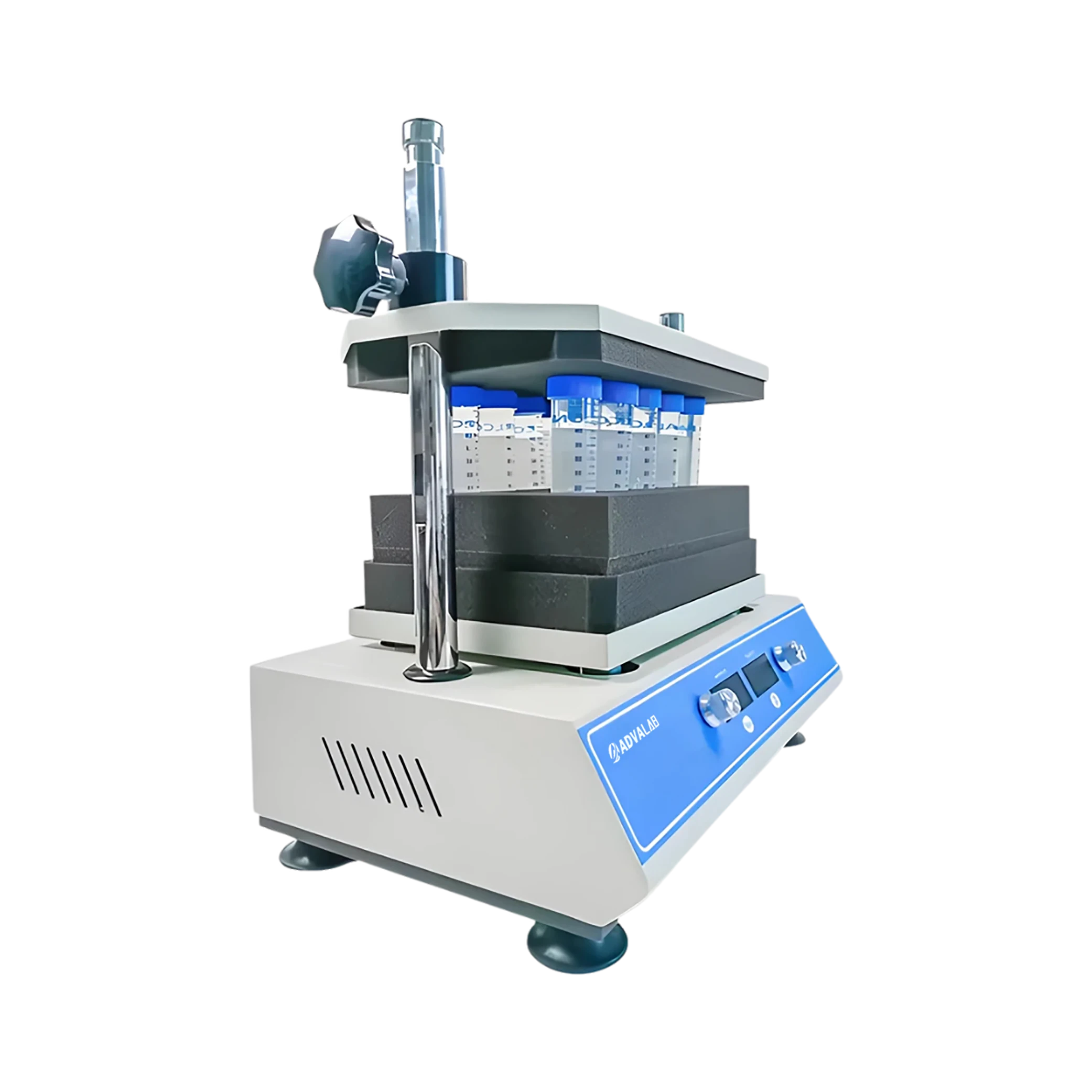

Multi Tube Vortex Mixer ADMTV-504 (Right view)

Multi Tube Vortex Mixer ADMTV-504

Multi Tube Vortex Mixer ADMTV-504 operates at a speed range of 500 to 2500 rpm, allowing precise control for various agitation needs. It features a brushless DC motor that provides precise shaking speed with maintenance-free operation. This unit has microprocessor control along with LED displays for speed and time. Designed with a humanized program, it includes built-in short mix as well as timing operation modes for user convenience. Our Multi Tube Vortex Mixer ADMTV-504 is ideal for circulating samples in biotechnology, microbiology, and medical laboratories.


Speed Range 500 to 2500 rpm
Orbit 4 mm
Maximum Load 4.5 kg
Timing Range 1min to 99h59min
Power 70 W
Voltage AC 100V to 240V, 50 / 60 Hz
Dimension (W × D × H) 410 x 276 x 432 mm
Gross Weight 19 kg
  • Precise shaking speed
  • Multiple tube compatibility
  • uniform acceleration
  • Adjustable speed range
  • Durable foam racks

Multi Tube Vortex Mixer ADMTV-504 is designed for high-throughput mixing tasks in research, clinical, and industrial laboratories. It ensures consistent and uniform agitation, making it suitable for sample preparation, cell suspensions, and chemical reactions.

Accessory



DimensionTest TubeQuantity
Rack-01

50 x¢10mm



¢9 ¢10mm1 Pc
Rack-02

50x¢12mm



¢11 ¢13mm1 Pc
Rack-03

50x¢15mm



¢14 ¢17mm



1 Pc
Rack-04

50x¢20mm



¢18 ¢21mm1 Pc
Rack-05

15x¢25mm



¢24 ¢27mm1 Pc
Rack-06

15x¢29mm



¢28 ¢32mm1 Pc

Frequently Asked Questions of Multi Tube Vortex Mixer ADMTV-504

1. What types of test tubes are compatible with the Multi Tube Vortex Mixer ADMTV-504?

Multi Tube Vortex Mixer ADMTV-504 supports a variety of test tube sizes, ranging from 10 mm to 29 mm in diameter. Foam tube racks are available in different models to securely hold tubes of specific sizes. This flexibility allows users to process a wide range of sample types. Compatibility ensures efficient vortexing across multiple applications.

2. How many samples can be processed at once in Multi Tube Vortex Mixer ADMTV-504?

Multi Tube Vortex Mixer ADMTV-504 can process up to 50 samples simultaneously. Smaller diameter racks 10–20 mm can accommodate 50 tubes, while larger ones 25–29 mm hold 15. This high capacity is ideal for high-throughput labs and reduces overall processing time. It improves productivity without compromising mixing quality.

3. Is the Multi Tube Vortex Mixer ADMTV-504 suitable for continuous operation?

The Multi Tube Vortex Mixer ADMTV-504 is designed for both timed and continuous operation modes. It features a robust brushless DC motor and effective cooling, allowing long-duration mixing without overheating. The continuous mode is useful for experiments requiring extended agitation. Built-in safety ensures consistent performance over time.

4. What are the key safety features of Multi Tube Vortex Mixer ADMTV-504?

Multi Tube Vortex Mixer ADMTV-504 includes a soft-start function that gradually accelerates to the set speed, preventing spills and sample loss. It also has a stable base and anti-slip feet for safe operation. The unit is built with durable materials and offers overload protection. These features make it reliable for daily lab use

5. Is any maintenance required for Multi Tube Vortex Mixer ADMTV-504?

Multi Tube Vortex Mixer ADMTV-504 uses a brushless DC motor, which is maintenance-free and ensures long service life. Unlike traditional motors, it doesn't require frequent servicing or part replacement. Cleaning the exterior and checking the foam racks regularly is sufficient for upkeep. This makes it cost-effective and hassle-free.
