| Volume | 110 L |
| Sterilization Temperature | 105 to 135°C |
| Temperature Fluctuation | ±1°C |
| Temperature Uniformity | ±1°C |
| Heat Preservation Temperature | 40 to 60°C |
| Environment Temperature | 5 to 40°C |
| Environment Humidity | 20% to 80% RH |
| Melting Temperature | 50 to 100°C |
| Sterilization Timer Range | 0 to120 min |
| Melting Timer Range | 0 to 6000 min |
| Heat Preservation Timer Range | 0 to 6000 min |
| Reservation Range | 0 to 99hr60 min |
| Design Pressure | 0.38 MPa |
| Working Pressure | 0.22 MPa |
| Pressure gauge indicating Range | 0-0.4 MPa |
| Drum Diameter | 400 mm |
| Number of Baskets | 3 pc |
| Power Consumption | 3.5 kW |
| Power Supply | 220±10 V, 50±2 Hz |
| Internal Dimensions [W×D] | 400×835 mm |
| Housing Dimensions [W×D×H] | 535×640×1275 mm |
| Basket Dimensions [W×D×H] | Ø360×270 mm |
| Package Dimensions [W×D×H] | 670×780×1440 mm |
| Net Weight | 113 kg |
| Gross Weight | 130 kg |

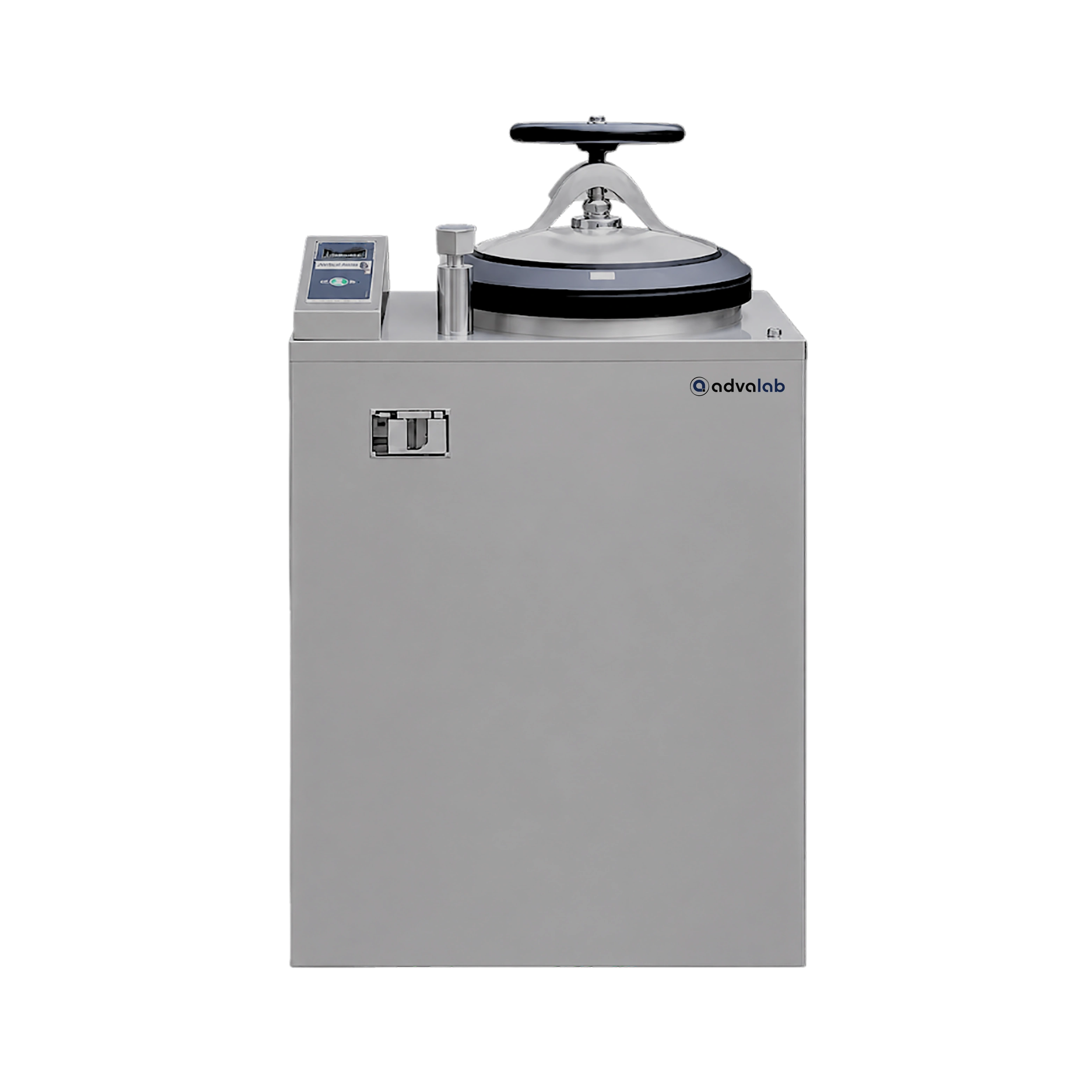

Our Vertical Autoclave ADVA-534 is used in hospitals, clinics, research labs, and educational institutions for sterilizing instruments, culture media and contaminated waste.
1. Can you sterilize wrapped instruments in a Vertical Autoclave?
Yes, Vertical Autoclaves can sterilize wrapped instruments, but it’s essential to use proper wrapping material that allows steam penetration while maintaining sterility after the cycle.
2. How do you know when a sterilization cycle is complete in a Vertical Autoclave?
Most modern Vertical Autoclaves come with indicators, alarms, or digital displays to show when the cycle is complete. Some also have automatic pressure release and door lock systems that engage only after the cycle ends.
3. What is a Vertical Autoclave and how does it work?
A Vertical Autoclave is a sterilization device that uses steam under pressure to sterilize equipment, media, and laboratory tools. It works by heating water to produce steam, which destroys bacteria, viruses, and other microorganisms.
4. What safety features are included in a Vertical Autoclave?
A Vertical Autoclave includes safety features like pressure release valves, temperature cut-offs, door interlocks, and alarms. These systems prevent accidental opening or overheating in the Vertical Autoclave. Built-in sensors ensure the unit shuts off in case of any malfunction.
5. Can a Vertical Autoclave be used for medical waste?
A Vertical Autoclave can be used to sterilize soft medical waste like gauze, gloves, and cloth items. However, a Vertical Autoclave may not be ideal for large volumes of waste or sharp objects. Special medical waste autoclaves are recommended for such loads.
| Chamber Volume | 35L φ (318×450) mm |
| Working Pressure | 0.22MPa |
| Working Temperature | 134℃ |
| Chamber Volume | 75L φ (318×450) mm |
| Working Pressure | 0.22MPa |
| Working Temperature | 134℃ |
| Capacity | 60 L |
| Chamber Size | Φ 350 x 550 mm |
| Basket Size | 330 x 190 (× 2) |
| Chamber Volume | 75L φ (400×600) mm |
| Working Pressure | 0.22MPa |
| Working Temperature | 134℃ |
| Volume: | 280 L |
| Door Structure: | spoke |
| Temperature Range: | 105 to 135°C |
| Volume: | 500 L |
| Door Structure : | spoke |
| Temperature Range : | 105 to 135°C |
| Sterilizing Chamber Volume: | 200 L φ (515×1000mm) |
| Working Pressure: | 0.22Mpa |
| Working Temperature: | 134ºC |
| Volume: | 280 L |
| Door Structure : | spoke |
| Temperature Range : | 105 to 135°C |
| Volume: | 360 L |
| Door Structure: | spoke |
| Temperature Range : | 105 to 135°C |
| Volume: | 360 L |
| Door Structure: | spoke |
| Temperature Range: | 105 to 135°C |
| Sterilizing chamber volume: | 150 L φ (440×1000mm) |
| working pressure: | 0.22Mpa |
| Working temperature: | 134ºC |
| Volume: | 500 L |
| Door Structure : | spoke |
| Temperature Range : | 105°C to 135°C |
| Chamber Volume: | 18L (280×260) mm |
| Working Pressure: | 0.14 to 0.16Mpa |
| Working Temperature: | 126℃ |
| Chamber Volume: | 18L (280 × 260) mm |
| Working Pressure: | 0.14 to 0.16 MPa |
| Working Temperature: | 126℃ |
| Sterilizing Volume: | 18L (280×260) mm |
| Working Pressure: | 0.14 to 0.16MPa |
| Working Temperature: | 126℃ |
| Working Pressure: | 0.14 to 0.16MPa |
| Working Temperature: | 126 ºC |
| Temperature Adjust Range: | 105℃ to 126℃ |
| Sterilizing Volume: | 18L (280×260) mm |
| Working Pressure: | 0.14 to 0.16MPa |
| Working Temperature: | 126 ºC |
| Chamber Volume: | 12L (240×200) mm |
| Working Pressure: | 0.14 to 0.16Mpa |
| Working Temperature: | 126℃ |
| Chamber Volume: | 24L (280×390) mm |
| Working Pressure: | 0.14 to 0.16Mpa |
| Working Temperature: | 126℃ |
| Chamber Volume: | 24L (280 × 390) mm |
| Working Pressure: | 0.14 to 0.16 MPa |
| Working Temperature : | 126℃ |
| Sterilizing Volume: | 18L 80×260 mm |
| Working Pressure: | 0.14 to 0.16 MPa |
| Working Temperature: | 126℃ |
| Chamber Volume: | 20L φ (250×420) mm |
| Working Pressure: | 0.22MPa |
| Working Temperature: | 134℃ |
| Chamber Volume: | 35L φ (300×500) mm |
| Working Pressure: | 0.22MPa |
| Working Temperature: | 134℃ |
| Chamber Volume: | 24L φ (270×410) mm |
| Working Pressure: | 0.22MPa |
| Working Temperature: | 134℃ |
| Chamber Volume: | 24L φ (250×520) mm |
| Working Pressure: | 0.22MPa |
| Working Temperature: | 134℃ |
| Chamber Volume: | 50L φ (340×550) mm |
| Working Pressure: | 0.22MPa |
| Working Temperature: | 134℃ |
| Chamber Volume: | 16L φ (250×360) mm |
| Working Pressure: | 0.22MPa |
| Working Temperature: | 134℃ |
