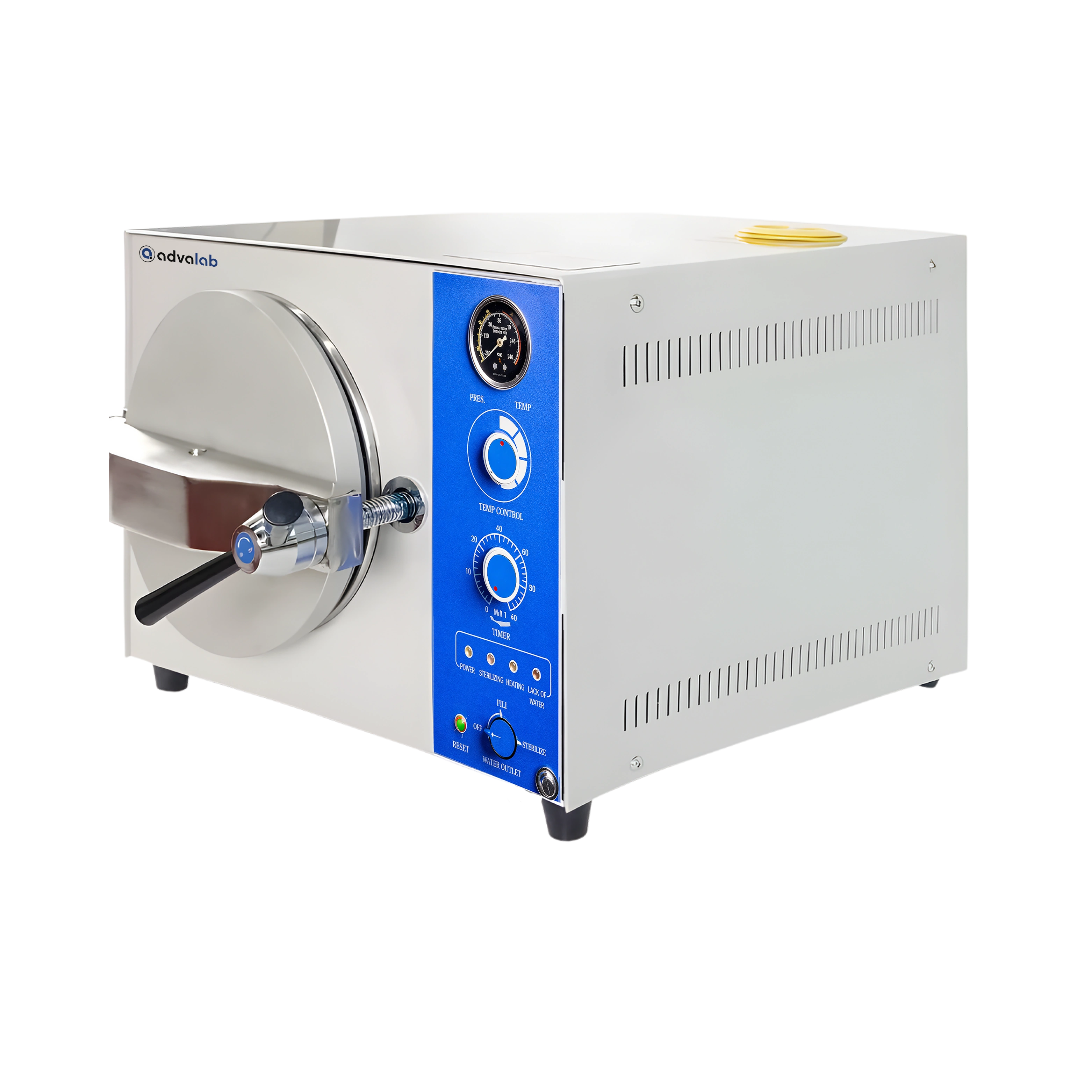

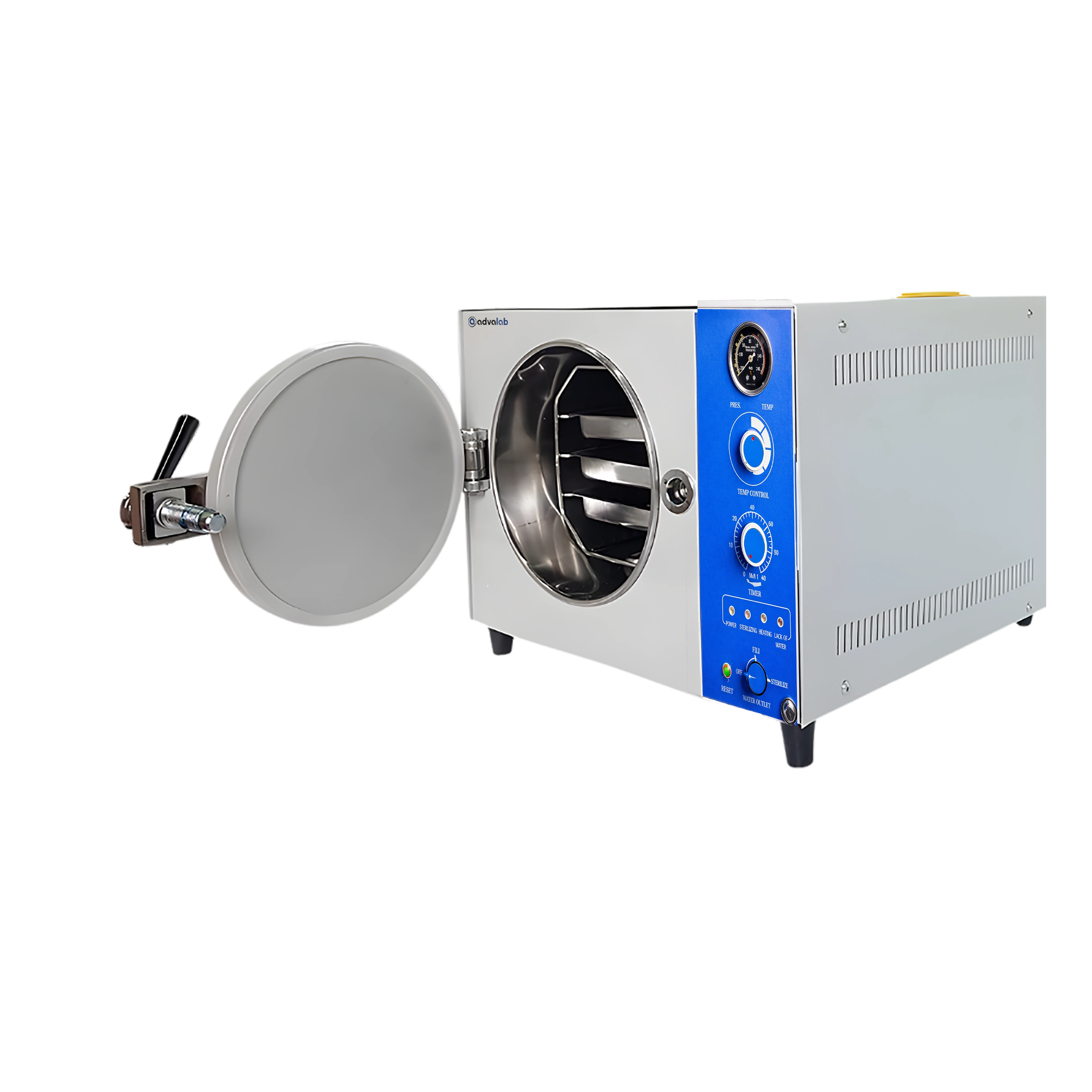

Benchtop Autoclave ADBA-503
Benchtop Autoclave ADBA-503 (Side View)
Benchtop Autoclave ADBA-503 (front View)
Benchtop Autoclave ADBA-503 (front View)

Benchtop Autoclave ADBA-503

Benchtop Autoclave ADBA-503 works at a temperature of 134ºC for effective pathogen elimination. This unit comes with a water level indicator that ensures adequate water before sterilization. Its inner chamber and lid is made of corrosion-resistant stainless steel for durability and hygiene. It has a compact structure for easy transportation, and space-saving storage. Our Benchtop Autoclave is used across medical, laboratory and research fields for sterilizing instruments.

$ 1,400.00
Chamber Volume 20L φ (250×420) mm
Working Pressure 0.22MPa
Working Temperature 134℃
Adjustment of temperature 105º to 134℃
Heat Average ≤±1℃
Timer Scope 0 to 60 Min
Power Consumption 1.5 KW
Power Supply AC220V. 50Hz (AC110V 60HZ)
Sterilizing Plate (L×B×H) 340 ×200 × 30 mm (3piece)
Dimension (L×B×H) 480 × 480 × 384 mm
Package Dimension (L×B×H) 700× 580 × 500 mm
Gross Weight 44 Kg
Net Weight 40 Kg
  • Sealed lid with safety lock
  • Rapid cooling system
  • Pressure display
  • User-friendly
  • Overheat protection

Our Benchtop Autoclave ADBA-503 is used in healthcare centers, environmental testing labs, and forensic labs, for sterilizing instruments, medical waste, and laboratory samples to maintain hygienic and safe conditions.

Frequently Asked Questions of Benchtop Autoclave ADBA-503

1. What items can be sterilized in a benchtop autoclave?

Benchtop autoclaves are suitable for sterilizing metal instruments, glassware, certain plastics, and textiles like surgical drapes. Items must be able to withstand high heat and pressure without degrading. Single-use disposable items, sealed containers, or heat-sensitive electronics are generally not suitable. Always follow manufacturer guidelines to prevent damage or ineffective sterilization.

2. What is a benchtop autoclave and how does it work?

A benchtop autoclave is a compact sterilization unit designed to sit on laboratory or clinic countertops. It uses high-pressure saturated steam at temperatures typically between 121°C to 134°C to sterilize equipment, tools, and materials. The process effectively kills bacteria, viruses, fungi, and spores. Most benchtop autoclaves operate on automatic cycles that include heating, sterilizing, and drying phases.

3. How often should a benchtop autoclave be maintained?

Routine maintenance is crucial for reliable performance and safety. Daily cleaning of the chamber, draining water, and checking seals is recommended, while weekly and monthly checks should include cleaning filters and testing safety valves. Annual servicing by a qualified technician is also advised to ensure calibration and mechanical integrity. Neglecting maintenance can lead to poor sterilization results and equipment breakdown.

4. Can a tap water is use in a benchtop autoclave?

Using tap water in a benchtop autoclave is generally not recommended unless the device is specifically designed for it. Tap water contains minerals and impurities that can build up inside the chamber and damage components. Most autoclaves require distilled or deionized water for optimal performance and to prevent scale buildup. Using the correct water type also improves sterilization results.

5. How long does a typical benchtop autoclave cycle take?

The length of a benchtop autoclave cycle can vary depending on the load, type of cycle selected, and machine model. Standard cycles generally range from 15 to 60 minutes. Pre-vacuum and drying phases may add additional time. Fast cycles are available for lightly loaded or unwrapped instruments. Proper cycle time ensures thorough sterilization and safe handling.
