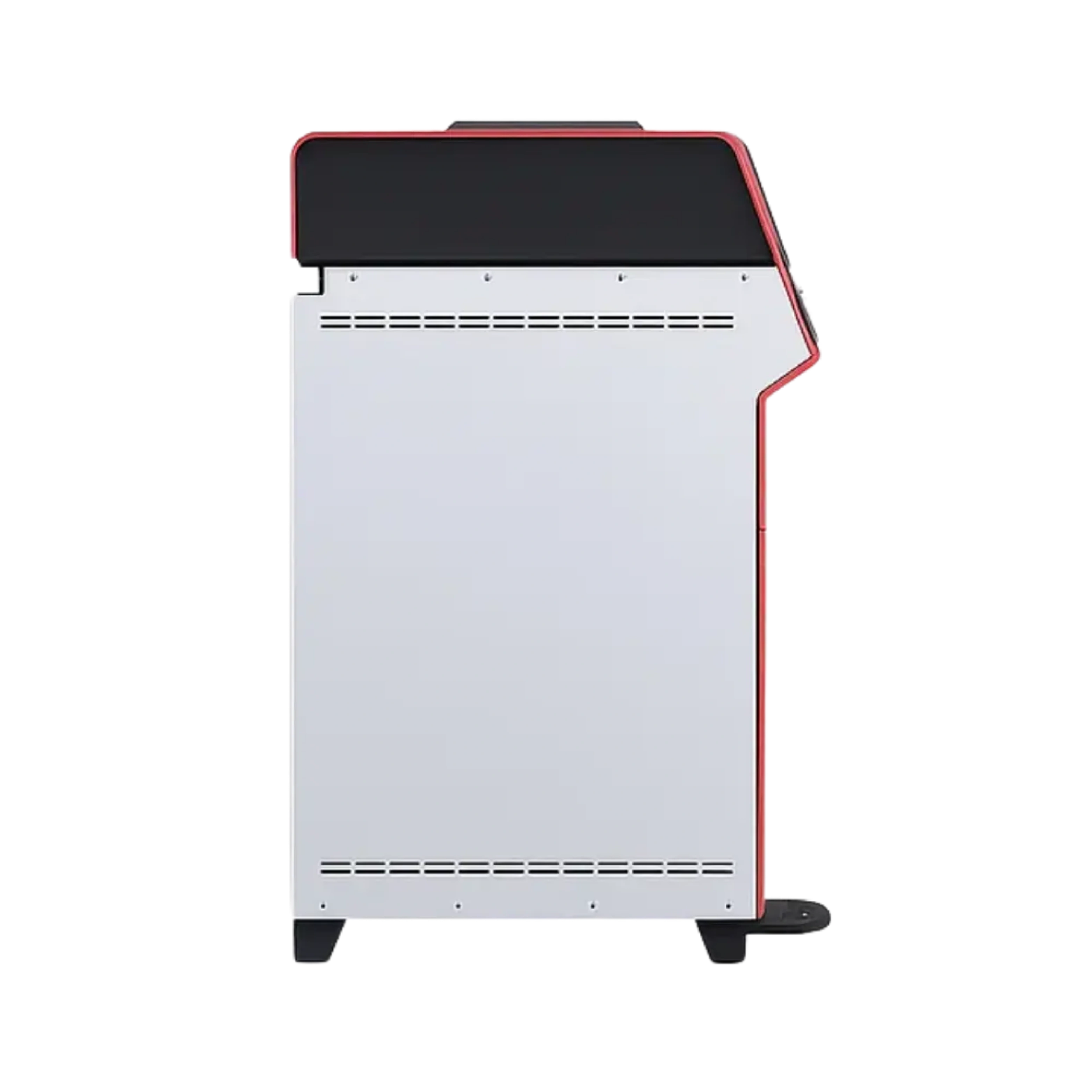

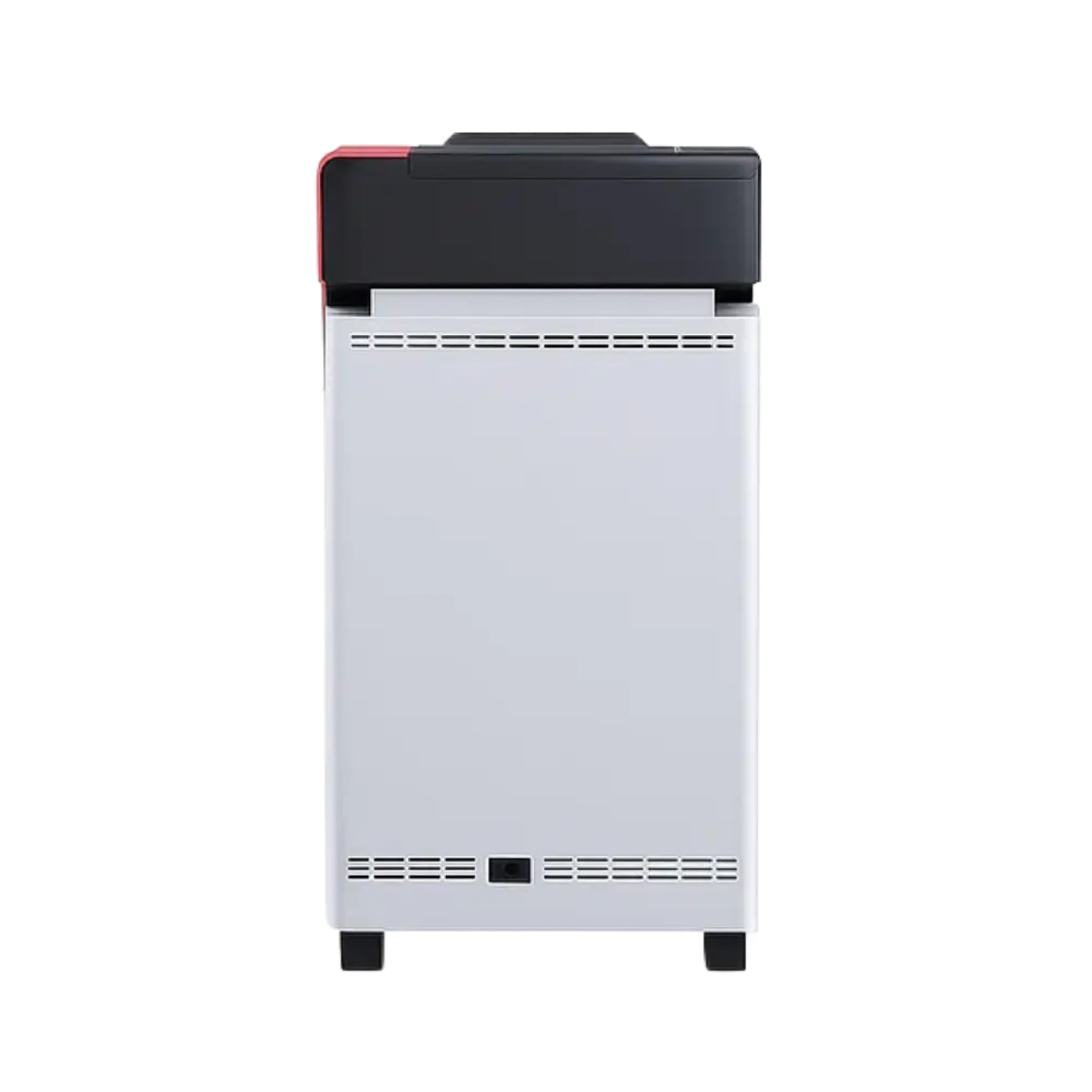

Vertical Autoclave ADVA-535

Vertical Autoclave ADVA-535

Advalab Vertical Autoclave ADVA-535 maintains a stable temperature range of 40°C to 60°C with a precision accuracy of 1°C. Equipped with auto-locking and interlocking to prevent opening under pressure and ensure safety. Our unit operates efficiently at a working pressure of 0.24 MPa, ensuring optimal performance. It features a high-resolution, adjustable-angle display for continuous real-time monitoring of operational parameters. This Vertical Autoclave is used in research laboratories and educational institutions for sterilizing biological samples.

USD 7,620.00
Volume 65 L
Sterilization Temperature 105 to 135°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±1°C
Heat Preservation Temperature 40 to 60°C
Environment Temperature 5 to 40°C
Environment Humidity 20% to 80% RH
Melting Temperature 50 to 100°C
Sterilization Timer Range 0 to120 min
Melting Timer Range 0 to 6000 min
Heat Preservation Timer Range 0 to 6000 min
Reservation Range 0 to 99hr60 min
Design Pressure 0.39 MPa
Working Pressure 0.24 MPa
Pressure gauge indicating Range 0-0.4 MPa
Drum Diameter 400 mm
Number of Baskets 3 pc
Power Consumption 2.7 kW
Power Supply 220±10 V, 50±2 Hz
Cavity Size [W×D] Ø380×610 mm
Housing Dimensions [W×D×H] 605×513×915 mm
Basket Dimensions [W×D×H] Ø360×250 mm
Package Dimensions [W×D×H] 630×740×1180 mm
Net Weight 85 kg
Gross Weight 98 kg
  • Pressure pulse system
  • Water level detection
  • Overheat protection
  • Overpressure relief
  • Fault detection
  • USB data export

Our Vertical Autoclave ADVA-535 is used in microbiology research, and educational institutions, for sterilizing tools, lab equipment, and materials, ensuring contamination-free conditions.

  1. Biosafety filter
  2. Filter element
  3. Verification lead
  4. Embedded printer
  5. Liquid tray

Frequently Asked Questions of Vertical Autoclave ADVA-535

1. Can a Vertical Autoclave be used in pharmaceutical manufacturing?

Yes, a Vertical Autoclave is widely used in pharmaceutical manufacturing to sterilize instruments, raw materials, and culture media, ensuring aseptic conditions in production and research.

2. How do you test the performance of a Vertical Autoclave?

Performance of a Vertical Autoclave can be tested using biological indicators, chemical indicators, and Bowie-Dick tests. These tests confirm effective sterilization and uniform steam penetration.

3. What is the lifespan of a Vertical Autoclave?

A well-maintained Vertical Autoclave can last 10–15 years or more. Regular cleaning, calibration, and servicing extend its lifespan and ensure reliable operation.

4. What is a Vertical Autoclave and how does it work?

A Vertical Autoclave is a sterilization device that uses steam under pressure to sterilize equipment, media, and laboratory tools. It works by heating water to produce steam, which destroys bacteria, viruses, and other microorganisms.

5. What safety features are included in a Vertical Autoclave?

A Vertical Autoclave includes safety features like pressure release valves, temperature cut-offs, door interlocks, and alarms. These systems prevent accidental opening or overheating in the Vertical Autoclave. Built-in sensors ensure the unit shuts off in case of any malfunction.

6. Can a Vertical Autoclave be used for medical waste?

A Vertical Autoclave can be used to sterilize soft medical waste like gauze, gloves, and cloth items. However, a Vertical Autoclave may not be ideal for large volumes of waste or sharp objects. Special medical waste autoclaves are recommended for such loads.
