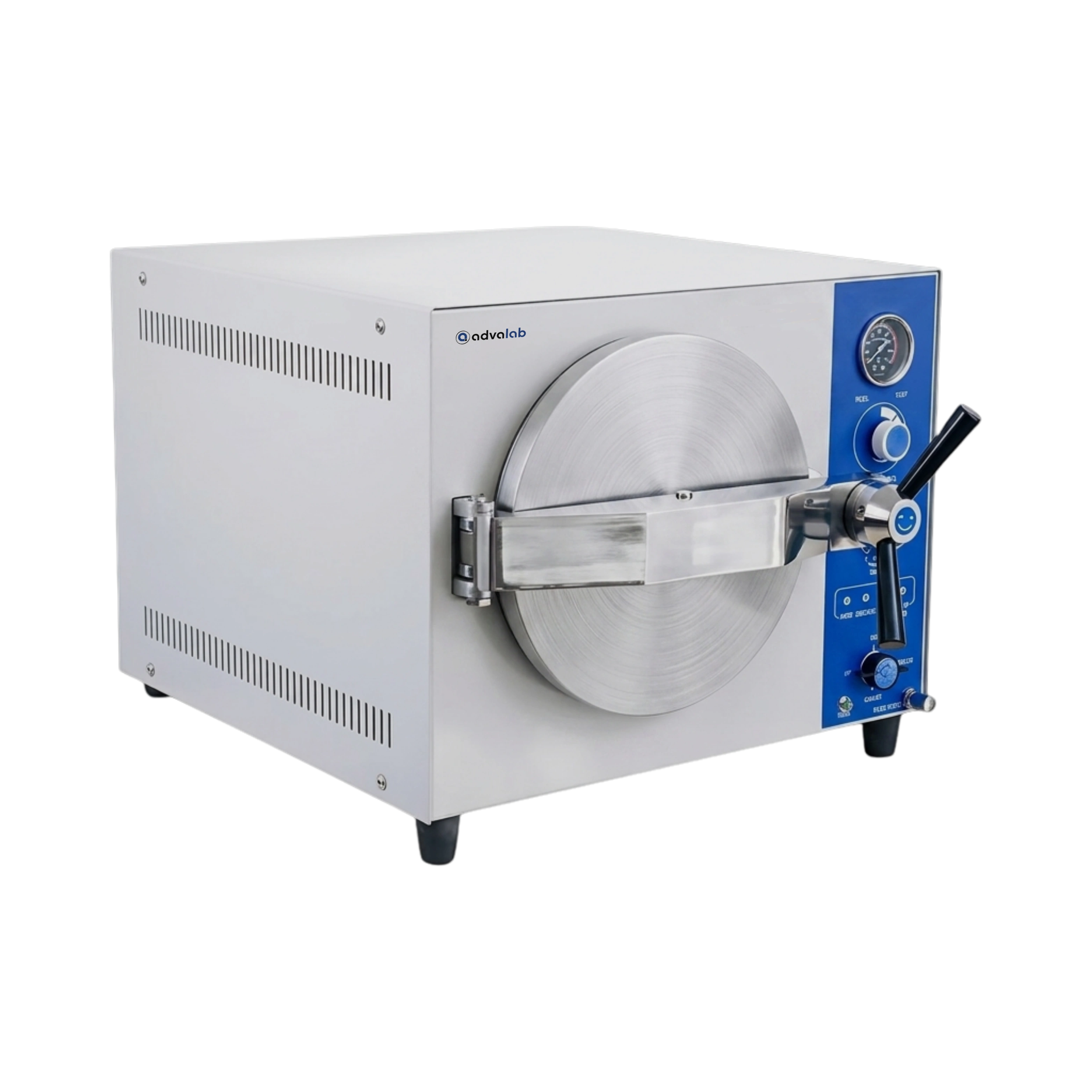

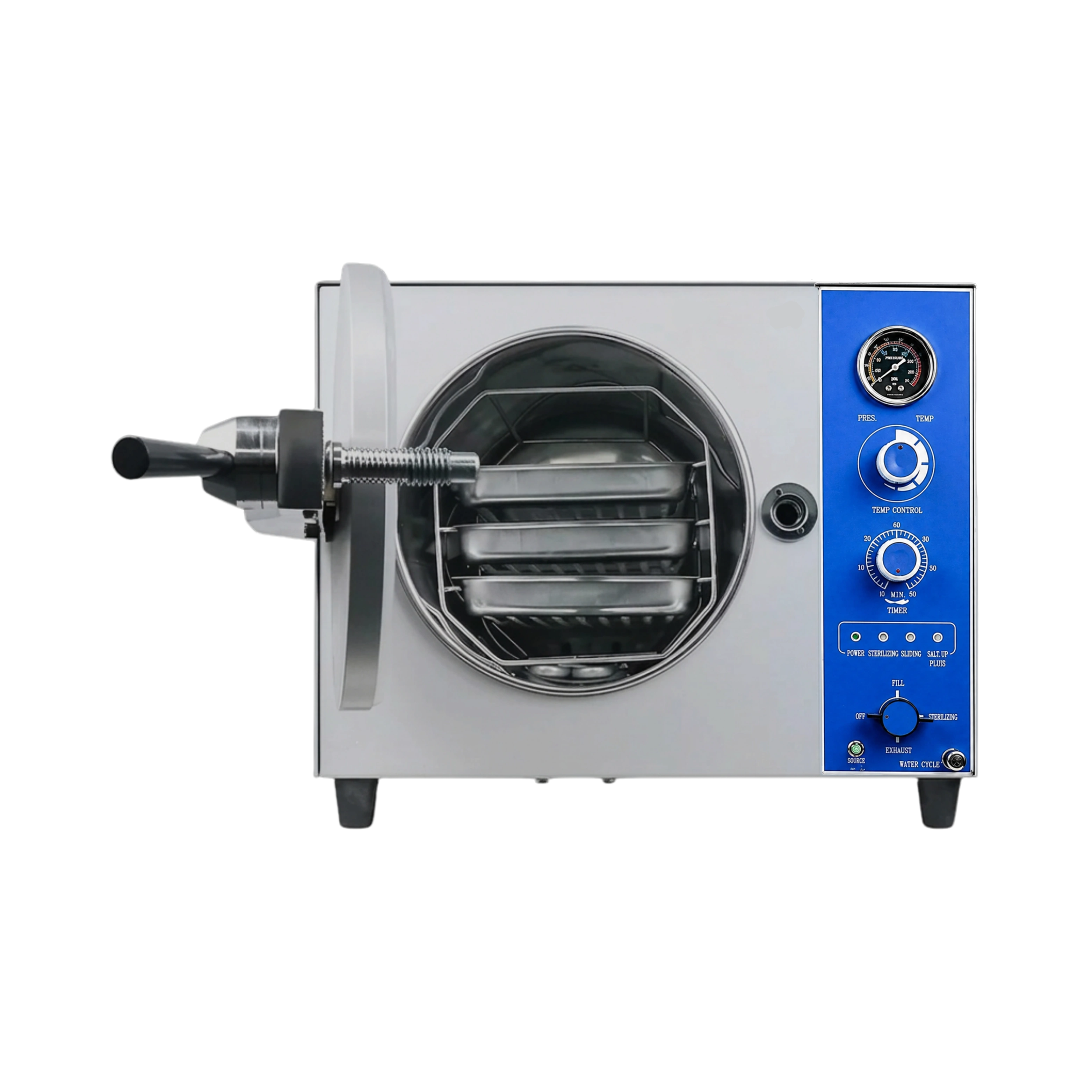

Benchtop Autoclave ADBA-504 comes with 24 L of chamber volume pressure to efficiently sterilize medical instruments. Equipped with fast-heating, and energy-efficient heating elements, it provides reliable performance. It has a stainless-steel outer body that enhances durability and resists corrosion. This unit comes with a vacuum breaker valve that prevents vacuum formation during cooling. Our Benchtop Autoclave is used in research centers, food industries, and field hospitals to sterilize tools and equipment.
Chamber Volume | 24L φ (250×520) mm |
Working Pressure | 0.22MPa |
Working Temperature | 134℃ |
Adjustment of temperature | 105º to 134℃ |
Heat Average | ≤±1℃ |
Timer Scope | 0 to 60 Min |
Power Consumption | 1.5 KW |
Power Supply | AC220V. 50Hz (AC110V 60HZ) |
Sterilizing Plate (L×B×H) | 400 ×200 × 30 mm (3piece) |
Dimension (L×B×H) | 580 × 480 × 384 mm |
Package Dimension (L×B×H) | 800× 580 × 500 mm |
Gross Weight | 50 Kg |
Net Weight | 45 Kg |
Our Benchtop Autoclave ADBA-504 is used in hospitals, clinics, research labs, and educational institutions for sterilizing instruments, culture media and contaminated waste.
1. What is a benchtop autoclave and how does it work?
A benchtop autoclave is a compact sterilization device designed to fit on counters or workbenches, commonly used in clinics, labs, and dental offices. It sterilizes instruments and materials by using high-pressure saturated steam at temperatures typically between 121°C and 134°C. The combination of heat and pressure kills bacteria, viruses, fungi, and spores effectively. The cycle usually includes heating, sterilization (holding time), and drying phases.
2. What types of materials can be sterilized in a benchtop autoclave?
Benchtop autoclaves can sterilize a wide range of materials including metal instruments, glassware, surgical tools, and certain plastics. They are also suitable for sterilizing textiles, wrapped instruments, and porous loads depending on the autoclave class. However, not all plastics or delicate electronics can withstand the high temperatures and pressure. Always check the manufacturer’s guidelines for each material. Improper materials may melt, deform, or get damaged during sterilization.
3. How long does a typical sterilization cycle take in a benchtop autoclave?
A typical wrapped instrument cycle at 134°C might take 30–40 minutes, including drying time. Unwrapped (flash) cycles can be as short as 10–15 minutes. Longer cycles are necessary for porous loads or larger instruments to ensure complete sterilization. Always follow the manufacturer's cycle recommendations to ensure safety and effectiveness.
4. How often should a benchtop autoclave be maintained and serviced?
Routine maintenance should be performed daily, weekly, and monthly depending on the tasks, such as cleaning chambers and checking water levels. A professional service, including calibration and validation, should occur at least once a year. Regular maintenance prevents breakdowns, ensures compliance with health standards, and extends the lifespan of the machine. Always refer to the manufacturer’s maintenance schedule.
5. What safety precautions should I follow when operating a benchtop autoclave?
Always wear heat-resistant gloves when unloading the autoclave to prevent burns. Never open the door until the pressure has safely dropped to zero and the temperature is at a safe level. Follow all loading guidelines to avoid blocking steam circulation. Regularly inspect the door seal for wear or damage. Proper operation and safety checks protect both the user and the instruments.
