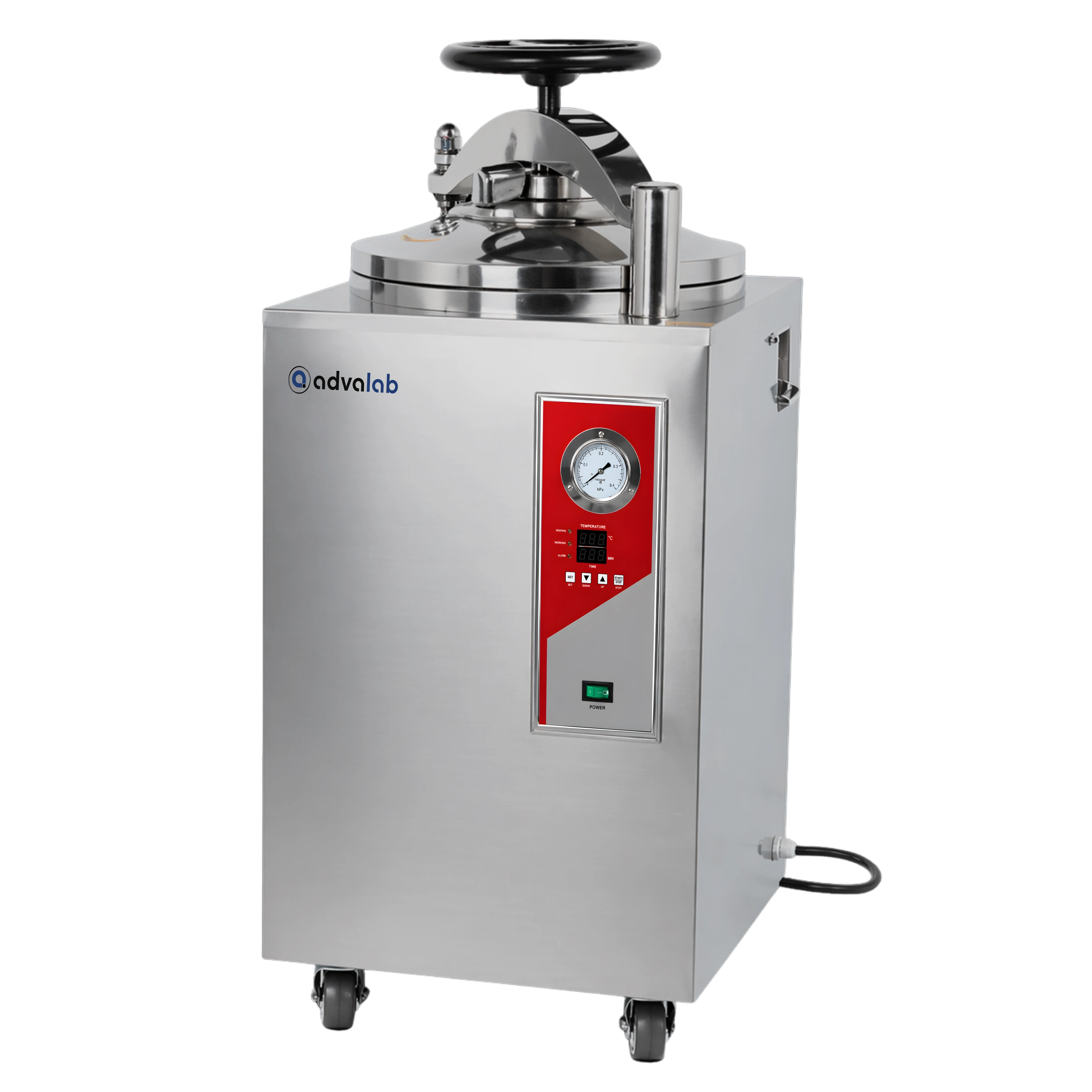

Vertical Autoclave ADVA-514

Vertical Autoclave ADVA-514

Vertical Autoclave ADVA-514 works at a working pressure of 0.22MPa for effective sterilization. This unit is equipped with a pressure gauge and safety valve to maintain controlled internal pressure. Its compact structure facilitates easy transportation without compromising performance. The Autoclave is designed to operate with minimal water usage, making it ideal for resource-limited areas. Our Vertical Autoclave is used in research centers, food industries, and field hospitals to sterilize tools and equipment.


Chamber Volume 50L φ (340×550) mm
Working Pressure 0.22MPa
Working Temperature 134℃
Maximum Working Pressure 0.23Mpa
Heat Average ≤±1℃
Timer Scope 0 to 60 min
Temperature Scope 105 to 134℃
Power Consumption 3 KW
Power Supply AC220V. 50Hz
Overall Dimension (L×B×H) 510×470×1130 mm
Transport Dimension (L×B×H) 590×590×1280 mm
Gross Weight 88 Kg
Net Weight 68 Kg
  • Double safety valve
  • Safety locking mechanism
  • Water level indicator
  • Heat-resistant handles
  • Automatic air purging system

Our Vertical Autoclave ADVA-514 is used in medical, microbiology and field research settings to sterilize equipment and materials conveniently and efficiently.

Frequently Asked Questions of Vertical Autoclave ADVA-514

1. What is the typical cycle time for a vertical autoclave?

The cycle time varies based on load type and autoclave model but generally ranges from 20 to 60 minutes. This includes heating, sterilization holding time, and cooling phases. Liquid cycles may take longer due to gradual depressurization needed to prevent boiling over. Fast exhaust cycles are quicker and used for dry items. Advanced models may offer programmable cycles to suit different materials.

2. ow often should a vertical autoclave be cleaned?

A vertical autoclave should be cleaned at least weekly or more frequently depending on usage. The chamber should be wiped down and any residue or water buildup should be removed. Monthly maintenance includes descaling the heating element and inspecting gaskets. A regular cleaning schedule ensures proper function and longevity. Always refer to the user manual for specific cleaning protocols.

3. How is a vertical autoclave different from a horizontal autoclave?

The main difference lies in their orientation and loading method. Vertical autoclaves are top-loading and typically more compact, suited for smaller labs. Horizontal autoclaves are front-loading and often used in hospitals and large-scale facilities due to their larger capacity. Performance-wise, both use steam under pressure for sterilization. The choice depends on space availability and volume of items to be sterilized.

4. What is the temperature and pressure used in a vertical autoclave?

Standard sterilization is achieved at 121°C at 15 psi for 15–30 minutes. Some cycles may use 134°C for faster sterilization of heat-resistant items. The pressure ensures that steam reaches all parts of the load effectively. These parameters are automatically controlled in most digital autoclaves. It’s crucial not to exceed the recommended limits to avoid damage to the autoclave or load.

5. Can vertical autoclaves be used for medical waste?

Yes, vertical autoclaves can sterilize certain types of medical waste, like contaminated sharps and biological materials. However, they must be capable of handling such loads and include cycles specifically for waste. Waste should be placed in approved biohazard containers. After sterilization, proper disposal procedures must still be followed. Not all autoclaves are rated for high-volume or infectious waste.

6. What is a Vertical Autoclave and how does it work?

A Vertical Autoclave is a sterilization device that uses steam under pressure to sterilize equipment, media, and laboratory tools. It works by heating water to produce steam, which destroys bacteria, viruses, and other microorganisms.

7. What safety features are included in a Vertical Autoclave?

A Vertical Autoclave includes safety features like pressure release valves, temperature cut-offs, door interlocks, and alarms. These systems prevent accidental opening or overheating in the Vertical Autoclave. Built-in sensors ensure the unit shuts off in case of any malfunction.

8. Can a Vertical Autoclave be used for medical waste?

A Vertical Autoclave can be used to sterilize soft medical waste like gauze, gloves, and cloth items. However, a Vertical Autoclave may not be ideal for large volumes of waste or sharp objects. Special medical waste autoclaves are recommended for such loads.
