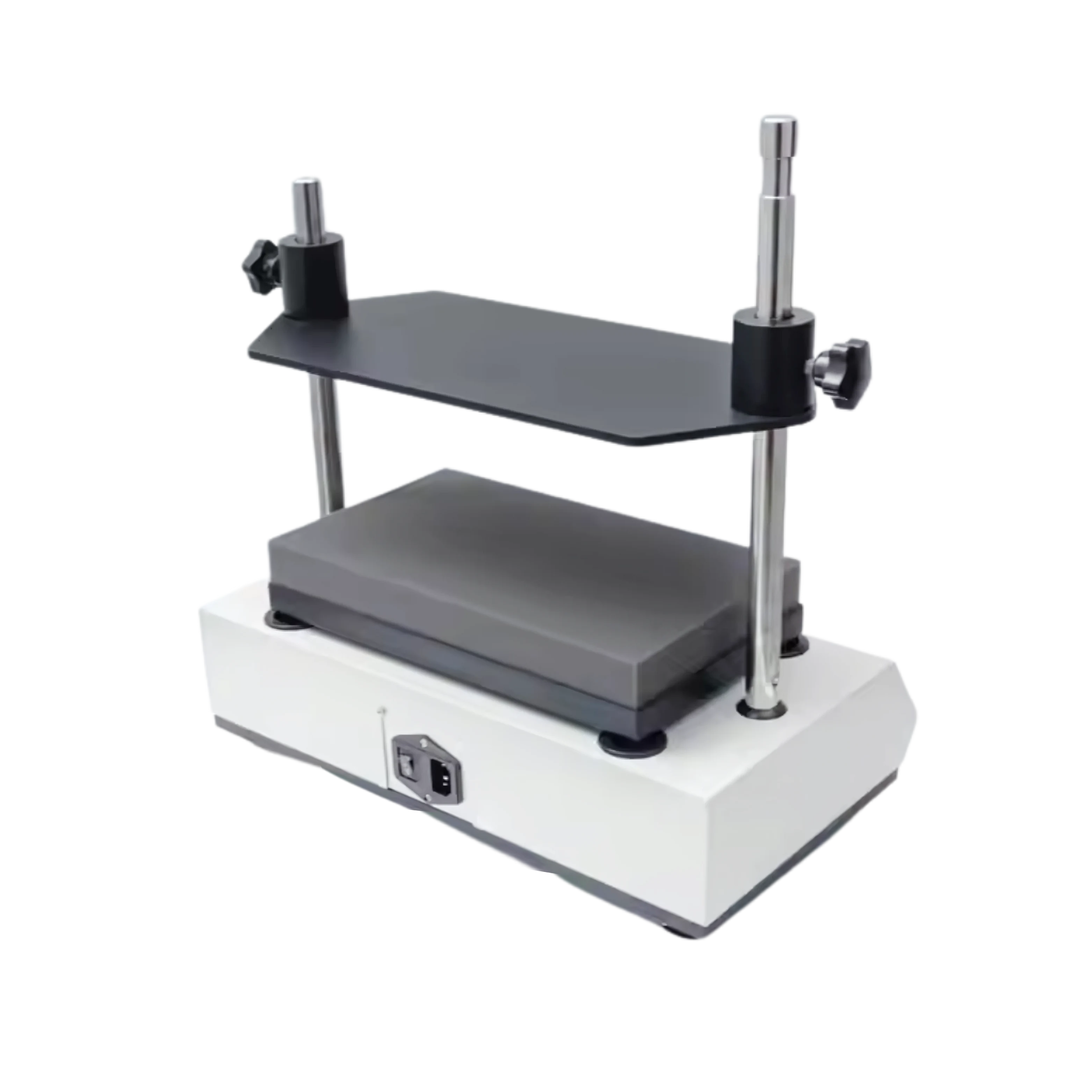

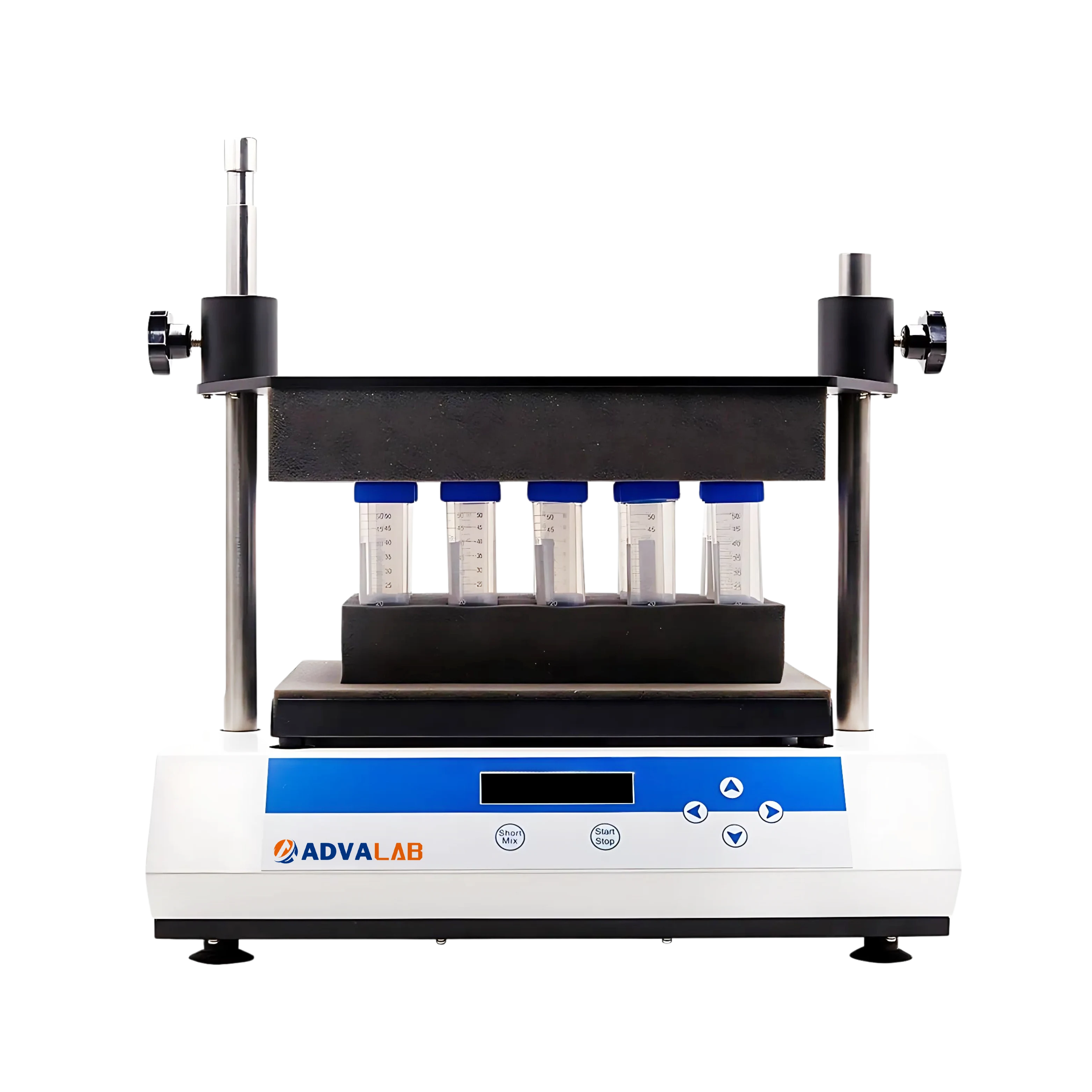

Multi Tube Vortex Mixer ADMTV-503 provides a speed range of 500 to 2500 rpm with an accuracy of ±1 rpm. It features an adjustable speed control, enabling precise customization of the mixing speed. Designed with a compact structure, yet capable of supporting heavy loads. This unit delivers efficient vibration to ensure optimal performance. Our Multi-tube Vortex Mixer is a high-performance apparatus, offering significant value across multiple specialized fields.
| Speed Range | 500 to 2500 rpm |
| Speed Control Accuracy | ±1 rpm |
| Amplitude | 3.6 mm |
| Time | 1m-99h59m/0: infinite time |
| Pause Interval Timer | 1 to 99 S |
| Run Interval Timer | 1 to 999 S |
| Power Consumption | 75 W |
| Power Supply | AC 100 to 230 V |
| Top Panel Dimensions (W×D) | 310×205 mm |
| Dimension (W×D×H) | 426×246×474 mm |
| Gross Weight | 4.5 kg |
| Net Weight | 17 kg |
Our Multi Tube Vortex Mixer ADMTV-503is widely used in molecular biology and clinical laboratories, offering consistent and reliable mixing for a variety of applications.
Accessory Capacity Dimension Quantity 50 245×132×45 mm 1 Pc 50 245×132×45 mm 1 Pc 50 245×132×45 mm 1 Pc 15 245×132×45 mm 1 Pc 15 245×132×45 mm 1 Pc 10 245×152×45 mm 1 Pc - 305×204×50 mm 1 Pc - 305×188.5×25 mm 1 Pc 96 296.5×202.5×50 mm 1 Pc 48 280×214×53 mm 1 PcRack for Φ10mm - Φ12mm (1.5/2.0ml centrifuge tube) Rack for Φ11mm - Φ13mm (5ml centrifuge tube) Rack for Φ14mm - Φ17mm (15ml centrifuge tube) Rack for Φ22mm - Φ26mm (20ml centrifuge tube) Rack for Φ25mm - Φ29mm (50ml centrifuge tube) Rack for Φ36mm - Φ40mm (100ml centrifuge tube) Tray mat (Upper) Tray mat (lower) Plastic rack for 17mm tubes Plastic rack for 26mm tubes
1. Are the tube holders or racks replaceable in Multi Tube Vortex Mixer?
Yes, the tube holders or racks in our Multi Tube Vortex Mixer are generally replaceable. They are designed with modular or interchangeable racks to support various tube sizes and configurations. This flexibility allows users to adapt the mixer for different applications, such as working with microcentrifuge tubes, conical tubes, or larger vials.
2. Does this Multi Tube Vortex Mixer come with intermittent timer?
Yes, our Multi Tube Vortex Mixer comes equipped with an intermittent timer function. This feature allows users to program the mixer to operate in on/off cycles, rather than running continuously. The intermittent mode is especially useful for applications that require gentle mixing or reduced heat buildup over extended periods.
3. Can I switch between pulse and continuous modes in this Multi Tube Vortex Mixer easily?
Yes, our Multi Tube Vortex Mixer allows for easy toggling between mixing modes, typically through a switch or control dial. The pulse mode is ideal for short, manual bursts of mixing, providing better control for delicate or temperature-sensitive samples. The continuous mode runs the mixer without interruption, suitable for longer or more vigorous mixing tasks.
4. Does the Multi Tube Vortex Mixer come with an LCD display?
Yes, our Multi Tube Vortex Mixer comes equipped with an easy-to-read LCD display. The display clearly shows important parameters such as speed (RPM), time settings, and operational mode. The backlit screen also makes it convenient to operate the mixer in various lighting conditions, including low-light laboratory environments.
5. How many samples can be mixed using the Multi Tube Vortex Mixer?
Our Multi Tube Vortex Mixer can mix up to 100 samples at the same time, depending on the size of the tubes and the configuration of the tube rack. This high capacity makes it ideal for laboratories that require efficient processing of large batches of samples simultaneously. Efficient mixing of multiple samples saves both time and effort in high-throughput environments.
