Orbital Shaker ADOS-504

Orbital Shaker ADOS-504

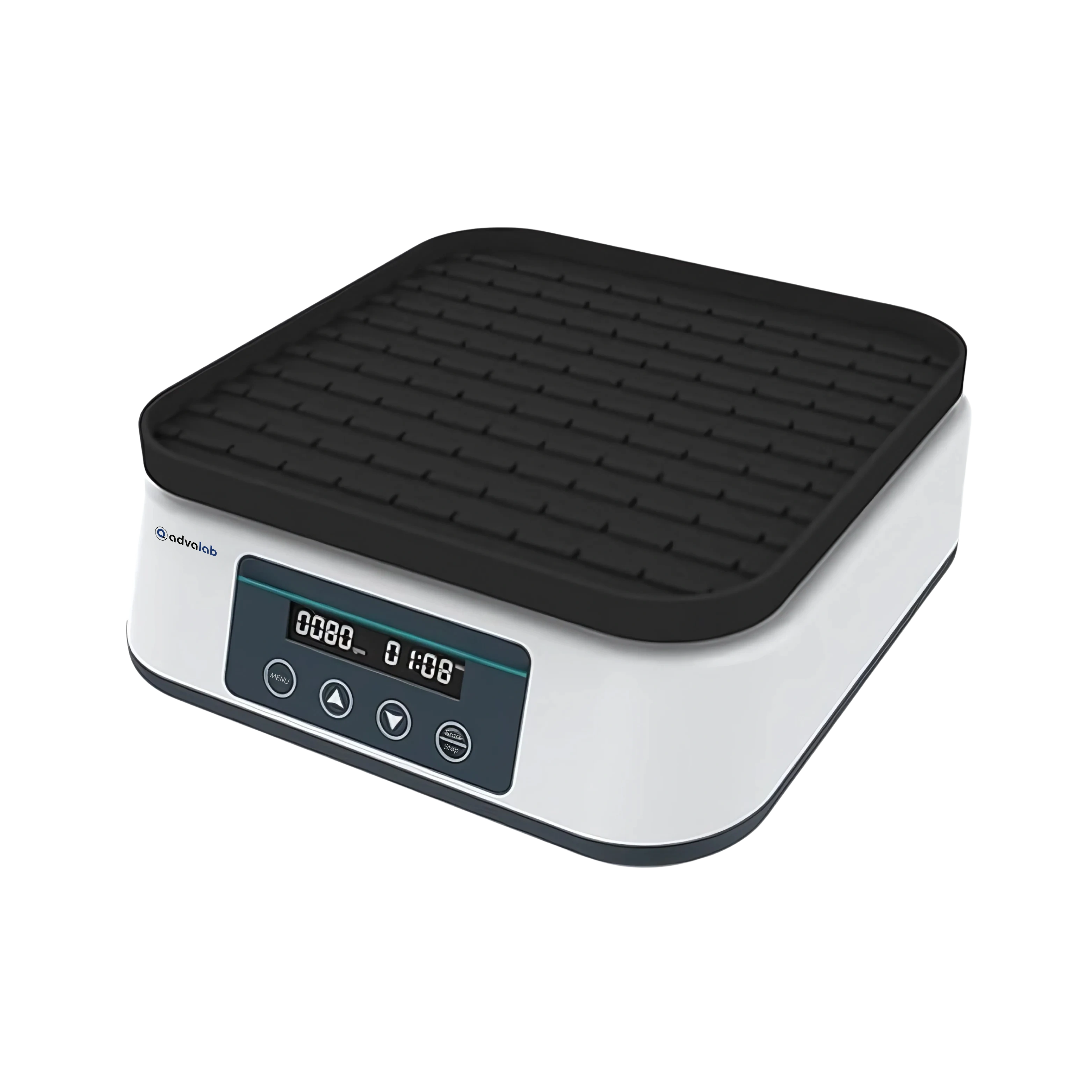

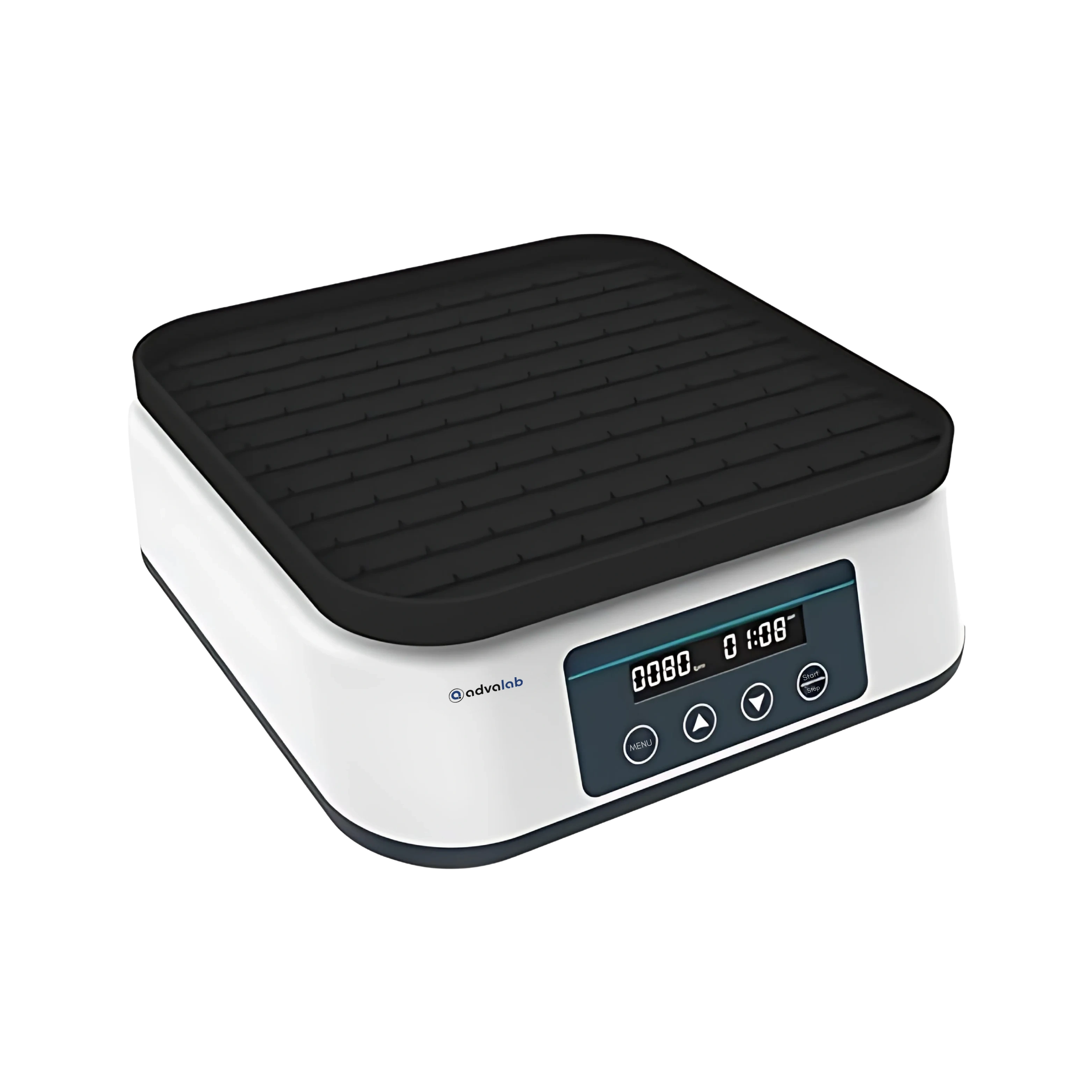

Orbital Shaker ADOS-504 has a maximum capacity of 1.2 kg, ensuring optimal performance during operation. It comes with a large platform size for holding multiple containers or samples This unit is equipped with anti-slip rubber feet and a secure platform to prevent sample spillage during shaking. Designed for low noise and vibration, it is perfect for long-duration experiments. Our Orbital Shaker is widely used in scientific research, and pharmaceuticals for mixing reagents, and sample preparation.

$ 280.00
Speed Range 40 to 200 rpm
Maximum Load 1.2 kg
Orbit Diameter 20 mm
Plate Size 200 × 200 mm
Type Circular Orbital
Motor Type Brushless motor
Timing Range 1 min to 24 h
Stepping 5 rpm
Power Consumption 20 W
Power Supply AC 100 to 240 V
Dimensions (L×B×H) 235× 220× 95 mm
  • Non-slip platforms
  • Low-noise operation
  • User-friendly
  • Programmable settings
  • Tilt and rocking features

Our Orbital Shaker ADOS-504 is used in scientific and industrial fields for uniform mixing, culturing microorganisms, and conducting biochemical reactions in pharmaceutical research, food processing, and environmental studies.

Frequently Asked Questions of Orbital Shaker ADOS-504

1. What is the speed range of the Orbital Shaker?

The Orbital Shaker offers a variable speed range, typically between 50 to 300 RPM (Revolutions Per Minute). This wide range of speeds allows users to select the most appropriate setting for their specific application. Whether it’s a gentle swirl for sensitive samples or vigorous agitation for thorough mixing, it ensures reliable and uniform sample processing.

2. What is the orbital diameter of the Orbital Shaker?

The Orbital Shaker features a standard orbital diameter of 20mm. This ensures uniform mixing across all containers on the platform. The consistent motion facilitates proper gas exchange in cell culture applications and ensures thorough sample mixing in chemical and biological research.

3. Can the Orbital Shaker be used in temperature-controlled environments?

Yes, the Orbital Shaker is designed to operate effectively in incubators, cold rooms, or other controlled environments. This capability is particularly useful for experiments requiring specific temperature conditions, such as bacterial culture growth, enzyme reactions, and cell-based assays. Its robust construction ensures stable performance even in fluctuating environmental conditions.

4. What is the primary function of the Orbital Shaker?

The Orbital Shaker is primarily used for mixing, agitating, and incubating samples to ensure uniformity across experiments. Its controlled orbital motion is ideal for tasks such as bacterial culture growth, cell culture studies, staining, and hybridization procedures. Researchers rely on the ADOS-504 for its consistent mixing performance, which is essential for achieving accurate and reproducible results.

5. Does the Orbital Shaker have a timer function?

Yes, the Orbital Shaker is equipped with a programmable digital timer that can be set for durations ranging from 1 minute to 99 hours. This feature provides users with precise control over experiment timing, allowing for hands-free operation. Once the set time is completed, the Shaker automatically stops, preventing over-mixing and preserving sample integrity.
