Orbital Shaker ADOS-509
Orbital Shaker ADOS-509
Orbital Shaker ADOS-509

Orbital Shaker ADOS-509

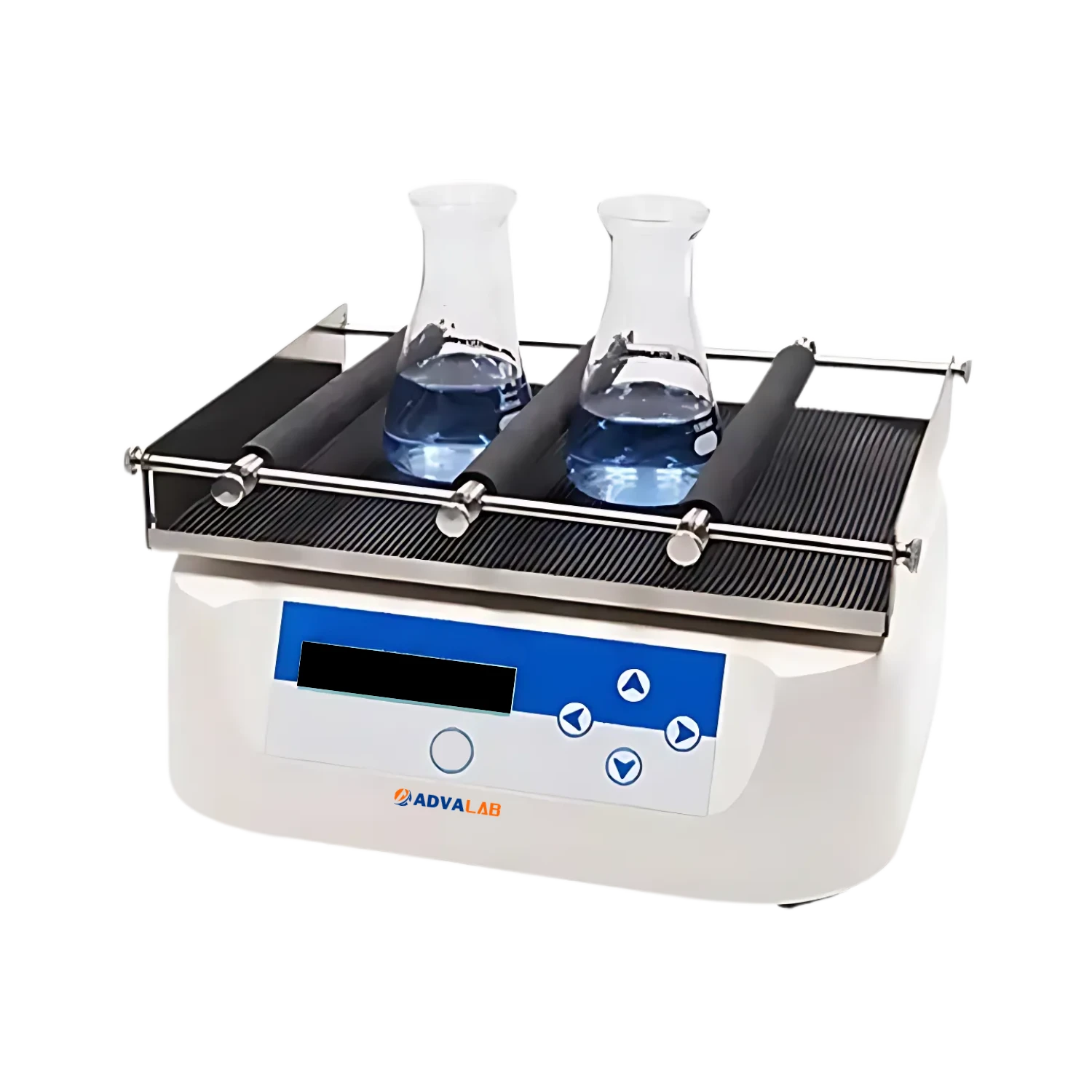

Orbital Shaker ADOS-509 operates at an adjustable speed range from 50 to 250 rpm. Designed to provide gentle oscillation through a DC brushless motor. It features an LCD that displays instant speed, running time, and working status. The unit is capable of operating in cold rooms and low-temperature environments, offering various mixing modes. This Orbital Shaker is ideal for biology, microbiology, and medical analysis.


Speed 50 to 250 rpm
Orbital Diameter 20 mm
Maximum Load 2.5 kg
Working Temperature 4 to 45℃
Timer 1m to 99h 59m/0 infinite time
Power Consumption 35 W
Power Supply AC100 to 230V
Dimensions (W×D×H) 284×264×90 mm
  • User-friendly
  • Benchtop and portable
  • PID controlled system
  • Interchangeable trays
  • Integrated timer with alert system

Our Orbital Shaker ADOS-509 is capable of mixing and cultivating common lab wares. It is widely used in the fields of biology, microbiology, and medical analysis.

Accessory

Dimension

Quantity

Single platform

280×260 mm

1 Pc

Double platform

280×260×120 mm

1 Pc

Aluminum alloy tray with flask clamps 1

6×250 ml, 270×220×5 mm

1 Pc

Aluminum alloy tray with flask clamps 2

12×100 ml, 270×220×5 mm

1 Pc

Stainless steel tray with adjustable flask holder

270×220×40 mm

1 Pc

Universal tray

301×235×50 mm

1 Pc

Orbital Shaker ADOS-509 | Orbital Diameter 20 mm
Orbital Shaker ADOS-509 | User-friendly

Frequently Asked Questions of Orbital Shaker ADOS-509

1. What are the main specifications of the pallets used in the Orbital Shaker?

This Orbital Shaker’s pallets feature six main specifications: size, material, load capacity, vessel compatibility, surface texture, and ease of cleaning. These characteristics provide secure vessel holding, durability, and adaptability for diverse lab applications, ensuring reliable and efficient shaker performance.

2. What is the operating temperature range of the Orbital Shaker?

Our Orbital Shaker functions effectively within a temperature range of 4 to 45?, making it suitable for diverse laboratory environments, including those with controlled temperatures. Its design guarantees consistent and stable performance throughout this range.

3. Is the Orbital Shaker suitable for use in freezer or cold room environments?

Yes, our Orbital Shaker offers multiple mixing modes that enable its operation in freezer rooms and other low-temperature settings. Its sturdy design guarantees dependable performance even in cold conditions, making it versatile for various applications across different fields.

4. Is there an LCD display on the Orbital Shaker?

Yes, this Orbital Shaker features a clear LCD screen that provides real-time data on speed, time, and operating mode. This allows for easy monitoring and adjustment, enhancing both precision and user convenience during experiments.

5. Does the Orbital Shaker come with interchangeable platforms?

Yes, our Orbital Shaker is equipped with interchangeable platforms compatible with various vessels such as culture plates, flasks, and tubes. This feature provides flexibility, allowing easy customization for different experiments and sample volumes.

6. What is an Orbital Shaker?

An Orbital Shaker is a laboratory device that moves samples in a smooth, circular motion to mix liquids gently and evenly, ideal for cell culture, bacterial growth, and solubility experiments. This gentle agitation helps maintain the viability of sensitive biological samples and promotes uniform mixing. It is widely used in research, clinical, and industrial laboratories for consistent and reproducible results.

7. How does an Orbital Shaker work?

The Orbital Shaker uses a motor to rotate the platform in a circular orbit at adjustable speeds, providing consistent agitation without causing turbulence or damage to delicate samples. The circular motion ensures even distribution of nutrients and gases in culture media, improving sample growth and reaction efficiency. Speed and time controls allow for customizable operation tailored to specific experimental needs.

8. What types of containers can be used on an Orbital Shaker?

Orbital Shakers accommodate flasks, test tubes, bottles, petri dishes, and microplates, usually secured with clamps, racks, or platforms to prevent movement during shaking. This versatility makes them suitable for a variety of lab applications, from microbiology to biochemistry. Accessories and platforms can often be swapped or customized to fit unique container sizes and shapes.

Similar Products of Orbital Shaker

Speed Range 50 to 350 rpm
Orbital Diameter 30 mm
Timer Setting 1 min to 99 hr 59 min
Speed 40 to 200rpm
Max Load 3 kg
Plate Size 320×320 mm
Speed Range 50 to 300 rpm
Orbital Diameter 10 mm
Timer Setting 1min to 99h59min
Speed Range 50 to 350 rpm
Orbital Diameter 10 mm
Timer Setting 1 min to 99 hr 59 min

Microplate Shaker

Microplate Shaker ADMS-501
Speed:Brushless motor 100to1200rpm
RPM Increment:100 rpm
Horizontal Gyration Amplitude:4 mm
Microplate Shaker ADMS-502
Speed:100 to 1200 rpm
RPM Increment:100 rpm
Horizontal Gyration Amplitude:4 m

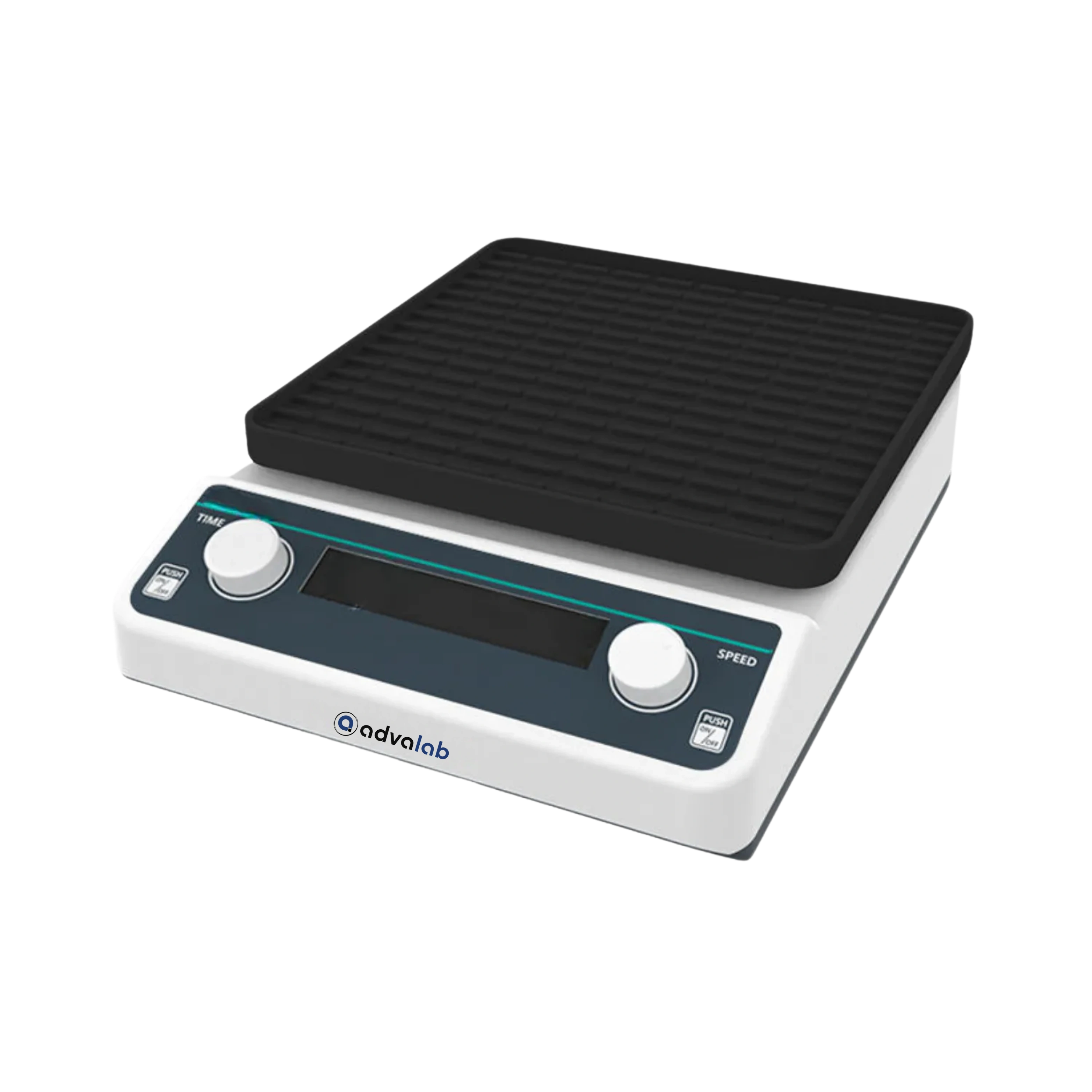

Microplate Shaker ADMS-503
