Artificial Climate Chamber ADAL-505
Artificial Climate Chamber ADAL-505 (front view)

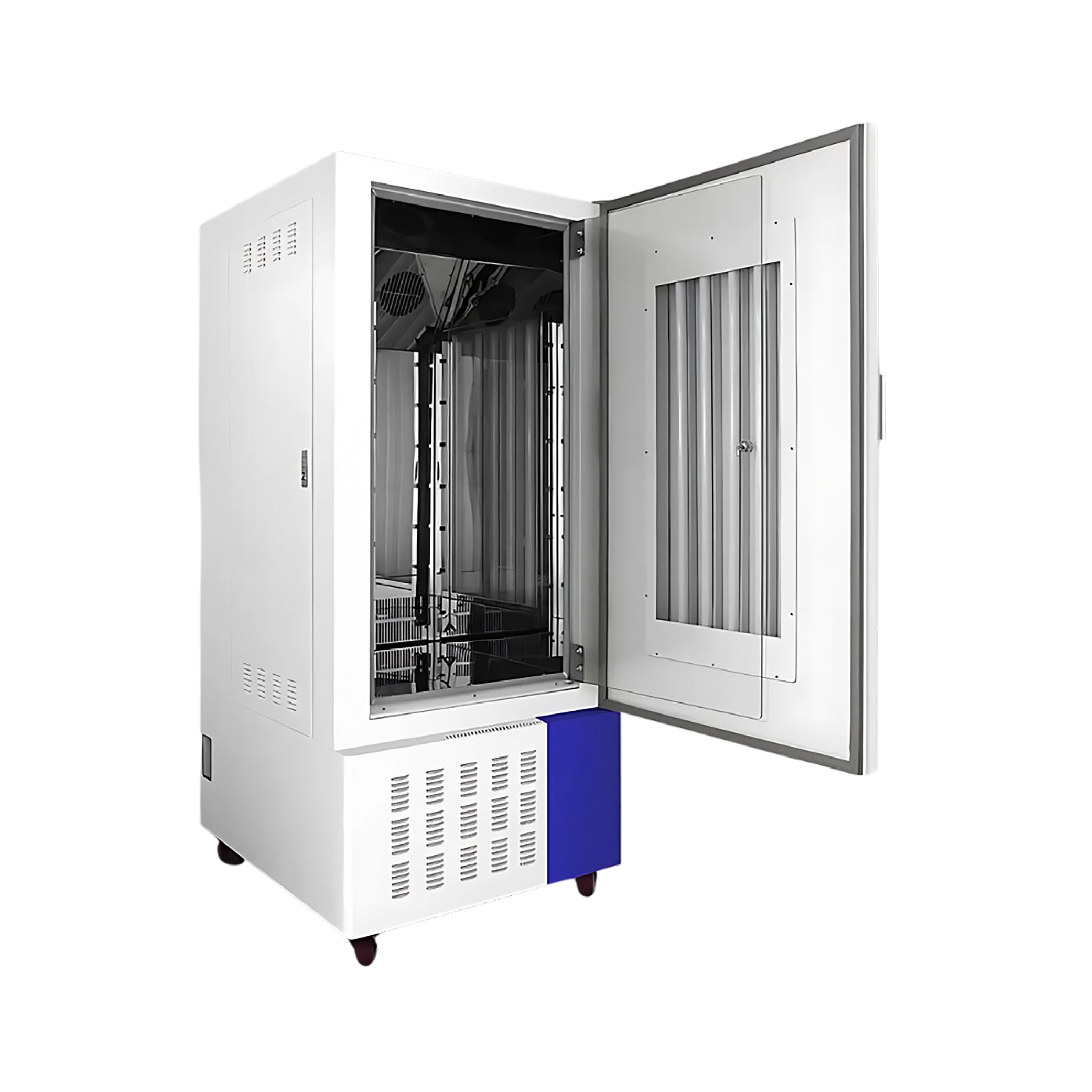

Artificial Climate Chamber ADAL-505 (side view)

Artificial Climate Chamber ADAL-505

Artificial Climate Chamber ADAL-505 offers a temperature range of 10 to 65℃ with lighting and operates on a forced convection mode. It features a thirty-stage microprocessor-based PID controller for precise environmental regulation. Equipped with a configurable timer range, it supports time-based programming and automation. Designed for energy efficiency, it maintains reliable operation while minimizing energy use. Our Artificial Climate Chamber is ideal for biological tissue research, seed germination, plant cultivation, and animal rearing.

Temperature Range 0 °C to 65 °C(with lighting), 0 to 60℃ (without lighting)
Humidity Range 40 to 95% RH
Illumination Range 0 to 15000 Lux (five-stage adjustable)
Temperature Accuracy ±0.1℃
Temperature Fluctuation ±1℃ (within 10 to 40℃)
Temperature Uniformity ±1℃ (within 10 to 40℃)
Humidity Fluctuation ±3% RH
Timer Range 0 to 99 hours
Volume 250 Liters
Working Environment 10 °C to 30 °C
Power Consumption 1350 W
Power Supply AC 220V to 50Hz
Internal Dimensions (H×W×D) 1100 × 480 × 480 mm
External Dimensions (H×W×D) 1780 × 710 × 775 mm
Shipping Dimensions (H×W×D) 1965 × 800 × 900 mm
Net Weight 162 Kg
Gross Weight 172 kg
  • Portable printer
  • Touchscreen controller
  • Stable operation
  • Forced convection
  • Programmable settings

The Artificial Climate Chamber ADAL-505 is widely used in research and laboratory environments where precise control of temperature, humidity, and lighting is essential.

ALLSENSTM Software

Portable Printer

1 unit

LCD Touch Screen Controller

1 unit

Power Supply Interface

1 unit



Frequently Asked Questions of Artificial Climate Chamber ADAL-505

1. How is temperature and humidity controlled in an Artificial Climate Chamber?

An Artificial Climate Chamber is a highly specialized environmental chamber designed to simulate precise temperature, humidity, and lighting conditions. It is used for a wide range of applications, including biological research, agricultural studies, plant cultivation, and environmental testing. This chamber allows users to create controlled conditions ideal for research, ensuring that experiments are not affected by external environmental factors.

2. How is the lighting intensity adjusted in the Artificial Climate Chamber?

The Artificial Climate Chamber features a five-stage adjustable lighting system that allows users to set the light intensity from 0 to 15,000 lux. This feature is crucial for plant cultivation and experiments that require specific light conditions, such as controlled photo periods for plant growth and other light-dependent biological processes.

3. How does the Artificial Climate Chamber contribute to sustainability?

The Artificial Climate Chamber is designed with energy-efficient features such as double-layer insulation and eco-friendly materials, reducing energy consumption and supporting sustainability goals. By using less energy, the chamber helps reduce operating costs while also contributing to environmental conservation efforts in research and testing.

4. Is the Artificial Climate Chamber easy to set up and operate?

Yes, the Artificial Climate Chamber is designed for user-friendly operation. It features an intuitive LCD touch screen controller, allowing users to easily set and monitor environmental parameters such as temperature, humidity, and lighting. The chamber's user interface is simple, making it easy for both novice and experienced users to operate.

5. Can the Artificial Climate Chamber be used for large-scale commercial applications?

While the Artificial Climate Chamber is primarily designed for laboratory and research purposes, its large internal volume and precise control systems make it suitable for small to medium-scale commercial applications. It can be used in plant cultivation, agricultural research, or testing laboratories that require controlled environmental conditions.
