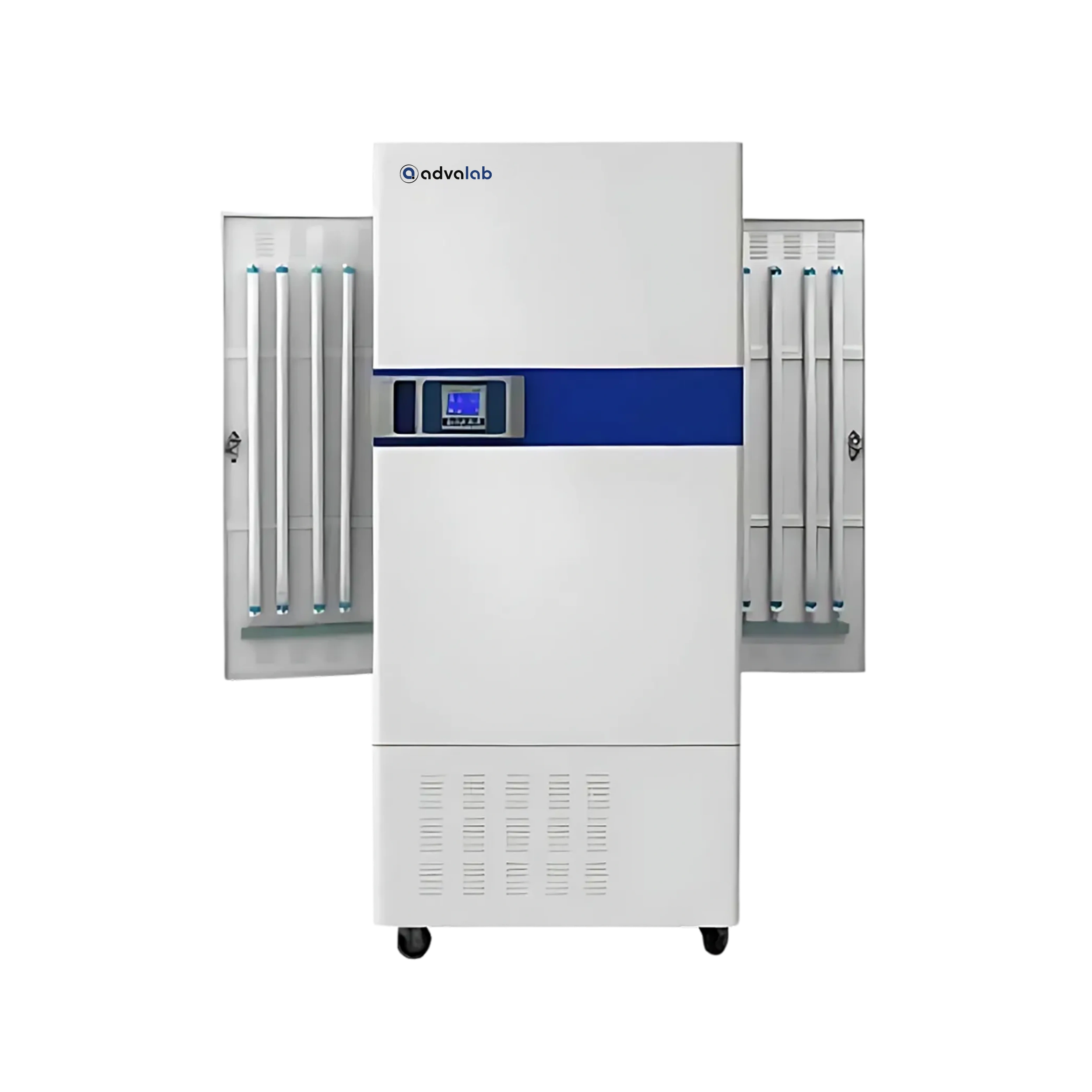

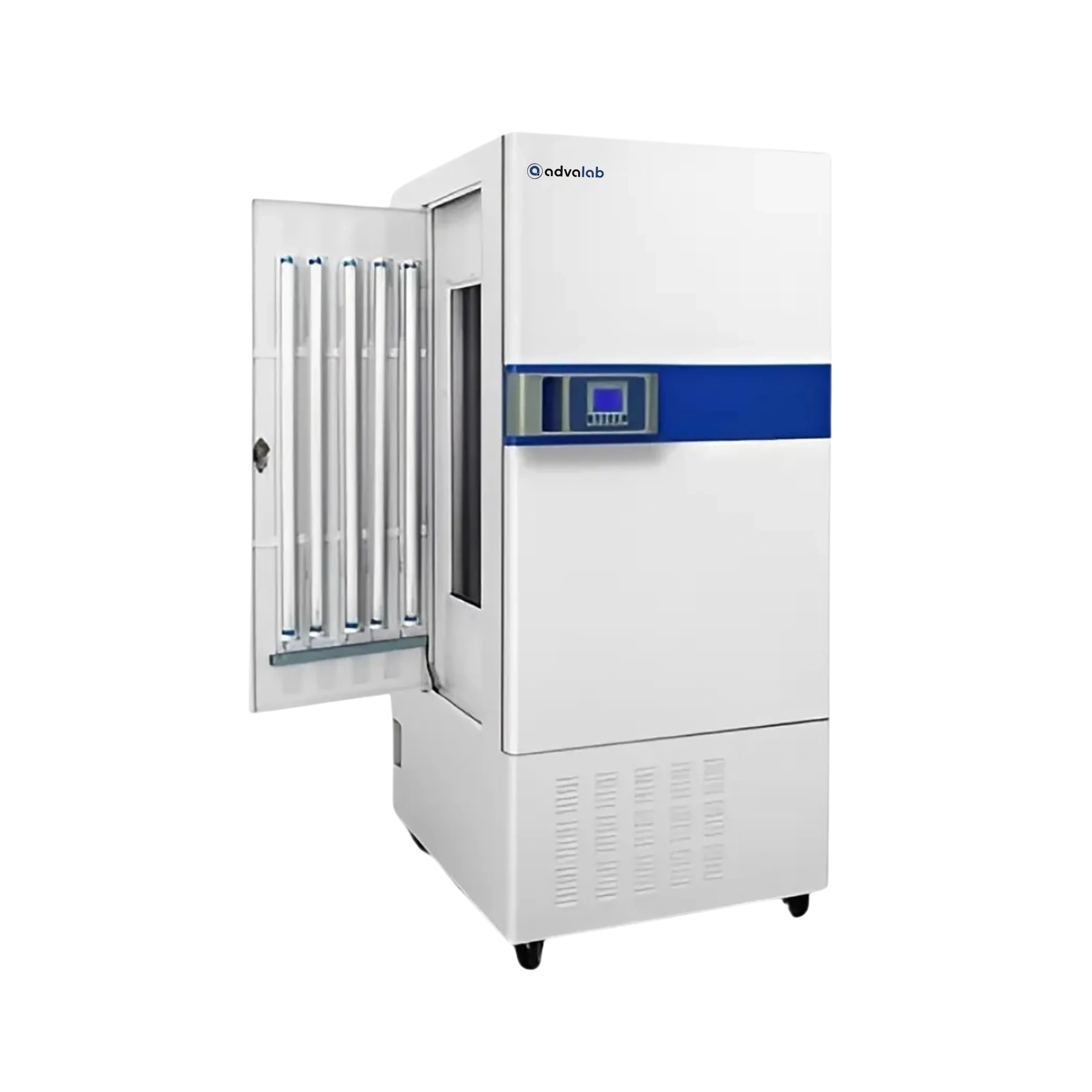

Our Illumination Incubator ADIL-502 maintains humidity levels below 70%, preventing excess moisture. It includes a timer range to support time-based programming and automation. With a large internal volume, it provides ample space for cultivation and testing. This unit features day-night to replicate natural light cycles for accurate studies. Illumination Incubator is ideal for biological research, seed germination, and environmental simulation under controlled conditions.
| Temperature Range | 10 to 65℃ (with lighting), 0 to 60℃ (without lighting) |
| Illumination Range | 0 to 15000 Lux (five-stage adjustable) |
| Temperature Accuracy | ±0.1℃ |
| Temperature Fluctuation | ±1℃ (within 10–40℃) |
| Temperature Uniformity | ±1℃ (within 10–40℃) |
| Timer Range | 0–99 hours |
| Internal Volume | 300 Liters |
| Working Environment | 10–30℃ |
| Working Environment (Humidity) | 70% (below) |
| Internal Dimensions (H×W×D) | 1100 × 540 × 520mm |
| External Dimensions (H×W×D) | 1780 × 770 × 815 mm |
| Shipping Dimensions (H×W×D) | 1965 × 860 × 940 mm |
| Power Consumption | 1350 W |
| Power Supply | AC 220V / 50Hz |
| Net Weight | 183 kg |
| Gross Weight | 198 kg |
The Illumination Incubator ADIL-502 is extremely used in laboratories and research settings that require accurate control of temperature, humidity, and lighting.
ALLSENSTM Software
Portable Printer 1 unit LCD Touch Screen Controller 1 unit Power Supply Interface 1 unit
1. What are the installation and space requirements for the Illumination Incubator?
Installation of the Illumination Incubator requires a stable surface, adequate ventilation, and operation within an ambient temperature of 10 to 30°C and humidity below 70%. The unit needs access to AC power supply and a drainage outlet for condensation management. Space should be allocated for air circulation. The compact vertical design makes it suitable for labs with limited floor space.
2. What are the main components of an Illumination Incubator?
An Illumination Incubator typically includes components such as a refrigeration system, humidifier, lighting system, and an internal circulation fan. The PID controller ensures stable and precise environmental regulation. LED systems simulate day-night cycles, while refrigeration and humidity systems control temperature and moisture levels. The use of stainless-steel interiors and eco-friendly insulation enhances environmental performance.
3. How does the Illumination Incubator function benefit long-term use?
The Illumination Incubator has an auto-defrost function that uses rapid heat pump defrost technology to prevent frost buildup on the evaporator during operation. This is crucial for long-duration experiments as it maintains consistent performance without intervention. Frost accumulation can affect temperature uniformity and airflow, so automated defrosting ensures uninterrupted accuracy.
4. What makes the Illumination Incubator suitable for seed germination and plant growth?
The Illumination Incubator creates a stable, controlled environment that closely mimics natural growth conditions. With a temperature range of 10 to 65°C, and adjustable lighting. The chamber’s multi-segment programmable control allows timing of light and humidity changes, essential for seasonal variations. This makes it ideal for agricultural experiments, genetic research, and commercial plant trials.
5. What safety features are included in the Illumination Incubator?
The Illumination Incubator includes multiple security systems to protect both the equipment and samples. These may include over-temperature protection, sensor error alarms, door open alerts, and power failure recovery. Some units include password-protected settings to avoid unauthorized parameter changes. These features ensure safe operation in research environments where reliable conditions are critical.
