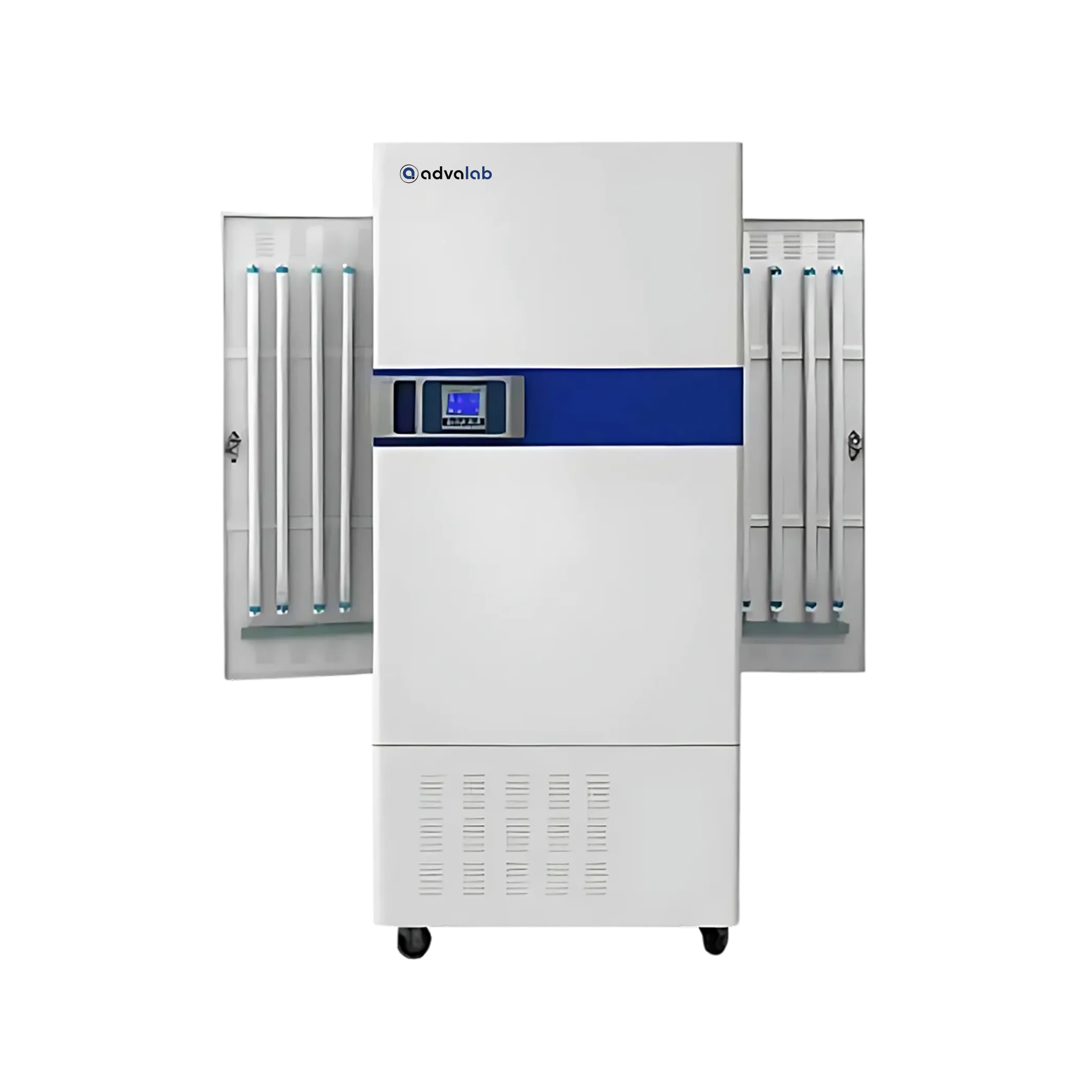

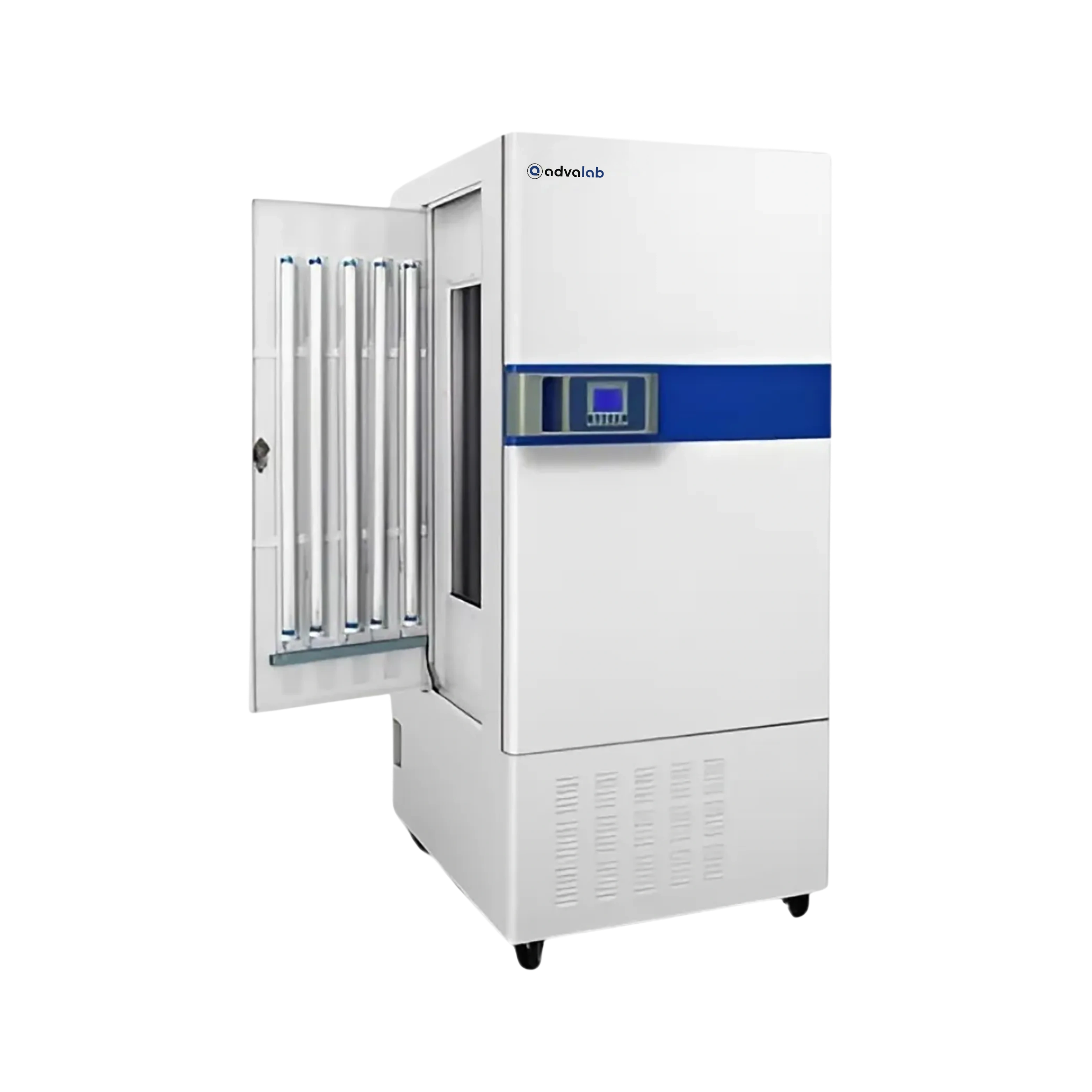

The Illumination Incubator ADIL-501 provides a temperature range of 10 to 65°C with integrated lighting. It uses forced convection to ensure even temperature distribution. A thirty-stage microprocessor-based PID controller allows precise environmental regulation. Double-layer insulation system reduces power consumption and supports energy efficiency. Our Illumination Incubator is ideal for plant cultivation, seed germination, tissue research, and animal rearing.
| Temperature Range | 10 to 65℃ (with lighting), 0 to 60℃ (without lighting) |
| Illumination Range | 0 to15000 Lux |
| Temperature Accuracy | ±0.1℃ |
| Temperature Fluctuation | ±1℃ (10 to 40℃) |
| Temperature Uniformity | ±1℃ (10 to 40℃) |
| Timer Range | 0–99 hours |
| Internal Volume | 250 Liters |
| Working Environment | 10 to 30℃ |
| Working Environment (Humidity) | below 70% |
| Power Consumption | 1350 W |
| Power Supply | AC 220V to 50Hz |
| Internal Dimensions (H×W×D) | 1100 × 480 × 480 mm |
| External Dimensions (H×W×D) | 1780 × 710 × 775 mm |
| Shipping Dimensions (H×W×D) | 1965 × 800 × 900 mm |
| Net Weight | 162 kg |
| Gross Weight | 172 kg |
The Illumination Incubator ADIL-501 is extensively used in laboratories and research settings that require accurate control of temperature, humidity, and lighting conditions
ALLSENSTM Software
Portable Printer 1 unit LCD Touch Screen Controller 1 unit Power Supply Interface 1 unit
1. What are the main components of an Illumination Incubator?
An Illumination Incubator typically includes components such as a refrigeration system, humidifier, lighting system and an internal circulation fan. The PID controller ensures stable and precise environmental regulation. LED systems simulate day-night cycles, while refrigeration and humidity systems control temperature and moisture levels. The use of stainless-steel interiors and eco-friendly insulation enhances environmental performance.
2. What makes the Illumination Incubator suitable for seed germination and plant growth?
The Illumination Incubator creates a stable, controlled environment that closely mimics natural growth conditions. With a temperature range of 10 to 65°C, and adjustable lighting. The chamber’s multi-segment programmable control allows timing of light, and humidity changes, essential for seasonal variations. This makes it ideal for agricultural experiments, genetic research, and commercial plant trials.
3. How does the Illumination Incubator function benefit long-term use?
The Illumination Incubator has an auto-defrost function that uses rapid heat pump defrost technology to prevent frost buildup on the evaporator during operation. This is crucial for long-duration experiments as it maintains consistent performance without intervention. Frost accumulation can affect temperature uniformity and airflow, so automated defrosting ensures uninterrupted accuracy.
4. What safety features are included in the Illumination Incubator?
The Illumination Incubator includes multiple security systems to protect both the equipment and samples. These may include over-temperature protection, sensor error alarms, door open alerts, and power failure recovery. Some models include password-protected settings to avoid unauthorized parameter changes. These features ensure safe operation in research environments where reliable conditions are critical.
5. What are the installation and space requirements for the Illumination Incubator?
Installation of the Illumination Incubator requires a stable surface, adequate ventilation, and operation within an ambient temperature of 10 to 30°C and humidity below 70%. The unit needs access to AC power supply and a drainage outlet for condensation management. Space should be allocated for air circulation. The compact vertical design makes it suitable for labs with limited floor space.
