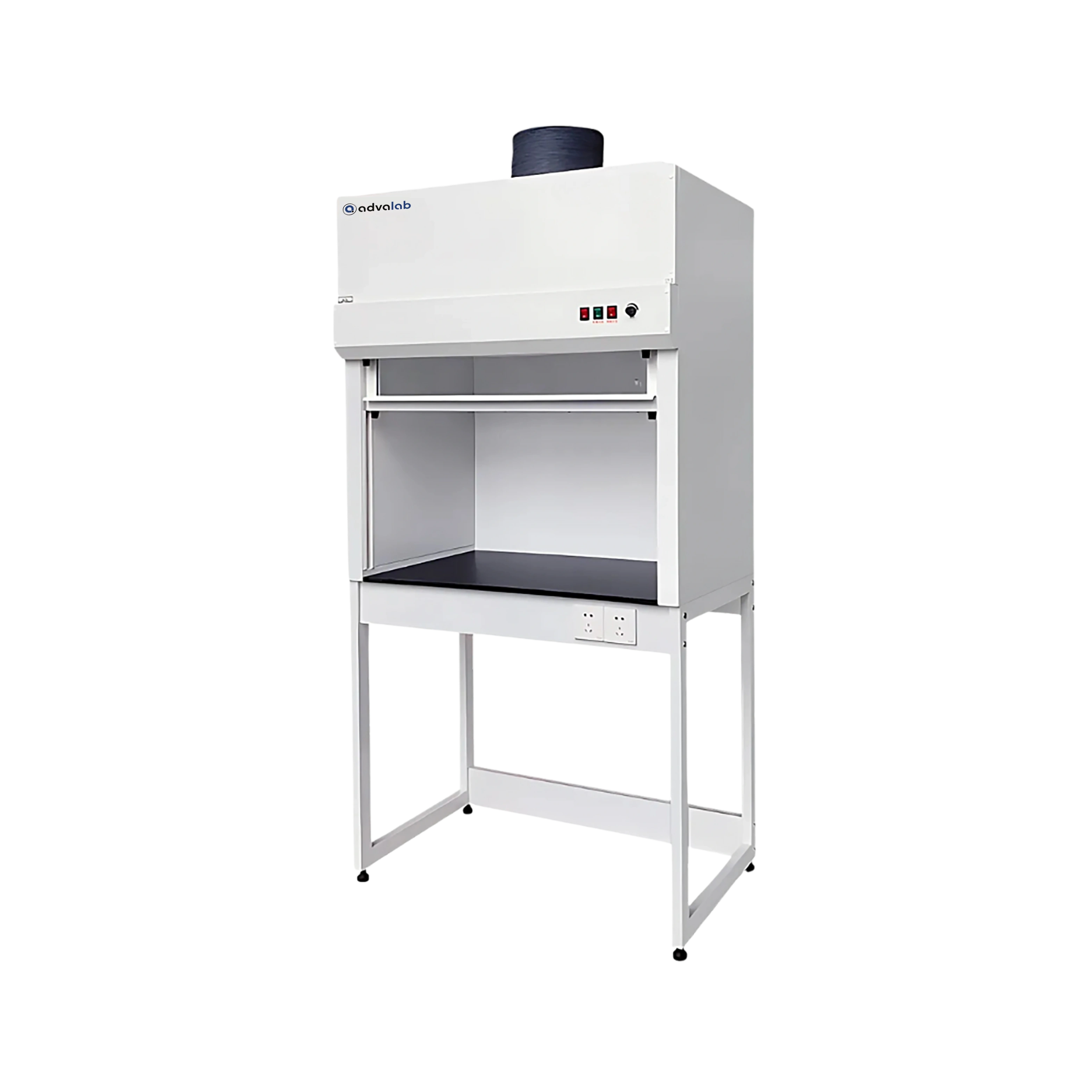

Ducted Fume Hood ADDFH-510
Ducted Fume Hood ADDFH-510
Ducted Fume Hood ADDFH-510

Ducted Fume Hood ADDFH-510

We offer Ducted Fume Hood ADDFH-510 with an air volume of 1850 m³/h to maintain proper face velocity for user safety. This unit control panel offers straightforward airflow control for safety. It features a spacious work area designed for handling hazardous fumes safely and efficiently. The control panel provides easy operation with adjustable airflow for precise ventilation. Our Ducted Fume Hood is used in academic, industrial, and research fields to safely ventilate hazardous fumes.


External Dimension (L×B×H) 1200×650×1900 mm
Internal Dimension (L×B×H) 1090×530×740 mm
Air Volume 1850 m³/h
Surface Wind Speed Adjustable
Exhaust Air Diameter 150 to 250 mm
Material All steel/stainless steel
Noise 50 db
Fan Power 48 W to 110 W
LED power 6 W to 10 W
Main Body 1.0mm Cold-rolled steel with epoxy powder coating
Inner Size 1.0mm Cold-rolled steel with epoxy powder coating
Work Top 12.7mm black physicochemical board; ceramic, marble, or stainless steel optional
Power Consumption 2000 W
Dimensions (L×B×H) 133×96×120 mm
Gross Weight 170 Kg
  • Ease of maintenance
  • External ventilation system
  • User-friendly
  • Efficient airflow control
  • UV light integration

Our Ducted Fume Hood ADDFH-510 is used in chemical analysis, pharmaceutical formulation, and academic research to safely ventilate hazardous fumes during experiments involving volatile substances.

10 A Socket

1 Pc

Fan

1 Pc

Duct

1 Pc

LED

1 Pc

Speed governor

1 Pc

Water Faucet

1 Pc

Water Sink

1 Pc



LCD Panel

× 1 Pc

Electric Damper

× 1 Pc

Manual Damper

× 1 Pc

Gas cock

× 1 Pc

Drip Rack

× 1 Pc

Ducted Fume Hood ADDFH-510|Exhaust Air Diameter:150 to 250 mm|Fan Power:48 W to 110 W
Ducted Fume Hood ADDFH-510|Ease of maintenance|External ventilation system

Frequently Asked Questions of Ducted Fume Hood ADDFH-510

1. In what industries is the Ducted Fume Hood ADDFH-510 commonly used?

The Ducted Fume Hood ADDFH-510 is widely used in pharmaceutical labs, chemical research, biotechnology, academic institutions, and industrial quality control labs. It’s particularly useful in processes requiring chemical mixing, testing, or formulation. The ducted design makes it suitable for long-term handling of toxic fumes. Laboratories working with acids, solvents, or reagents benefit greatly from its protective function. It supports both R&D and production-level safety needs.

2. How is the Ducted Fume Hood ADDFH-510 installed and maintained?

Installation requires connection to an external duct system to properly exhaust air out of the facility. It should be installed by professionals to ensure proper sealing and airflow performance. Routine maintenance involves cleaning the interior surfaces, inspecting the duct system, and checking sash movement. Filters or ducts must be inspected periodically for blockages or wear. Regular servicing ensures continued safety and performance.

3. How does the Ducted Fume Hood ADDFH-510 ensure user safety during operation?

The Ducted Fume Hood ADDFH-510 is designed to contain and expel hazardous fumes through efficient ducted ventilation. Its front sash acts as a physical barrier between the user and harmful chemicals. Airflow sensors and alarms alert the user if ventilation falls below safe levels. The materials used are fire-resistant and corrosion-proof to prevent damage during chemical handling. Overall, it minimizes the risk of exposure, accidents, and contamination in the lab.

4. What are the key features of the Ducted Fume Hood ADDFH-510?

This fume hood includes a chemical-resistant work surface, a transparent front sash for visibility, and energy-efficient LED lighting. It is built with high-quality materials that resist corrosion and chemical damage. The model supports customizable airflow settings for optimal ventilation control. It also includes a control panel for easy operation. Safety features like airflow alarms and fire-resistant construction enhance laboratory safety.

5. What is the purpose of the Ducted Fume Hood ADDFH-510?

The Ducted Fume Hood ADDFH-510 is designed to provide a safe environment for handling hazardous chemicals by ventilating toxic fumes out of the laboratory. It protects users from inhaling harmful vapors, gases, and particulates generated during experiments. This model uses a ducted exhaust system to remove contaminants to the outside. It’s ideal for applications involving corrosive or volatile substances.
