| Speed Range | 0 to 2800 rpm |
| Orbit | 3 mm |
| Mixing Motion | Orbital |
| Time Range | 0sec to 99min59sec / infinite |
| Run Mode | Touch operation / Continuous |
| Speed Control Mode | Stepless speed regulation |
| Motor Type | Shaded pole motor |
| Power Supply | 60 W |
| Voltage | AC110 or 220V, 50 / 60Hz |
| Dimension (W × D × H) | 197 × 135 × 156 mm |
| Net Weight | 3.4 kg |

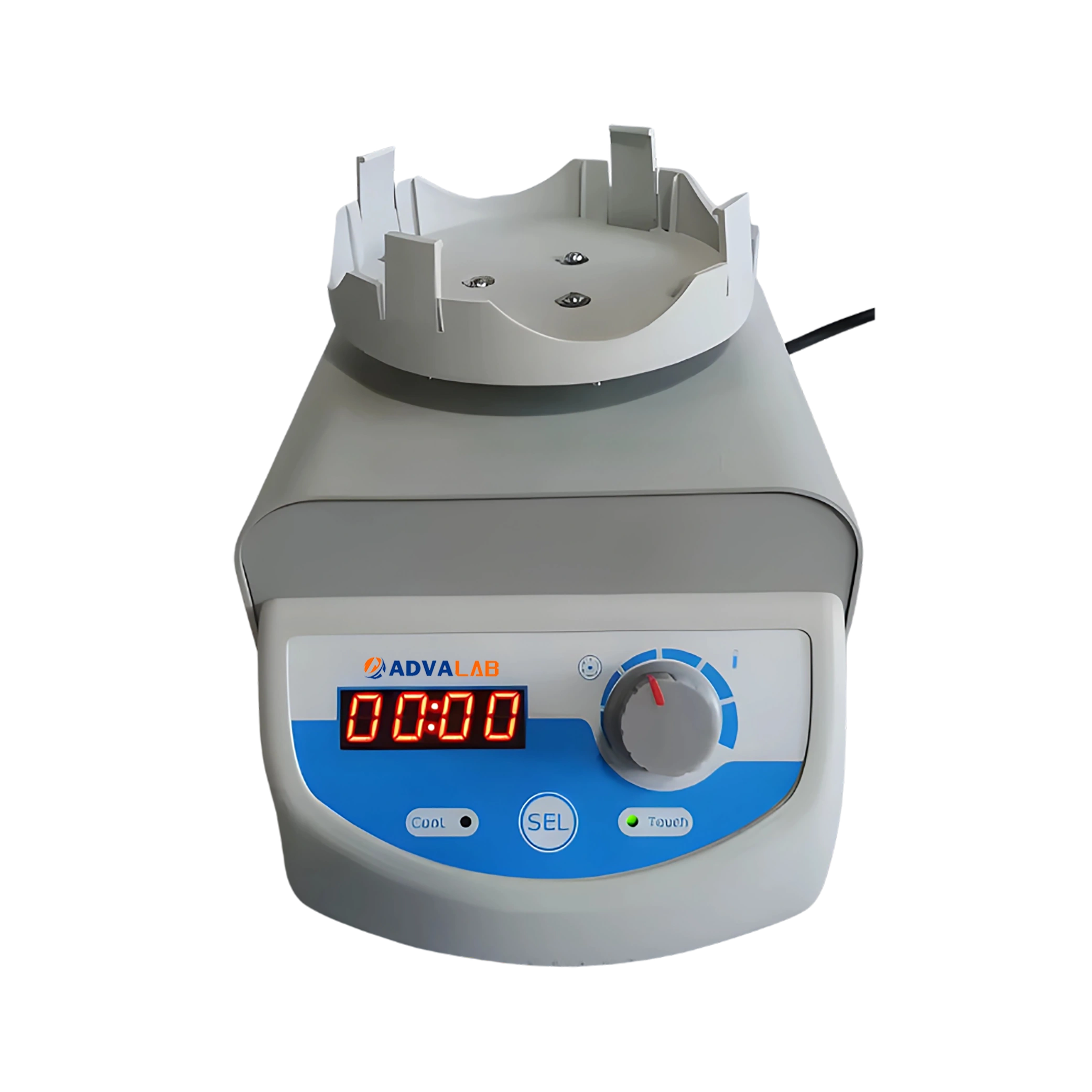

Multi-function Vortex Mixer ADVM-502 is well-suited for mixing reagents and solutions in research and clinical laboratories. It is also commonly used for sample preparation in pharmaceutical and environmental testing.
Accessory
| Description | Quantity |
Single-tube head
| 1 Tube | 1 Pc |
Foam block platform
| Used with Foam Block | 1 Pc |
Foam block A
| 4 x 29mm | 1 Pc |
Foam block B
| 8 x 15mm | 1 Pc |
Foam block C
| 24 x 10mm | 1 Pc |
Foam block D
| 37 x 8mm | 1 Pc |
1. What types of samples can Multi-function Vortex Mixer ADVM-502 handle?
Multi-function Vortex Mixer ADVM-502 is versatile and can handle various sample types including liquids, suspensions, and reagents commonly used in biological, chemical, and medical labs. Its adaptable platform supports different tube sizes, ensuring secure and efficient mixing. Whether working with small microtubes or larger containers, this mixer can accommodate your needs. It is ideal for applications like sample preparation, reagent mixing, and cell suspension.
2. Can the speed of the Multi-function Vortex Mixer ADVM-502 be adjusted?
Multi-function Vortex Mixer ADVM-502 offers adjustable speed control, allowing users to set the mixing speed according to their specific requirements. This flexibility helps achieve optimal mixing without damaging delicate samples. The speed range covers 0 to 2800 rpm, suitable for gentle to vigorous agitation. It enhances usability across diverse laboratory protocols.
3. How does the touch operation mode work in Multi-function Vortex Mixer ADVM-502?
In touch operation mode, the Multi-function Vortex Mixer ADVM-502 runs only while the user applies pressure to the mixing head or platform. This allows precise control over mixing time and intensity, perfect for brief agitation tasks. Once the pressure is released, the unit immediately stops, preventing overmixing. It is a convenient feature for quick and controlled sample processing.
4. What safety features does the Multi-function Vortex Mixer ADVM-502 have?
Multi-function Vortex Mixer ADVM-502 incorporates several safety features including stable rubber feet to prevent slipping during operation. Its compact design reduces the risk of accidental tipping or movement. The motor’s shaded pole design also helps minimize overheating during extended use. These features combine to provide a safe and secure user experience in busy lab environments.
