Thermo-Shaker Incubator ADTSI-501
thermo-shaker incubator adtsi-501,side view
thermo-shaker incubator adtsi-501,side view
thermo-shaker incubator adtsi-501,front view
thermo-shaker incubator adtsi-501,back view

Thermo-Shaker Incubator ADTSI-501

Thermo-Shaker Incubator ADTSI-501 utilizes a temperature control range from -20℃ to 100℃. Combining a DC brushless motor with semiconductor cooling, it accelerates and boosts efficiency. This unit features built-in programs with options for connecting to other systems. It includes a variety of blocks designed for easy interchangeability, enhancing versatility. Thermo-Shaker Incubator is ideal for variety of molecular biology applications.


Temperature Control Range RT -20℃ to 100℃
Speed Range 300 to 1500 rpm
Amplitude 2 mm, Horizontal rotation
Timer 1 min to 99 h 59 min / 0: infinite time
Temperature Accuracy ±0.3℃
Temperature Stability ±0.3℃ at 40℃
±0.3℃ at 100℃
Temperature Control Mode Semi-conductor
Heating Up Rate < 15 min, 25℃ to 100℃
Temperature Set Range 0℃ to 100℃
Display Accuracy 0.1℃
Cooling Down Rate ≤25min, 30 ℃ to 10 ℃
≥7℃/min,100℃ to 20℃
Power Consumption 150 W
Dimension (W×D×H) 220×300×170 mm
Net Weight 7.9 kg
  • Digital display
  • Portable and benchtop
  • Accurate performance
  • Low maintenance motor
  • User friendly

Our Thermo-Shaker Incubator ADTSI-501 is ideal for sample incubation, catalysis, mixing, and preservation in molecular biology applications.

Accessory

Description

Maximum Temperature

Maximum Speed

Quantity

Block 01

96 × 0.2ml PCR plate (φ6.7×16)

100℃

2000 rpm

1 Pc

Block 02

54 × 0.5ml tubes (φ8×23)

100℃

2000 rpm

1 Pc

Block 03

35 × 1.5ml tubes (φ10.8×31)

100℃

2000 rpm

1 Pc

Block 04

35 × 2.0ml tubes (φ10.8×31)

100℃

2000 rpm

1 Pc

Block 05

20 × 0.5ml + 15 × 1.5ml tubes

100℃

2000 rpm

1 Pc

Block 06

24 × φ12mm × 30 tubes

100℃

2000 rpm

1 Pc

Block 07

32 × 0.2ml + 25 × 1.5ml tubes

100℃

2000 rpm

1 Pc

Block 08

32 × 0.2ml + 10 × 0.5ml + 15 × 1.5ml tubes

100℃

2000 rpm

1 Pc

Block 09

32 × 0.2ml + 10 × 0.5ml + 15 × 2.0ml tubes

100℃

2000 rpm

1 Pc

Block 10

103 × 67 × 30 (water tank)

100℃

2000 rpm

1 Pc

Block 11

96 × 0.2ml Elisa (Flat bottom)

100℃

2000 rpm

1 Pc

Block 12

24 × 5ml (φ13.5×30)

100℃

2000 rpm

1 Pc

Block 13

12 × 15ml (φ16.9×98)

100℃

700 rpm

1 Pc

Block 14

6 × 50ml (φ29.5×90)

100℃

700 rpm

1 Pc

Block 15

12 × 10ml (φ15.9×65)

100℃

700 rpm

1 Pc

Lid A

152 × 113 × 45

-

-

1 Pc

Lid B

145 × 105 × 62.5

-

-

1 Pc

Lid C

145 × 105 × 122.5

-

-

1 Pc

Thermo-Shaker Incubator ADTSI-501 | Speed Range 300 to 1500 rpm | Temperature Accuracy ±0.3℃
Thermo-Shaker Incubator ADTSI-501 | Digital display | Portable and benchtop

Frequently Asked Questions of Thermo-Shaker Incubator ADTSI-501

1. What type of motor is used in the Thermo-Shaker Incubator?

Our Thermo-Shaker Incubator uses a maintenance-free BLDC motor for reliable and efficient operation. This motor provides precise control and smooth performance, minimizing noise and vibration. Its durability ensures long-term use with minimal upkeep, enhancing overall user experience.

2. What is the cooling down rate of the Thermo-Shaker Incubator?

This Thermo-Shaker Incubator cools from 30°C to 10°C in 25 minutes or less, with a cooling rate of at least 7°C per minute when cooling from 100°C to 20°C. This efficient cooling ensures quick sample processing and reduces overall experiment time. Its advanced cooling system maintains temperature stability for reliable results.

3. Does the Thermo-Shaker Incubator come with a lid?

Yes, our Thermo-Shaker Incubator comes with a lid for secure sample containment and optimal temperature control. The lid helps prevent contamination and evaporation during incubation. It is designed for easy handling and ensures uniform temperature distribution throughout the samples.

4. What temperature control modes does the Thermo-Shaker Incubator use?

This Thermo-Shaker Incubator utilizes semiconductor temperature control technology, providing precise and stable temperature regulation for various laboratory applications. This advanced system ensures rapid temperature changes and consistent performance throughout experiments.

5. What is the amplitude of horizontal rotation in the Thermo-Shaker Incubator?

This Thermo-Shaker Incubator has a horizontal rotation amplitude of 2 mm, ensuring consistent and efficient mixing of samples. This precise motion helps achieve uniform sample treatment, improving experimental reliability. The gentle rotation also minimizes sample disturbance and potential spillage.

6. What is a Thermo-Shaker Incubator used for?

A Thermo-Shaker Incubator is used for simultaneous heating, cooling, and mixing of samples, making it ideal for applications like enzyme reactions, nucleic acid hybridization, cell lysis, and DNA/RNA extraction. It ensures uniform temperature distribution and consistent agitation, improving reaction efficiency and reproducibility. This makes it an essential tool for molecular biology, biochemistry, and clinical laboratories.

7. What are the advantages of using Thermo-Shaker Incubator?

The advantages of using a Thermo-Shaker Incubator include combining precise temperature control with adjustable shaking to ensure uniform mixing and consistent incubation conditions, thereby enhancing reaction efficiency and reproducibility. Its versatile design supports a wide range of sample types through interchangeable blocks, increasing flexibility for various applications.

Similar Products of Thermo-Shaker Incubator

Temperature Setting Range 0℃ to 100℃
Temperature Control Range RT. -20℃ to 100℃
Speed Range 200 to 1500 rpm
Temperature Setting Range 0℃ to 100℃
Temperature Control Range RT. +5℃ to 100℃
Speed Range 200 to 1800 rpm
Temperature Control Range RT +5℃ to 100℃
Speed Range 300 to 2000 rpm
Amplitude 2 mm, Horizontal rotation

Microplate Thermo-Shaker

Microplate Thermo-Shaker ADMTS-506
Temperature Setting Range:0℃ to 100℃
Temperature Control Range:RT +5℃ to 100℃
Shaking Speed:200 to 1600 rpm

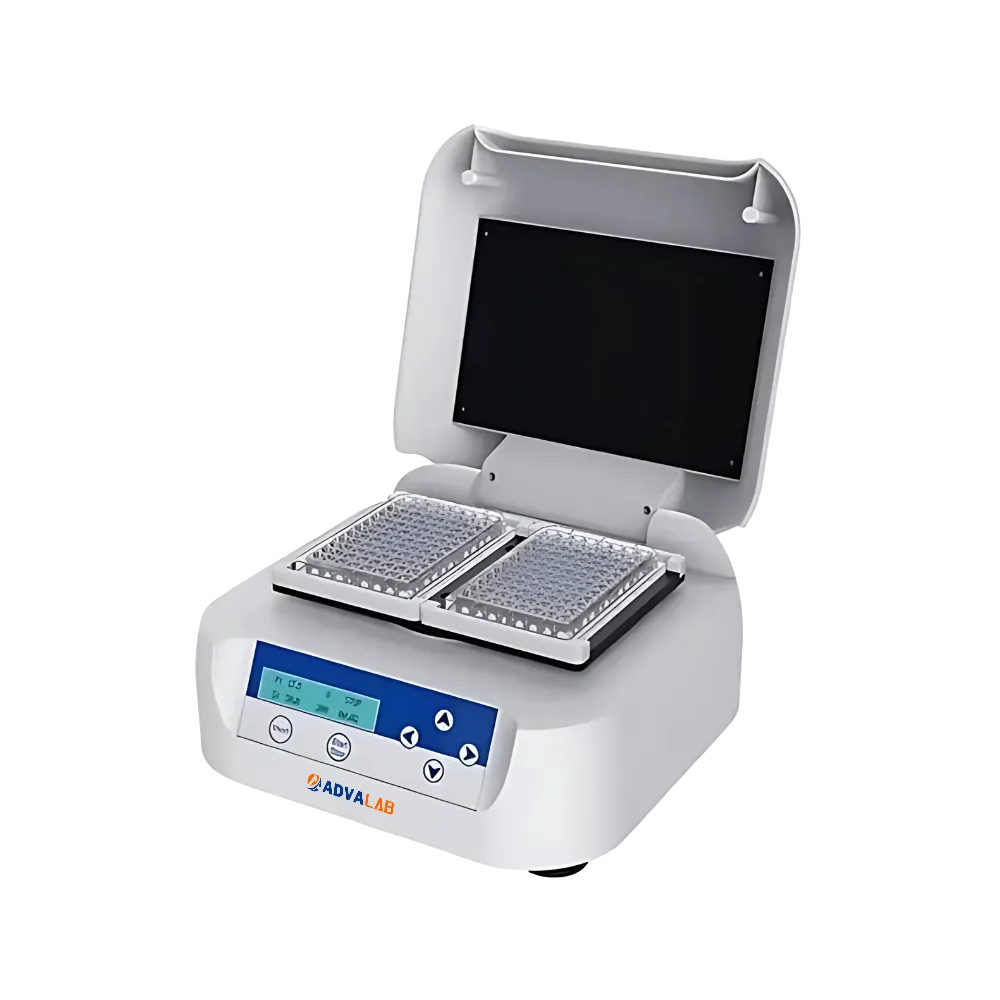

Microplate Thermo-Shaker ADMTS-501
Speed Range:200 to 1500 rpm
Amplitude: 2 mm, Horizontal rotation
Temperature Control Range:RT+5 to 80℃

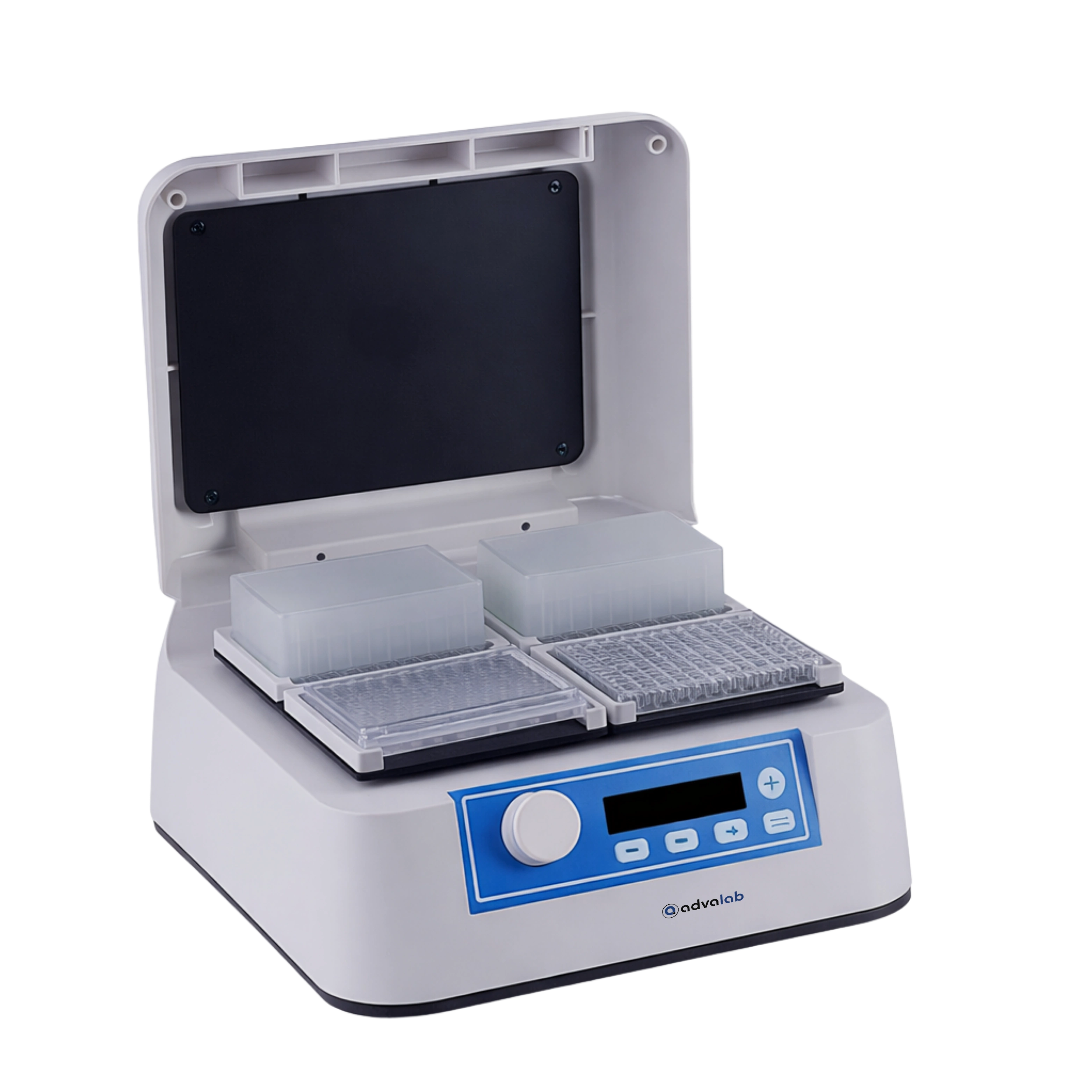

Microplate Thermo-Shaker ADMTS-505
Capacity:4 microplates or deep well plates
Speed Range:300 to 1350 rpm
Orbit:3mm

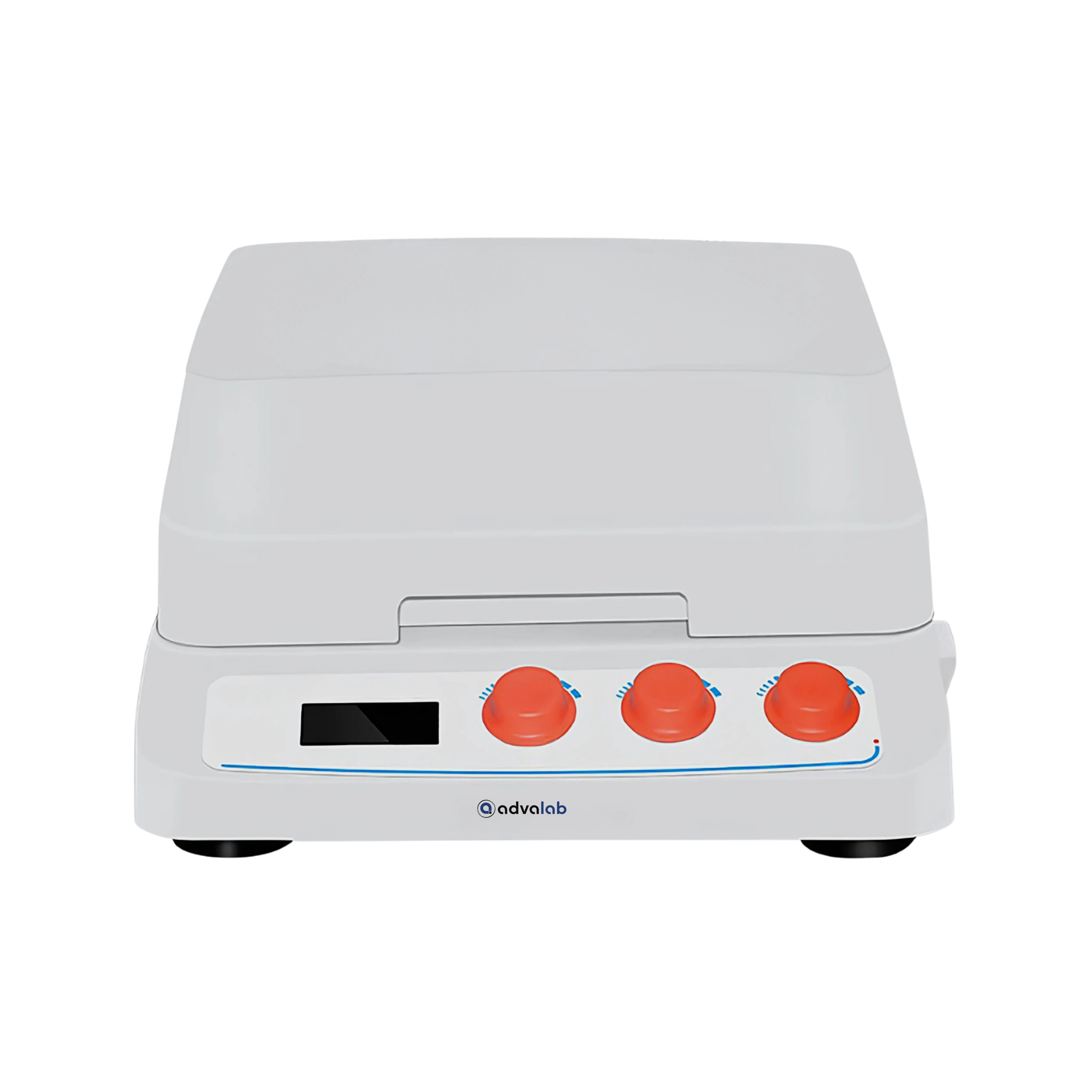

Microplate Thermo-Shaker ADMTS-503
Capacity:4 enzyme standard plates or deep-well plates.
Speed Range :100 to 1600
Temperature Control Range:RT +5 to 70 °C

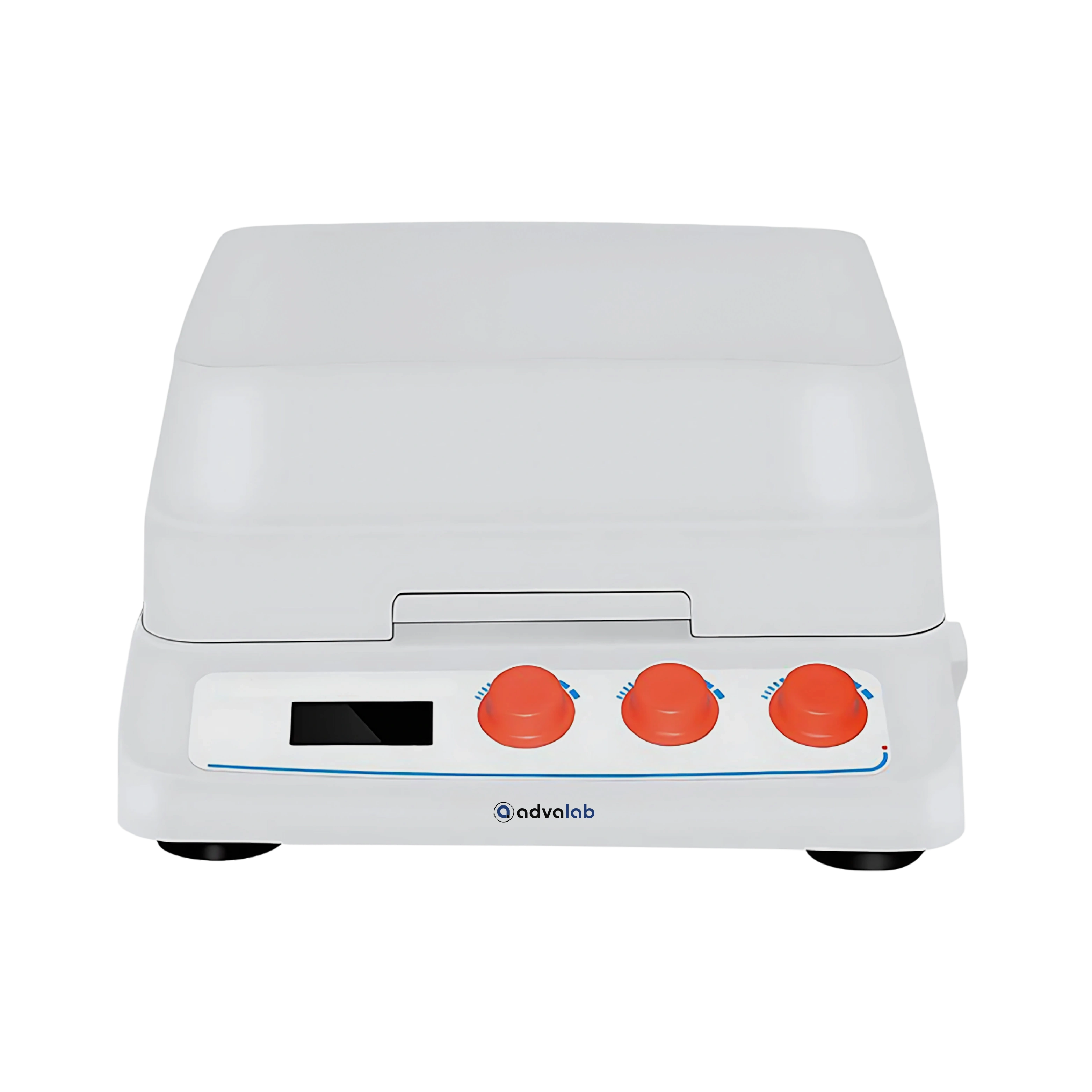

Microplate Thermo-Shaker ADMTS-502
