| Measurement Range | 0 to 8×10⁵ MPa·s |
| Speed | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
| No of Rotors | 1 to 4 rotors |
| Precision | ± 2 % |
| Voltage | AC110-240V, 50/60HZ |
| Dimension | 415 x 335 x 370 mm |
| Net Weight | 4.6 kg |
| Gross Weight | 6.25 kg |

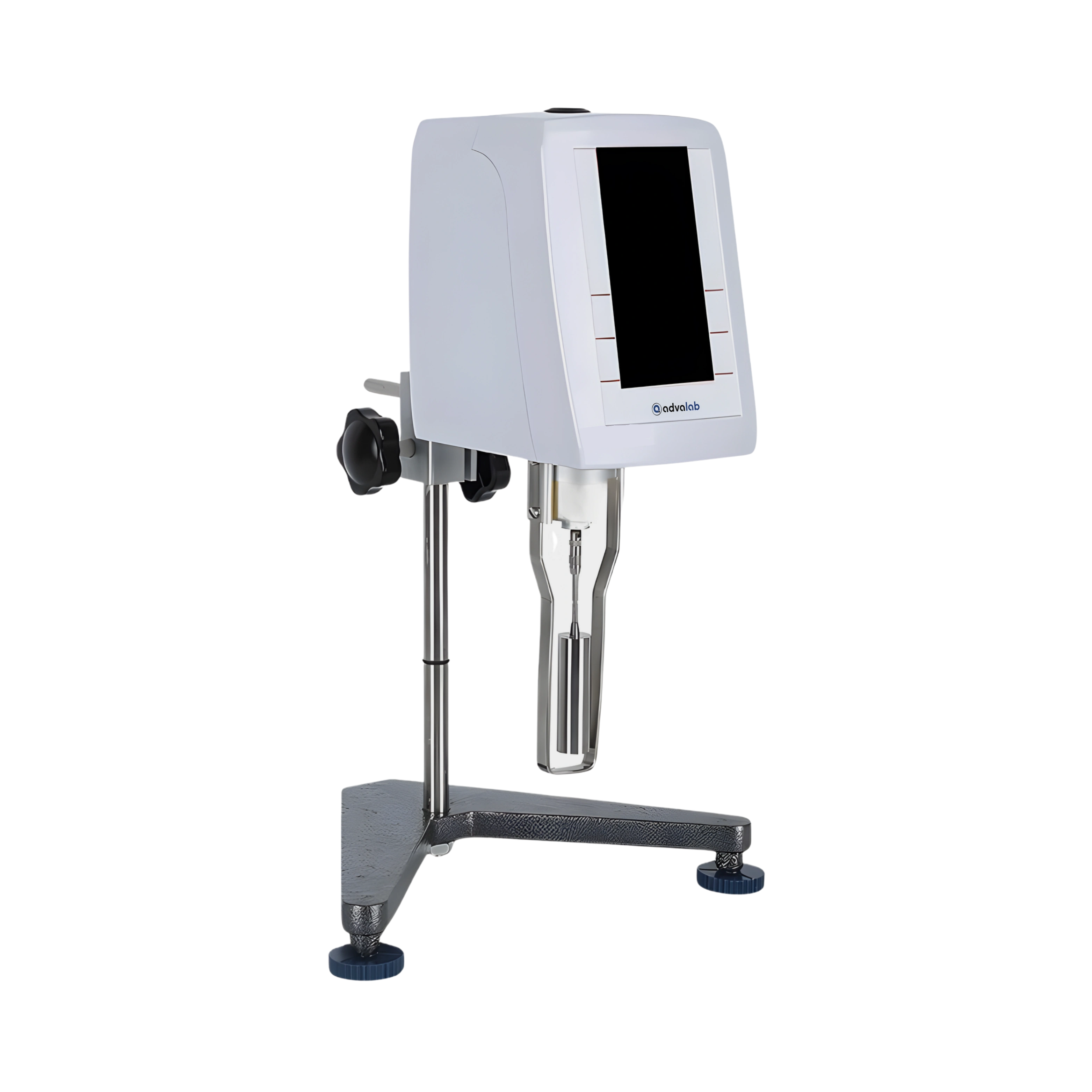

The Rotational Viscometer ADRV-503 is designed for precision viscosity control in laboratories and industrial QC, ensuring compliance in regulated environments. It is widely used for pharmaceutical formulations, paints, lubricants, polymers, and food-grade testing.
1. What is the measurement range of Rotational Viscometer ADRV-503?
The Rotational Viscometer ADRV-503 covers viscosities from 1 to 8×10 mPa·s, allowing analysis of both low-viscosity liquids and highly viscous gels. With the optional 0# rotor, it can measure as low as 0.1 mPa·s, expanding its utility.
2. How does the Rotational Viscometer ADRV-503 improve efficiency in testing?
Rotational Viscometer ADRV-503 features automatic rotor-speed scanning, which selects the most suitable test parameters automatically. This reduces operator errors, minimizes preparation time, and ensures reproducible test conditions for accurate results.
3. Is the Rotational Viscometer ADRV-503 adaptable for temperature-sensitive fluids?
Yes, Rotational Viscometer ADRV-503 supports a temperature probe interface and can be paired with a thermostatic bath. This allows thermal-compensated viscosity testing, which is essential for polymers, oils, and temperature-dependent samples.
4. Can the Rotational Viscometer ADRV-503 integrate with digital workflows?
Absolutely. Rotational Viscometer ADRV-503 offers RS232 and printer interfaces for exporting data directly. Optional PC software enables plotting of viscosity curves, trend analysis, and compliance reporting for regulatory documentation.
5. In which industries is the Rotational Viscometer ADRV-503 most useful?
The Rotational Viscometer ADRV-503 is widely applied in pharmaceutical R&D, petrochemicals, adhesives, coatings, lubricants, cosmetics, and food processing. Its high accuracy and rugged design make it suitable for both research and production quality control.
6. What is the role of a Rotational Viscometer in laboratory and industrial applications?
A Rotational Viscometer determines the flow resistance of liquids, offering vital data for quality control, R&D, and regulatory compliance. It supports industries such as paints, lubricants, polymers, cosmetics, and pharmaceuticals where viscosity directly impacts performance and product consistency.
7. Can Rotational Viscometers measure both Newtonian and non-Newtonian fluids?
Yes, Rotational Viscometers are designed to analyze absolute viscosity in Newtonian fluids and apparent viscosity in non-Newtonian fluids. This makes them versatile for everything from oils and emulsions to gels, suspensions, and adhesives.
| Measurement Range | 1-6 x10 mpa.s |
| Speed | 6 / 12 / 30 / 60 rpm |
| No of Rotors | 1 to 4 rotors |
| Measurement Range | 1-8 x104 mpa.s |
| Speed | 6 / 12 / 30 / 60 rpm |
| No of Rotors | 0 to 4 rotors |
| Measurement Range | 1-6 x 104 mpa.s |
| Speed | 6, 12, 30, 60 rpm |
| No of Rotors | 0 to 4 rotors |
| Measurement Range: | 1 – 2,000,000 mPa·s |
| Speed: | 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm |
| No of Rotors: | 1 to 4 rotors |
| Measurement Range: | 1 to 2 Million mPa.s |
| Speed: | 6,12,30,60 rpm |
| No of Rotors: | 0 to 4 rotor |
| Measurement Range: | 1 – 2,000,000 mPa·s |
| Speed: | 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm |
| No of Rotors: | 1 to 4 rotors |
| Measurement Range: | 1 to 100kmPa.s |
| Speed: | 6,12,30,60 rpm |
| No of Rotors: | 0 to 4 rotor |
| Measurement Range : | 1 – 2,000,000 mPa·s |
| Speed : | 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm |
| No of Rotors: | 1 to 4 rotors |
| Measurement Range: | 1 – 100,000 mPa·s |
| Speed: | 3 / 6 / 12 / 30 / 60 rpm |
| No of Rotors: | 1 to 4 rotors |
| Measurement Range: | 1 – 6,000,000 mPa·s |
| Speed: | 0.1 / 0.3 / 0.6 / 1.5 / 3 / 6 / 10 / 30 / 60 rpm |
| No of Rotors: | 1 to 4 rotors |
| Measurement Range: | 25 mPa.s to 1 × 107 mPa.s |
| Rotors: | Rotor no. 21, 27, 28, 29 (total 4 pieces of spindles) |
| Rotation Speed: | 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100 and 200 rpm |
| Measurement Range: | 1 to 100kmPa.s |
| Speed: | 6,12,30,60 rpm |
| No of Rotors: | 0 to 4 rotor |
| Measuring Range: | 1 to 2×10⁶m Pa.s |
| Precision: | ± 2% |
| Temperature: | 5° C to 35 ° C |
| Measuring Range: | 1 to 1×10⁵ m Pa.s |
| Precision: | ± 2% |
| Temperature: | 5° C to 35 ° C |
| Measuring Range: | 1 to 2×10⁶m Pa.s |
| Precision: | ± 2% |
| Temperature: | 5° C to 35 ° C |
| Measuring Range: | 1 to 1×10⁵ m Pa.s |
| Precision: | ± 3% |
| Temperature: | 5° C to 35 ° C |
| Measuring Range: | 1 to 2×10⁶m Pa.s |
| Precision: | ± 3% |
| Temperature: | 5° C to 35 ° C |
| Measuring Range: | 1 to 1×10⁵ m Pa.s |
| Precision: | ± 2% |
| Temperature: | 5° C to 35 ° C |
