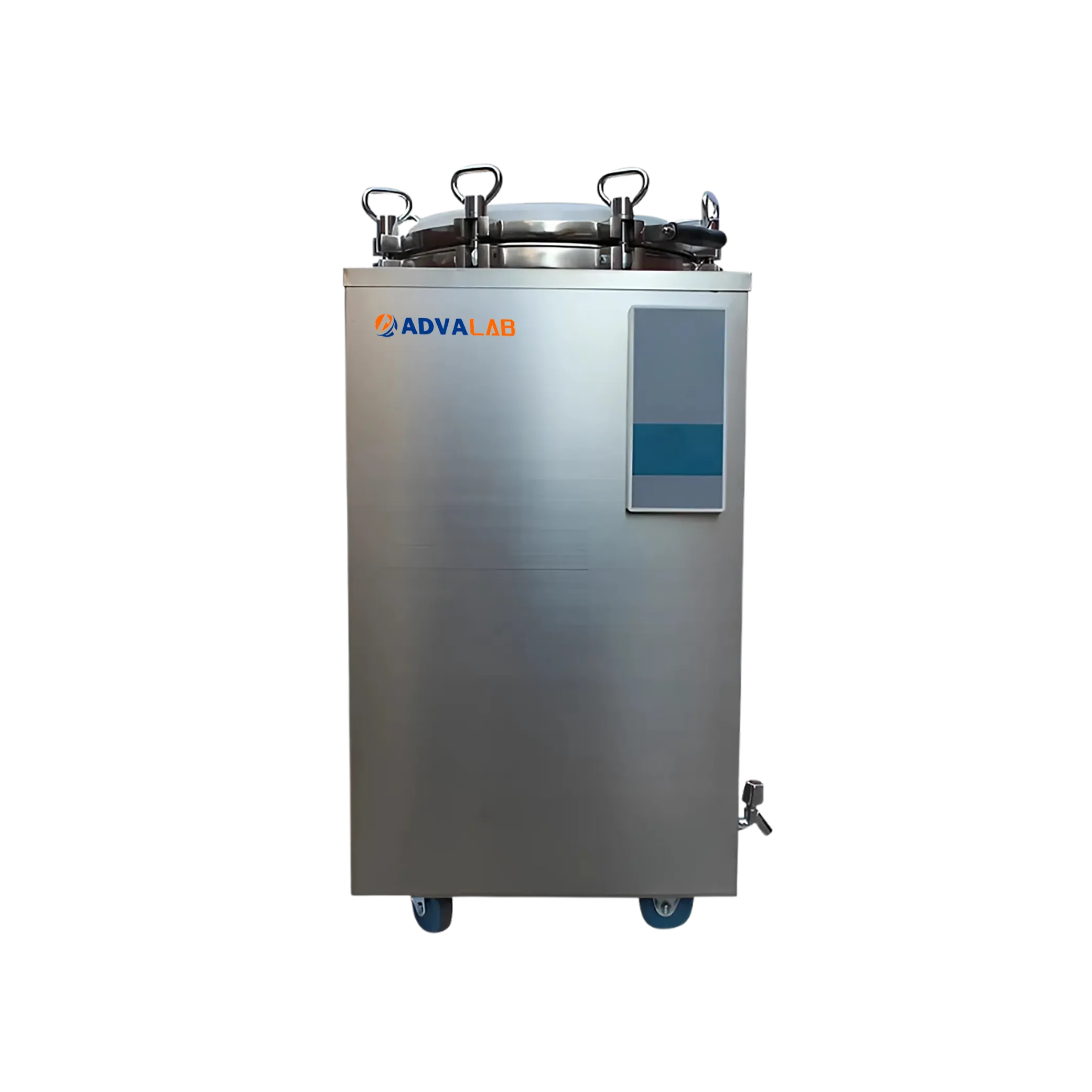

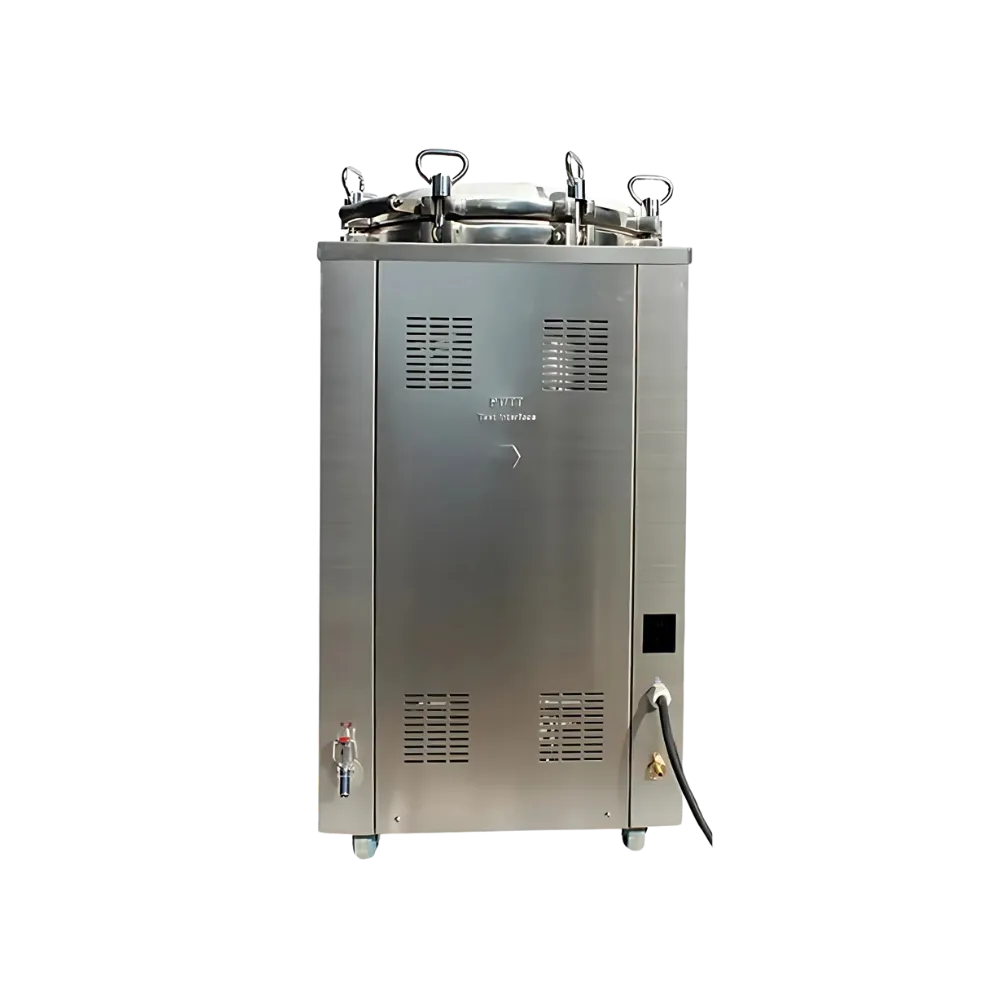

Electric Heated Sterilizer ADEH-502 is a fully automatic microcomputer-type sterilizer designed to perform drying and heating tasks for laboratory application. Structured with a stainless steel structure that ensures long-lasting reliability, durability, and high corrosion resistance. Configured with interlock and drying functions for continuous operation. It features a working capacity of 50 L that is safe, reliable, and easily operated at a temperature range of 105 ºC to 134 ºC.
| Capacity | 50 L |
| Temperature Range | 105 ºC to 134 ºC |
| Pressure | 0.23 Mpa |
| Working Pressure | 0.22 Mpa |
| Temperature | 134 ºC |
| Dimensions (L× W × H) | 500× 530 × 980 mm |
| Heat Average | ≤ ± 1 ° C |
| Power | AC220V50Hz/3 KW |
| Packaging Size | 590× 590 × 1120 mm |
| Gross Weight | 70 Kg |
| Net Weight | 50 Kg |
Electric Heated Sterilizer is widely used in hospitals, research labs, clinics, and laboratories for sterilizing surgical and dental instruments, glassware, and culture medium.
| Capacity | 75 L |
| Temperature Range | 105 ºC to 134 ºC |
| Pressure | 0.23 Mpa |
| Capacity | 100 L |
| Temperature Range | 105 ºC to 134 ºC |
| Pressure | 0.23 Mpa |
| Capacity | 150 L |
| Temperature Range | 105 ºC to 134 ºC |
| Pressure | 0.23 Mpa |
| Capacity | 120 L |
| Temperature Range | 105 ºC to 134 ºC |
| Pressure | 0.23 Mpa |
| Capacity: | 200 L |
| Temperature Range: | 40 ºC to 134 ºC |
| Dry Timer: | 0 to 60 min |
| Capacity: | 280 L |
| Temperature Range: | 40 ºC to 134 ºC |
| Dry Timer: | 0 to 60 min |
| Capacity: | 150 L |
| Temperature Range: | 40 ºC to 134 ºC |
| Dry Timer: | 0 to 60 min |
| Capacity: | 150 L |
| Temperature Range: | 40 ºC to 134 ºC |
| Dry Timer: | 0 to 99 min |
| Capacity: | 200 L |
| Temperature Range: | 40 ºC to 134 ºC |
| Dry Timer: | 0 to 99 min |
| Capacity: | 280 L |
| Temperature Range: | 40 ºC to 134 ºC |
| Dry Timer: | 0 to 99 min |
| Temperature Range: | 100℃ to 300℃ |
| Temperature Accuracy: | ± 5℃ |
| Display Accuracy: | 1℃ |
| Temperature Range: | 100℃ to 300℃ |
| Temperature Accuracy: | ± 5℃ |
| Display Accuracy: | 1℃ |
| Temperature Range: | 100 to 300℃ |
| Temperature Accuracy: | ≤ 5℃ |
| Heating Rate: | ≤ 25 min ,Room temperature to 300℃ |
| Temperature Range: | 100 to 300℃ |
| Temperature Accuracy: | ≤ 5℃ |
| Heating Rate: | ≤ 25 min, Room temperature to 300℃ |
| Central Temperature: | 825°C ± 25°C |
| Maximum Outside Diameter of Sterilized Items: | ɸ35mm |
| Heating Zone Length: | 100 mm |
| Central High Temperature: | 800℃ ± 50℃ |
| Standby Temperature: | 400℃ ± 50℃ |
| Heater Head Angle: | 21° |
| Central High Temperature: | 800℃ ± 50℃ |
| Standby Temperature: | 400℃ ± 50℃ |
| Heater Head Angle: | 21° |
| Central Temperature: | 825°C ± 25°C |
| Maximum Outside Diameter of Sterilized Items: | ɸ15mm |
| Heating Zone Length: | 140 mm |
| Volume: | 129 L |
| Temperature Range: | 5 to 300°C |
| Temperature Resolution: | 0.1°C |
| Volume: | 64 L |
| Temperature Range: | 5 to 300°C |
| Temperature Resolution: | 0.1°C |
| Volume: | 284 L |
| Temperature Range: | 5 to 300°C |
| Temperature Resolution: | 0.1°C |
| Volume: | 210 L |
| Temperature Range: | 5 to 300°C |
| Temperature Resolution: | 0.1°C |
| Volume: | 452 L |
| Temperature Range: | 5 to 300°C |
| Temperature Resolution: | 0.1°C |
