| Capacity | 220 g |
| Readability | 0.0001 g |
| Minimum Weighing | 0.0004 g |
| Repeatability | ±0.0002 g |
| Linearity | ±0.0003 g |
| Stable Time | ≤3 s |
| Pan Size | Diameter 80 mm |
| Calibration | External calibration |
| Calibration Weight | 200 g |
| Communication | RS232 (standard), USB (option) |
| Operating Temperature | 15°C to 35°C |
| Appearance Dimension (W×D×H) | 340 × 215 × 350 mm |
| Draft Shield Size (W×D×H) | 175 × 165 × 230 mm, inner diameter |
| Shield Size (W×D×H) | 240 × 190 × 265 mm |
| Inner Dimensions (W×D×H) | 415 × 285 × 430 mm |
| Outer Dimensions (W×D×H) | 475 × 315 × 485 mm |
| Interior Packing Dimensions (W×D×H) | 440 × 295 × 430 mm |
| Exterior Packing Dimensions (W×D×H) | 490 × 335 × 485 mm |
| Net Weight | 8 kg |
| Gross Weight | 10 kg |

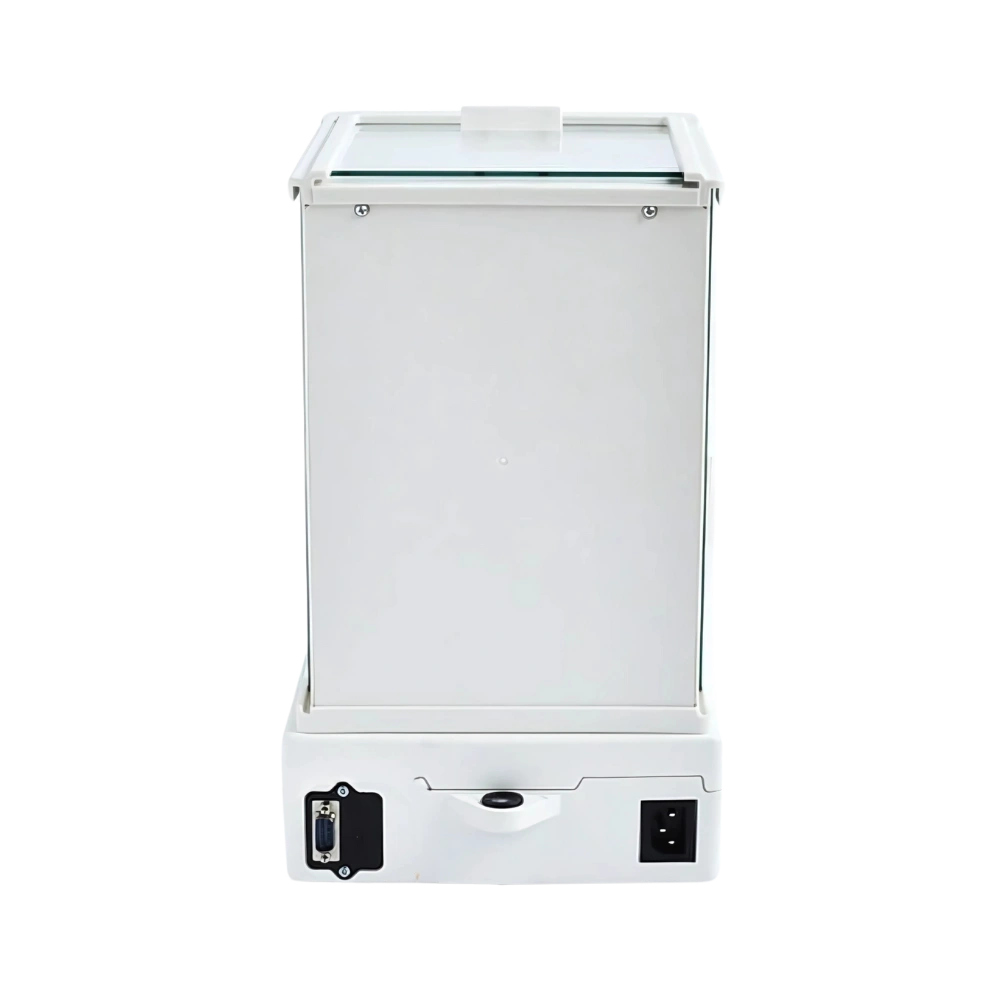

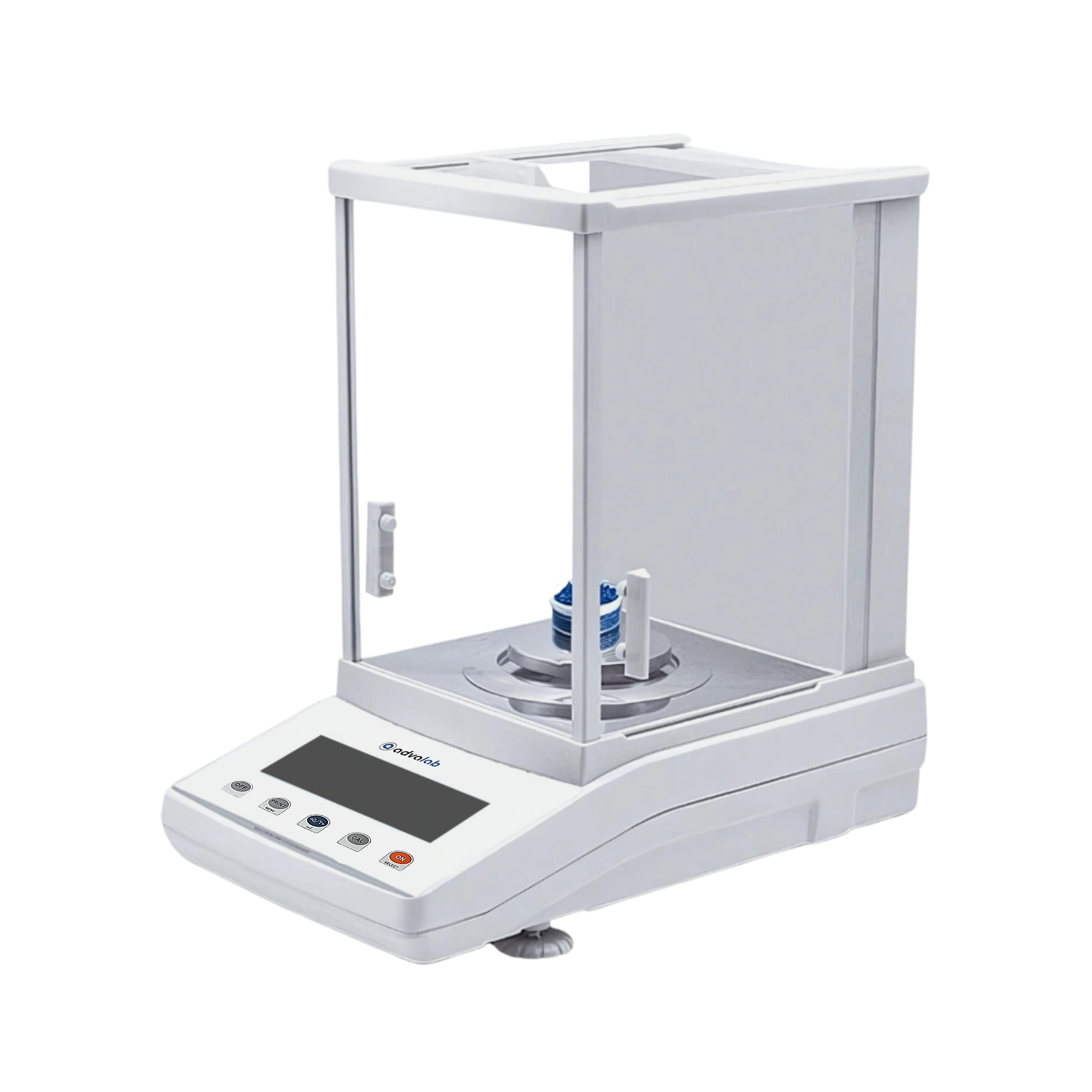

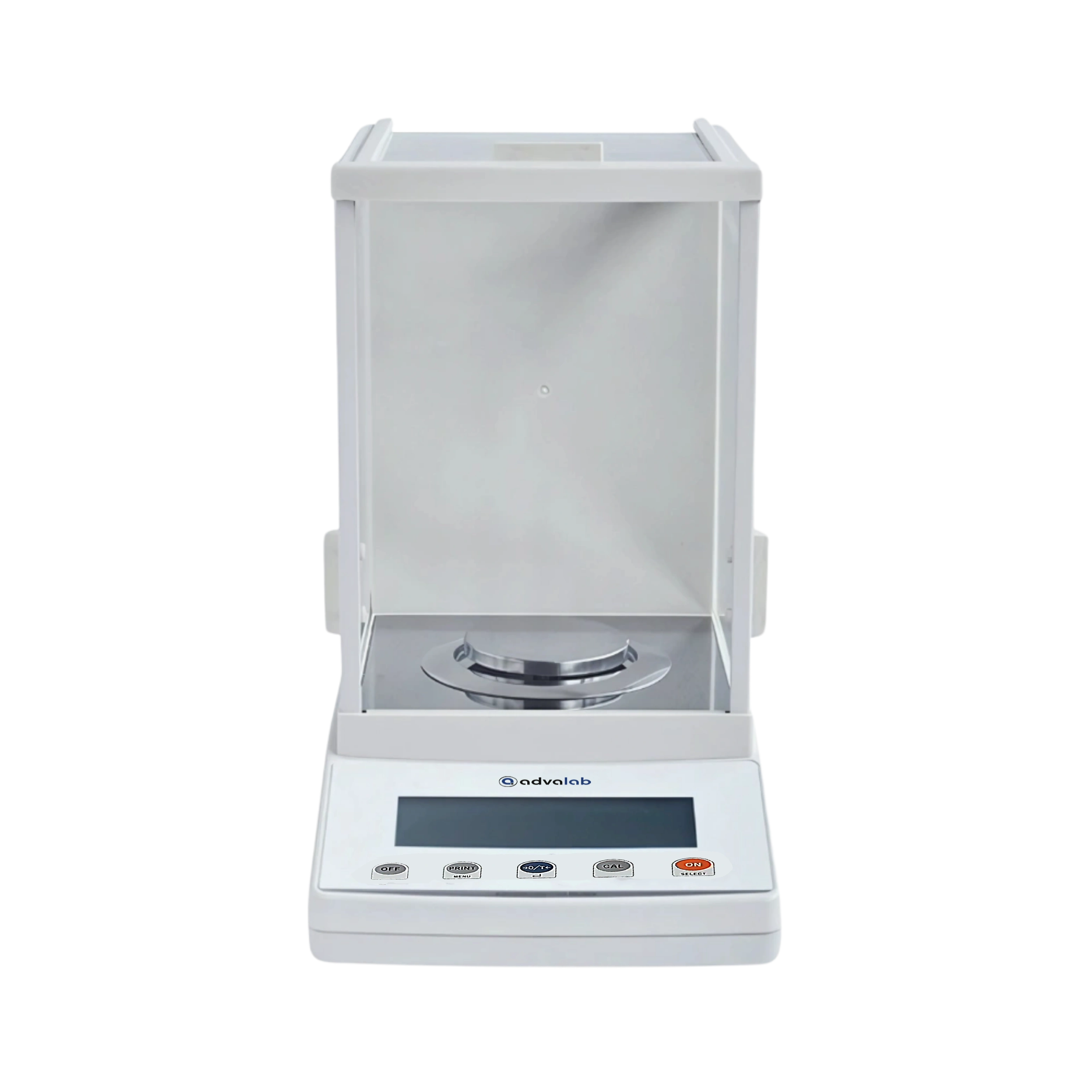

Our Analytical Balance ADAB-505 is ideal for microbiology, biotechnology and research laboratories for accurate measurement of samples and reagents.
Accessory Quantity Interface (RS232) 1 pc Weighing Pan 1 pc Paper Carton 1 pc
Accessory Quantity Power Cord 1 pc Weighing Pan 1 pc Sensor 1 pc
1. What type of sensor does the Analytical Balance use for precise measurements?
This Analytical Balance uses an electromagnetic force sensor, which ensures high accuracy and stability in weight measurements. This technology provides fast response times and consistent performance over long-term use. It is ideal for analytical applications requiring highly sensitive and repeatable measurements.
2. How is the Analytical Balance protected from external environmental factors during use?
Our Analytical Balance features an aluminum shell and a large space wind-proof cover, which minimizes the effects of air currents and provides durability. The wind-proof design ensures consistent results by reducing fluctuations caused by air movements. The aluminum housing also provides excellent protection against corrosion and physical damage.
3. What kind of display does the Analytical Balance have for easy reading?
This Analytical Balance is equipped with an LCD screen featuring a white backlight and black font, ensuring clear and easy visibility of readings. This display is highly legible even in low-light environments, reducing eye strain during long work sessions. It enhances user experience by displaying information clearly and intuitively.
4. What advanced weighing functions does this Analytical Balance support?
This Analytical Balance supports multiple functions including tare function, counting mode, and unit conversion (g/mg/ct/oz), providing flexibility for various lab tasks. These functions improve efficiency and accuracy during complex weighing procedures. It is particularly useful in laboratories, jewellery, pharmaceuticals, and quality control processes.
5. What additional features enhance the safety and performance of this Analytical Balance?
Our Analytical Balance includes features like sensitivity adjustment, speed setting, percentage mode, overload and fault alarms, level indicator, and optional accessories such as under-weighing hook and printer. These features help prevent errors, extend the life of the balance, and support compliance with lab standards. Optional connectivity with a printer allows for documentation and data tracking for quality assurance.
