| Type | Air cooled |
| Refrigerant | R134a or R410A |
| Cooling Capacity | 1.2–2 kW |
| Ambient Temperature | 30–40 °C |
| Inlet Temperature | 10–15 °C |
| Outlet Temperature | 5–10 °C |
| Compressor Type | Hermetic Rotary, Fixed Speed, Anti Vibration Mounted |
| Evaporator | Immersed Finned Copper/Aluminum Coil in Insulated Buffer Tank |
| Buffer Tank Capacity | 10–20 L |
| Condenser | Finned Cu/Al Coil Heat Exchanger |
| Pump Type | Integrated Peripheral Pump |
| Pump Head | 2–3 bar |
| Temperature Controller | Microprocessor |
| Display | Digital Display |
| Electrical Supply | 220–240 V, Single Phase, 50–60 Hz |
| Structure | Galvanized or Powder Coated Steel Enclosure with Corrosion Resistant Finish |
| Compliance | Factory Tested for Performance and Safety |
| Equipment Dimensions (W × D × H) | 85 × 52 × 81 cm |
| Packaging Dimensions (W × D × H) | 95 × 60 × 95 cm |
| Net Weight | 80 kg |
| Gross Weight | 90 kg |

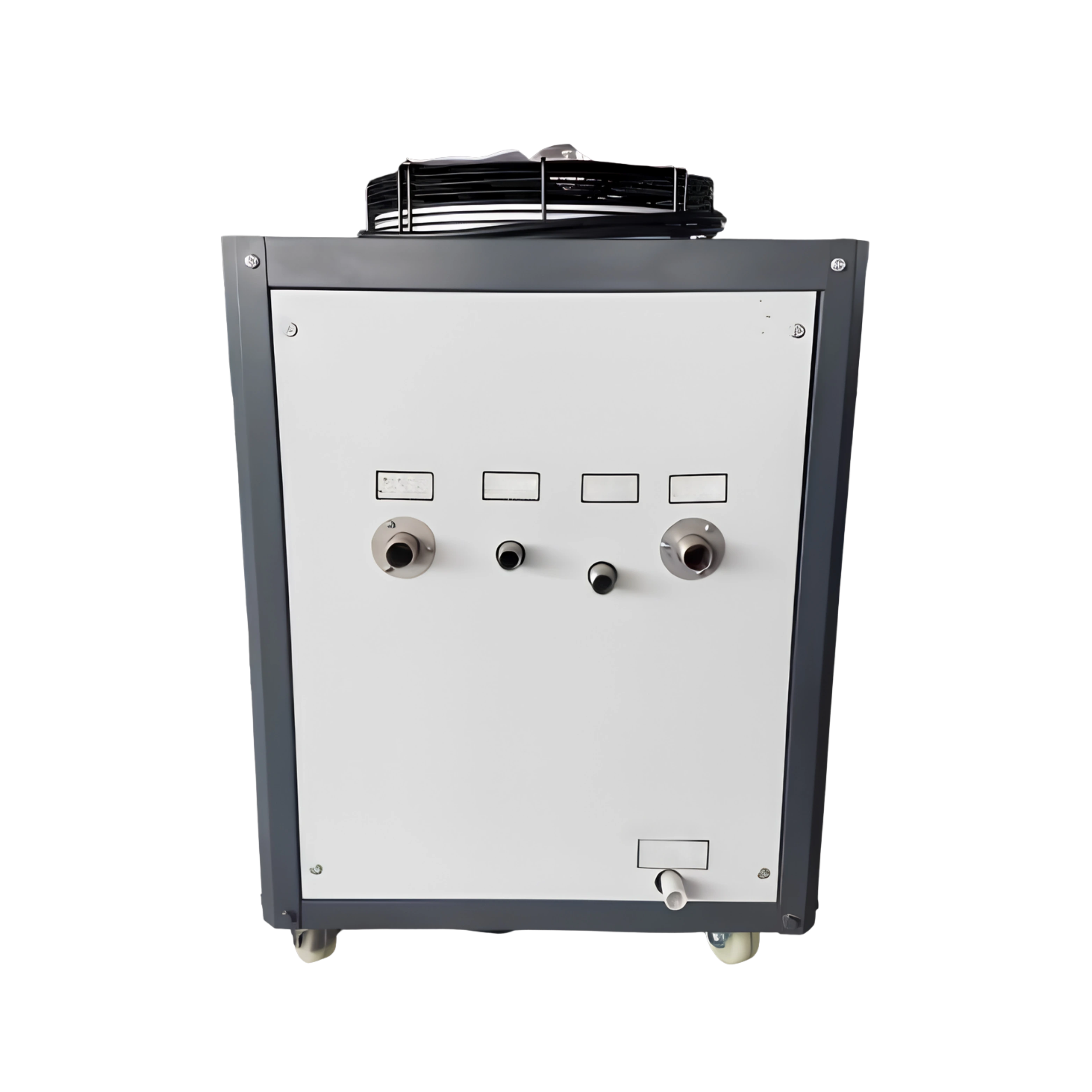

Air Cooled Chiller ADCC-508 is ideal for use in laboratory and process cooling applications requiring precise temperature control. It ensures stable cooling performance, improving equipment efficiency and consistent operation.
1. What are Air Cooled Chillers?
Air Cooled Chillers are refrigeration systems that remove heat from a process or space using ambient air. They use fans to dissipate heat through air-cooled condenser coils. These chillers are commonly used in industrial, commercial, and HVAC applications. They are easy to install, require less maintenance, and don't need a separate cooling tower. Ideal for areas with limited water supply, they offer a cost-effective cooling solution.
2. What is the working principle of Air Cooled Chillers?
Air Cooled Chillers work by circulating refrigerant through a closed loop to absorb heat from the water or fluid being cooled. Their refrigerant vapor is compressed, raising its temperature and pressure. Fans then blow air over condenser coils to release this heat into the atmosphere, condensing the refrigerant back into a liquid. The cooled refrigerant returns to the evaporator to absorb more heat, continuing the cycle.
3. What are the benefits of Air-Cooled Chillers?
Air Cooled Chillers have lower maintenance needs compared to water-cooled systems, reducing operational costs. Their compact design makes them suitable for limited spaces and a variety of environments. They are energy-efficient, especially when equipped with variable speed compressors and fans. Additionally, Chillers are environmentally friendly by eliminating water consumption and minimizing heat discharge.
| Water tank capacity | 40 L |
| Cooling capacity | 5.6 kW |
| Flow rate | 40 L/min |
| Water tank capacity | 120 L |
| Cooling capacity | 22.4 kW |
| Flow rate | 150 L/min |
| Water tank capacity | 60 L |
| Cooling capacity | 8.4 kW |
| Flow rate | 100 L/min |
| Water tank capacity | 40 L |
| Cooling capacity | 2.8 kW |
| Flow Rate | 40 L/min |
| Temperature Range: | -25℃ to +35℃ |
| Temperature Control: | ±0.5℃ |
| Circulating Pump Max: | 20 L/min, 1.5bar |
| Temperature Range: | -45℃ to +30℃ |
| Temperature Control: | ±0.5℃ |
| Circulating Pump Max: | 20 L/min, 1.5bar |
| Cooling: | 6 kW (5,160 kcal/h) |
| Compressor: | Rotary Compressor |
| Refrigerant: | R22 |
| Cooling: | 6 kW (5,160 kcal/h) |
| Compressor : | Rotary Compressor |
| Refrigerant: | R22 |
| Temperature Range: | 8℃ to 30℃ |
| Refrigeration capacity: | 2.7 kW |
| Flow meter : | 2.0 L/min |
| Temperature Range: | 5℃ to 35℃ |
| Working Current: | 9.4 to 10.8A |
| Refrigeration capacity: | 5.48 kW |
| Temperature Range: | 5℃ to 35℃ |
| Refrigeration capacity: | 15 kW /h |
| Power supply: | 3N / 380 V / 50 Hz |
| Temperature: | 5℃ to 35℃ |
| Working Current: | 6.2 A |
| Refrigeration capacity: | 8.5 kW |
| Temperature Range: | 5℃ to 35℃ |
| Refrigeration capacity: | 24 kW/h |
| Power supply: | 3N / 380 V / 50 Hz |
| Type: | Integrated air cooling system |
| Cooling Capacity: | ≥ 1.2 kW |
| Pressure: | 0.08 to 0.17 MPa |
| Temperature Range: | 5℃ to 35℃ |
| Refrigeration capacity: | 18 kW/h |
| Power supply: | 3N / 380 V / 50 Hz |
| Temperature Range: | 5℃ to 35℃ |
| Refrigeration capacity: | 30 kW/h |
| Power supply: | 3N / 380 V / 50 Hz |
| Type: | Integrated water cooling system |
| Cooling Capacity: | ≥ 1.2 kW |
| Pressure: | 0.08 to 0.17 MPa |
| Temperature: | 5℃ to 30℃ |
| Cooling capacity: | 5.48 kW |
| Refrigerant: | R22 (Or R134a / R407c) |
| Temperature: | 5℃ to 30℃ |
| Cooling capacity: | 4 kW |
| Refrigerant: | R22 (Or R134a / R407c) |
| Temperature: | 5℃ to 30℃ |
| Cooling capacity: | 2.9 kW |
| Refrigerant: | R22 (Or R134a / R407c) |
| Temperature: | 5℃ to 30℃ |
| Cooling capacity: | 1.673 kW |
| Refrigerant: | R22 (Or R134a / R407c) |
| Temperature: | 5℃ to 30℃ |
| Cooling capacity: | 1.52 kW |
| Refrigerant: | R22 (Or R134a / R407c) |
| Temperature: | 5℃ to 30℃ |
| Cooling capacity: | 2.45 kW |
| Refrigerant: | R22 (Or R134a / R407c) |
