| Max Speed | 25000 rpm |
| Max RCF | 65000 x g |
| Max Capacity | 4x1000 ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1 s to 99 h 59 m 59 s |
| Noise | ≤ 65 dB(A) |
| Power Consumption | 5000 W |
| Dimension | 740x720x900 mm |
| Net Weight | 250 kg |
| Gross Weight | 260 kg |

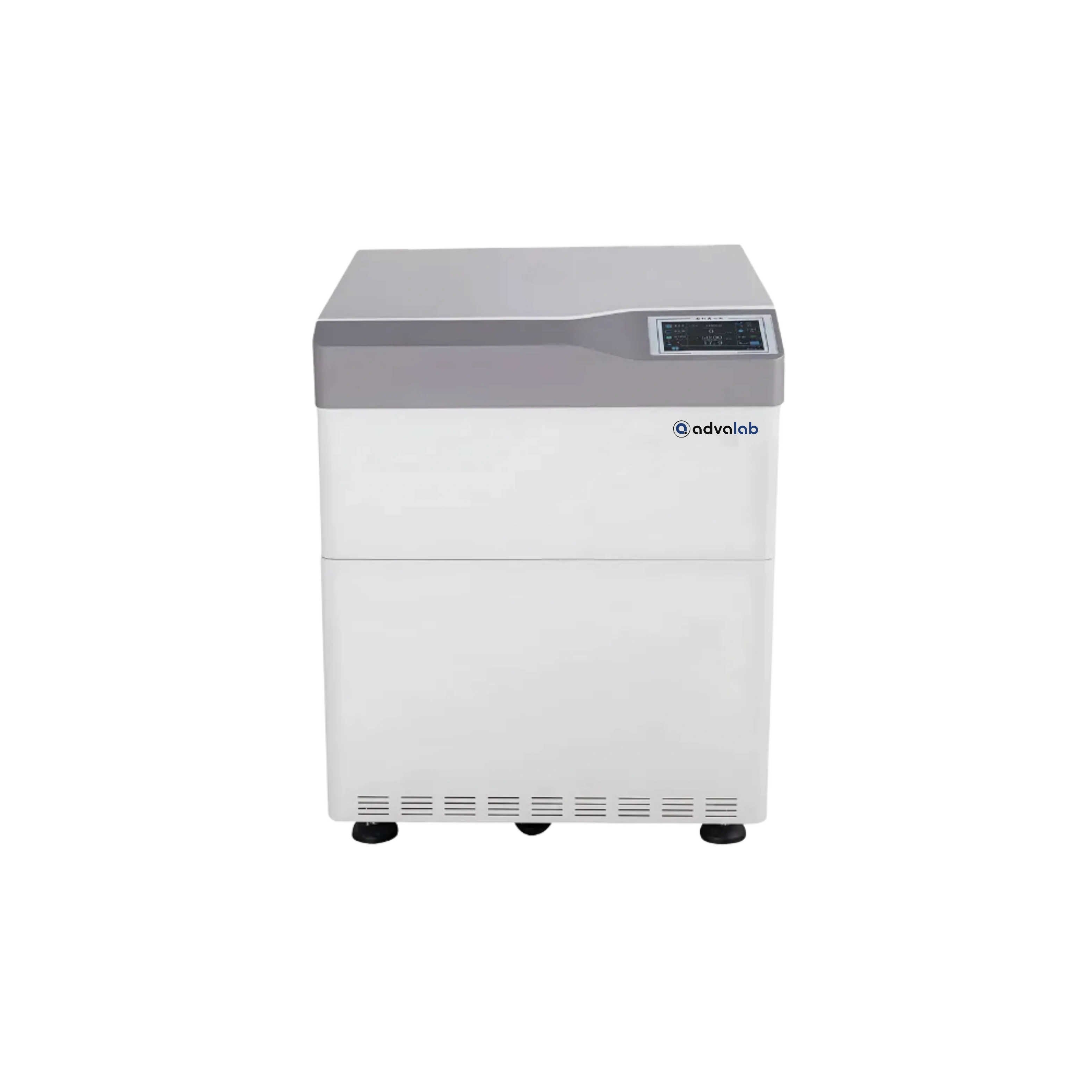

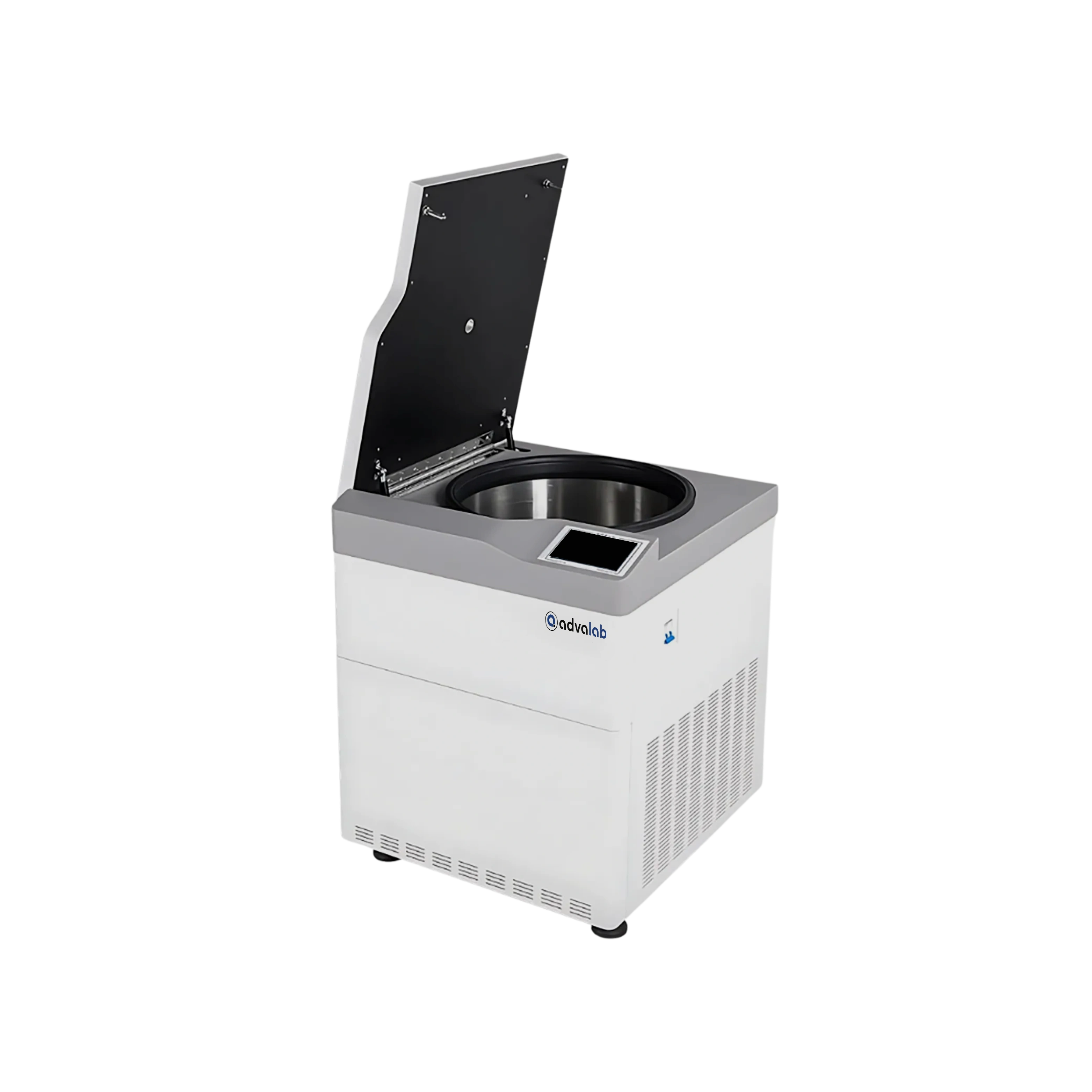

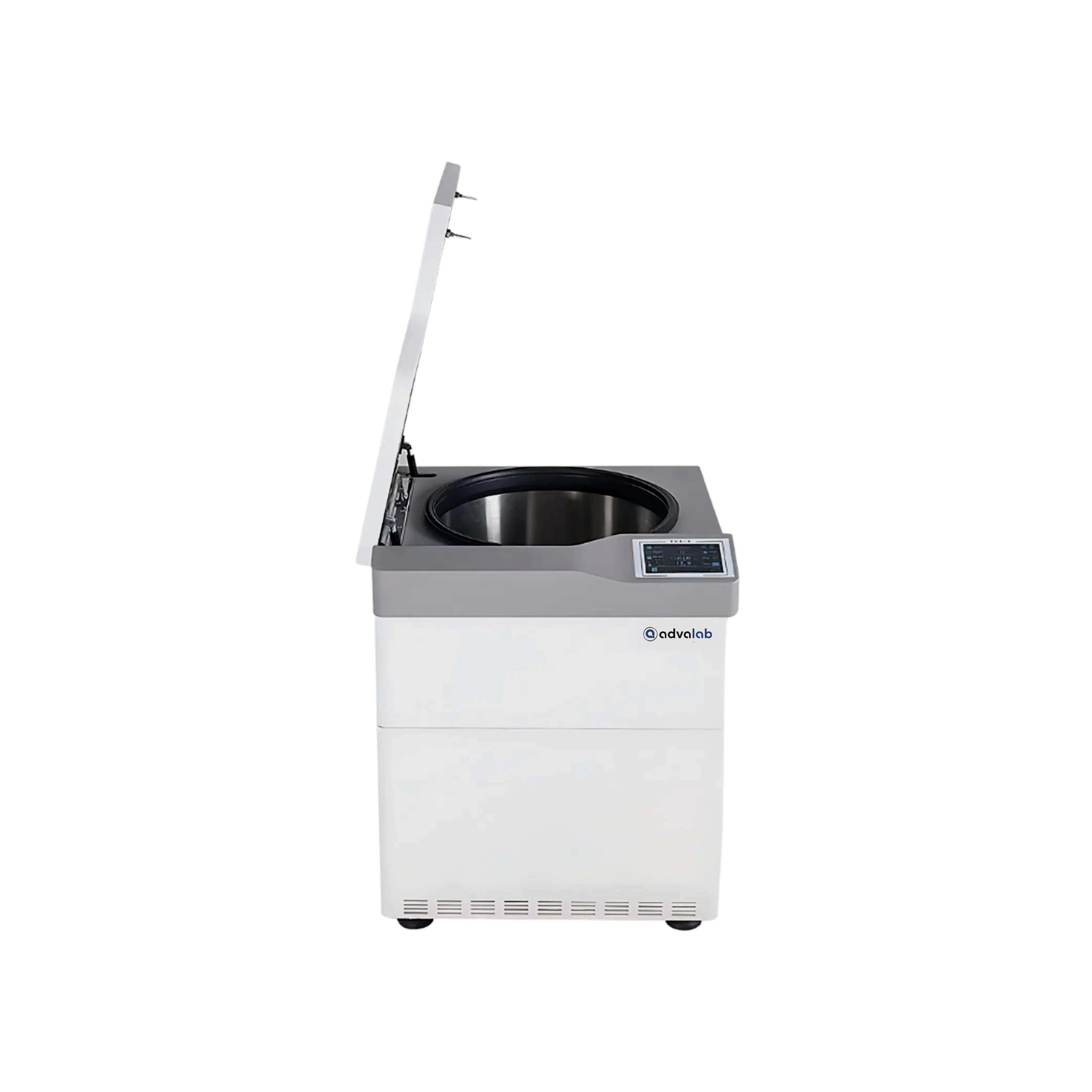

Our High Speed Refrigerated Centrifuge ADHSC-507 is used in molecular biology, biochemistry and pharmaceutical research for rapid, temperature-controlled separation of biological and chemical samples.
Rotor Type | Capacity | Max Speed | Max RCF | Tube size |
Fixed angle rotor 01 | 24x1.5/2.2ml | 25000 rpm | 64800 x g | Φ11×42mm |
Fixed angle rotor 02 | 16x10ml | 23000 rpm | 56880 x g | Φ16×86mm |
Fixed angle rotor 03 | 16x10ml titanium alloy | 24600 rpm | 65000 x g | Φ16×86mm |
Fixed angle rotor 04 | 8x50ml round bottom | 21000 rpm | 52360 x g | Φ29×111mm |
Fixed angle rotor 05 | 6x300ml | 14000 rpm | 32825 x g | Φ61×136mm |
Fixed angle rotor 06 | 6x500ml | 10000 rpm | 18590 x g | Φ74×170mm |
Fixed angle rotor 07 | 4x1000ml | 8000 rpm | 12040 x g | Φ97×166mm |
Fixed angle rotor 08 | 12x50ml conical bottom | 14000 rpm | 31335 x g | Φ29×120mm |
Fixed angle rotor 09 | 16×15ml conical bottom | 18000 rpm | 41660×g | Φ17×121mm |
Swing out rotor 01 | 4×750ml | 5000 rpm | 5600×g | Φ100×141mm |
Swing out rotor 02 | 6×50ml round bottom | 10000 rpm | 15680×g | Φ29×111mm |
1. What safety features are included in the High Speed Refrigerated Centrifuge ADHSC-507?
The High Speed Refrigerated Centrifuge ADHSC-507 is designed with multiple built-in safety features including lid interlock, imbalance detection, and over-speed protection. The lid remains locked during operation and only opens once the rotor has stopped completely. Imbalance detection prevents damage by automatically stopping the centrifuge if uneven loads are detected. Over-speed protection ensures the rotor does not exceed safe operational limits.
2. Is the High Speed Refrigerated Centrifuge ADHSC-507 easy to operate and program?
Yes, the High Speed Refrigerated Centrifuge ADHSC-507 features a user-friendly touchscreen interface that allows intuitive control over all parameters such as speed, time, temperature, and acceleration/deceleration rates. Users can create and save multiple programs for repeated runs, saving time and improving consistency. Real-time displays show operating status and remaining run time. Its programmable functions reduce manual errors and increase reproducibility. The interface is designed to be accessible even for first-time users.
3. What kind of rotors and accessories are compatible with High Speed Refrigerated Centrifuge ADHSC-507?
The High Speed Refrigerated Centrifuge ADHSC-507 supports a wide range of rotors, including fixed-angle and swing-out rotors, making it compatible with tubes, bottles, microplates, and PCR strips. This flexibility allows it to be used across multiple disciplines such as biotechnology, clinical diagnostics, and pharmaceuticals. Rotors are designed for easy loading and unloading, and many are autoclavable for sterilization. Quick-change rotor systems reduce downtime between procedures.
4. What types of samples can be processed using the High Speed Refrigerated Centrifuge ADHSC-507?
The High Speed Refrigerated Centrifuge ADHSC-507 is suitable for processing a wide variety of biological, chemical, and clinical samples including blood, plasma, serum, DNA/RNA, proteins, cell lysates, and microorganisms. Its high-speed capability and precise temperature control make it ideal for sensitive molecular biology procedures. It’s commonly used in applications such as pelletizing cells, isolating nucleic acids, separating lipoproteins, and purifying viruses. The adaptable rotor system allows for handling of tubes of different sizes and types.
5. How does the High Speed Refrigerated Centrifuge ADHSC-507 ensure temperature stability during operation?
The High Speed Refrigerated Centrifuge ADHSC-507 uses a high-efficiency refrigeration system that actively monitors and adjusts the chamber temperature throughout the spin cycle. This ensures that the internal environment remains within the set temperature range, even during high-speed runs that generate heat. The system automatically compensates for thermal buildup, protecting sample integrity. Pre-cooling functionality allows the chamber to reach the desired temperature before loading samples.
6. What is a High Speed Refrigerated Centrifuge?
A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.
7. Why is refrigeration important in centrifugation?
Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.
8. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?
Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
| Maximum Speed | 21000 rpm |
| Maximum RCF | 47580 × g |
| Maximum Capacity | 4 × 750 ml |
| Max Speed | 22000 rpm |
| Max RCF | 52050 x g |
| Max Capacity | 6x500 ml |
| Max Speed | 16000 rpm |
| Max RCF | 27520 x g |
| Max Capacity | 6x500 ml |
| Maximum Speed | 16,500 rpm |
| Maximum RCF | 24,814 × g |
| Maximum Capacity | 6 × 100ml |
| Max Speed: | 4500 rpm |
| Max RCF: | 3380 x g |
| Max Capacity: | 6 x 50 ml syringe |
| Max Speed: | 4700 rpm |
| Max RCF: | 2000 xg |
| Max Capacity: | 12 x 7 ml (SERO rotor) |
| Maximum Speed: | 4500 rpm (adjustable) |
| Maximum RCF: | 2000 × g (adjustable) |
| Maximum Capacity: | 12 × 2 mL tubes (12 mm × 75 mm) |
| Max Speed: | 4000 rpm |
| Max RCF: | 3400 xg |
| Max Capacity: | 4 x 200 ml |
| Max Speed: | 5000 rpm |
| Max RCF: | 5200 × g |
| Max Capacity: | 4 × 800 ml |
| Maximum Speed: | 6000 rpm |
| Maximum RCF: | 5201× g |
| Maximum Capacity: | 4x750 ml |
| Maximum Speed: | 5000 rpm |
| Maximum RCF: | 5201× g |
| Maximum Capacity: | 4x750 ml |
| Maximum Speed: | 6000 rpm |
| Maximum RCF: | 5123× g |
| Maximum Capacity: | 4x250 ml |
| Max Capacity: | 4 tubes, each 1000 ml |
| Max Speed: | 6000 rpm |
| Max RCF: | 6693×g |
| Maximum Speed Range: | 6000 rpm |
| Maximum RCF: | 6880 × g |
| Maximum Capacity: | 6 × 1000 ml |
| Max Speed: | 8000 rpm |
| Max RCF: | 14500 × g |
| Max Capacity: | 6x2400 ml / 12 blood bags / 384 blood tubes |
| Maximum Speed: | 16,500 rpm |
| Maximum RCF: | 24,814 × g |
| Maximum Capacity: | 6 × 100 ml |
| Speed: | 500 to 15000 rpm, increasement 100 rpm |
| Maximum Sample Density: | 1.2g/ml |
| Acceleration/Deceleration : | Ⅰ (≤ 20) <br/> Ⅱ (≤ 40s) <br/> Ⅲ (≤ 60s) |
| Maximum Speed: | 20000 rpm |
| Maximum RCF: | 27994 × g |
| Maximum Capacity: | 6x100 ml |
| Maximum Speed: | 15000 rpm |
| Maximum RCF: | 21630 × g |
| Maximum Capacity: | 12x5 ml |
| Maximum Speed: | 18500 rpm |
| Maximum RCF: | 24760 × g |
| Maximum Capacity: | 4x500 ml |
| Maximum Speed: | 18000 rpm |
| Maximum RCF: | 24814 × g |
| Maximum Capacity: | 6x100 ml |
| Maximum Speed: | 15000 rpm |
| Maximum RCF: | 15093× g |
| Maximum Capacity: | 8x5 ml |
| Maximum Speed: | 16500 rpm |
| Maximum RCF: | 18262× g |
| Maximum Capacity: | 8x5 ml |
| Speed: | 500 to 15000 rpm, 100 rpm increments |
| RCF: | 100 to 15000×g, 100×g increments |
| Maximum Rotor Radius: | 60 mm |
| Maximum Speed: | 6000 rpm |
| Maximum RCF: | 5201x g |
| Maximum Capacity: | 4x800 ml |
| Maximum Speed: | 6000 rpm |
| Maximum RCF: | 5123 × g |
| Maximum Capacity: | 6 × 50 ml |
| Maximum Speed: | 4200 rpm |
| Maximum RCF: | 3285 × g |
| Maximum Capacity: | 4 × 100 ml |
| Maximum Speed: | 4200 rpm |
| Maximum RCF: | 2680 × g |
| Maximum Capacity: | 24x10ml blood tube |
| Maximum Speed: | 4000 rpm |
| Maximum RCF: | 3580 x g |
| Maximum Capacity: | 4x1000 ml |
| Maximum Speed: | 5000 rpm |
| Maximum RCF: | 4650 × g |
| Maximum Capacity: | 4 × 250 ml |
| Maximum Speed: | 5000 rpm |
| Maximum RCF: | 4650 × g |
| Maximum Capacity: | 8 × 100 ml |
| Maximum Speed: | 5000 rpm |
| Maximum RCF: | 4650 × g |
| Maximum Capacity: | 6 × 50 ml |
| Maximum Speed: | 5000 rpm |
| Maximum RCF: | 4499 x g |
| Maximum Capacity: | 4 x 600ml |
| Max Speed: | 4200 rpm |
| Max RCF: | 2680 × g |
| Max Capacity: | 4x50ml;12x15ml tube/ blood tube/PRP tube |
| Maximum Speed: | 6000 rpm |
| Maximum RCF: | 5200 × g |
| Maximum Capacity: | 4 × 500 ml |
| Maximum Speed: | 6000rpm |
| Maximum RCF: | 2200xg |
| Capacity: | Three in one rotor:8x1.5/2ml+6x0.5ml+2x8x0.2ml, Rotor for 6 PCR strips |
| Speed Range: | 500 to 12,000 rpm, 500 rpm increments |
| Maximum RCF: | 9,650 × g |
| Capacity: | 32 × 0.2 ml centrifugal tubes <br/> 12 × 0.5/1.5/2.0 ml centrifugal tubes <br/> 4 × 8 × 0.2 ml PCR strips |
| Speed Range: | 500 to 15000 rpm |
| RCF Range: | 16 to 15080 g |
| Capacity: | 12 x 1.5 / 2.0ml centrifuge tubes |
| Maximum Speed: | 7500rpm |
| Maximum RCF: | 3450xg |
| Capacity: | Three in one rotor:8x1.5/2ml+6x0.5ml+2x8x0.2ml, Rotor for 6 PCR strips |
| Maximum Speed: | 6000 rpm ±5% |
| Rotation Direction : | Anticlockwise (fixed direction) |
| Acceleration Time : | ≤ 2 seconds |
| Maximum Speed: | 10000rpm |
| Maximum RCF: | 6100xg |
| Capacity: | Three in one rotor:8x1.5/2ml+6x0.5ml+2x8x0.2ml |
| Speed Range: | 4000 rpm, 6000 rpm and 7000 rpm, adjustable |
| Maximum RCF: | 960×g, 4000 rpm <br/> 2200×g, 6000 rpm <br/> 2900×g, 7000 rpm |
| Capacity: | 6×1.5 ml/2.0 ml, 6×0.5 ml, 16×0.2 ml centrifuge tube <br/> 2×8×0.2 ml PCR tube strips |
| Maximum Speed: | 6000 rpm |
| Maximum RCF: | 2000 g |
| Capacity (Standard): | 8 × 1.5 / 2.0 / 0.5 / 0.2 ml |
| Speed Range: | 3000 to 10000 rpm |
| Maximum RCF: | 500 to 5400×g |
| Capacity: | 8×2.0ml/1.5ml/0.5ml centrifuge tube <br/> 4×8×0.2ml PCR tube strips |
| Rotating Speed: | 2200 to 2800 rpm |
| Maximum RCF: | 550 g |
| Capacity: | 2 PCR plates |
| Maximum Speed: | 2500 rpm ±5% |
| Rotation Direction : | Anticlockwise (fixed direction) |
| Acceleration Time : | 15 seconds |
| Rotating Speed: | 500 to 2500 rpm |
| RCF Range: | 32 to 797g |
| Capacity: | 2 pcs Microplates or Deep-well plates |
| Maximum Speed: | 2800 rpm |
| Maximum RCF: | 600×g |
| Maximum Rotor Radius: | 63 mm |
| Maximum Speed: | 3300 rpm |
| Maximum RCF: | 1920 x g |
| Maximum Capacity: | 8 x 30 ml |

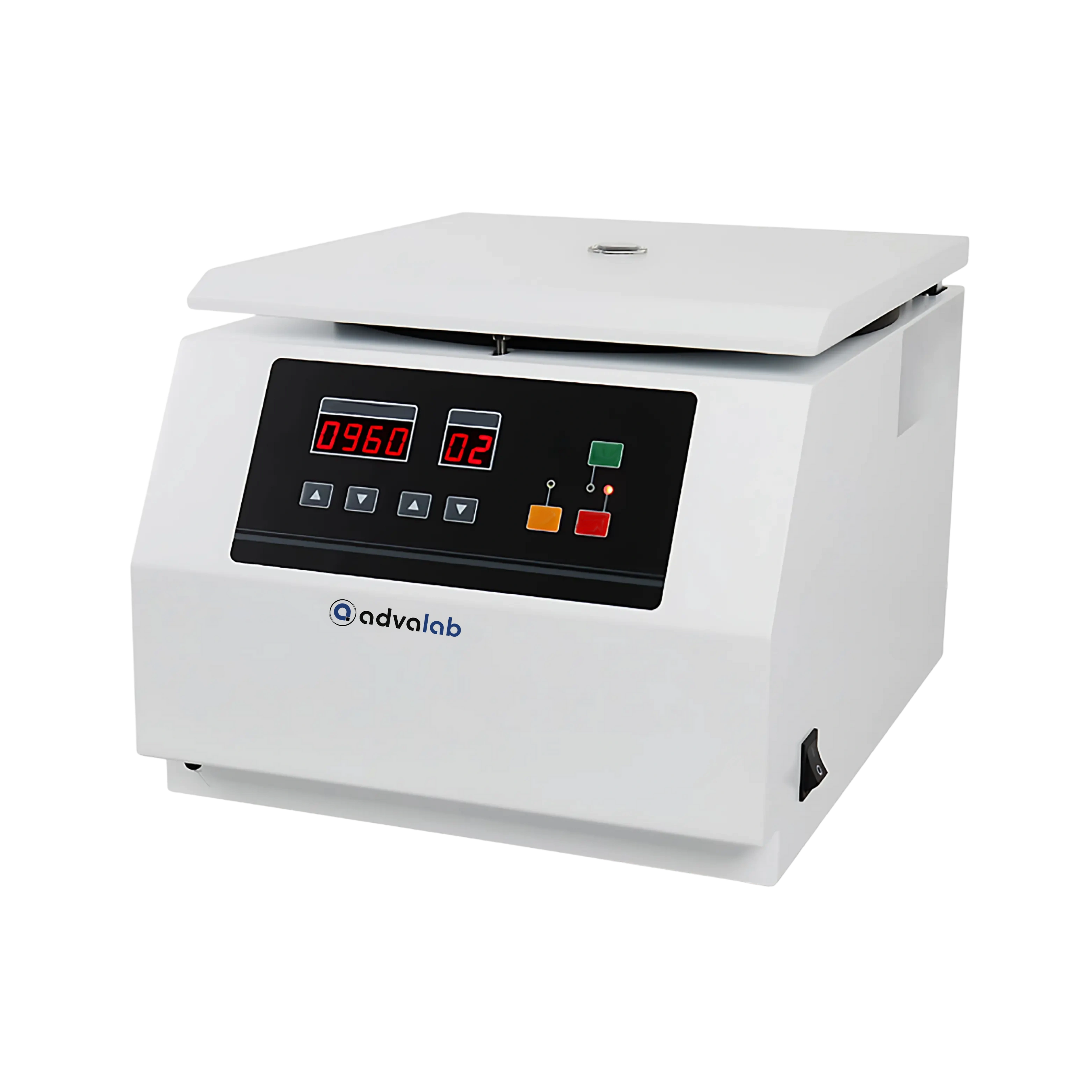

| Capacity: | 24 Gel Cards (6 column / 8 column) |
| Speed Range: | 500 to 2200 rpm |
| Timing Range: | 1 min to 30 min |
| Maximum Speed: | 3840 rpm |
| Maximum RCF: | 1790 xg |
| Maximum Capacity: | 12 Gel card |
| Maximum Speed: | 3840 rpm |
| Maximum RCF : | 1790 ×g |
| Capacity : | 24 gel card |
| Maximum Speed: | 4000 rpm |
| Maximum RCF: | 2170 xg |
| Maximum Capacity: | 10 pcs slide glass |
| Maximum Speed: | 3000 rpm |
| Maximum RCF : | 890 × g |
| Maximum Capacity : | 12 cards |
| Max Speed: | 3500 rpm |
| Max RCF: | 1640 xg |
| Max Capacity: | 12x10 ml |

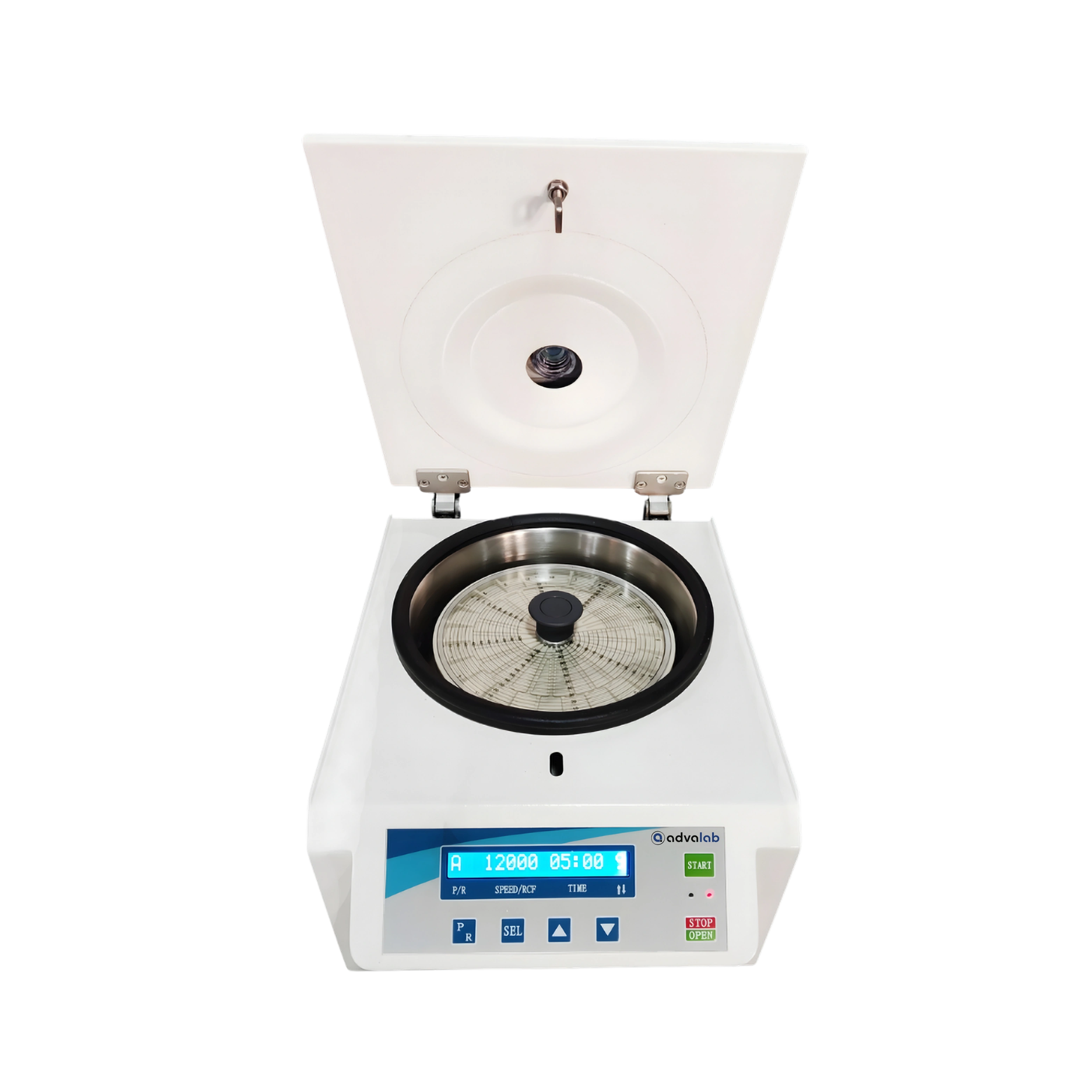

| Max Speed: | 12000 rpm |
