| Rotating Speed | 500 to 2500 rpm |
| RCF Range | 32 to 797g |
| Capacity | 2 pcs Microplates or Deep-well plates |
| Time Range | 1min to 30min |
| Noise | ≤ 55db(A) |
| Multi-Point Running | Yes (Maximum 5 points) |
| Multi-Cycle | Yes (Maximum 99 times) |
| Auto-Resume to Run | Yes |
| Automatic Unbalance Detection | Yes |
| Voltage | AC220 or 110V, 50 / 60Hz |
| Power Supply | 150 W |
| Dimension (L × W × H) | 463 x 340 x 248 mm |
| Net Weight | 15.7 kg |

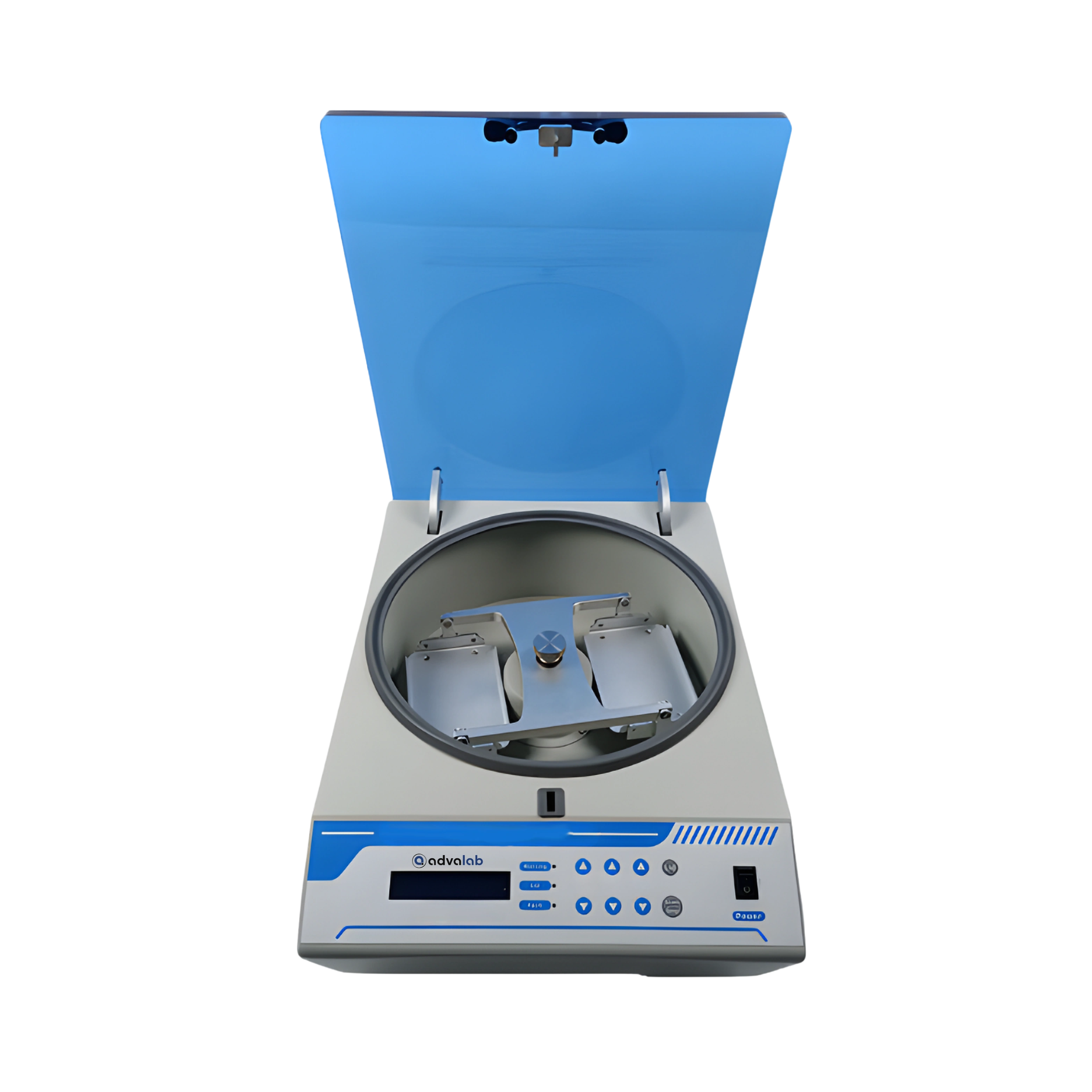

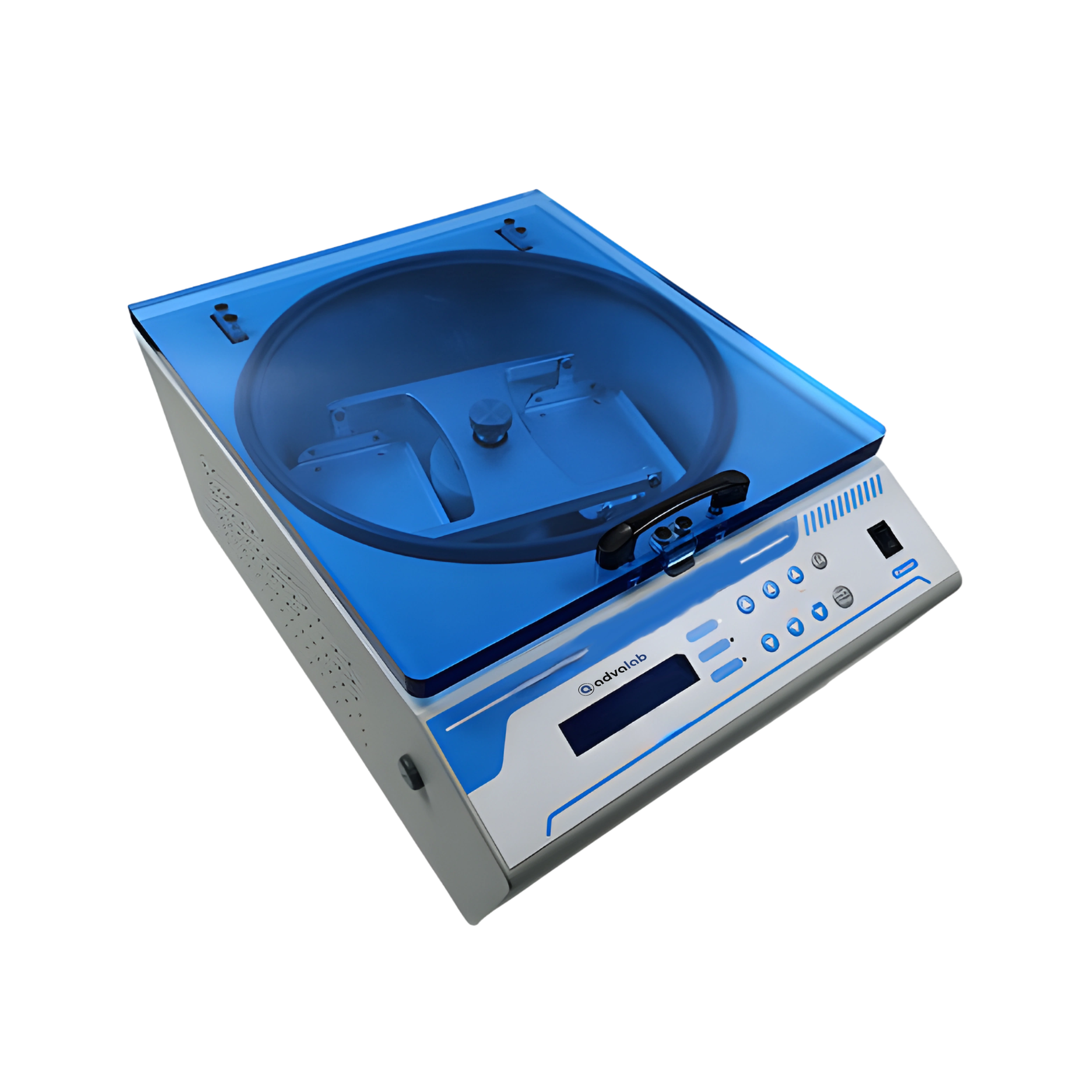

Microplate Centrifuge ADMPC-504 is suitable for a wide range of analytical applications, including biochemistry, molecular biology, and immunoenzyme analysis. Additionally, it is ideal for general laboratory centrifugation tasks.
1. What types of microplates are compatible with Microplate Centrifuge ADMPC-504?
Microplate Centrifuge ADMPC-504 is designed to accommodate standard microplates commonly used in laboratories. It supports both 96-well and 384-well plate formats, allowing flexibility in experimental setups. The plate holders securely fit these formats to minimize vibration. This compatibility makes it suitable for a wide range of biological and chemical assays.
2. Does Microplate Centrifuge ADMPC-504 have safety features to prevent damage from imbalance?
Microplate Centrifuge ADMPC-504 includes an automatic imbalance detection system that continuously monitors the load during operation. If an uneven load is detected, the centrifuge will sound an alarm and stop to prevent potential damage. This feature protects both the equipment and samples. It ensures safe operation and extends the lifespan of the unit.
3. How noisy is the Microplate Centrifuge ADMPC-504 during operation?
Microplate Centrifuge ADMPC-504 is designed for quiet operation, producing minimal noise and vibration during centrifugation. This low noise level creates a comfortable working environment in the laboratory. The unit also operates free from carbon contamination, helping maintain a clean space. These design features make it suitable for continuous use without disturbance.
4. What is the maximum speed and RCF of the Microplate Centrifuge ADMPC-504?
Microplate Centrifuge ADMPC-504 operates within a speed range of 500 to 2500 rpm, allowing adjustments based on the experimental needs. This translates to a relative centrifugal force (RCF) range of 32 to 797g, providing enough force for a variety of sample types. The precise speed control ensures reproducible results. It meets the demands of many standard laboratory applications.
5. What kind of control system does Microplate Centrifuge ADMPC-504 use?
Microplate Centrifuge ADMPC-504 features a microprocessor-based control system that offers precise and reliable operation. This system allows users to set and monitor speed and time accurately through a digital interface. It supports programmable settings for repeatability in experiments. The advanced control enhances both convenience and consistency in performance.
6. What is a Microplate Centrifuge used for?
A Microplate Centrifuge is used to spin and separate samples contained within microplates, such as 96- or 384-well plates, for applications like PCR, ELISA, and cell culture assays. It helps to quickly collect all liquids at the bottom of wells, reducing sample loss and improving assay accuracy. This makes it essential for high-throughput laboratories requiring fast and reliable sample processing.
7. What is imbalance detection and why is it important in Microplate Centrifuges?
Imbalance detection in a Microplate Centrifuge automatically stops the device if the load is uneven, protecting the centrifuge and ensuring user safety. This feature prevents damage to the motor and rotor caused by excessive vibrations. It also helps maintain accurate and consistent sample processing by avoiding disruptions during the spin cycle.
