| Maximum Speed | 2500 rpm ±5% |
| Rotation Direction | Anticlockwise (fixed direction) |
| Acceleration Time | 15 seconds |
| Braking Time | < 2 seconds |
| RCF | 480 ×g |
| Rotor Type | Angle Rotor |
| Rotor Capacity | 2 × 96 PCR plates |
| Motor Type | DC brushless motor with low-noise ball bearing |
| Electrical Safety Standard | IEC 61010-2-020 compliant |
| Power Supply | AC 110 to 250V, 50/60 Hz |
| Product Dimensions (L × W × H) | 345 × 289 × 168 mm |
| Packaging Dimensions (L × W × H) | 365 × 310 × 218 mm |
| Net Weight | 6.5 kg |
| Gross Weight | 7.2 kg |

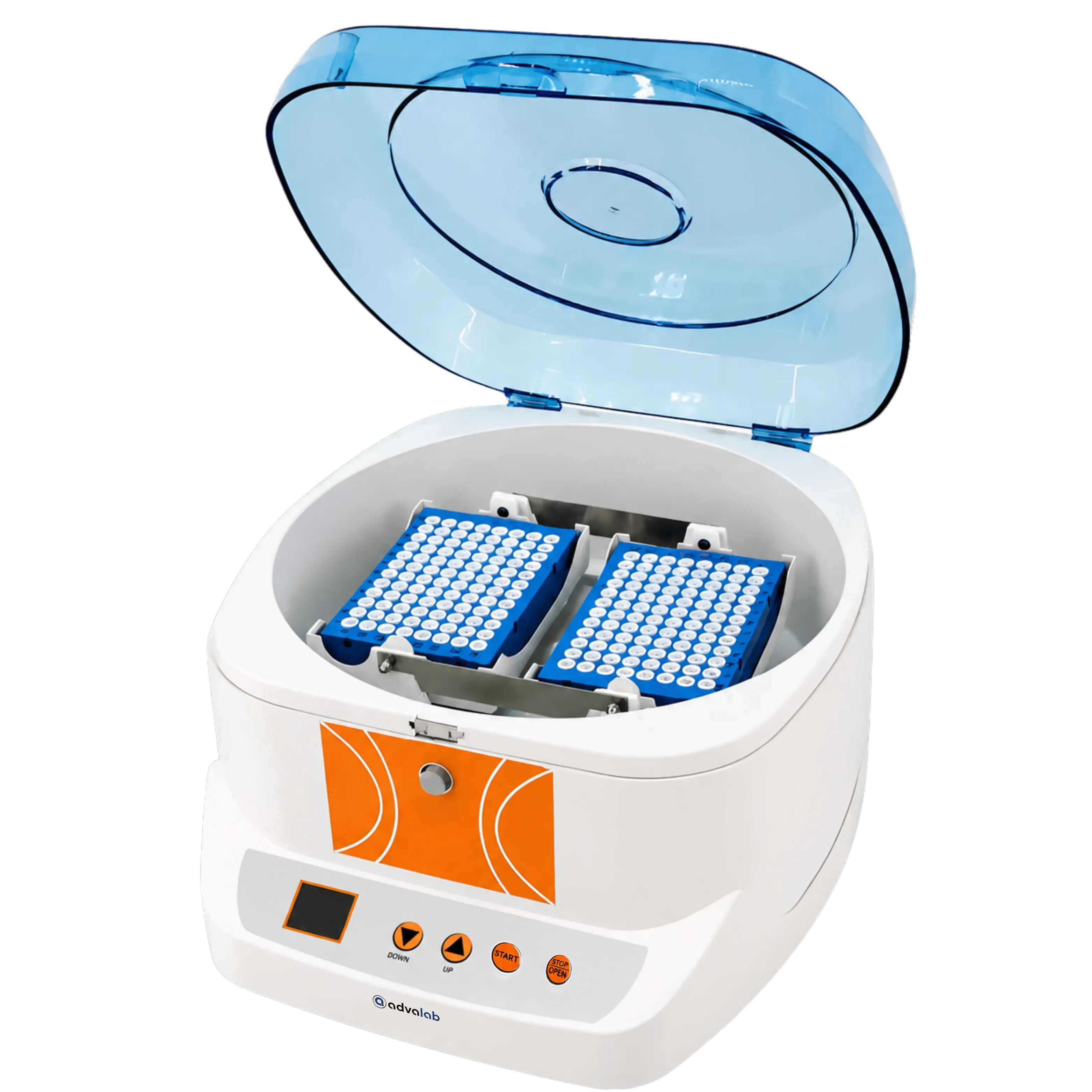

Microplate Centrifuge ADMPC-502 is specifically engineered to boost the efficiency and precision of PCR procedures, ensuring consistent, reliable, and high-quality results in laboratory settings.
1. What is the speed and accuracy of the Microplate Centrifuge ADMPC-502?
The Microplate Centrifuge ADMPC-502 delivers a top speed of 2500 rpm with ±5% precision, ensuring consistent and reliable sample separation. This high level of accuracy supports repeatable results, making it suitable for sensitive lab applications. It maintains stable rotation throughout each run, minimizing variability and enhancing performance reliability.
2. What types of tubes and plates are compatible with this Microplate Centrifuge ADMPC-502?
Microplate Centrifuge ADMPC-502 is designed to accommodate various formats including flat tubes, strip tubes, and complete microplates. Its flexible rotor system allows users to perform multiple protocols without needing different equipment. This makes it a versatile choice for molecular biology and diagnostic labs.
3. How does the Microplate Centrifuge ADMPC-502 ensure user and sample safety?
Microplate Centrifuge ADMPC-502 includes an open-lid protection mechanism that instantly halts rotor movement when the lid is lifted during operation. This feature prevents sample spills and potential injury. The built-in safety ensures both user confidence and sample integrity during every cycle.
4. What is the benefit of its fixed anticlockwise rotation in Microplate Centrifuge ADMPC-502?
The anticlockwise spinning maintains uniform distribution of force across all wells, ensuring equal treatment of each sample. This design supports accurate results, especially in high throughput and PCR workflows. It simplifies use by removing the need for directional adjustment.
5. What makes Microplate Centrifuge ADMPC-502 efficient for daily lab operations?
Quick acceleration and one-button operation allow for fast processing without complex setup. Its compact size saves space, while quiet operation reduces noise in busy lab environments. Durable construction ensures long-term use with minimal maintenance.
6. What is a Microplate Centrifuge used for?
A Microplate Centrifuge is used to spin and separate samples contained within microplates, such as 96- or 384-well plates, for applications like PCR, ELISA, and cell culture assays. It helps to quickly collect all liquids at the bottom of wells, reducing sample loss and improving assay accuracy. This makes it essential for high-throughput laboratories requiring fast and reliable sample processing.
7. What is imbalance detection and why is it important in Microplate Centrifuges?
Imbalance detection in a Microplate Centrifuge automatically stops the device if the load is uneven, protecting the centrifuge and ensuring user safety. This feature prevents damage to the motor and rotor caused by excessive vibrations. It also helps maintain accurate and consistent sample processing by avoiding disruptions during the spin cycle.
