| Max Capacity | 4 tubes, each 1000 ml |
| Max Speed | 6000 rpm |
| Max RCF | 6693×g |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1s to 99h 59m 59s |
| Noise Level | ≤60 dB(A) |
| Power Consumption | 3000 W |
| Dimensions (L x W x H) | 800 x 700 x 830 mm |
| Weight | 180 kg |

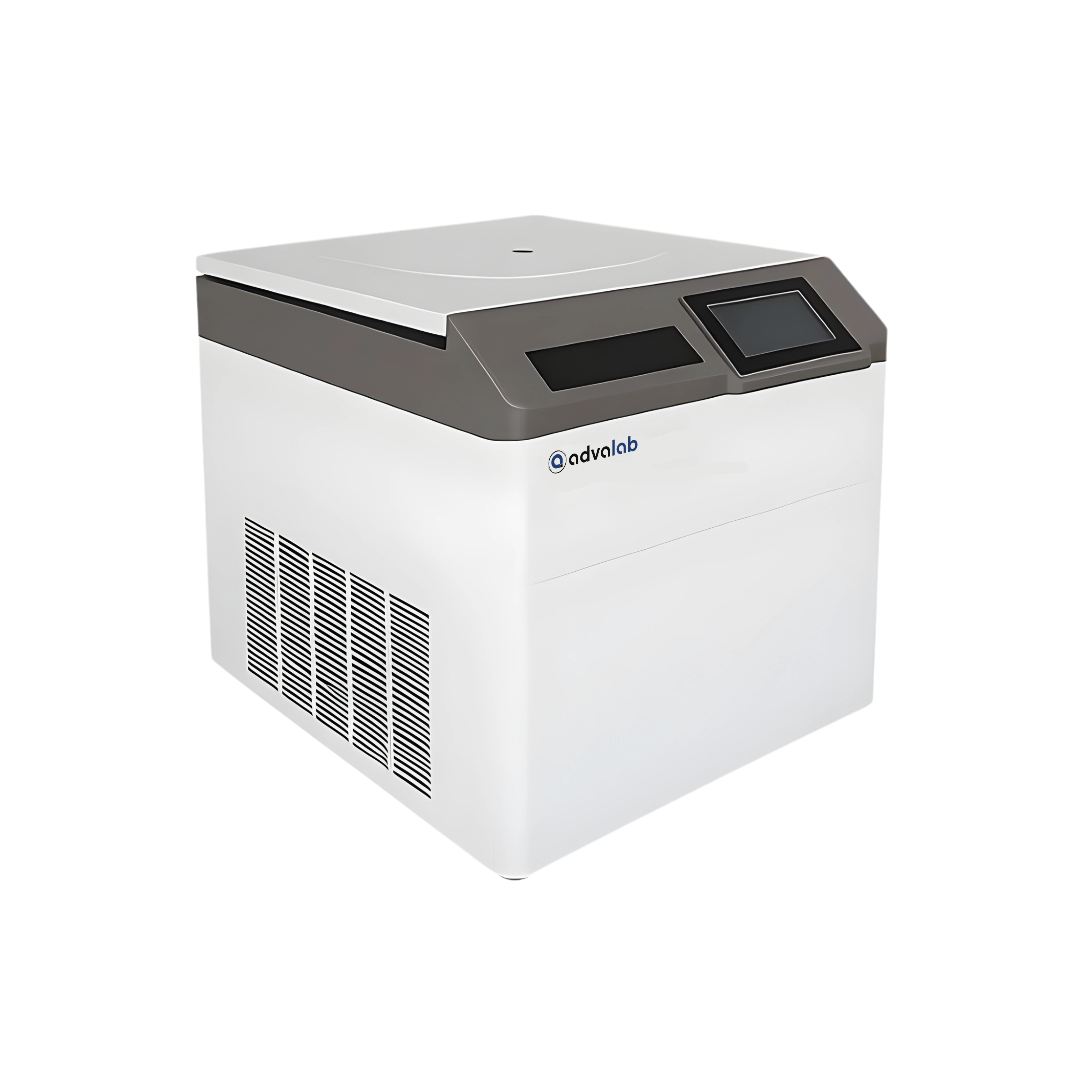

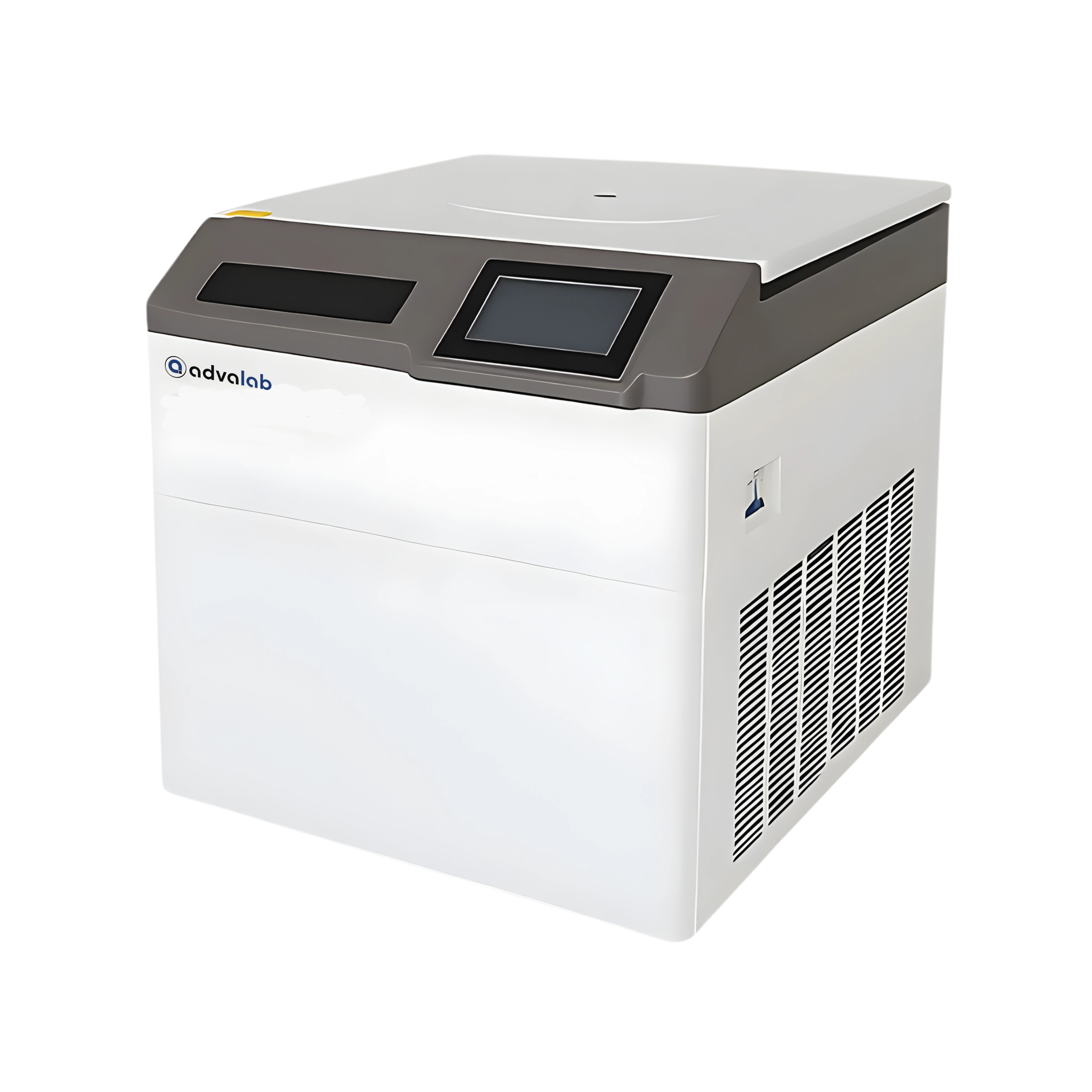

Our Refrigerated Low-Speed Centrifuge ADRLC-505 is used in molecular biology, biochemistry and microbiology for blood sample preparation, drug formulation, and protein purification.
Rotor Type | Capacity | Max Speed | Max RCF |
Fixed Angle Rotor 01 | 6 × 500 ml | 6000 rpm | 6693×g |
Swing Out Rotor 01 | 4 × 1000 ml | 5000 rpm | 6319×g |
Swing Out Rotor 02 | 4 × Blood Bag | 5000 rpm | 6319×g |
Swing Out Rotor 03 | 6 x 500 ml | 5000 rpm | 6121×g |
1. What is the temperature range of the Refrigerated Low Speed Centrifuge ADRLC-505?
The Refrigerated Low Speed Centrifuge ADRLC-505 offers a wide temperature control range, typically from -20°C to +40°C. This allows for efficient cooling during centrifugation, especially when working with temperature-sensitive biological samples. It ensures consistent sample integrity throughout the process. The rapid cooling system quickly brings the chamber to the desired temperature. This feature is especially valuable in molecular biology, clinical, and pharmaceutical labs.
2. What is the maximum speed and capacity of Refrigerated Low Speed Centrifuge ADRLC-505?
The Refrigerated Low Speed Centrifuge ADRLC-505 is designed for low-speed operations and can typically achieve a maximum speed of around 5000 RPM. It supports various rotor types and tube capacities, providing flexibility for different laboratory needs. The centrifuge can handle large volumes, making it suitable for high-throughput sample processing. Users can select appropriate rotors to match specific applications. Its balance of speed and capacity is ideal for routine laboratory tasks.
3. Does Refrigerated Low Speed Centrifuge ADRLC-505 come with safety features?
Yes, the Refrigerated Low Speed Centrifuge ADRLC-505 is equipped with several advanced safety features. These include an imbalance detection system, lid interlock mechanism, and over-temperature protection. The lid remains locked during operation, preventing accidental opening and ensuring user safety. Automatic rotor recognition adds another layer of operational protection. These safety features make it reliable for daily lab use.
4. Can the Refrigerated Low Speed Centrifuge ADRLC-505 maintain low temperatures during high-speed spins?
Absolutely, the Refrigerated Low Speed Centrifuge ADRLC-505 is designed to maintain the set temperature even during prolonged runs at higher speeds. Its high-efficiency cooling system ensures minimal temperature fluctuation. This is crucial when centrifuging heat-sensitive materials such as proteins or cell cultures. Consistent cooling prevents sample degradation and enhances experimental reliability. Users can trust it for reproducible results in temperature-critical applications.
5. What are the typical applications of the Refrigerated Low Speed Centrifuge ADRLC-505 centrifuge?
The Refrigerated Low Speed Centrifuge ADRLC-505 is widely used in clinical diagnostics, molecular biology, pharmaceutical research, and biochemistry. It is suitable for separating plasma, serum, cells, and other biological components. The refrigerated feature makes it ideal for processing heat-sensitive samples. Its low-speed performance ensures gentle handling of delicate materials. This centrifuge is a versatile and essential tool in research and medical laboratories.
