| Maximum Speed | 16,500 rpm |
| Maximum RCF | 24,814 × g |
| Maximum Capacity | 6 × 100ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1s to 99h 59m 59s |
| Noise | ≤56 dB(A) |
| Power Consumption | 1200 W |
| Dimensions | 420 × 520 × 360 mm |
| Weight | 56 kg |

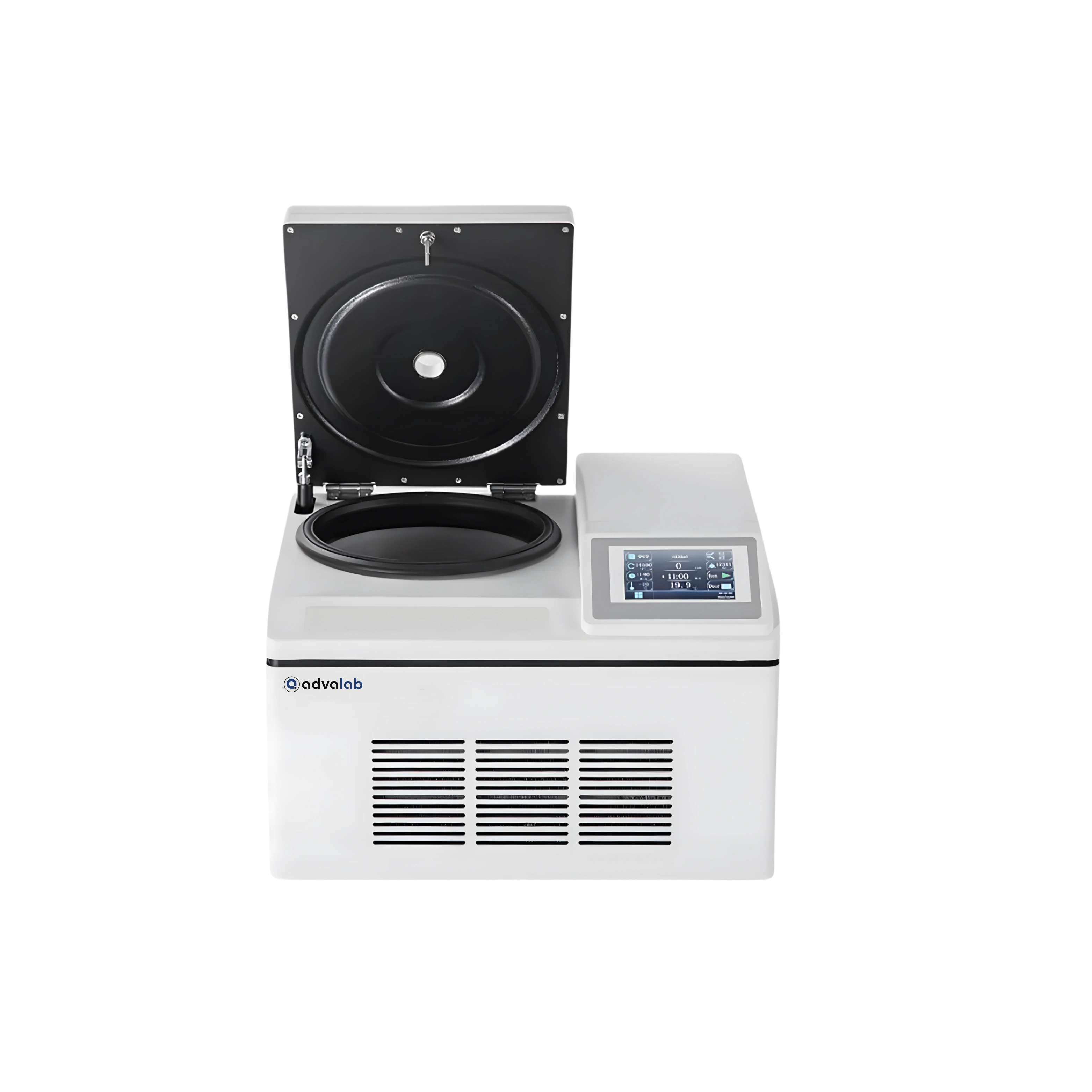

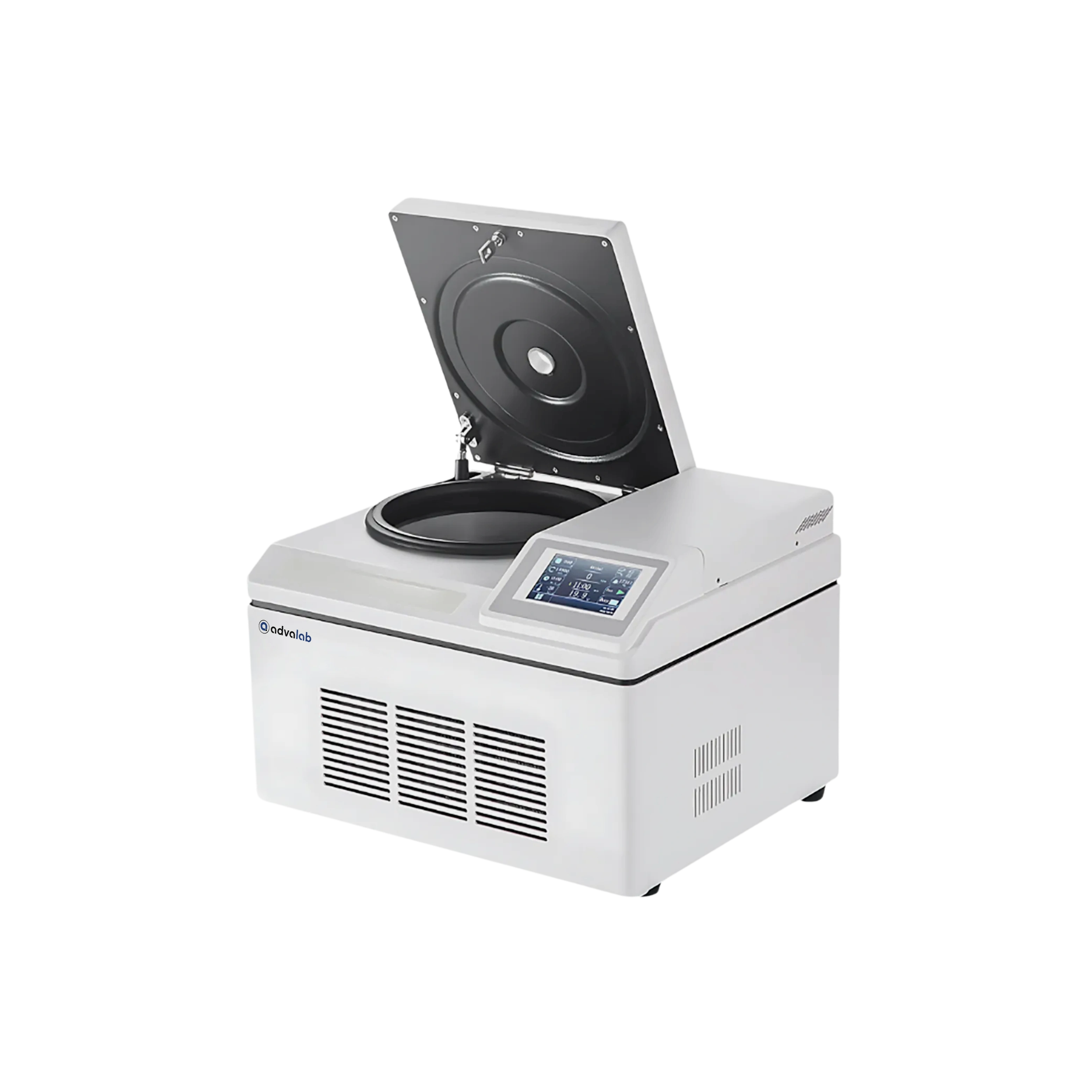

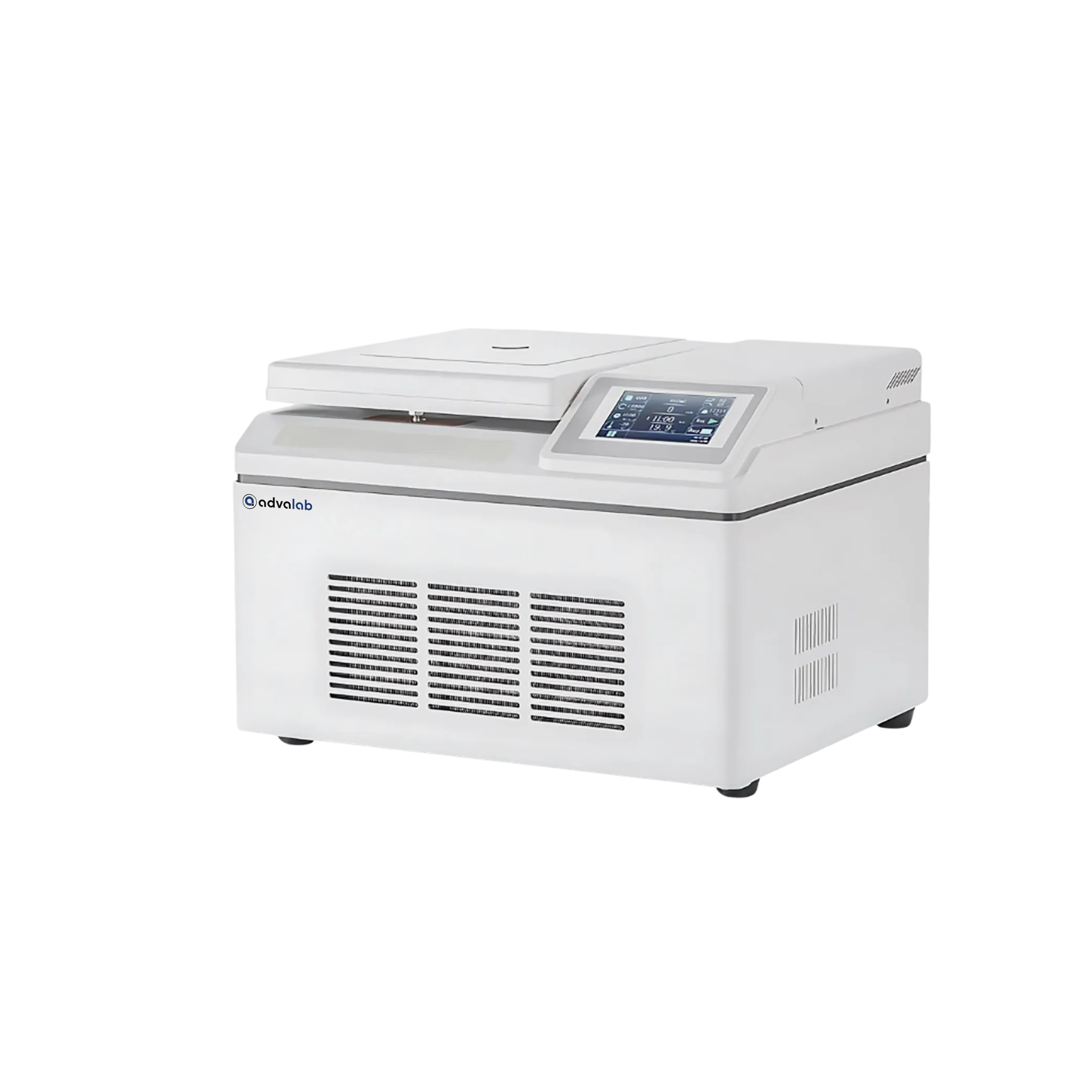

Our High Speed Refrigerated Centrifuge ADHSC-512 is used in molecular biology, biochemistry and pharmaceutical research for rapid, temperature-controlled separation of biological and chemical samples.
Rotor Type | Capacity | Max Speed | Max RCF | Tube size |
Fixed angle rotor 01 | 12×1.5/2.2ml | 16500rpm | 19053×g | Φ11×42mm |
Fixed angle rotor 02 | 16x 5ml | 15000rpm | 21420×g | Φ14×54mm |
Fixed angle rotor 03 | 24×1.5ml/2.2ml | 16000rpm | 24814×g | Φ11×42mm |
Fixed angle rotor 04 | 12×10ml | 14000rpm | 18121×g | Φ16×86mm |
Fixed angle rotor 05 | 36×1.5/2.2ml | 14000rpm | 18976×g | Φ11×42mm |
Fixed angle rotor 06 | 6×50ml conical bottom | 12000rpm | 15712×g | Φ29×116mm |
Fixed angle rotor 07 | 6×50ml round bottom | 12000rpm | 15712×g | Φ29×111mm |
Fixed angle rotor 08 | 48×1.5/2.2ml | 12000rpm | 15793×g | Φ11×42mm |
Fixed angle rotor 09 | 4×100ml | 11000rpm | 13365×g | Φ38×123mm |
Fixed angle rotor 10 | 8×50ml conical bottom | 11000rpm | 14041×g | Φ29×116mm |
Fixed angle rotor 11 | 8×50ml round bottom | 11000rpm | 13365×g | Φ29×111mm |
Fixed angle rotor 12 | 12×15ml | 11000rpm | 13365×g | Φ17×121mm |
Fixed angle rotor 13 | 6×10ml | 16000rpm | 19004×g | Φ16×86mm |
Fixed angle rotor 14 | 8×15ml | 14000rpm | 17333×g | Φ17×121mm |
Fixed angle rotor 15 | 6×30ml | 14000rpm | 18472×g | Φ25.5×100mm |
Fixed angle rotor 16 | 8x0.2ml PCR strip | 13000rpm | 14643×g | - |
Fixed angle rotor 17 | y:6x100ml | 9000rpm | 9771×g | Φ38x123mm |
Fixed angle rotor 18 | 24x2ml (frozen storage tube) | 15000rpm | 23419×g | Φ11.5x45mm |
Microplate rotor 01 | 2x2×48 well plate | 4000rpm | 1538×g | 128×48x60mm |
1. How does the refrigeration system of High Speed Refrigerated Centrifuge ADHSC-512 benefit sample processing?
The High Speed Refrigerated Centrifuge ADHSC-512 is equipped with an advanced refrigeration system that precisely maintains temperatures between -20°C to +40°C. This ensures that temperature-sensitive biological samples are preserved during high-speed centrifugation. It prevents heat buildup which could compromise the integrity of proteins, nucleic acids, and enzymes. The system cools rapidly and maintains stable conditions throughout the run. This feature is crucial for clinical, molecular biology, and research labs.
2. What safety features are included in the High Speed Refrigerated Centrifuge ADHSC-512?
The High Speed Refrigerated Centrifuge ADHSC-512 includes several safety mechanisms such as imbalance detection, automatic lid lock, and over-speed protection. These features prevent accidents and ensure the unit operates within safe parameters. The lid remains locked during operation and only unlocks once the rotor has completely stopped. In case of rotor imbalance, the centrifuge automatically stops the cycle. These safeguards enhance both user and equipment protection.
3. Is the High Speed Refrigerated Centrifuge ADHSC-512 easy to operate and program?
Yes, the High Speed Refrigerated Centrifuge ADHSC-512 is designed with an intuitive digital control panel, allowing users to easily set speed, time, temperature, and acceleration/deceleration rates. It supports programmable memory functions for quick access to frequently used settings. The interface displays real-time operating conditions for convenience. Clear labeling and a responsive interface improve user efficiency. This makes it suitable for routine lab workflows and advanced protocols alike.
4. What types of applications is the High Speed Refrigerated Centrifuge ADHSC-512 best suited for?
The High Speed Refrigerated Centrifuge ADHSC-508 is ideal for molecular biology, cell culture, clinical diagnostics, biochemistry, and pharmaceutical applications. It supports separation of cells, proteins, nucleic acids, and subcellular components. The high speed and cooling system make it especially useful for heat-sensitive or fast-spinning protocols. Its rotor flexibility supports diverse sample formats. This makes the ADHSC-512 a versatile tool for both research and clinical environments.
5. How does the refrigeration system in High Speed Refrigerated Centrifuge ADHSC-512 benefit sample processing?
The advanced refrigeration system in the High Speed Refrigerated Centrifuge ADHSC-512 maintains stable low temperatures during high-speed operation. This is crucial for preserving the integrity of heat-sensitive biological and chemical samples. It prevents sample degradation caused by frictional heat. The temperature range is adjustable, offering flexibility for various protocols. Efficient cooling ensures consistent and reliable results throughout the centrifugation process.
6. What is a High Speed Refrigerated Centrifuge?
A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.
7. Why is refrigeration important in centrifugation?
Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.
8. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?
Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
