| Max Speed | 8000 rpm |
| Max RCF | 14500 × g |
| Max Capacity | 6x2400 ml / 12 blood bags / 384 blood tubes |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±20 rpm |
| Time Setting | 1 second to 99 hours 59 minutes 59 seconds |
| Noise | ≤65 dB(A) |
| Power Consumption | 7500 W |
| Dimension | 960 x 880 x 950 mm |
| Weight | 471 kg |

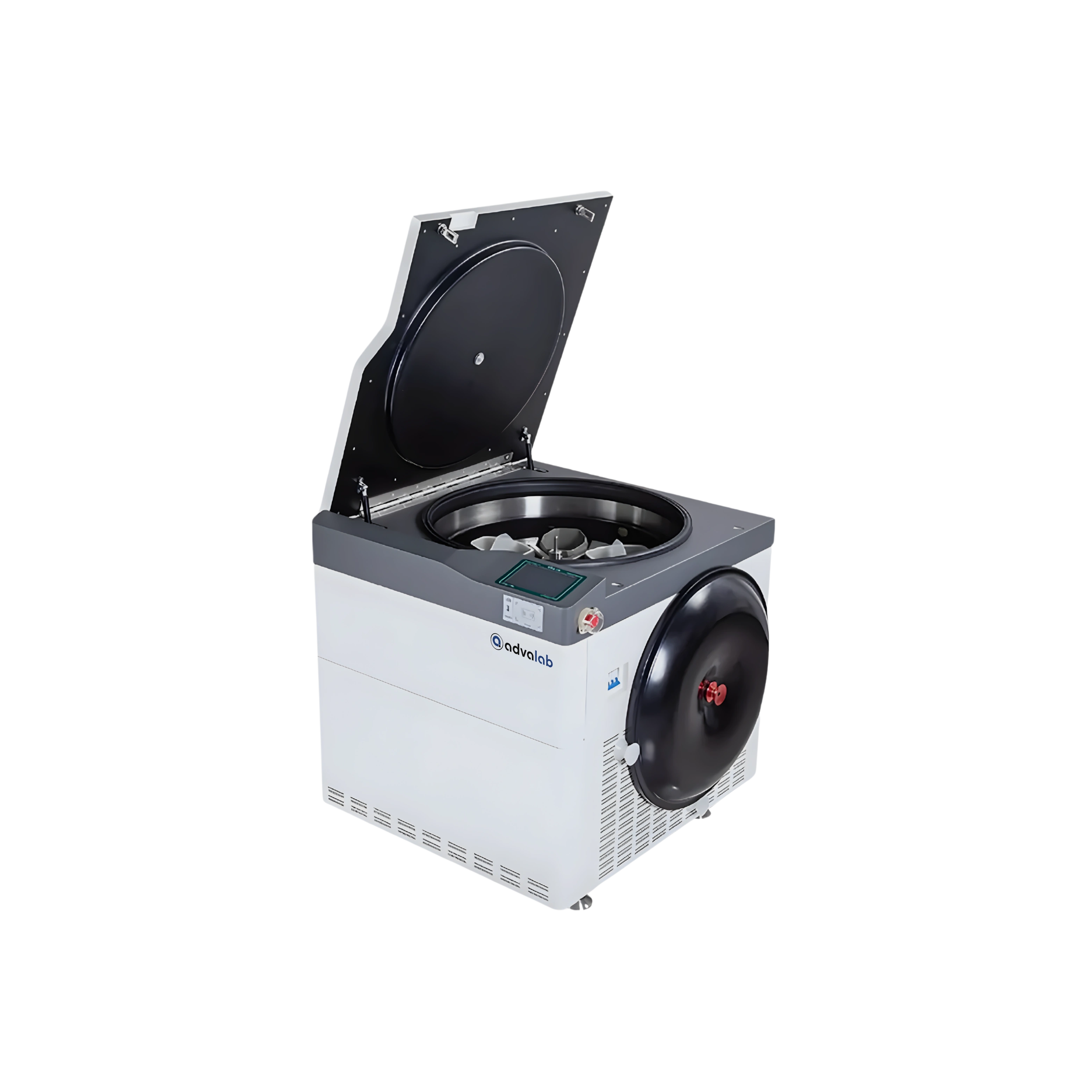

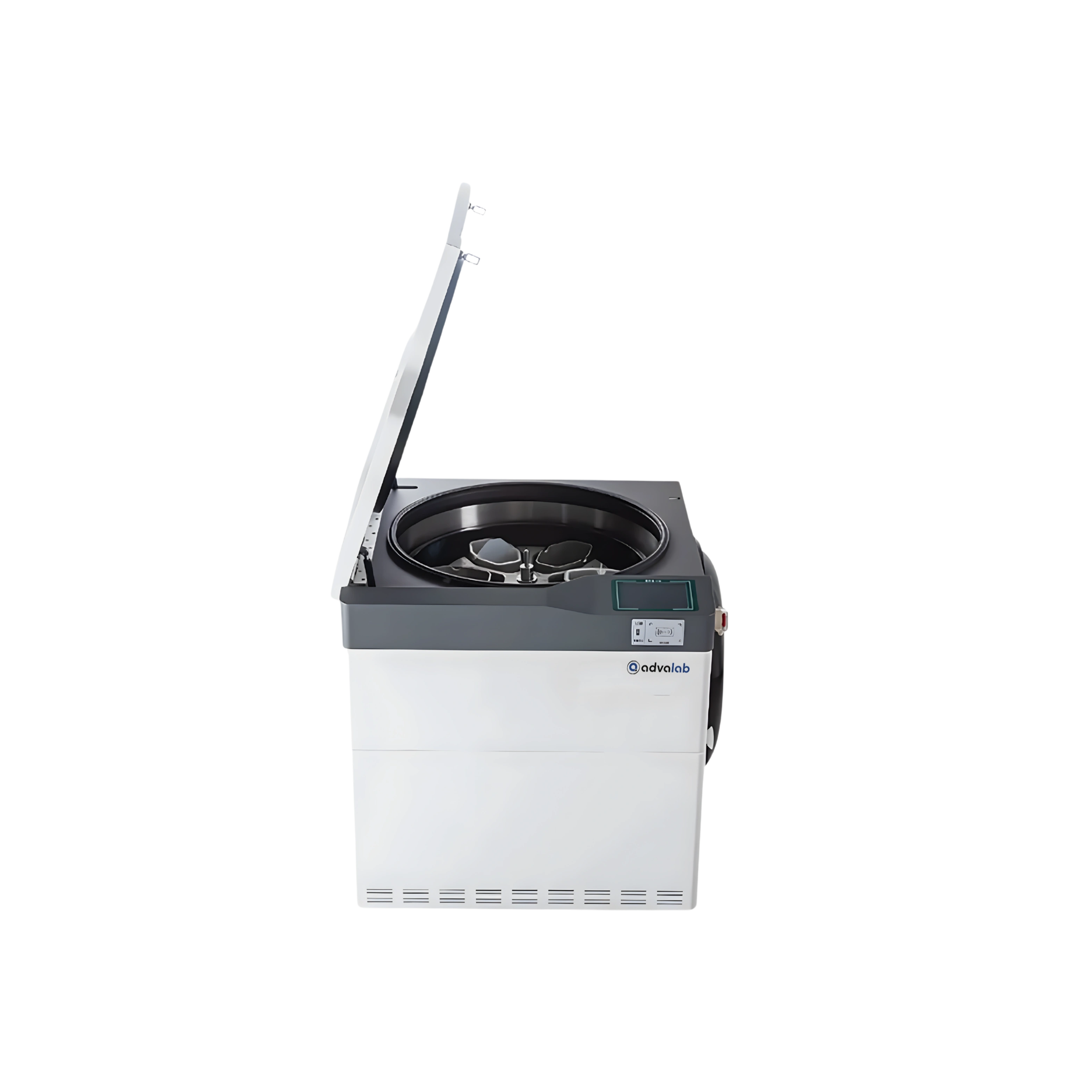

Our Refrigerated Low-Speed Centrifuge ADRLC-507 is used across biotechnology, pharmaceuticals and food analysis for safe and efficient separation of temperature-sensitive samples.
Rotor Type | Capacity | Max Speed | Max RCF | Tube Size |
Swing out rotor 01 | 6×2400ml | 4500rpm | 7095×g | - |
Swing out rotor 02 | 12xblood bag | 4500rpm | 7095×g | - |
Swing out rotor 03 | 6×1000ml | 8000rpm | 14500×g | Φ97×166mm |
Fixed angle rotor 01 | 6×500ml | 8000rpm | 11860×g | Φ74×170mm |
Fixed angle rotor 02 | 384pcs blood tube | 4000rpm | 4710×g | Φ13×75 to 100mm |
1. Can the Refrigerated Low-Speed Centrifuge ADRLC-507 run continuously or is it time-limited?
Yes, the Refrigerated Low-Speed Centrifuge ADRLC-507 supports both timed and continuous operation modes. It allows users to set a timer for specific protocols, typically from 1 minute up to 99 minutes. For long procedures, the continuous mode can be activated for uninterrupted spinning. This makes it suitable for protocols that require extended separation without interruption. The timer is digital and can be easily monitored and modified via the control panel.
2. What are the typical applications of the Refrigerated Low-Speed Centrifuge ADRLC-507 in laboratory settings?
This centrifuge is widely used in clinical, biological, and pharmaceutical laboratories for applications such as blood sample separation, cell culture preparation, and protein isolation. Its low-speed range and refrigeration make it suitable for gentle processing of temperature-sensitive materials. It’s commonly utilized in biochemistry, molecular biology, and environmental testing. The adjustable speed and temperature settings make it versatile for various protocols.
3. Is the Refrigerated Low-Speed Centrifuge ADRLC-507 easy to operate and maintain?
Yes, the Refrigerated Low-Speed Centrifuge ADRLC-507 features an intuitive digital control panel for easy setting of speed, time, and temperature. The LCD display provides real-time information, making it user-friendly even for beginners. The rotor chamber is corrosion-resistant and easy to clean. Routine maintenance like cleaning the chamber and checking the rotor should be done regularly. The unit also offers easy access for calibration and servicing.
4. What safety features does the Refrigerated Low-Speed Centrifuge ADRLC-507 include?
The Refrigerated Low-Speed Centrifuge ADRLC-507 is equipped with multiple built-in safety features, including a lid interlock system that prevents the lid from opening while the rotor is spinning. It also has imbalance detection and automatic shutoff in case of abnormal vibrations or rotor misalignment. Over-temperature and over-speed protections are also in place to protect both the user and the equipment. This unit is essential for ensuring lab safety and equipment longevity. Clear alerts and error messages are displayed on the digital interface.
5. What types of tubes or containers can be used with Refrigerated Low-Speed Centrifuge ADRLC-507?
The Refrigerated Low-Speed Centrifuge ADRLC-507 is compatible with a variety of rotors and adapters, supporting different tube sizes ranging from small-capacity microtubes to larger conical or round-bottom tubes. It can accommodate tubes from 1.5 mL up to 100 mL, depending on the rotor configuration. This flexibility allows users to run diverse applications in one machine. Rotor and adapter compatibility is listed in the user manual. Always balance the tubes properly to avoid vibrations and ensure safe operation.
