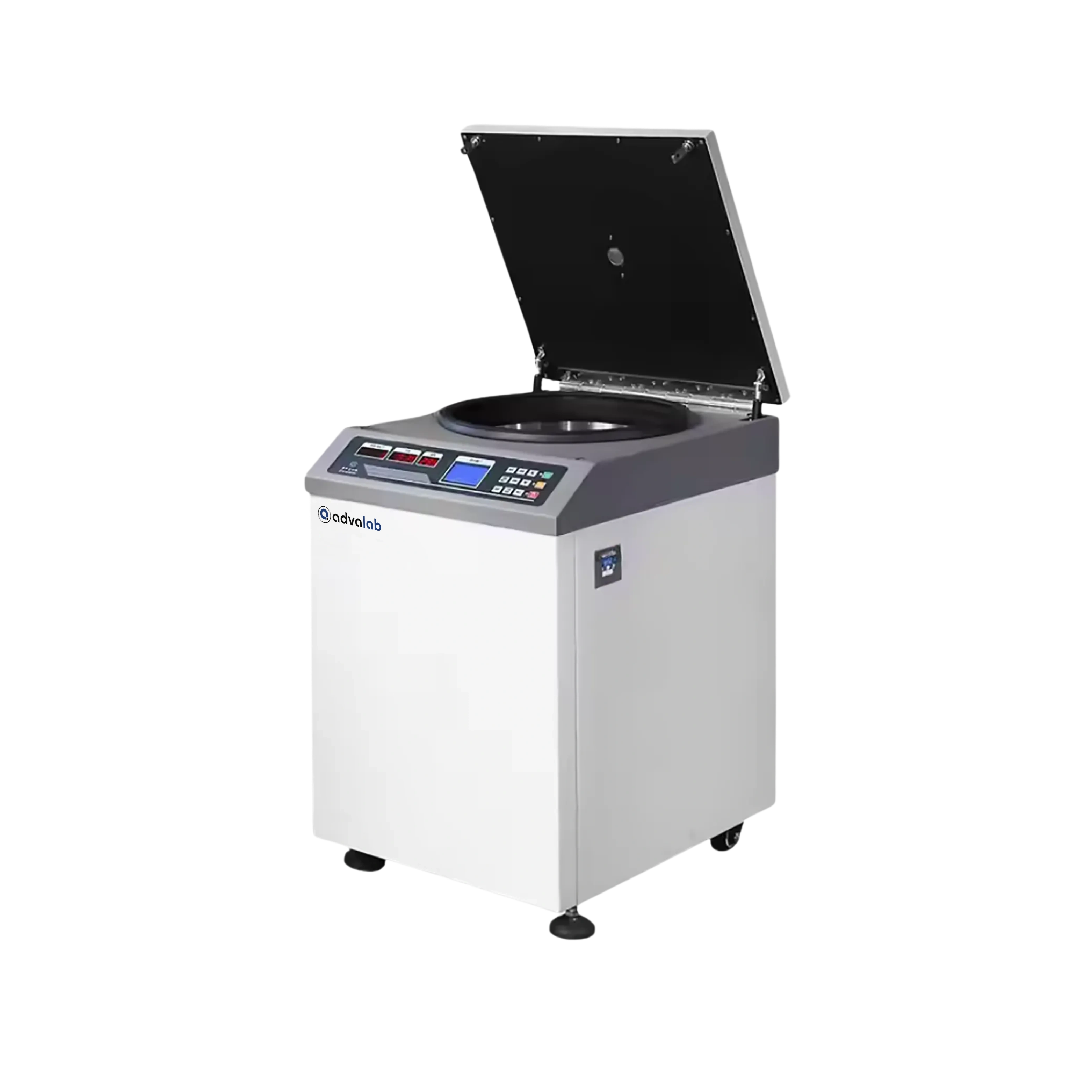

Refrigerated Low Speed Centrifuge ADRLC-504 is designed with a high capacity to handle large sample volumes efficiently. It can accommodate 6 tubes each with 1000 ml blood bags, enabling high-throughput processing in a single run. It operates at a speed of 6000 rpm, providing efficient and consistent sample separation. It is equipped with an LED that displays parameters, allowing easy monitoring and adjustment.
| Max Speed Range | 6000 rpm |
| Max RCF | 6880 × g |
| Max Capacity | 6 × 1000 ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1℃ |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1 min to 99 hr 59 min / Pulse |
| Noise | ≤65 dB(A) |
| Power Consumption | 5000 W |
| Dimension | 850 x 730 x 930 mm |
| Weight | 255 kg |
Refrigerated Low Speed Centrifuge is used for blood sample preparation, separation of blood and serum, protein extraction, drug formulation, and protein purification. It is widely used in molecular biology, biochemistry, biotechnology, microbiology, and pharmaceutical research.
| Rotor Type | Capacity | Max Speed | Max RCF |
| Fixed Angle Rotor | 6 × 500 mL | 6000 rpm | 6880 × g |
| Swing Out Rotor | 6 × 1000 mL | 4500 rpm | 5880 × g |
| Swing Out Rotor | 6 × Blood Bag | 4500 rpm | 5880 × g |
| Swing Out Rotor | 210 × 2-7 mL Blood Tubes | 4200 rpm | 5180 × g |
| Adapters no. | Capacity (mL) |
| Adapter 1 | 6×750 ml |
| Adapter 2 | 6×500 ml |
| Adapter 3 | 6×500 ml (conical) |
| Adapter 4 | 6×250 ml |
| Adapter 5 | 18×100 ml |
| Adapter 6 | 30×50 ml |
| Adapter 7 | 84×15 ml |
| Adapter 8 | 6×750 ml |
| Adapter 9 | 6×500 ml |
| Adapter 10 | 6×250 ml |
| Adapter 11 | 24×100 ml |
| Adapter 12 | 42×50 ml |
| Adapter 13 | 84×15 ml |
