| Maximum Speed | 23,000 rpm |
| Maximum RCF | 37,023 x g |
| Maximum Capacity | 4 x 750 ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1 second to 99 hours 59 minutes 59 seconds |
| Noise Level | ≤56 dB(A) |
| Power Consumption | 1500 W |
| Dimensions (W x D x H) | 600 x 680 x 420 mm |
| Packing Dimension (W x D x H) | 685 × 845 × 605 mm |
| Net weight | 108 kg |
| Gross weight | 130 kg |

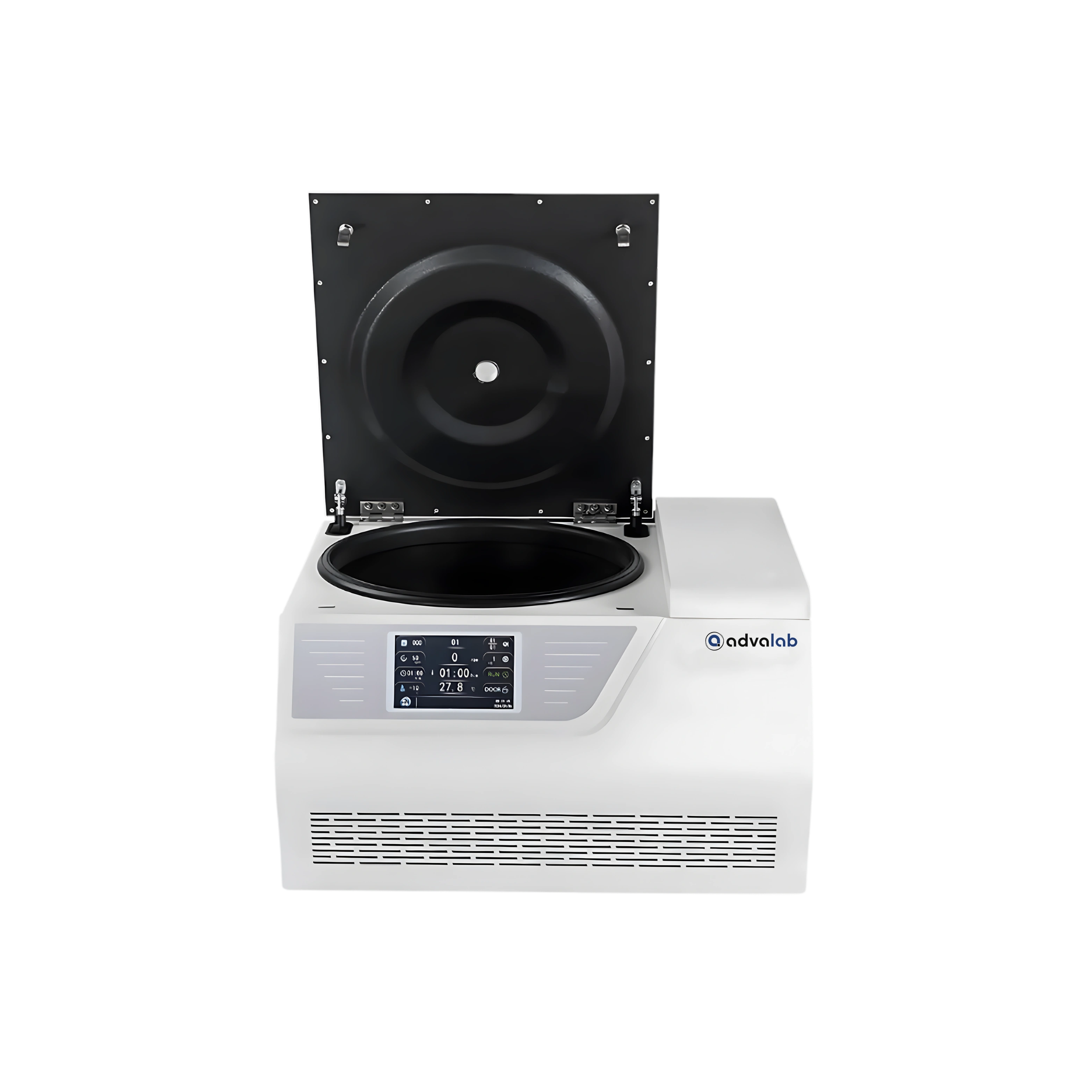

Our High Speed Refrigerated Centrifuge ADHSC-508 is used in genomic research for isolating proteins, in vaccine development for purifying viral particles and in environmental science for separating particulates.
Rotor Type | Capacity | Max Speed | Max RCF | Tube size |
Fixed angle rotor 01 | 12x1.5/2.2ml | 23000rpm | 37023xg | 11x42mm |
Fixed angle rotor 02 | 12x5ml | 18000rpm | 26334xg | 14x54mm |
Fixed angle rotor 03 | 24x1.5/2.2ml | 16500rpm | 26389xg | 11x42mm |
Fixed angle rotor 04 | 24x1.5/2.2ml (aerosol tight) | 18000rpm | 31405xg | 11x42mm |
Fixed angle rotor 05 | 12x10ml | 15500rpm | 22213xg | 16x86mm |
Fixed angle rotor 06 | 36x1.5/2.2ml | 15500rpm | 21784xg | 11x42mm |
Fixed angle rotor 07 | 6x50ml (conical bottom) | 13000rpm | 18440xg | 29x116mm |
Fixed angle rotor 08 | 6x50ml (round bottom) | 13500rpm | 19886xg | 29x111mm |
Fixed angle rotor 09 | 48x1.5/2.2ml | 13000rpm | 18535xg | 11x42mm |
Fixed angle rotor 10 | 4x100ml | 12000rpm | 15906xg | 38x123mm |
Fixed angle rotor 11 | 8x50ml (conical bottom) | 12000rpm | 16710xg | 29x116mm |
Fixed angle rotor 12 | 8x50ml (round bottom) | 12000rpm | 15906xg | 29x111mm |
Fixed angle rotor 13 | 12x15ml | 13000rpm | 18667xg | 17x121mm |
Fixed angle rotor 14 | 6x100ml | 10000rpm | 12063xg | 38x123mm |
Fixed angle rotor 15 | 8x15ml | 14500rpm | 18593xg | 17x121mm |
Fixed angle rotor 16 | 12x50ml (conical bottom) | 10000rpm | 14310xg | 29x116mm |
Swing-out rotor 01 | 2x3x96 well plate | 4000rpm | 2003xg | 128x87x60mm |
Swing-out rotor 02 | 4x2x96 well plate | 4200rpm | 3551xg | 128x87x60mm |
Swing-out rotor 03 | 4x250ml | 4500rpm | 3735xg | 63x121mm |
Swing-out rotor 04 | Adapter 8x50ml in 4x250ml | 4500rpm | 3735xg | 29.5x116mm |
Adapter | Capacity | Max Speed | Max RCF | Tube size |
Adapter 01 | 20x15ml in 4x250ml | 4500rpm | 3735xg | 17x121mm |
Adapter 02 | 36x10ml in 4x250ml | 4500rpm | 3735xg | 16.5x86 110mm |
Adapter 03 | 40x7ml (blood tube) in 4x250ml | 4500rpm | 3735xg | 13x100mm |
Adapter 04 | 48x2-7ml (blood tube) | 4000rpm | 2951xg | 13x75 100mm 13x75 100mm |
Adapter 05 | 64x2-7ml (blood tube) | 4000rpm | 2951xg | 13x75 100mm |
Adapter 06 | 4x500ml | 4200rpm | 3551xg | 80x137mm |
Adapter 07 | 16x50ml (normal) (aerosol tight) in 4x500ml | 4200rpm | 3551xg | 29x116mm |
Adapter 08 | 36x15ml (normal) (aerosol tight) in 4x500ml | 4200rpm | 3551xg | 17x121mm |
Adapter 09 | 76x7ml (normal) (aerosol tight) in 4x500ml | 4200rpm | 3551xg | 13x75 100mm |
Adapter 10 | 20x50ml | 4200rpm | 3551xg | 29.5x116mm |
Adapter 11 | 40x15ml | 4200rpm | 3551xg | 17x121mm |
Adapter 12 | 80x10ml (blood tube) | 4200rpm | 3551xg | 15x100mm |
Adapter 13 | 112x2-7ml (blood tube) | 4200rpm | 3551xg | 13x75 100mm |
Adapter14 | 100x1.5ml | 4200rpm | 3551xg | 11x42mm |
Adapter 15 | 148x5ml (RIA tube) | 4200rpm | 3551xg | 13x75 100mm |
Adapter 16 | 96x2-7ml (blood tube) | 4200rpm | 3551xg | 13x75 100mm |
Adapter 17 | 4x750ml | 4000rpm | 3500xg | 100x141mm |
Adapter 18 | Adapter 12x100ml in 4x750ml | 4000rpm | 3500xg | 38x114mm |
Adapter 19 | Adapter 20x50ml in 4x750ml | 4000rpm | 3500xg | 29x116mm |
Adapter 20 | Adapter 28x50ml in 4x750ml | 4000rpm | 3500xg | 29x116mm |
Adapter 21 | Adapter 56x15ml in 4x750ml | 4000rpm | 3500xg | 17x121mm |
Adapter 22 | Adapter 96x7ml (Blood tube) in 4x750ml | 4000rpm | 3500xg | 13x75 100mm |
1. What types of applications is the High Speed Refrigerated Centrifuge ADHSC-508 best suited for?
The High Speed Refrigerated Centrifuge ADHSC-508 is ideal for molecular biology, cell culture, clinical diagnostics, biochemistry, and pharmaceutical applications. It supports separation of cells, proteins, nucleic acids, and subcellular components. The high speed and cooling system make it especially useful for heat-sensitive or fast-spinning protocols. Its rotor flexibility supports diverse sample formats. This makes the ADHSC-502 a versatile tool for both research and clinical environments.
2. Is the High Speed Refrigerated Centrifuge ADHSC-508 easy to operate and program?
Yes, the High Speed Refrigerated Centrifuge ADHSC-508 is designed with an intuitive digital control panel, allowing users to easily set speed, time, temperature, and acceleration/deceleration rates. It supports programmable memory functions for quick access to frequently used settings. The interface displays real-time operating conditions for convenience. Clear labeling and a responsive interface improve user efficiency. This makes it suitable for routine lab workflows and advanced protocols alike.
3. What safety features are included in the High Speed Refrigerated Centrifuge ADHSC-508?
The High Speed Refrigerated Centrifuge ADHSC-508 includes several safety mechanisms such as imbalance detection, automatic lid lock, and over-speed protection. These features prevent accidents and ensure the unit operates within safe parameters. The lid remains locked during operation and only unlocks once the rotor has completely stopped. In case of rotor imbalance, the centrifuge automatically stops the cycle. These safeguards enhance both user and equipment protection.
4. How does the refrigeration system of High Speed Refrigerated Centrifuge ADHSC-507 benefit sample processing?
The High Speed Refrigerated Centrifuge ADHSC-507 is equipped with an advanced refrigeration system that precisely maintains temperatures between -20°C to +40°C. This ensures that temperature-sensitive biological samples are preserved during high-speed centrifugation. It prevents heat buildup which could compromise the integrity of proteins, nucleic acids, and enzymes. The system cools rapidly and maintains stable conditions throughout the run. This feature is crucial for clinical, molecular biology, and research labs.
5. What is the maximum speed and capacity of the High Speed Refrigerated Centrifuge ADHSC-508?
The High Speed Refrigerated Centrifuge ADHSC-508 offers a high maximum speed of up to 22,000 RPM, enabling rapid separation of samples. It supports a wide range of rotors and adapters to accommodate tubes, bottles, and microplates. The maximum capacity can reach up to 4×750 ml, depending on the rotor used. This flexibility makes it ideal for various laboratory needs. It balances high performance with user-friendly operation.
6. What kind of maintenance does the High-Speed Refrigerated Centrifuge ADHSC-508 require?
Routine maintenance of the High-Speed Refrigerated Centrifuge ADHSC-508 includes cleaning the rotor chamber, checking rotor integrity, and ensuring the cooling system is free of debris.
7. Does the High-Speed Refrigerated Centrifuge ADHSC-508 come with a warranty?
Yes, the High-Speed Refrigerated Centrifuge ADHSC-508 typically comes with a one-year warranty, covering manufacturing defects and technical support through authorized channels.
8. What is a High Speed Refrigerated Centrifuge?
A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.
9. Why is refrigeration important in centrifugation?
Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.
10. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?
Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
