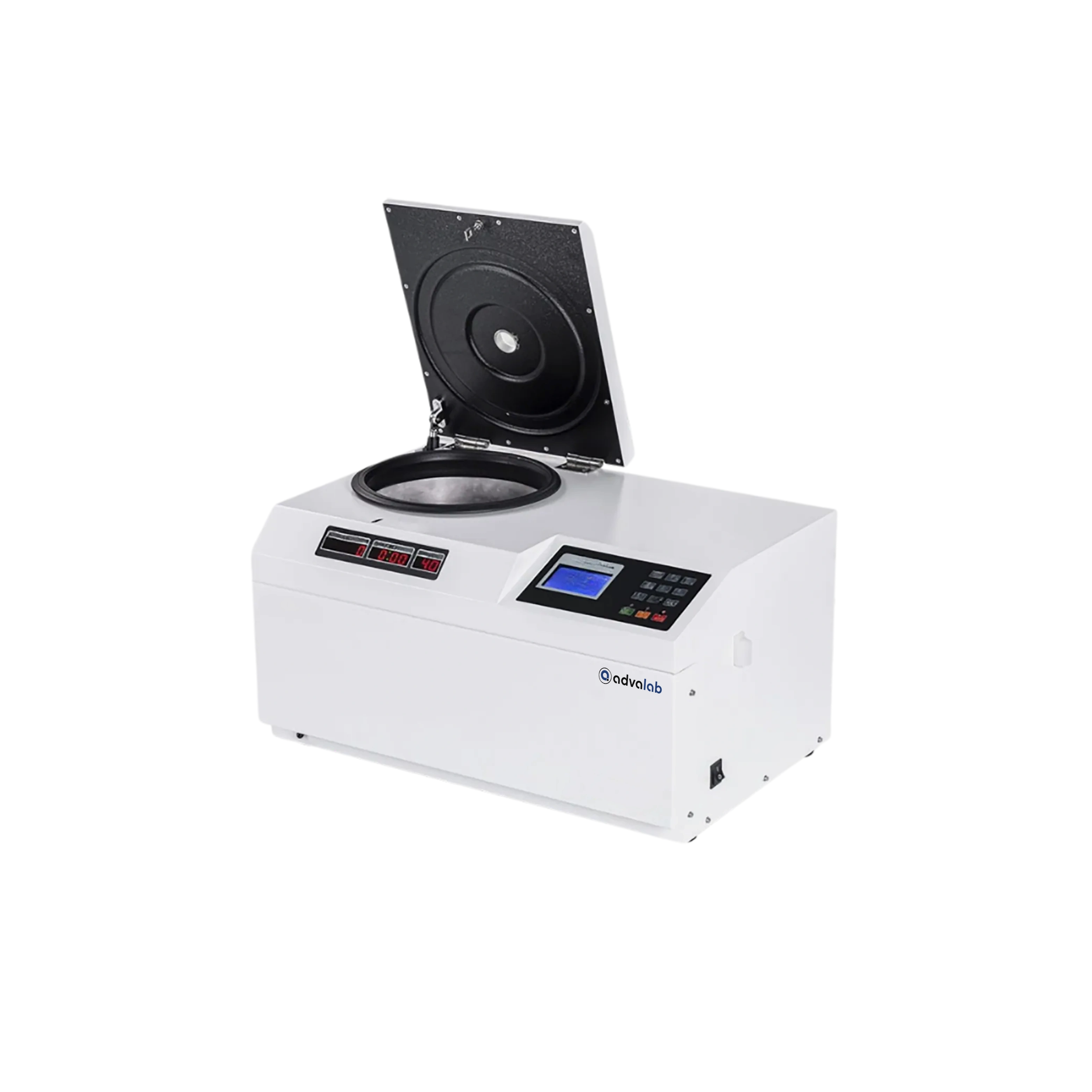

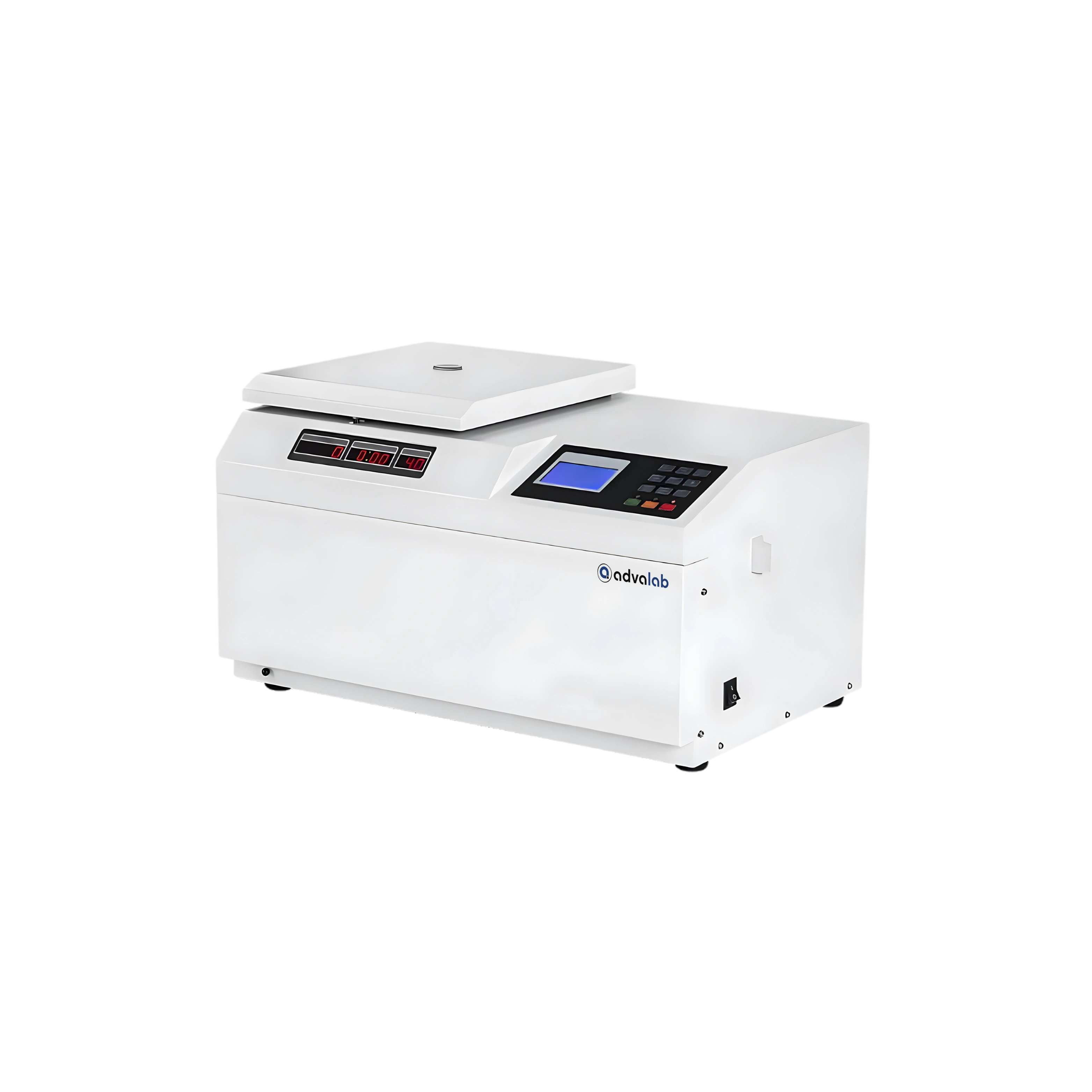

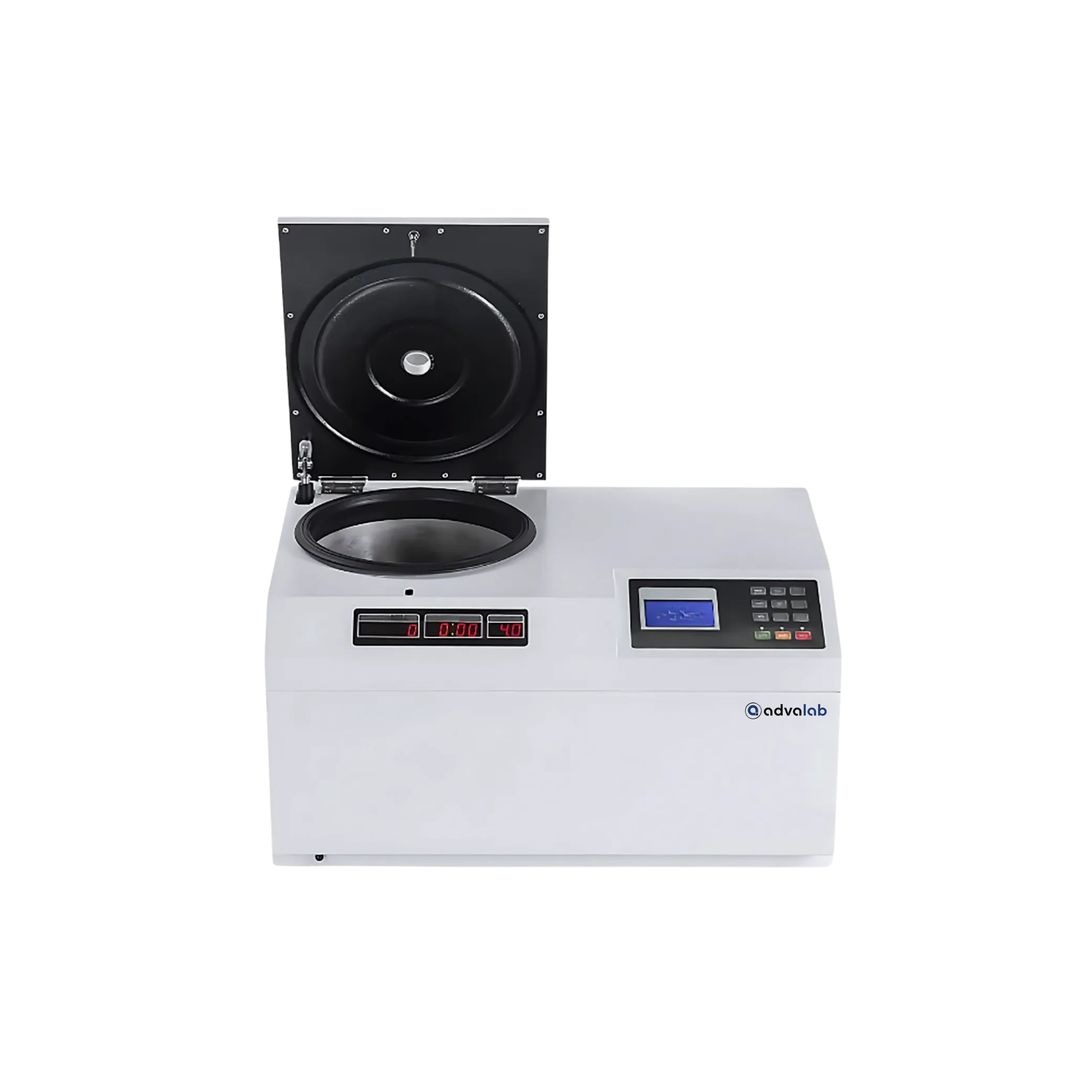

High-Speed Refrigerated Centrifuge ADHSC-517
High-Speed Refrigerated Centrifuge ADHSC-517
High-Speed Refrigerated Centrifuge ADHSC-517
High-Speed Refrigerated Centrifuge ADHSC-517
High-Speed Refrigerated Centrifuge ADHSC-517

High-Speed Refrigerated Centrifuge ADHSC-517

High Speed Refrigerated Centrifuge ADHSC-517 comes with a maximum speed of 16500 rpm for fast and efficient separation of sample. It delivers high-speed performance for rapid and efficient sample separation. The unit supports a variety of rotors and adapters for flexible sample processing. This centrifuge has a powerful cooling system for sensitive samples. Our High Speed Refrigerated Centrifuge is used in biochemistry, pharmaceuticals and research labs for rapid separation of small particles.


Maximum Speed 16500 rpm
Maximum RCF 21630 x g
Maximum Capacity 12 x 10 mL
Temperature Range -20°C to +40°C
Temperature Accuracy ±1°C
Available Rotors No.1, No.2, No.3, No.4
Speed Accuracy ±10 rpm
Time Setting 1 min to 99 hr 59 min / Pulse
Noise ≤60 dB(A)
Power Consumption 1000 W
Dimension 420 x 625 x 370 mm
Net Weight 53 kg
Gross Weight 65 kg
  • Door locking system
  • Automatic function
  • Calibration
  • Easy to clean
  • Stainless steel construction

Our High Speed Refrigerated Centrifuge ADHSC-517 is widely used in microbiology, pharmaceuticals and forensic science for efficient, temperature-controlled separation of biological sample.

Rotor Type

Capacity

Max Speed

Max RCF

Tube size

Fixed angle rotor 01

12×1.5/2.2ml

16500

19000

Φ11×42mm

Fixed angle rotor 02

12×5ml

15000

18270

Φ14×54mm

Fixed angle rotor 03

24×1.5/2.2ml

15000

21630

Φ11×42mm

Fixed angle rotor 04

12×10ml

12000

13310

Φ16x86mm

Fixed angle rotor 05

48×1.5/2.2ml

12000

15970

Φ11×42mm

High Speed Refrigerated Centrifuge ADHSC-517|Maximum Speed:16500 rpm|Maximum RCF:21630 x g
High Speed Refrigerated Centrifuge ADHSC-517|Door locking system|Automatic function

Frequently Asked Questions of High-Speed Refrigerated Centrifuge ADHSC-517

1. How easy is it to operate and maintain the High Speed Refrigerated Centrifuge ADHSC-517?

The centrifuge features an intuitive control panel with a digital display for easy operation and monitoring. Users can quickly set parameters like speed, time, and temperature. Maintenance is straightforward due to its user-friendly design and durable components. Routine checks and cleaning help ensure long-lasting performance. The machine also includes alerts for maintenance and error messages, aiding in smooth operation.

2. Is the High Speed Refrigerated Centrifuge ADHSC-517 suitable for different types of laboratory applications?

Yes, the High Speed Refrigerated Centrifuge ADHSC-517 is designed for a wide range of applications including molecular biology, biochemistry, clinical diagnostics, and pharmaceutical research. Its compatibility with various rotors and adapters makes it highly versatile. It can handle tubes, bottles, and microplates depending on the rotor used. The precise control over speed and temperature enhances its adaptability. This makes it an essential tool for any lab requiring high-speed, temperature-controlled centrifugation.

3. What safety features are included in the High Speed Refrigerated Centrifuge ADHSC-517?

The High Speed Refrigerated Centrifuge ADHSC-517 is equipped with essential safety features such as lid interlock, imbalance detection, and over-speed protection. These systems prevent accidents and protect users during operation. The lid remains locked while the rotor is spinning to avoid accidental exposure. Imbalance detection halts the operation if uneven loading occurs. Such safeguards ensure reliable and secure centrifugation in any laboratory environment.

4. How does the refrigeration system in High Speed Refrigerated Centrifuge ADHSC-517 benefit sample processing?

The advanced refrigeration system in the High Speed Refrigerated Centrifuge ADHSC-517 maintains stable low temperatures during high-speed operation. This is crucial for preserving the integrity of heat-sensitive biological and chemical samples. It prevents sample degradation caused by frictional heat. The temperature range is adjustable, offering flexibility for various protocols. Efficient cooling ensures consistent and reliable results throughout the centrifugation process.

5. What is the maximum speed and capacity of the High Speed Refrigerated Centrifuge ADHSC-517?

The High Speed Refrigerated Centrifuge ADHSC-517 offers a high maximum speed, allowing for efficient separation of samples in less time. It supports a variety of rotors to accommodate different tube sizes and capacities. With its robust design, it is ideal for processing both small and large sample volumes. This versatility makes it suitable for research labs, clinical diagnostics, and industrial use. The speed and rotor options ensure optimal performance for high-throughput tasks.

6. What power supply is required for the High Speed Refrigerated Centrifuge ADHSC-517?

The High Speed Refrigerated Centrifuge ADHSC-517 operates on a standard 220V/50Hz power supply, making it suitable for most laboratory electrical systems.

7. Can the High Speed Refrigerated Centrifuge ADHSC-517 be used for clinical diagnostic applications?

Yes, the High Speed Refrigerated Centrifuge ADHSC-517 is designed for clinical diagnostics, including blood sample separation, plasma preparation, and viral load testing.

8. How long can the High Speed Refrigerated Centrifuge ADHSC-517 run continuously?

The High Speed Refrigerated Centrifuge ADHSC-517 supports continuous runs up to 99 minutes or with a hold option for extended durations, depending on the application.

9. How is temperature maintained during high-speed operation in the High Speed Refrigerated Centrifuge ADHSC-517?

The High Speed Refrigerated Centrifuge ADHSC-517 uses advanced refrigeration with automatic temperature compensation to maintain a consistent internal environment even at high speeds.

10. What is a High Speed Refrigerated Centrifuge?

A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.

11. Why is refrigeration important in centrifugation?

Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.

12. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?

Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
