| Maximum Speed | 18000 rpm |
| Maximum RCF | 29684 × g |
| Maximum Capacity | 6 × 100 ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1 s to 99 h 59 m 59 s |
| Noise | ≤56 dB(A) |
| Power Consumption | 1200 W |
| Dimension | 420 × 520 × 360 mm |
| Weight | 56 kg |

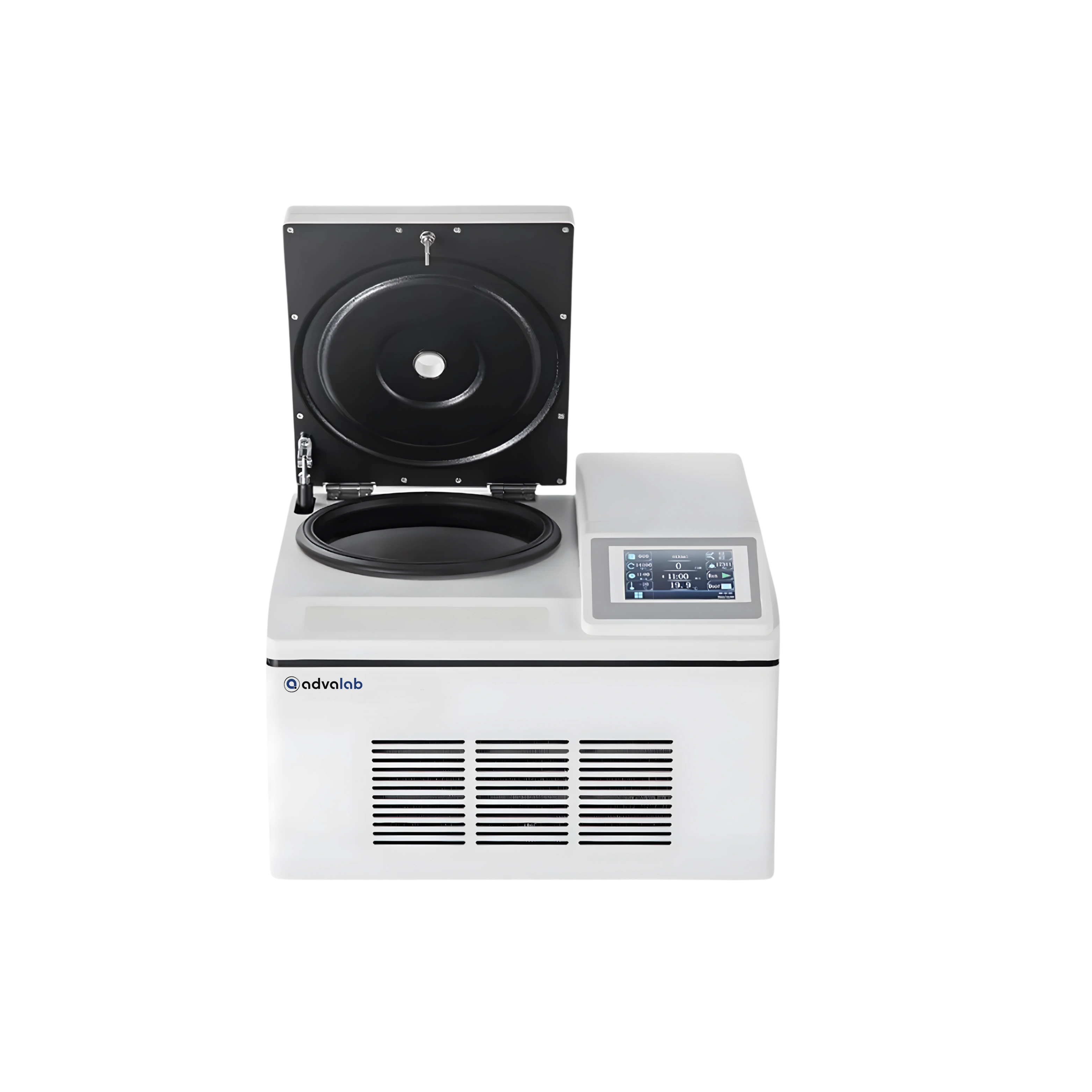

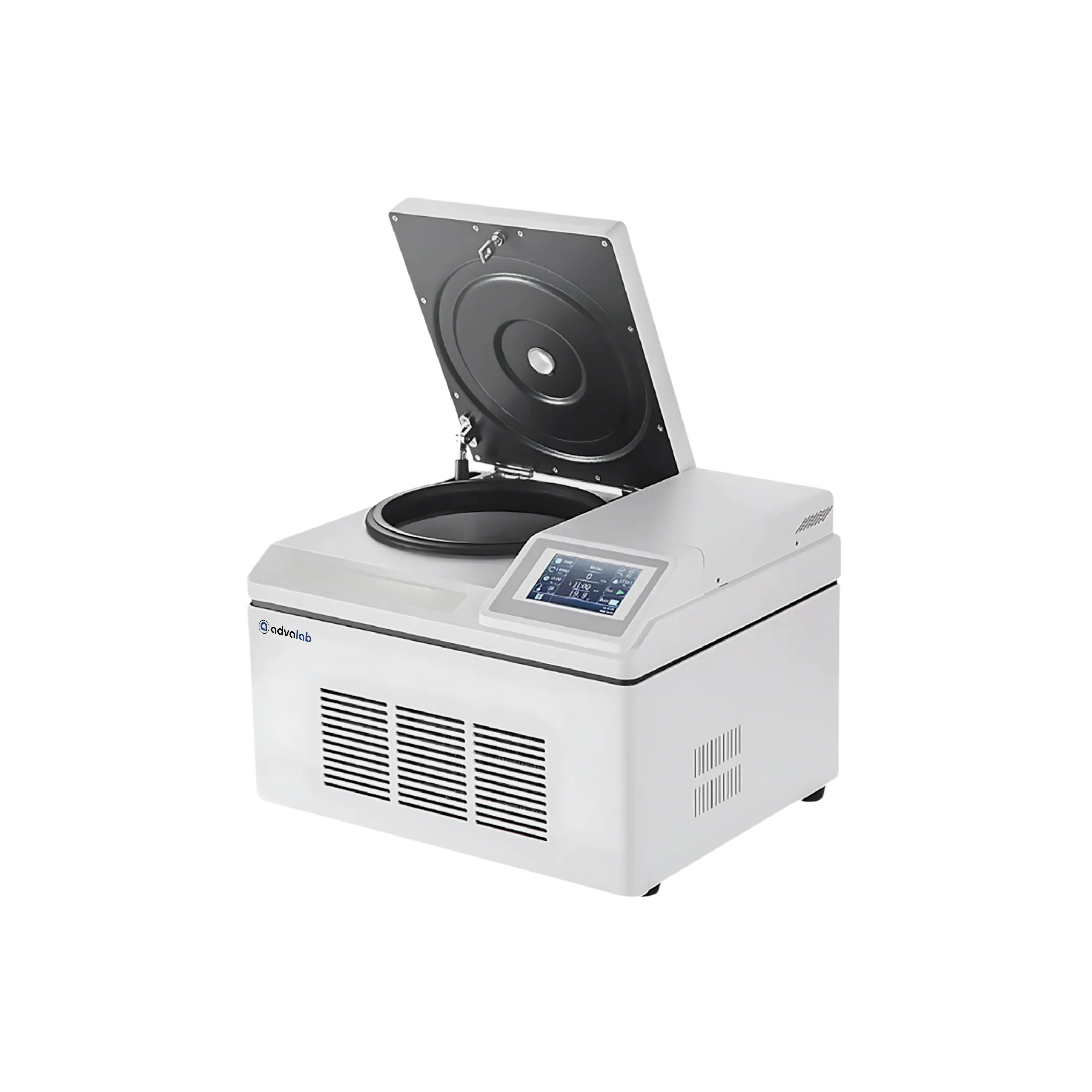

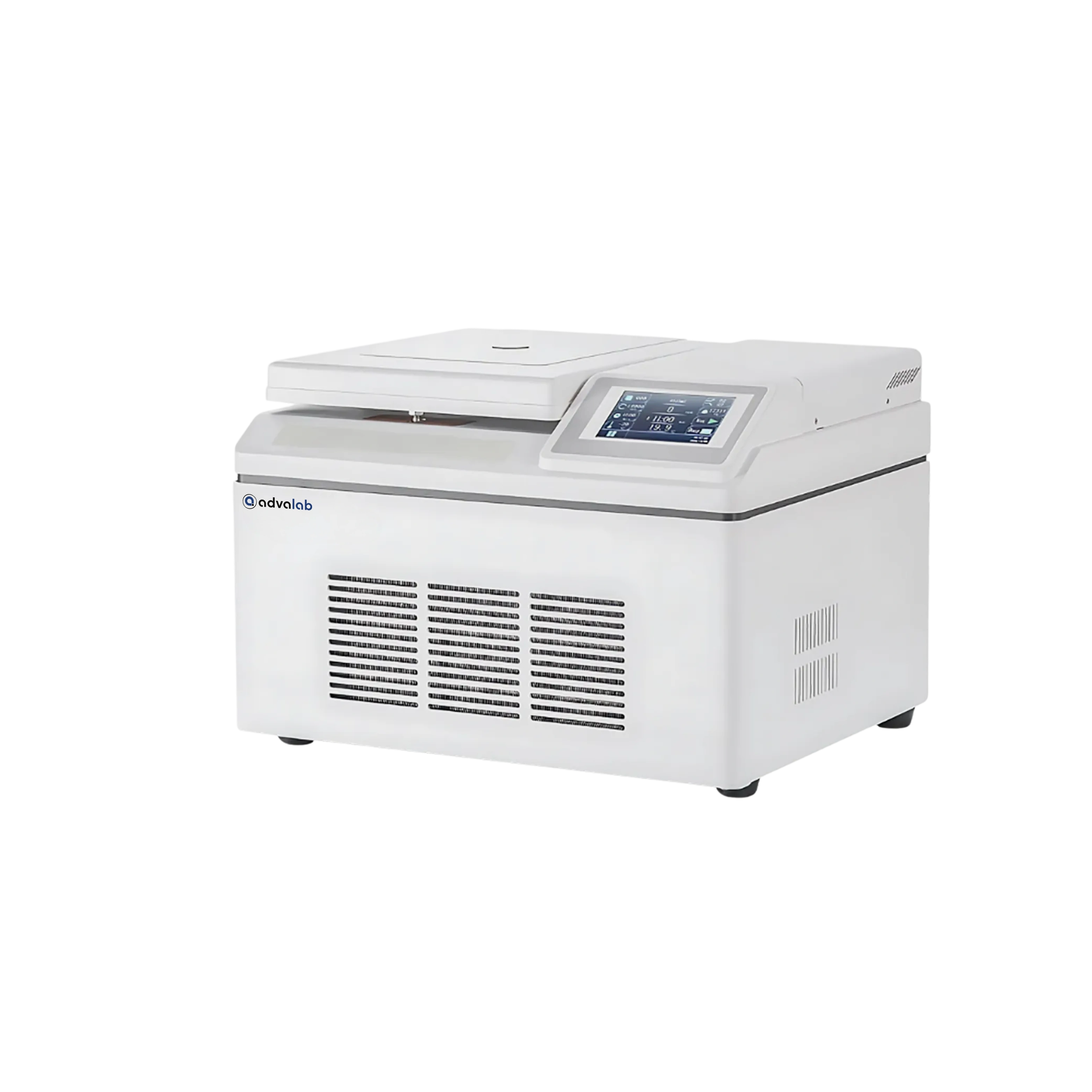

Our High Speed Refrigerated Centrifuge ADHSC-515 is used in genomic research for isolating proteins, in vaccine development for purifying viral particles and in environmental science for separating particulates.
Rotor Type | Capacity | Max Speed | Max RCF | Tube size |
Fixed angle rotor 01 | 12×1.5/2.2ml | 18000rpm | 22675×g | Φ11×42mm |
Fixed angle rotor 02 | 16x 5ml | 15000rpm | 21420×g | Φ14×54mm |
Fixed angle rotor 03 | 24×1.5ml/2.2ml | 17500rpm | 29684×g | Φ11×42mm |
Fixed angle rotor 04 | 12×10ml | 14500rpm | 19439×g | Φ16×86mm |
Fixed angle rotor 05 | 36×1.5/2.2ml | 14500rpm | 20356×g | Φ11×42mm |
Fixed angle rotor 06 | 6×50ml conical bottom | 12000rpm | 15712×g | Φ29×116mm |
Fixed angle rotor 07 | 6×50ml round bottom | 12000rpm | 15712×g | Φ29×111mm |
Fixed angle rotor 08 | 48×1.5/2.2ml | 12000rpm | 15793×g | Φ11×42mm |
Fixed angle rotor 09 | 4×100ml | 11000rpm | 13365×g | Φ38×123mm |
Fixed angle rotor 10 | 8×50ml conical bottom | 11000rpm | 14041×g | Φ29×116mm |
Fixed angle rotor 11 | 8×50ml round bottom | 11000rpm | 13365×g | Φ29×111mm |
Fixed angle rotor 12 | 12×15ml | 11000rpm | 13365×g | Φ17×121mm |
Fixed angle rotor 13 | 6×10ml | 16000rpm | 19004×g | Φ16×86mm |
Fixed angle rotor 14 | 8×15ml | 14000rpm | 17333×g | Φ17×121mm |
Fixed angle rotor 15 | 6×30ml | 14000rpm | 18472×g | Φ25.5×100mm |
Fixed angle rotor 16 | 8x0.2ml PCR strip | 13000rpm | 14643×g | - |
Fixed angle rotor 17 | 6x100ml | 9000rpm | 9771×g | Φ38x123mm |
Fixed angle rotor 18 | 24x2ml (frozen storage tube) | 15000rpm | 23419×g | Φ11.5x45mm |
Microplate rotor 01 | 2x2×48 well plate | 4000rpm | 1538×g | - |
1. What is the maximum speed and capacity of the What is the maximum speed and capacity of the ADHSC-515 centrifuge?
The High-Speed Refrigerated Centrifuge ADHSC-515 offers a maximum speed of up to 18000 rpm, suitable for high-speed separation tasks. It supports a wide range of rotors, accommodating various tube sizes and capacities. The centrifuge is designed for both micro and large-volume sample processing. This versatility makes it ideal for molecular biology, clinical labs, and pharmaceutical applications. Its performance ensures efficient separation of biological, chemical, or clinical samples.
2. Does the High-Speed Refrigerated Centrifuge ADHSC-515 include temperature control features?
Yes, the High-Speed Refrigerated Centrifuge ADHSC-515 is equipped with an advanced refrigeration system that allows precise temperature control typically ranging from -20°C to +40°C. This feature is essential for temperature-sensitive samples like enzymes, blood, and proteins. The system maintains stable cooling even during high-speed runs. It ensures sample integrity and reduces heat buildup during prolonged operation. This makes the unit reliable for long-duration, cold centrifugation.
3. What safety features are integrated into High-Speed Refrigerated Centrifuge ADHSC-515?
The High-Speed Refrigerated Centrifuge ADHSC-515 includes multiple safety features such as lid interlock, imbalance detection, and over-speed protection. These features help prevent accidents and protect both the user and the device. The automatic rotor recognition function enhances operational safety by identifying compatible rotors. Emergency lid release and error display further improve user convenience. Overall, it meets international safety standards for laboratory equipment.
4. Is the High-Speed Refrigerated Centrifuge ADHSC-515 user-friendly and programmable?
Yes, this centrifuge comes with a digital control panel featuring a large LCD display for easy parameter setting and monitoring. It allows users to program speed, time, temperature, and acceleration/deceleration rates. The system can store multiple user-defined programs for repeated use. Its intuitive interface ensures ease of operation for both beginners and experienced lab technicians. The design supports efficient workflow in fast-paced laboratory environments.
5. What are the typical applications of the High-Speed Refrigerated Centrifuge ADHSC-515?
The High-Speed Refrigerated Centrifuge ADHSC-515 is widely used in fields such as molecular biology, biochemistry, pharmaceutical research, clinical diagnostics, and biotechnology. It is suitable for applications involving cell pelleting, protein purification, DNA/RNA extraction, and virus isolation. The precise control and high-speed operation make it ideal for demanding protocols. It’s also used in research institutions and hospitals for routine and specialized tests. Its performance and flexibility make it a valuable asset in any modern lab.
6. What is a High Speed Refrigerated Centrifuge?
A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.
7. Why is refrigeration important in centrifugation?
Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.
8. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?
Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
