| Max Speed | 18000 rpm |
| Max RCF | 31405 x g |
| Max Capacity | 4 x 250 ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1 s to 99 h 59 m 59 s |
| Noise | ≤ 60 dB(A) |
| Power Consumption | 1800 W |
| Dimension | 680 x 620 x 840 mm |
| Weight | 134 kg |

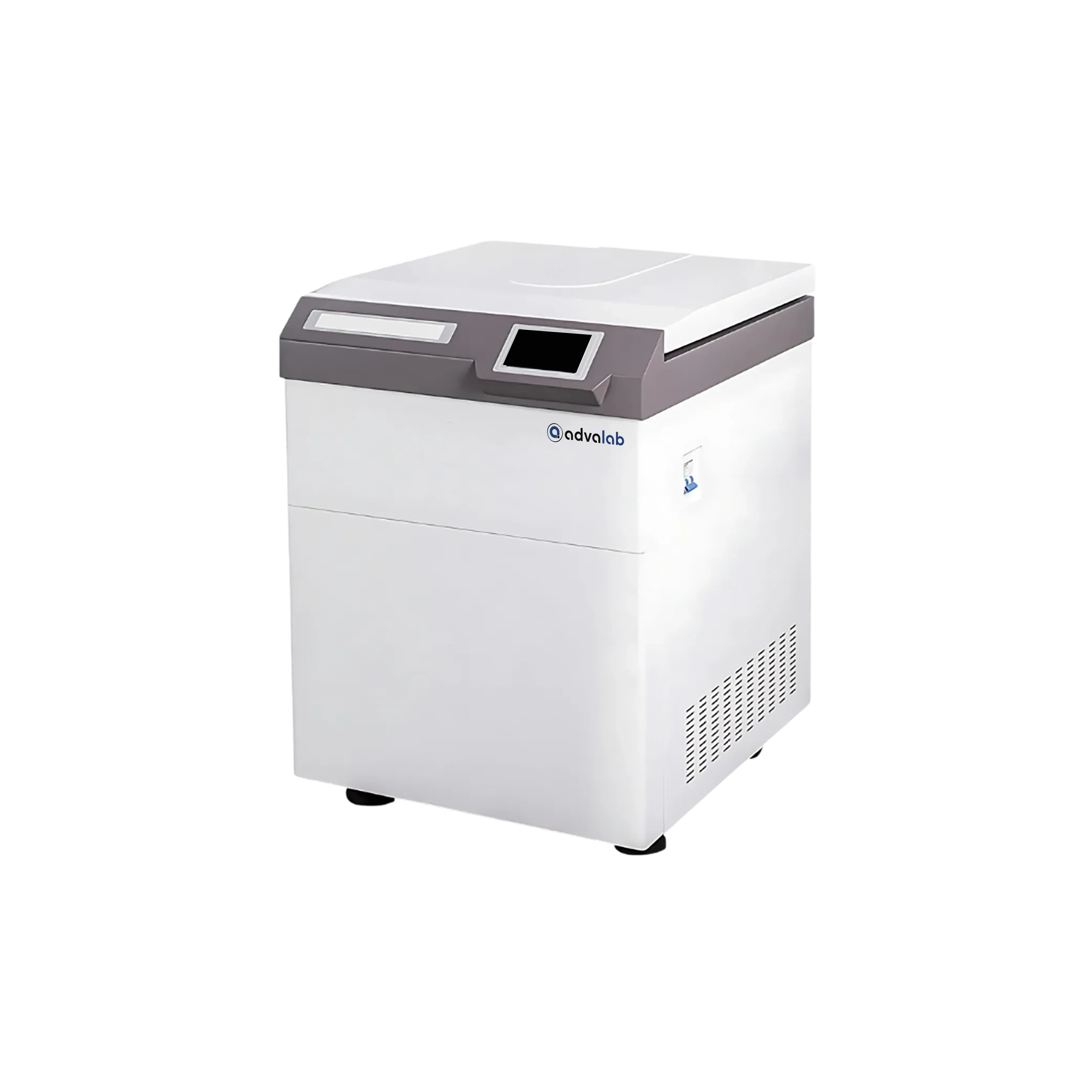

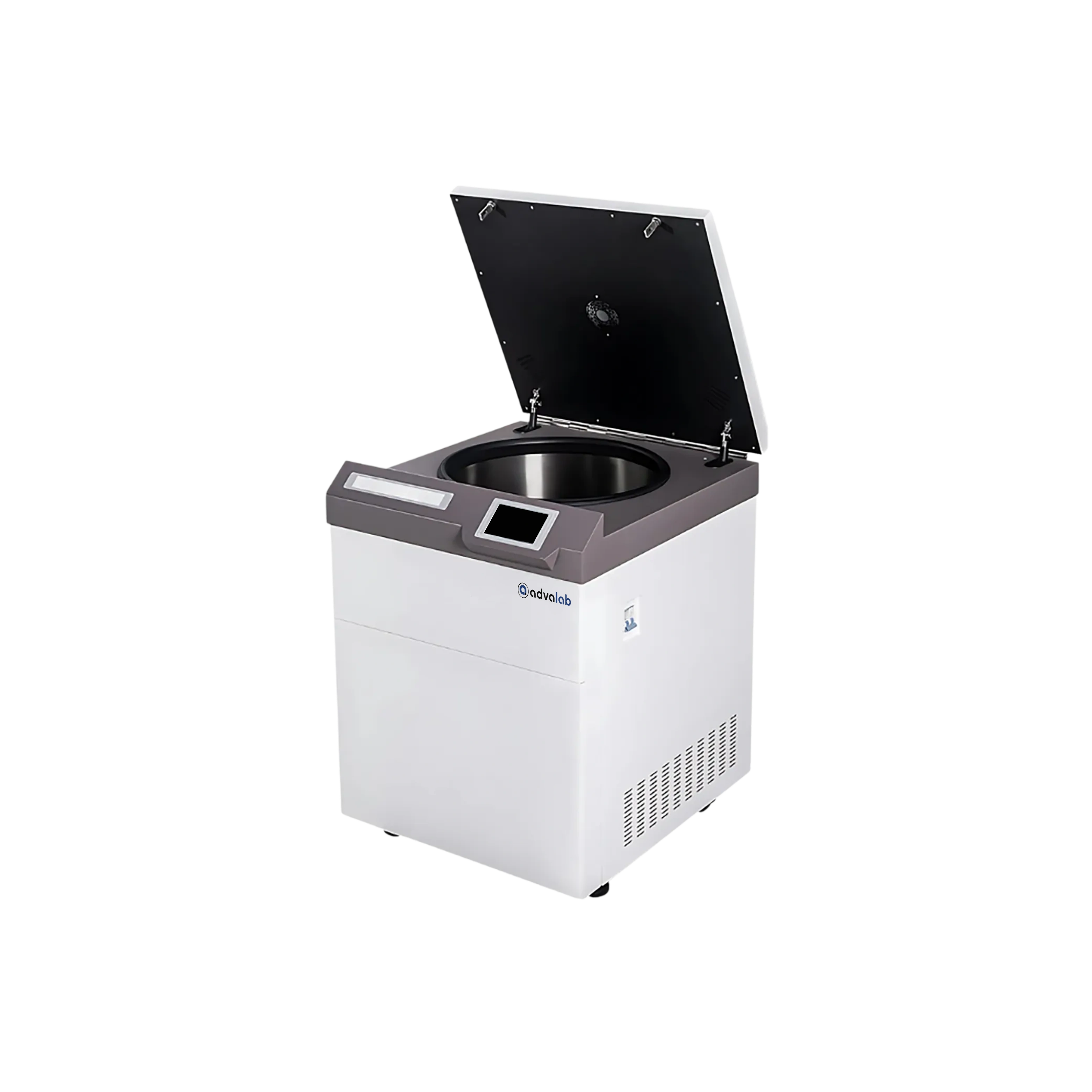

Our High Speed Refrigerated Centrifuge ADHSC-501 is used in molecular biology, biochemistry and pharmaceutical research for rapid, temperature-controlled separation of biological and chemical samples.
Rotor Type | Capacity | Max Speed | Max RCF | Tube size |
Fixed angle rotor 01 | 12×1.5/2.2ml | 18000rpm | 22675×g | Φ11×42mm |
Fixed angle rotor 02 | 12×5ml | 16000rpm | 20807×g | Φ14×54mm |
Fixed angle rotor 03 | 24×1.5/2.2ml | 16000rpm | 24814×g | Φ11×42mm |
Fixed angle rotor 04 | 24×1.5/2.2ml | 18000rpm | 31405×g | Φ11×42mm |
Fixed angle rotor 05 | 12×10ml | 15000rpm | 20803×g | Φ16×86mm |
Fixed angle rotor 06 | 6×50ml round bottom | 13000rpm | 18440×g | Φ29×111mm |
Fixed angle rotor 07 | 6×50ml conical bottom | 13000rpm | 18440×g | Φ29×116mm |
Fixed angle rotor 08 | 4×100ml | 10000rpm | 11045×g | Φ38×123mm |
Fixed angle rotor 09 | 8×50ml round bottom | 10000rpm | 11045×g | Φ29×111mm |
Fixed angle rotor10 | 12×15ml conical bottom | 12000rpm | 15906×g | Φ17×121mm |
Fixed angle rotor 11 | 6×10ml | 16000rpm | 19004×g | Φ16×86mm |
Fixed angle rotor 12 | 8×15ml | 14000rpm | 17333×g | Φ17×121mm |
Fixed angle rotor 13 | 12×50ml | 10000rpm | 14310×g | - |
Microplate rotor 01 | 2×3×96 well plate | 4000rpm | 2003×g | - |
Swing out rotor 01 | 4×250ml | 4500rpm | 3735×g | Φ63×121mm |
1. In which laboratory applications is the Low-Speed Centrifuge ADLSC-501 commonly used?
The Low-Speed Centrifuge ADLSC-501 is widely used in clinical labs, educational institutions, research centers, and biotechnology labs. It is especially effective for blood sample separation, serum preparation, urine sedimentation, and low-speed cell harvesting. Its reliability and easy operation make it ideal for routine lab work. This model is also appreciated for its quiet operation and compact design, which saves bench space. Overall, it's a dependable tool for everyday centrifugation needs.
2. What safety features are included in the High Speed Refrigerated Centrifuge ADHSC-501?
The High Speed Refrigerated Centrifuge ADHSC-501 is designed with multiple built-in safety features including lid interlock, imbalance detection, and over-speed protection. The lid remains locked during operation and only opens once the rotor has stopped completely. Imbalance detection prevents damage by automatically stopping the centrifuge if uneven loads are detected. Over-speed protection ensures the rotor does not exceed safe operational limits.
3. Is the High Speed Refrigerated Centrifuge ADHSC-501 easy to operate and program?
Yes, the High Speed Refrigerated Centrifuge ADHSC-501 features a user-friendly touchscreen interface that allows intuitive control over all parameters such as speed, time, temperature, and acceleration/deceleration rates. Users can create and save multiple programs for repeated runs, saving time and improving consistency. Real-time displays show operating status and remaining run time. Its programmable functions reduce manual errors and increase reproducibility. The interface is designed to be accessible even for first-time users.
4. What kind of rotors and accessories are compatible with High Speed Refrigerated Centrifuge ADHSC-501?
The High Speed Refrigerated Centrifuge ADHSC-501 supports a wide range of rotors, including fixed-angle and swing-out rotors, making it compatible with tubes, bottles, microplates, and PCR strips. This flexibility allows it to be used across multiple disciplines such as biotechnology, clinical diagnostics, and pharmaceuticals. Rotors are designed for easy loading and unloading, and many are autoclavable for sterilization. Quick-change rotor systems reduce downtime between procedures.
5. What types of samples can be processed using the High Speed Refrigerated Centrifuge ADHSC-501?
The High Speed Refrigerated Centrifuge ADHSC-501 is suitable for processing a wide variety of biological, chemical, and clinical samples including blood, plasma, serum, DNA/RNA, proteins, cell lysates, and microorganisms. Its high-speed capability and precise temperature control make it ideal for sensitive molecular biology procedures. It’s commonly used in applications such as pelletizing cells, isolating nucleic acids, separating lipoproteins, and purifying viruses. The adaptable rotor system allows for handling of tubes of different sizes and types.
6. How does the High Speed Refrigerated Centrifuge ADHSC-501 ensure temperature stability during operation?
The High Speed Refrigerated Centrifuge ADHSC-501 uses a high-efficiency refrigeration system that actively monitors and adjusts the chamber temperature throughout the spin cycle. This ensures that the internal environment remains within the set temperature range, even during high-speed runs that generate heat. The system automatically compensates for thermal buildup, protecting sample integrity. Pre-cooling functionality allows the chamber to reach the desired temperature before loading samples.
7. What is a High Speed Refrigerated Centrifuge?
A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.
8. Why is refrigeration important in centrifugation?
Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.
9. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?
Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
