| Maximum Speed | 21,000 rpm |
| Maximum RCF | 31,405 × g |
| Maximum Capacity | 4 × 750 ml |
| Temperature Range | -20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Speed Accuracy | ±10 rpm |
| Time Setting | 1 second to 99 hours 59 minutes 59 seconds |
| Noise Level | ≤56 dB(A) |
| Power Consumption | 1500 W |
| Dimensions (W x D x H) | 600 x 680 x 420 mm |
| Net Weight | 108 kg |
| Gross Weight (With rotors) | 125 Kg |

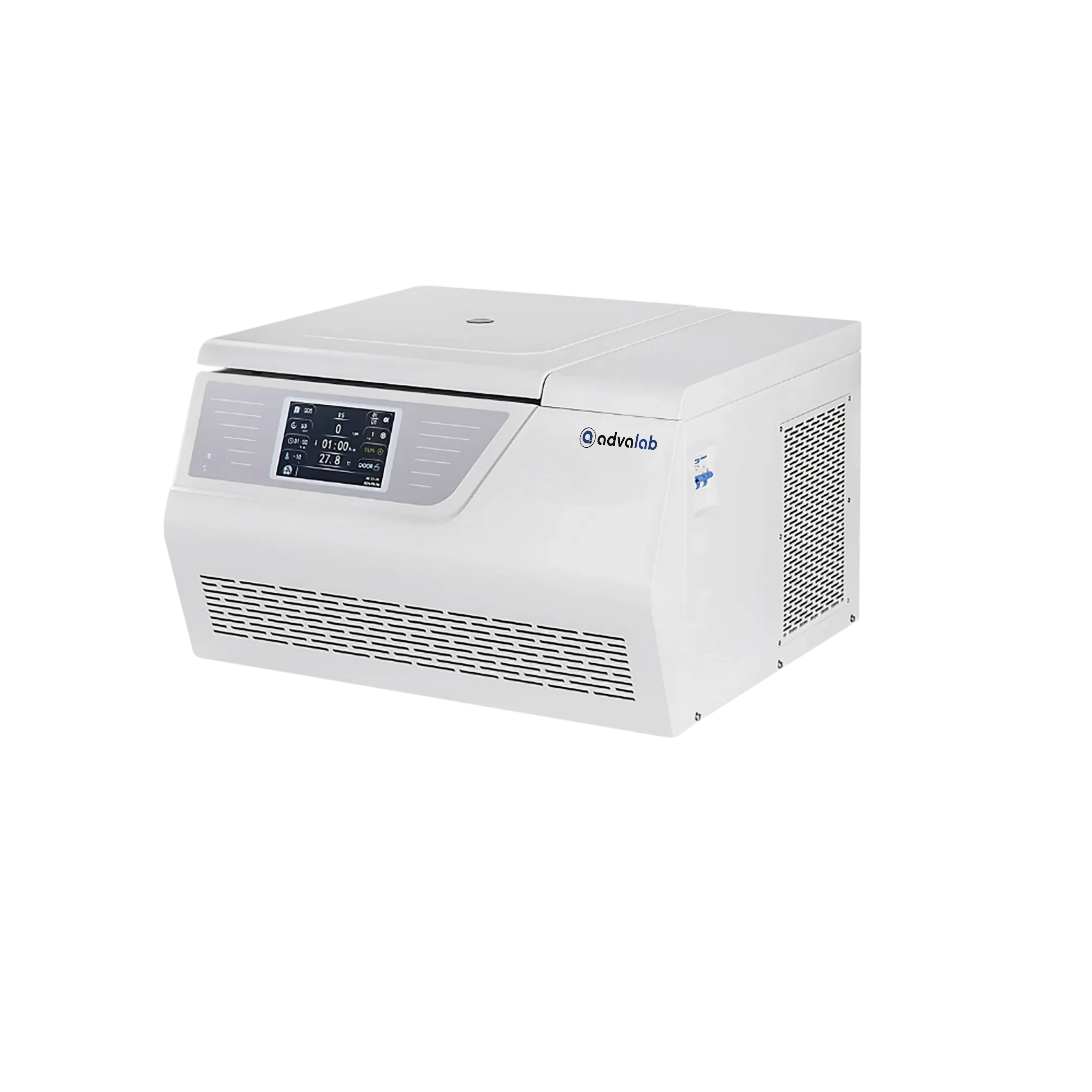

Our High Speed Refrigerated Centrifuge ADHSC-509 is used in genomic research for isolating proteins, in vaccine development for purifying viral particles and in environmental science for separating particulates.
Rotor Type | Capacity | Max Speed | Max RCF | Tube size |
Fixed angle rotor 01 | 12x1.5/2.2ml | 23000rpm | 37023xg | 11x42mm |
Fixed angle rotor 02 | 12x5ml | 18000rpm | 26334xg | 14x54mm |
Fixed angle rotor 03 | 24x1.5/2.2ml | 16500rpm | 26389xg | 11x42mm |
Fixed angle rotor 04 | 24x1.5/2.2ml (aerosol tight) | 18000rpm | 31405xg | 11x42mm |
Fixed angle rotor 05 | 12x10ml | 15500rpm | 22213xg | 16x86mm |
Fixed angle rotor 06 | 36x1.5/2.2ml | 15500rpm | 21784xg | 11x42mm |
Fixed angle rotor 07 | 6x50ml (conical bottom) | 13000rpm | 18440xg | 29x116mm |
Fixed angle rotor 08 | 6x50ml (round bottom) | 13500rpm | 19886xg | 29x111mm |
Fixed angle rotor 09 | 48x1.5/2.2ml | 13000rpm | 18535xg | 11x42mm |
Fixed angle rotor 10 | 4x100ml | 12000rpm | 15906xg | 38x123mm |
Fixed angle rotor 11 | 8x50ml (conical bottom) | 12000rpm | 16710xg | 29x116mm |
Fixed angle rotor 12 | 8x50ml (round bottom) | 12000rpm | 15906xg | 29x111mm |
Fixed angle rotor 13 | 12x15ml | 13000rpm | 18667xg | 17x121mm |
Fixed angle rotor 14 | 6x100ml | 10000rpm | 12063xg | 38x123mm |
Fixed angle rotor 15 | 8x15ml | 14500rpm | 18593xg | 17x121mm |
Fixed angle rotor 16 | 12x50ml (conical bottom) | 10000rpm | 14310xg | 29x116mm |
Swing-out rotor 01 | 2x3x96 well plate | 4000rpm | 2003xg | 128x87x60mm |
Swing-out rotor 02 | 4x2x96 well plate | 4200rpm | 3551xg | 128x87x60mm |
Swing-out rotor 03 | 4x250ml | 4500rpm | 3735xg | 63x121mm |
Swing-out rotor 04 | Adapter 8x50ml in 4x250ml | 4500rpm | 3735xg | 29.5x116mm |
Adapter | Capacity | Max Speed | Max RCF | Tube size |
Adapter 01 | 20x15ml in 4x250ml | 4500rpm | 3735xg | 17x121mm |
Adapter 02 | 36x10ml in 4x250ml | 4500rpm | 3735xg | 16.5x86 110mm |
Adapter 03 | 40x7ml (blood tube) in 4x250ml | 4500rpm | 3735xg | 13x100mm |
Adapter 04 | 48x2-7ml (blood tube) | 4000rpm | 2951xg | 13x75 100mm 13x75 100mm |
Adapter 05 | 64x2-7ml (blood tube) | 4000rpm | 2951xg | 13x75 100mm |
Adapter 06 | 4x500ml | 4200rpm | 3551xg | 80x137mm |
Adapter 07 | 16x50ml (normal) (aerosol tight) in 4x500ml | 4200rpm | 3551xg | 29x116mm |
Adapter 08 | 36x15ml (normal) (aerosol tight) in 4x500ml | 4200rpm | 3551xg | 17x121mm |
Adapter 09 | 76x7ml (normal) (aerosol tight) in 4x500ml | 4200rpm | 3551xg | 13x75 100mm |
Adapter 10 | 20x50ml | 4200rpm | 3551xg | 29.5x116mm |
Adapter 11 | 40x15ml | 4200rpm | 3551xg | 17x121mm |
Adapter 12 | 80x10ml (blood tube) | 4200rpm | 3551xg | 15x100mm |
Adapter 13 | 112x2-7ml (blood tube) | 4200rpm | 3551xg | 13x75 100mm |
Adapter14 | 100x1.5ml | 4200rpm | 3551xg | 11x42mm |
Adapter 15 | 148x5ml (RIA tube) | 4200rpm | 3551xg | 13x75 100mm |
Adapter 16 | 96x2-7ml (blood tube) | 4200rpm | 3551xg | 13x75 100mm |
Adapter 17 | 4x750ml | 4000rpm | 3500xg | 100x141mm |
Adapter 18 | Adapter 12x100ml in 4x750ml | 4000rpm | 3500xg | 38x114mm |
Adapter 19 | Adapter 20x50ml in 4x750ml | 4000rpm | 3500xg | 29x116mm |
Adapter 20 | Adapter 28x50ml in 4x750ml | 4000rpm | 3500xg | 29x116mm |
Adapter 21 | Adapter 56x15ml in 4x750ml | 4000rpm | 3500xg | 17x121mm |
Adapter 22 | Adapter 96x7ml (Blood tube) in 4x750ml | 4000rpm | 3500xg | 13x75 100mm |
1. How does the High Speed Refrigerated Centrifuge ADHSC-509 ensure temperature stability during operation?
The High Speed Refrigerated Centrifuge ADHSC-509 uses a high-efficiency refrigeration system that actively monitors and adjusts the chamber temperature throughout the spin cycle. This ensures that the internal environment remains within the set temperature range, even during high-speed runs that generate heat. The system automatically compensates for thermal buildup, protecting sample integrity. Pre-cooling functionality allows the chamber to reach the desired temperature before loading samples.
2. What types of samples can be processed using the High Speed Refrigerated Centrifuge ADHSC-509?
The High Speed Refrigerated Centrifuge ADHSC-509 is suitable for processing a wide variety of biological, chemical, and clinical samples including blood, plasma, serum, DNA/RNA, proteins, cell lysates, and microorganisms. Its high-speed capability and precise temperature control make it ideal for sensitive molecular biology procedures. It’s commonly used in applications such as pelletizing cells, isolating nucleic acids, separating lipoproteins, and purifying viruses. The adaptable rotor system allows for handling of tubes of different sizes and types.
3. What kind of rotors and accessories are compatible with High Speed Refrigerated Centrifuge ADHSC-509?
The High Speed Refrigerated Centrifuge ADHSC-509 supports a wide range of rotors, including fixed-angle and swing-out rotors, making it compatible with tubes, bottles, microplates, and PCR strips. This flexibility allows it to be used across multiple disciplines such as biotechnology, clinical diagnostics, and pharmaceuticals. Rotors are designed for easy loading and unloading, and many are autoclavable for sterilization. Quick-change rotor systems reduce downtime between procedures.
4. What safety features are included in the High Speed Refrigerated Centrifuge ADHSC-509?
The High Speed Refrigerated Centrifuge ADHSC-509 is designed with multiple built-in safety features including lid interlock, imbalance detection, and over-speed protection. The lid remains locked during operation and only opens once the rotor has stopped completely. Imbalance detection prevents damage by automatically stopping the centrifuge if uneven loads are detected. Over-speed protection ensures the rotor does not exceed safe operational limits.
5. Does the High-Speed Refrigerated Centrifuge ADHSC-509 have temperature control features?
Yes, the High-Speed Refrigerated Centrifuge ADHSC-509 has a temperature control range from -20°C to +40°C, maintaining sample integrity during sensitive procedures.
6. What types of rotors are compatible with the High-Speed Refrigerated Centrifuge ADHSC-509?
The High-Speed Refrigerated Centrifuge ADHSC-509 is compatible with multiple fixed-angle and swing-out rotors, allowing it to handle a wide range of tube sizes and applications.
7. What is a High Speed Refrigerated Centrifuge?
A High Speed Refrigerated Centrifuge is a laboratory instrument that combines high rotational speeds with temperature control to efficiently separate biological samples while preserving their integrity. It is essential for processing heat-sensitive samples by preventing thermal degradation during centrifugation. These centrifuges are widely used in molecular biology, clinical diagnostics, and biochemistry labs.
8. Why is refrigeration important in centrifugation?
Refrigeration helps maintain low temperatures during centrifugation, preventing heat buildup that can degrade temperature-sensitive samples like proteins, enzymes, and nucleic acids. It also minimizes enzymatic activity and preserves the biological function and structure of delicate molecules. This ensures accurate and reliable experimental results.
9. Can the High Speed Refrigerated Centrifuge maintain temperature during the entire run?
Yes, the High Speed Refrigerated Centrifuge system continuously cools the rotor chamber to maintain the set temperature throughout the centrifugation process. This ensures that sensitive samples remain stable and protected from heat-induced damage. Consistent temperature control is critical for reproducible and accurate experimental results.
